BLANCO INMOTION Tray Transport Trolley
TTW-F/FPK 16-105/115 ESZE/DSZE/ESZG/DSZG/ESEU/DSEU,
TTW-F/FPK 20-105/115 ESZE/DSZE/ESZG/DSZG/ESEU/DSEU,
TTW-F/FPK 24-105/115 ESDE/DSDE/ESDG/DSDG,
TTW-F/FPK 30-105/115 ESDE/DSDE/ESDG/DSDG,
TTW-F 32-105/115 ESZU/DSZU,
TTW-F 40-105/115 ESZU/DSZU
Operating Manual
BA 154 315 -en- 3.1-12/11
Advertisement
Table of Contents
Related Manuals for Blanco INMOTION TTW-F 16-105 ESZE
Summary of Contents for Blanco INMOTION TTW-F 16-105 ESZE

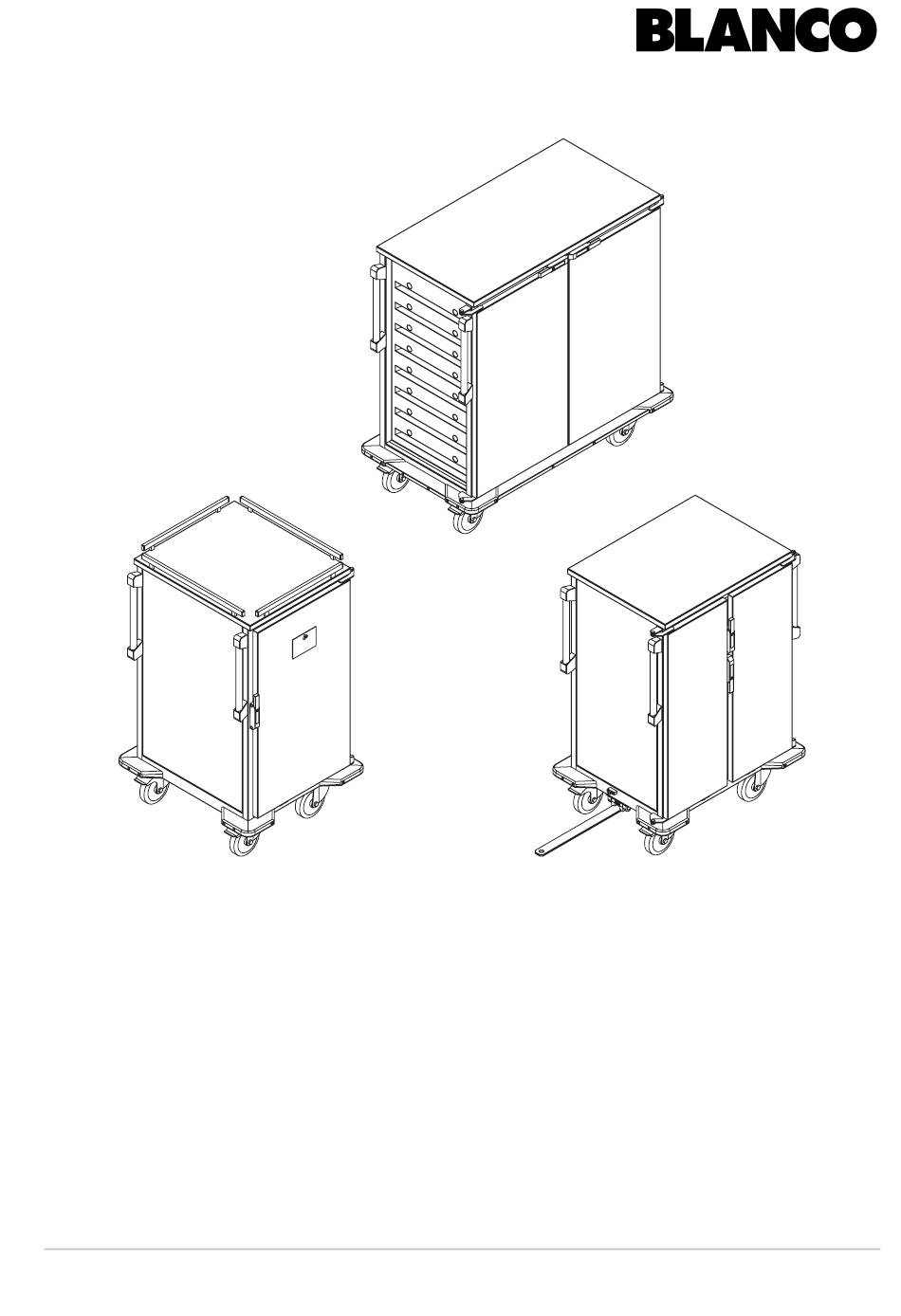

- Page 1 BLANCO INMOTION Tray Transport Trolley TTW-F/FPK 16-105/115 ESZE/DSZE/ESZG/DSZG/ESEU/DSEU, TTW-F/FPK 20-105/115 ESZE/DSZE/ESZG/DSZG/ESEU/DSEU, TTW-F/FPK 24-105/115 ESDE/DSDE/ESDG/DSDG, TTW-F/FPK 30-105/115 ESDE/DSDE/ESDG/DSDG, TTW-F 32-105/115 ESZU/DSZU, TTW-F 40-105/115 ESZU/DSZU Operating Manual BA 154 315 -en- 3.1-12/11...
- Page 2 BLANCO INMOTION Tray Transport Trolley General Information Copyright These instructions are protected by copyright. None of this information may be reproduced, distributed, used to the advantage of our competitors or made accessible to third parties either completely or in part.
-
Page 3: Table Of Contents
BLANCO INMOTION Tray Transport Trolley Contents About this product Application ..........1 Conditions of use . - Page 4 Menu cards ..........33 BLANCO microfibre cleaning cloth ......33 BLANCOPOLISH stainless steel cleaning and care agent .
-
Page 5: About This Product
BLANCO INMOTION Tray Transport Trolley About this product Application The BLANCO INMOTION tray transport trolley is used to transport food on Gastronorm, Euronorm and compact trays. The BLANCO INMOTION tray transport trolley is not suitable for transporting food not covered or for cooling food or keeping it hot for longer periods. - Page 6 BLANCO INMOTION Tray Transport Trolley The unit designation contains an abbreviation of the unit model. TTW stands for tray transport trolley, F for hinged door, PK for passive cooling. The subsequent numbers and letters have the following meaning: The first and second digit refer to the tray capacity (16, 20, 24, 30, 32, 40 trays), e.g.
-
Page 7: Standard Model
Two steering castors with castor brakes and two fixed castors (units with two or three compartments) Castor arrangement "A": castors at the unit corners Options and accessories The BLANCO INMOTION tray transport trolley is available with the following optional equipment: Stainless-steel, double-walled unit body All-around railing... -
Page 8: Safety
BLANCO INMOTION Tray Transport Trolley Safety General Information The unit has been built using state-of-the-art technology. Accordingly, all the requirements necessary for safe operation have been fulfilled. Additional dangers do nevertheless exist when the unit is operating. The safety precautions and warnings in these operating instructions are there to help you protect yourself against these sources of danger. - Page 9 BLANCO INMOTION Tray Transport Trolley If damage is present, secure the unit against accidental use and have repairs carried out immediately at one of the following locations: In-house, by BLANCO-trained experts Externally, by BLANCO-trained customer service BLANCO Service Always secure the unit from rolling away by setting the castor brakes. The unit can cause injuries and damage to property if allowed to roll away accidentally.
-
Page 10: Cleaning And Care
In-house, by BLANCO-trained experts Externally, by BLANCO-trained customer service BLANCO Service Repairs during the warranty period must be reported to BLANCO and commissioned by BLANCO before starting. The warranty will be invalidated if the unit is repaired by anyone else or without being commissioned. -
Page 11: Transport
Retain the unit and notify BLANCO of the damages with the waybill. – or – Do not accept the unit and return it to BLANCO via the carrier. This procedure will ensure correct processing of claims. If transport damage is reported later the consignee must provide evidence of this. -
Page 12: Operation
BLANCO INMOTION Tray Transport Trolley Operation Unit overview (1) Railing (optional) (2) Push handle (optional) (3) Tip safety (only on model for Euronorm and Gastronorm trays) (4) Support ledge (5) Unit door: locked at side wall (6) Corner guard (7) Fixed castor (for unit with only one compartment: steering castors) -
Page 13: Opening A Unit Door
BLANCO INMOTION Tray Transport Trolley Opening a unit door Caution! Hand can be pinched! Your hands can be pinched to the side walls and injured when locking the unit door. Do not put your hand between the unit door and the unit or hold it there when locking. -
Page 14: Closing The Unit Door
BLANCO INMOTION Tray Transport Trolley Closing the unit door Caution! Hand can be pinched! Your hands can be pinched and injured when the unit door is being closed. Do not put your hand between the unit door and the unit or hold it there when closing. -
Page 15: Loading The Unit
BLANCO INMOTION Tray Transport Trolley Pre-cooled eutectic plates Empty condesation water catch tray mounted in dividing wall Open the unit doors. Section "Opening a unit door" on page 9. Slide eutectic plates into dividing wall from bottom upward with short side first. -
Page 16: Moving The Unit To A New Location
BLANCO INMOTION Tray Transport Trolley Pull the locking cotter pin out of the bolt (the locking cotter pin is attached to the trolley via a chain). Fold the hitch down and guide it under the bolt of the other trolley. - Page 17 BLANCO INMOTION Tray Transport Trolley Warning! Limited field of vision! When pushing the unit, a person in front of the unit can be overlooked and injured. The unit or an object before the unit can be damaged due to limited field of vision.
-
Page 18: Traversing Ramps, Recesses, Slanted Surfaces
BLANCO INMOTION Tray Transport Trolley Traversing ramps, recesses, Two people slanted surfaces Load the unit from the bottom up when loading partially Warning! The trolley can tip! The unit can tip over when traversing a slanted surface. Never move the unit across a surface (e.g. ramp) with an incline >10°. -
Page 19: Keeping Food Warm
BLANCO INMOTION Tray Transport Trolley Unit model with passive cooling In combination with pre-cooled eutectic plates (coolant accumulators), the unit can be used for the short-term refrigeration of food. The unit is in no way suitable for long-term refrigeration of food. Comply with the respective standards. -
Page 20: Shutting Down
BLANCO INMOTION Tray Transport Trolley Shutting down Shutting unit down Danger! Danger of children being locked in! Children cannot open closed unit doors by themselves and there is a danger of suffocation. Always store the empty unit with the doors open. -
Page 21: Help In The Event Of Problems
BLANCO INMOTION Tray Transport Trolley Help in the event of problems Corrosion of stainless steel parts Cause Action Incorrect handling/care. Remove areas of corrosion. Section "Removing areas of corrosion on stainless steel" on page 22. Ensure proper handling/care. The unit has external damage... -
Page 22: Cleaning And Care
Cleaning agents Synthetic surfaces The following cleaning agents may be used: Soft cleaning cloth BLANCO microfibre cleaning cloth (use with water only) Caution! Material damage Stainless steel cleaning and scouring agents scratch the surface. Do not use stainless steel cleaning or scouring agents. -
Page 23: Performing Maintenance On Stainless Steel
Stainless-steel surfaces The following cleaning agents may be used: Commercial cleaning agents in aqueous solution Soft cleaning cloth BLANCO microfibre cleaning cloth (use with water only) Cleaning agents for heavily soiled stainless-steel surfaces: Commercially available stainless steel cleaning agents, e.g. BLANCOPOLISH... -
Page 24: Cleaning Interior Body
BLANCO INMOTION Tray Transport Trolley Cleaning interior body Unit model TTW-FPK Removing dividing wall Castor brakes are locked Open the unit doors. Remove condensation-water catch tray. Section "Emptying condensation-water catch tray" on page 10. Lift dividing wall (1.) until it is located above the lock on the guide profile (1). - Page 25 BLANCO INMOTION Tray Transport Trolley Installing dividing wall Castor brakes are locked Open the unit doors. Place dividing wall on the lower guide (1) and swing it up and into the trolley (1.) until it is vertical. Push dividing wall as far as possible toward the rear until the front edge catches in the lock on the guide profile.
-
Page 26: Maintenance
BLANCO INMOTION Tray Transport Trolley Maintenance Having unit regularly maintained BLANCO recommends having regular maintenance performed on the unit by appropriately trained experts. Regular maintenance prevents failure of the unit, extends its operating life and contributes to general value retention. -
Page 27: Repairs Authorised Persons
In-house, by BLANCO-trained experts Externally, by BLANCO-trained customer service BLANCO Service Description of problem In addition to an exact description of the defect, BLANCO Service requires the following information from the rating plate: Article number Serial number Date of manufacture... -
Page 28: Address
BLANCO INMOTION Tray Transport Trolley Address BLANCO CS GmbH + Co KG Catering Systems P. O. Box 13 10 75033 Oberderdingen GERMANY Phone +49 7045 44 - 81416 +49 7045 44 - 81508 E-mail cs.service@blanco.de Internet www.blanco.de Disposal Disposing of unit Make the unit unusable before disposal. -
Page 29: Technical Data
BLANCO INMOTION Tray Transport Trolley Technical data General data Dimensions and weights – TTW-F/FPK tray transport trolley for Gastronorm trays (unit model with 160 mm castor diameter) Model Length Width Height Empty Max. load in mm in mm in mm... - Page 30 BLANCO INMOTION Tray Transport Trolley Dimensions and weights – TTW-F/FPK tray transport trolley for Euronorm trays (unit model with 160 mm castor diameter) Model Length Width Height Empty Max. load in mm in mm in mm weight weight in kg in kg (approx.)
- Page 31 BLANCO INMOTION Tray Transport Trolley Dimensions and weights – TTW-F tray transport trolley for Gastronorm and Euronorm trays (unit model with 160 mm castor diameter) Model Length Width Height Empty Max. load in mm in mm in mm weight weight...
- Page 32 BLANCO INMOTION Tray Transport Trolley Dimensions and weights – TTW-F tray transport trolley for compact trays (unit model with 160 mm castor diameter) Model Lengt Width Height Emptyw Max. load in mm in mm eight weight in mm in kg...
-
Page 33: Environment
BLANCO INMOTION Tray Transport Trolley Model Number of Capacity unit com- GN = Gastronorm partments EN = Euronorm TTW-F 16-115/105 ESZE/DSZE 16 EN trays TTW-FPK 16-115/105 ESZE/DSZE TTW-F 20-115/105 ESZE/DSZE 20 EN trays TTW-PKF 20-115/105 ESZE/DSZE TTW-F 32-115/105 ESZU/DSZU 32 GN or... -
Page 34: Ordering Information
BLANCO INMOTION Tray Transport Trolley Ordering information TTW-F 16-115 ESZG (GN) Article number: 572 616, 366 448 TTW-F 16-105 ESZG (GN) Article number: 572 617, 366 448 TTW-F 16-115 DSZG (GN) Article number: 572 618, 366 448 TTW-F 16-105 DSZG (GN) - Page 35 BLANCO INMOTION Tray Transport Trolley TTW-F 20-105 DSEU (EN+GN) Article number: 572 642, 366 453 TTW-F 20-115 ESZE (compact) Article number: 572 600, 366 445 TTW-F 20-115 ESEU (compact) Article number: 572 640, 366 453 TTW-F 20-115 DSZE (compact) Article number:...
-
Page 36: Operating Manual
BLANCO INMOTION Tray Transport Trolley TTW-F 32-105 DSZU (EN+GN) Article number: 572 648, 366 454 TTW-F 32-115 ESZU (compact) Article number: 572 646, 366 454 TTW-F 32-115 DSZU (compact) Article number: 572 649, 366 454 TTW-F 40-115 ESZU (EN+GN) Article number:... -
Page 37: Accessories Gastronorm/Euronorm/Compact Trays
BLANCO INMOTION Tray Transport Trolley Accessories Gastronorm/Euronorm/compact Article numbers: BLANCOprice list trays Dishes Article numbers: BLANCOprice list Cloches Article numbers: BLANCOprice list Eutectic plates Article number: BLANCO price list Menu cards Article number: BLANCO price list BLANCO microfibre cleaning Article number:... - Page 38 BLANCO INMOTION Tray Transport Trolley Standards, guidelines, inspection seal DIN 18865-9: Equipment for commercial kitchens, food distribution equipment, cabinet interiors in standard and hygienic types. DIN 18867-3: Equipment for commercial kitchens – Mobile equipment – Tray transport trolleys. BGR 111 (ZH1/37): Rules on safety and health protection for working in kitchens.
- Page 39 BA 154 315 -en- 3.1-12/11...
- Page 40 BLANCO CS GmbH + Co KG Catering Systems P. O. Box 13 10 75033 Oberderdingen GERMANY Phone +49 7045 44 - 81416 +49 7045 44 - 81508 E-mail cs.service@blanco.de Internet www.blanco.de...
