PD70210 Evaluation Board – U se r G u id e
PD70210EVB
PD70210 HDBT level PD
Evaluation Board User Guide
Revision 1.0
PRODUCTION DATA – Information contained in this document is proprietary to
Microsemi and is current as of publication date. This document may not be
modified in any way without the express written consent of Microsemi. Product
processing does not necessarily include testing of all parameters. Microsemi
reserves the right to change the configuration and performance of the product and
to discontinue product at any time.
Arrow.com.
Downloaded from
Advertisement
Table of Contents
Related Manuals for Microsemi PD70210EVB
Summary of Contents for Microsemi PD70210EVB
- Page 1 Revision 1.0 PRODUCTION DATA – Information contained in this document is proprietary to Microsemi and is current as of publication date. This document may not be modified in any way without the express written consent of Microsemi. Product processing does not necessarily include testing of all parameters. Microsemi reserves the right to change the configuration and performance of the product and to discontinue product at any time.
-
Page 2: Table Of Contents
.............................12 IST OF ATERIALS ............................14 OARD AYOUT Copyright © 2013 Microsemi Page 2 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com. Arrow.com. Downloaded from... -
Page 3: About This Guide
PD70210 Evaluation Board – U se r G u id e 1 About this Guide This user guide provides both description and operation procedures for Microsemi's PD70210 evaluation board. This board type is used for evaluating the performance of PD70210 device. -
Page 4: Introduction
PD70210 Evaluation Board – U se r G u id e 2 Introduction Microsemi’s PD70210ILD device is part of a family of devices which are targeted for realizing the HDBT or multi 802.3at standard PD interface. The PD interface family of devices includes the following:... -
Page 5: Evaluation Boards Ordering Information

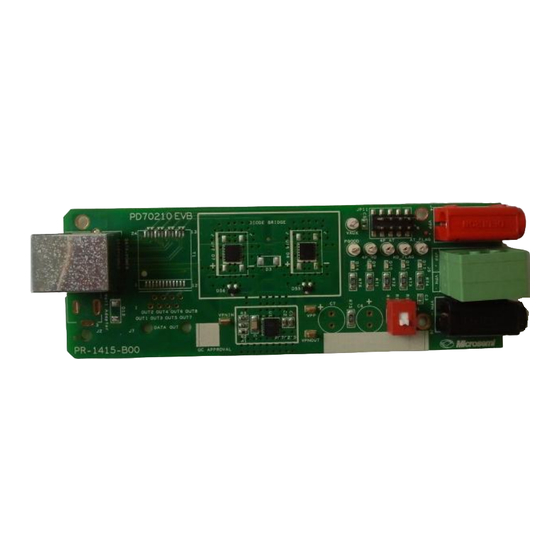

PD70210 Evaluation Board – U se r G u id e Figure 2: PD70210 Evaluation Board – General View 2.1 Evaluation Boards Ordering Information Microsemi’s supplies the following Evaluation Boards: Ordering Number Description PD70210EVB IEEE802.3AT Type 2 PD, based on PD70210 device, 2.2 Evaluation Board Features... -
Page 6: Physical Description
134 x 45 x 19mm (L x W x H) 3.2 Package Contents Upon opening the Evaluation Board package, verify the following part is included; If it seems damaged, contact local representative or Microsemi's headquarters. Package content for standard shipments is: PD70210 Evaluation Board 3.3 Connectors... - Page 7 Vout Positive PD received output voltage Figure 4: V Connectors Copyright © 2013 Microsemi Page 7 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com.
-
Page 8: Indications
Table 5: Electrical Characteristics Parameter RJ45 connector Maximum Available Current Copyright © 2013 Microsemi Page 8 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com. -
Page 9: Installation
Cat5 cable Figure 6: Test Setup Copyright © 2013 Microsemi Page 9 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com. Arrow.com. -
Page 10: Schematic
PD-0603 rj45-5 Power_sapre- VPNin_BR Figure 7: Board Schematics (1 of 2) Copyright © 2013 Microsemi Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (94 Arrow.com. Arrow.com. - Page 11 PD-0402 PD-0402 PD-0402 PD-0402 Figure 8: Board Schematics (2 of 2) Copyright © 2013 Microsemi Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (94 Arrow.com. Arrow.com.
-
Page 12: List Of Materials
PD70210 Evaluation Board – U se r G u id e 7 List of Materials Table 6: PD70210EVB Components Item Description Ref Des Manufacturer P\N HDbaseT, AF/AT PD CHIP Front Microsemi PD70210ILD CAP CRM 10nF 100V 5% C35-C38 08051C103JAT2A X7R 0805 SMT... - Page 13 IC Dual N/P CH power mosfet 100v U16,U17 Fairchild FDMQ8203 6A SMT Copyright © 2013 Microsemi Page 13 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com.
-
Page 14: Board Layout
Figure 9: Top Silk Figure 10: Top Layer Copyright © 2013 Microsemi Page 14 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com. - Page 15 PD70210 Evaluation Board – U se r G u id e Figure 11: Bottom Layer Figure 12: Bottom Silk Copyright © 2013 Microsemi Page 15 Rev. 1.0 09-Oct-13 Analog Mixed Signal Group 1 Enterprise, Aliso Viejo, CA 92656, USA; Phone (USA): (800) 713-4113, (ROW): (949) 221-7100 Fax: (949) 756-0308 Arrow.com.
