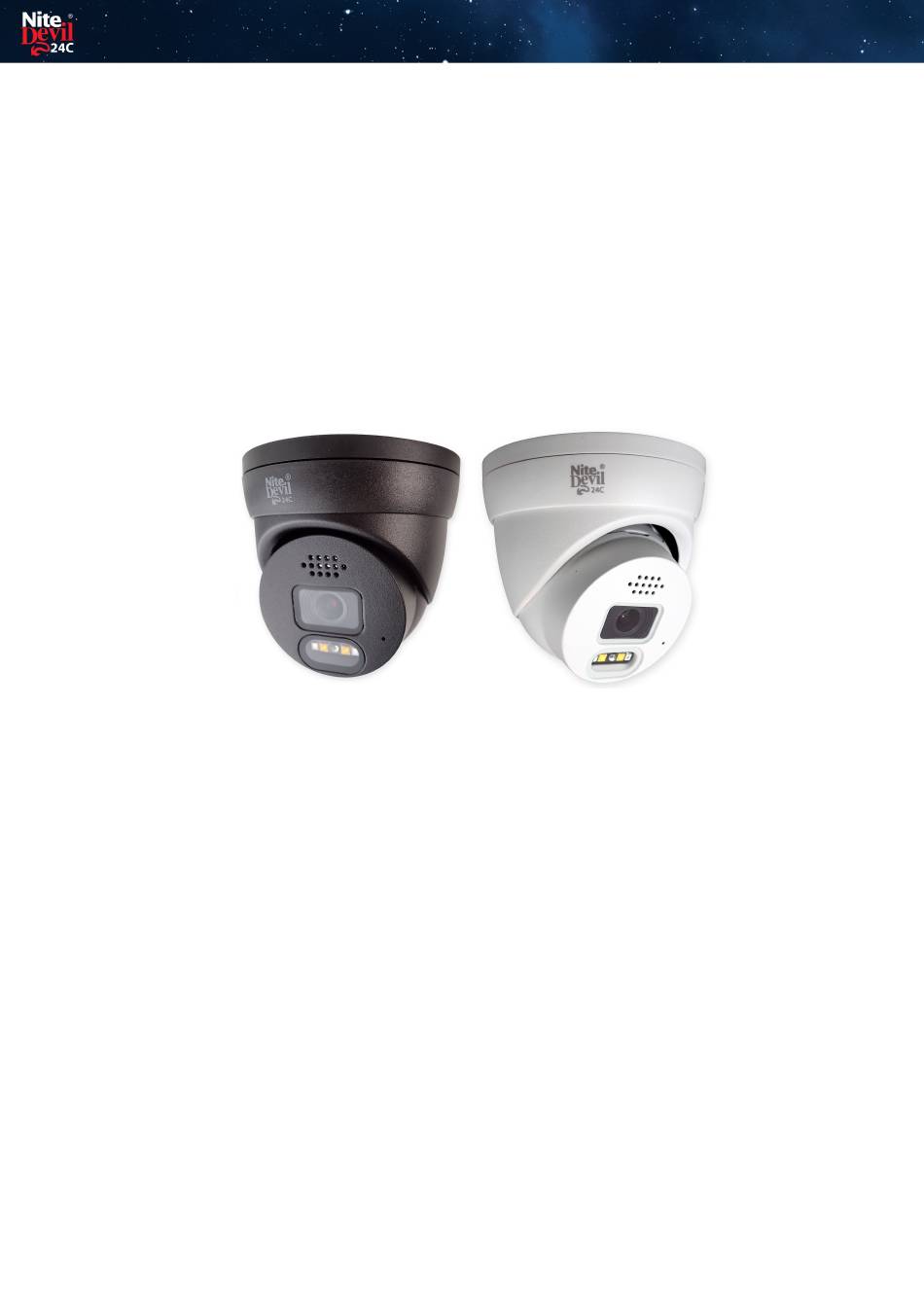

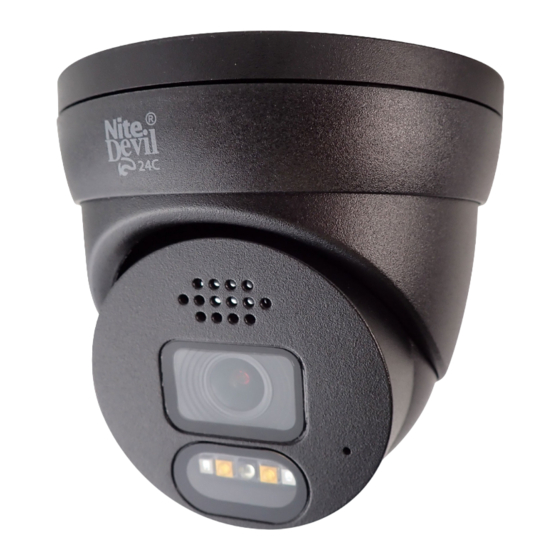

- Page 1 Instruction Manual NiteDevil 24C Camera IP-CAM828 © 2023 System Q Ltd NiteDevil.com...
-
Page 2: Table Of Contents
IP-CAM828 Table of Contents Part 1 Introduction 1 Key Features - IP-CAM828 ....................1 Part 2 Connections and Dimensions 1 IP-CAM828 ........................2 Part 3 Mounting and SD Card Installation 1 Mini-Eyeball ........................4 Part 4 Setup Options 1 PoE ZIP NVR ........................5 2 Non-PoE ZIP NVR ...................... -
Page 3: Part 1 Introduction
Introduction Introduction 1.1 Key Features - IP-CAM828 4K NiteDevil HERO IP Camera Colour in Low Light with a Built-In Warning Strobe · Full Colour 24/7 · Vehicle Detect · · PoE & 12V · Perimeter cross · 2-way audio · NiteDevil®... -
Page 4: Part 2 Connections And Dimensions
IP-CAM828 Connections and Dimensions 2.1 IP-CAM828 Powering the camera Option 1 - Power the camera from 12V DC (via the 2.1mm DC Socket), the current consumption is 420mA. The camera is polarity sensitive so connections must be correctly made. Option 2 - Power the camera using a PoE 48V RJ45 Socket When connecting ZIP PoE NVR plug the camera directly into the NVRs built in PoE switch. -
Page 5: Part 3 Mounting And Sd Card Installation
Connections and Dimensions Dimensions *Dimensions Exclude Bracket Mounting and SD Card Installation For local recording on the camera itself an SD card must be installed. Recording time will vary dependent upon: SD card size and encoding settings 32GB SD Card 31 hours 64GB SD Card 62 hours... -
Page 6: Mini-Eyeball
IP-CAM828 3.1 Mini-Eyeball A template is provided in the box for marking the hole positions for the fixing screws. 09/05/2023 NiteDevil.com... -
Page 7: Part 4 Setup Options
Setup Options Setup Options 4.1 PoE ZIP NVR When connecting to a ZIP PoE NVR plug the camera directly into the NVR's built in PoE switch. The camera should automatically become visible after being connected for approximately 1 minute. The 100m distance for a camera can be increased when the PoE Mode is set to EPoE. -
Page 8: Non-Poe Zip Nvr
IP-CAM828 4.2 Non-PoE ZIP NVR When connecting cameras to a Non-PoE NVR, they are first connected to an external network switch which is in-turn connected to the NVR as shown below. Extra Resources for more information on Adding IP Cameras manually to a ZIP Recorder. -
Page 9: Part 5 How To Login Via Browser
How to Login via Browser How to Login via Browser The AI smart features can be configured in a ZIP recorder or directly in the browser interface of the camera (standalone) Only one smart detection feature can be enabled at any given time. See the NVR or DVR manual for information on configuring these features with a ZIP recorder. - Page 10 IP-CAM828 2. Using ZipFinder on a Windows Based PC/ Laptop Search and then tick the camera 3. Select Net Mode = DCHP, then click Modify 4. Search again, to get the updated IP address. 5. Select the IP address of the camera, Internet Explorer will pop-up, and ask to download and install the plug-in.
-
Page 11: Part 6 Browser Menu Settings
Browser Menu Settings Browser Menu Settings 6.1 IP-CAM828 The menu be configured directly in the browser interface of the camera (standalone), in Remote Setting you will find the menu settings below:- Video Live Name Camera (user editable) Image Control Date Format DD/MM/YYYY / MM/DD/YYYY / YYYY/MM/DD... - Page 12 IP-CAM828 Bitrate Control CBR / VBR Bitrate Mode Predefined / User-Defined Bitrate 128 to 2048 I Frame Interval 1 to 60 Audio Enable / Disable Save / Refresh Mobilestrea Enable Enable / Disable Resolution 640 x 480 / 320 x 240 1 –...
- Page 13 Browser Menu Settings Enable Enable / Disable Sensitivity 1 to 4 Dynamic Marking Enable / Disable Detection Type Pedestrian & Vehicle / Person / Vehicle Rule Number 1 to 4 Rule Enable Enable / Disable Rule Type Save / Refresh Alarm PID / LCD Post Recording...
- Page 14 IP-CAM828 A: 0(main stream), 1(sub stream), 2(mobile stream) Save / Refresh DDNS DDNS Enable / Disable Server NO_IP / DYNDNS Hostname User-definable Username User-definable Password User-definable HTTPS Certificate Type Default / Custom Certificate / Key User-definable Install Save / Refresh Storag Disk Select Disk...
- Page 15 Browser Menu Settings Maintain Log Log Type System / CON. / Search Alarm / Account / Record / Storage / Network / All Start Time User-definable End Time User-definable Load Default All / Video / Record/ Event / AI / Network/ Storage / System Save / Refresh Upgrade...
-
Page 16: Customising The Day / Night Setting To Ir
IP-CAM828 6.2 Customising the Day / Night Setting to IR Once logged into the camera browser interface:- Go To Remote Settings > Video > Image Control > Image Settings e.g. Day / Night mode if want the camera to B&W & use the IR Suggested setting : IR Cut to Auto. -
Page 17: Part 7 Extra Resources
Extra Resources Extra Resources 7.1 ZipNVR.com Website The Zip NVR has a range of information on the cameras and NVRs, manuals, software, tools and support:- www.zipdvr.com 7.2 Adding IP Cameras to a ZIP recorder How to guide on Adding IP Cameras:- www.zipdvr.com/howto/TIP459-How-To-Add-IP-Cameras.html 7.3 AI Setup See the ZIP NVR full manual for more information on AI setup;... -
Page 18: Zip Firmware
IP-CAM828 7.4 ZIP Firmware Firmware for the zip products are available online:- www.zipdvr.com/firmware.html Compare the firmware in the product against that available online. 09/05/2023 NiteDevil.com... -
Page 19: Part 8 General Maintenance
Extra Resources General Maintenance · Routinely clean the camera to prevent dust build up as this can effect the performance of the camera. It is recommended to use a damp non-abrasive microfibre cloth. · Routinely check the connections for power and data to ensure no water ingress and corrosion. -
Page 20: Part 9 Specifications
IP-CAM828 Specifications 9.1 IP-CAM828 Resolution 4K (8MP) (3840 x 2160) Lens Type Wide Angle 3.6mm Fixed Video Compression H264 / H265 Bit Rate 512Kbps ~ 6Mbps Shutter 1/5 ~ 1/20000s ~ Flickerless Min. Illumination Colour 24/7 with White Light LEDs Day/Night Function Auto or Scheduled Microphone... -
Page 21: Index
Index Index - C - Checking and cleaning the camera - D - Day / Night Setting - E - Extra Resources and help - I - Installation - L - Login via browser interface - M - Maintenance - R - Recording - S - SD Card...
