Summary of Contents for Nite Devil CAM225

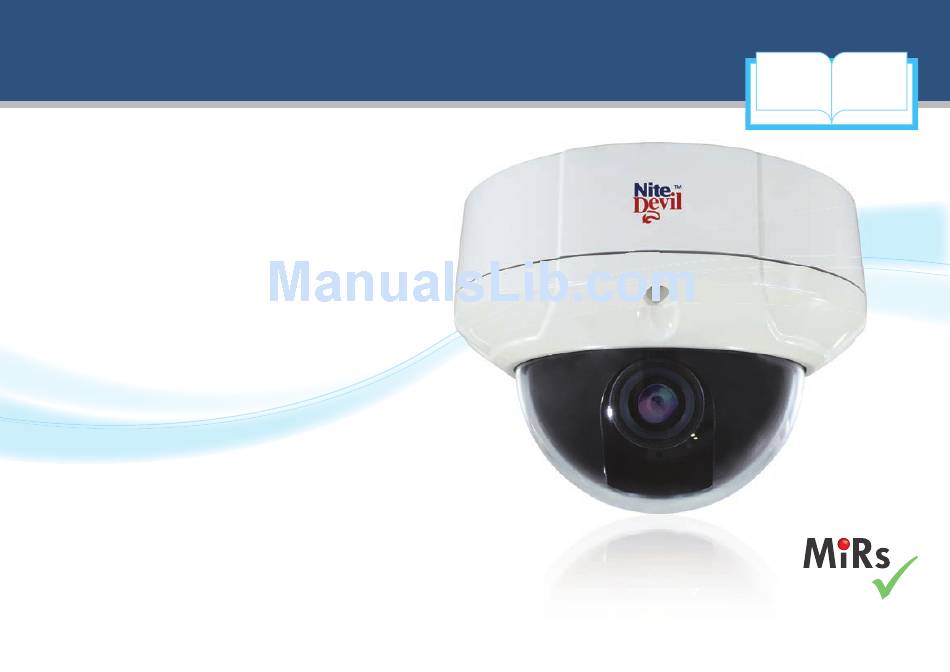

- Page 1 CAM225 Handbook & Instructions High performance CCTV camera with built in Balun and internal connections for neat & easy installation Maximum IR Sensitivity XCAM225...
- Page 2 CAM220 Introduction • Auto Digital Zoom • Dual Voltage 12V DC, 24V AC • Built in Balun • Pelco D - (RS485 2 wire) • Pelco C - (Up the co-ax) • 700TVL colour mode - 800TVL B&W mode • NiteDevil low light –...
-
Page 3: Focus Adjustment
Inside The CAM220 Zoom Adjustment Tilt Axis Unlocking this screw allows you to adjust the Unlock this screw and one on the other zoom in and out of the camera. side to tilt the camera up and down. Focus Adjustment Rotational Axis Unlocking this screw allows Turn this to rotate the cameras output... -
Page 4: Mounting The Camera
Mounting The Camera The camera can be mounted on a wall, ceiling or attached to To ensure that the camera is weatherproof, a rubber grommet is an optional wall bracket. provided through which the cable enters the camera. Prior to the end of the installation you need to additionally The wall bracket seal the grommet with a fl exible silicone product. -
Page 5: Powering The Camera
Powering The Camera The dome requires either a 12V DC regulated power supply or There are four easy ways to cable the camera: a 24V AC power supply it draws a maximum current of around 150mA @12V DC. RG59+2 No Balun required - easy and simple installation. Connections are not polarity sensitive therefore the power can be connected either way round, the power terminals are easy to identify as they are... - Page 6 RG59+2 Cable contains - 1 co-ax core + 2 power cores 12V DC or 24V AC PSU To DVR or Monitor...
- Page 7 RG59+4 ( PTZ Combo Cable ) Cable contains - 1 co-ax core + 2 power cores + 2 data cores 12V DC or 24V AC PSU To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
- Page 8 CAT5+2 Cable contains - 4 pairs data cores (CAT5E style) + 2 heavy duty power cores 12V DC or 24V AC PSU Balun B To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
- Page 9 CAT5 Cable contains - 4 pairs data cores ( CAT5E style ) 12V DC Balun B To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
-
Page 10: Accessing The Menus
Accessing The Menus You can access the menus in the CAM220 by three means: comfortably next to the DVR. It sends the control signals through the video Micro Joystick on the PCB inside the dome. co-ax so you don’t need any additional cables. -
Page 11: Main Menu
Main Menu MAIN MENU DEFAULT SETTINGS SUB MENU DC / VIDEO / MANUAL 1. LENS 1. BRIGHTNESS: 1 ~ 100 3. RETURN 2. IRIS SPEED: 1 ~ 5 MANUAL: 1. BRIGHTNESS: 1 ~ 100 2. RETURN 2. EXPOSURE 1. SHUTTER: 1/50, 60 / AUTO / FLK / MANUAL NTSC 1/60, PAL 1/50 AUTO:... - Page 12 Main Menu Continued MAIN MENU DEFAULT SETTINGS SUB MENU 4. WHITE BAL ATW / AWB / AWC SET / MANUAL (BLUE, RED) MANUAL: 1. BLUE: 0 ~ 100 3. RETURN 2. RED: 0 ~ 100 5. DAY & NIGHT AUTO AUTO / EXT / B/W / COLOUR AUTO:...
-
Page 13: Function Menu
Function Menu MAIN MENU DEFAULT SETTINGS SUB MENU ON / OFF 1. MOTION 1. AREA: 1 ~ 4 3. VALUE: 0 ~ 100 2. AREA DISPLAY: ON / OFF 4. MOTION VIEW: ON / OFF (ON: POSITION, SIZE) 5. RETURN 2. - Page 14 Function Menu Continued MAIN MENU DEFAULT SETTINGS SUB MENU 4. IMAGE ADJ 2. MONITOR: CRT CRT / LCD (cont) 1. PED LEVEL: 0 ~ 63 3. RETURN 2. COLOUR GAIN: 0 ~ 255 1. GAMMA: USER ~ 0.05 ~ 1.00 3.
-
Page 15: White Balance
Getting The Most Out Of The CAM220 What the menu options do The CAM220 has a comprehensive menu system that allows you to set Privacy up the camera to get the most out of it in different demanding situations, Allows the user to “block out” areas in the picture so that the installation below is a guide to some of the key functions: complies with the Data Protection Act and avoids infringing other people’s privacy rights. - Page 16 Accessories Wall Bracket 1ch Passive Baluns Mounting the CAM220 onto a wall prevents rain from obscuring the camera’s vision. Send 1 video signal Send 1 video signal 500m down CAT5 cable. 300m down CAT5 cable. Order Code: CAM610 BAL201 BAL205 Order Code: Order Code: (Sold in pairs)
- Page 17 Accessories - Cable Antihum RG59+2 Antihum CAT5+2 Cable Contains: 1 co-ax core + 2 power cores Cable Contains: 4 pair data cores (CAT5E style) + 2 heavy duty power cores Glued foil sheath provides maximum Cables can be separated for protection against interference and prevents Shotgun style - fast, easy installation...
- Page 18 Accessories - Power Supplies 5-Amp 12V DC PSU With 9 Outputs 6-Amp 24V AC PSU With 6 Outputs Regulated 12V DC 5 Amp PSU with multiple A 24V AC PSU with a 6 amp output, ideal for outputs for use with up to 9 suitable CCTV powering a number of 24V AC cameras such as cameras.
- Page 19 Accessories - DVR 10 Reasons is great value for money alienHero 16ch 1. Built-in Video Analytics (fi nds evidence instantly!) Order Codes ALIEN654K 4ch 1TB: 2. True Realtime D1 Recording (even on the 16ch ) ALIEN658K 8ch 1TB: 3. High Definition HDMI Output (along with VGA &...
-
Page 20: Accessories - Tools
Accessories - Tools CCTV Test Monitor BNC Ratchet Crimp • Easy PTZ Testing • Up to 6 Hours Battery Life • Monitor Output Testing • Check Video Signal Strength • Cable Continuity Checker • DC/AC Voltage Tester • Wrist/Neck Strap •... - Page 21 Accessories - CCTV Mule The CCTV Mule makes it easy to add extra cameras to CCTV Mule 4 existing installations, you save installation time and reduce Sends 4 video signals down 1 co-ax the cost of buying and installing more cable. The Mules work in pairs.
- Page 22 Accessories - Digital Video Transmission The VideoMitters are a breakthrough in the transmission of video signals. Digital Data By digitising the video & audio signals, far superior performance can be achieved in transmission distance and Transmission received image & audio quality. Privacy Pairing ...
-
Page 23: Fault Finding
Fault Finding The camera is built to the highest standards and every unit is No picture fully tested prior to packing so if you experience an installation The camera cannot function without the correct working problem you need to investigate your cabling, connections, power supply. -
Page 24: Technical Specifications
Technical Specifications FUNCTION SPECIFICATION FUNCTION SPECIFICATION Imaging Sensor 1/3” SONY Super HAD 2 (960) Backlight Compensation BLC / HSBLC / Off Signal System PAL 625 lines Gain Control Low / Middle / High / Off Scanning system 2:1 Interface Adjust Contrast / Sharpness / CB_Gain / CR_Gain (Level Adjustment) Scanning Frequency...
