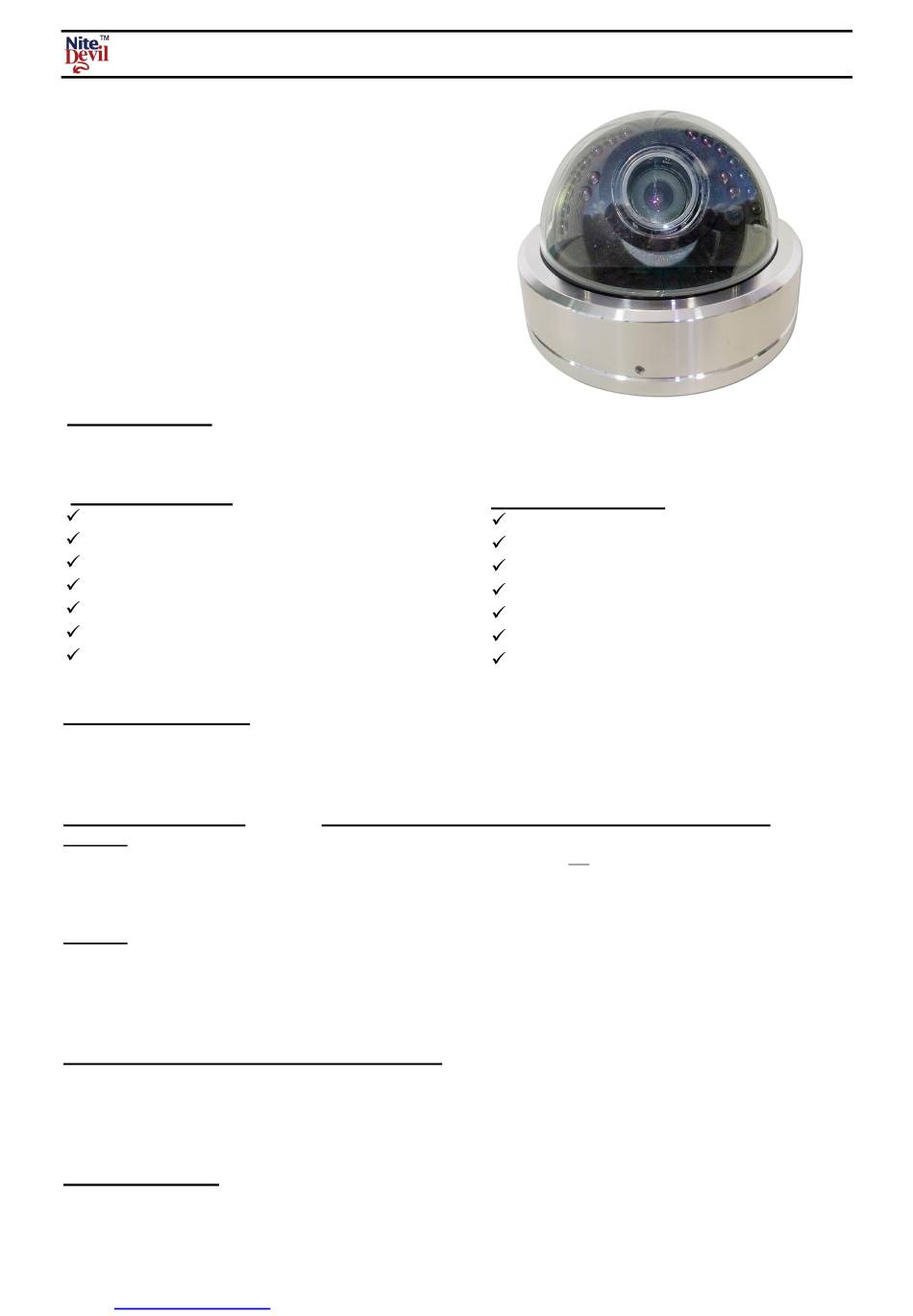

CAM755/757

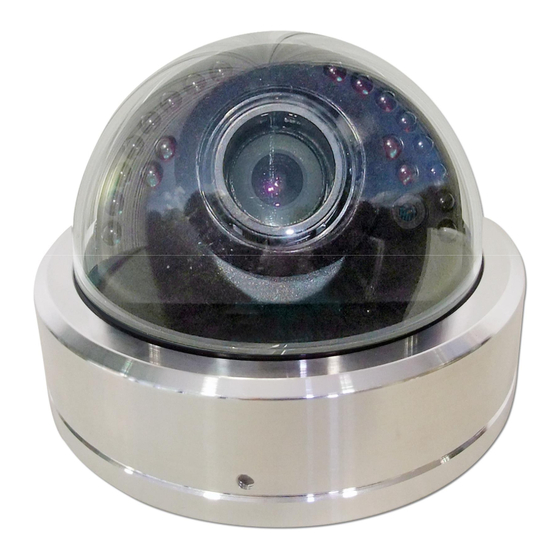

NiteDevil IR WDR Hi-Res Dome
These NiteDevil IR External Dome Cameras
produce high quality images and work in very low
light conditions down to 0.00001 Lux. They have
many features including a solid aluminium
waterproof base, 3D axis mounting inner bracket
for wall mounting, a SONY SuperHad CCD II
and a 2.8mm ~ 12mm varifocal lens. An OSD
menu provides options Wide Dynamic Range
option, High Sensitivity BLC, motion detection,
privacy masking etc with option for RS485 menu
control.
Models Available
CAM755 560TVL, 12VDC
CAM757 560TVL, 12VDC/24VAC
Electronic Features
x
1/3" SONY SUPER HAD CCD II
Low illumination down to 0.00001 Lux
Menu for Motion Detection & Privacy Masking
Wide Dynamic Range Function
High Sensitivity Backlight Compensation
High Resolution 560TVL (day) 600TVL (night)
3D Noise Reduction for night viewing
Mounting the Camera
The camera is for mounting on a wall, ceiling or outdoor facia board. Note that this camera has a 3D gimble allowing
wall mounting or ceiling mounting. Note that fitting the screws into a ceiling will require support for the screws. N.B
Please be aware that when refitting camera, the dome cowling does not obscure the lens.
Powering the Camera
CAM755
The dome requires a 12V DC regulated power supply. Connections are not polarity sensitive so the positive and
negative cables can be connected either way around. The camera is provided with a fly lead with a terminal connection
for power. This camera draws a maximum of 350mA at 12v DC. Ensure that a regulated power supply is used and
allow adequate headroom i.e only use a power supply with a minimum rating of 500mA.
CAM757
This dome is dual voltage. It will work on 12vDC or 24vAC. Connections are not polarity sensitive so therefore power
connections can be either way round. The camera is provided with a fly lead with a terminal connection for power.
This camera draws a maximum of 430mA at 12v DC or 210mA at 24vAC. Ensure that a regulated power supply is
used if using 12vDC and allow adequate headroom i.e only use a power supply with a minimum rating of 600mA.
Connecting the camera to control equipment.
The dome camera comes with a fly lead for video out. To reduce installation time the video out lead is terminated into
a male BNC connector. This allows the installer to connect the camera to control equipment via a female BNC-BNC
lead. A special setup joystick controller is located on the side of the PCB board and this allows access to the OSD
menu. A special socket is located to the right of the joystick controller to connect an optional test video monitor lead.
RS485 Connection
The RS485 connection allows access to the menu using a keyboard or DVR PTZ operation using an IRIS OPEN to
open menu and select options using near, far, open and closed. Connect Green to Transmit + and Blue to Transmit -.
Email: support@nitedevil.com
NiteDevil IR Hi-Res External Colour Dome Camera
Note: Do not connect power to the RS485 connections
Mechanical Features
Vandalproof & Weatherproof
3 Axis 3D built-in bracket
Vari-focal 2.8 ~ 12mm Auto DC Iris Lens
Aluminium housing with Smoked Cover
20 x IR 850nm Leds
Digital Zoom x1 ~ x32
OSD menu with RS485 access
Last Revised: 31/01/2012
Doc XCAM755
