Summary of Contents for Nite Devil SEE220

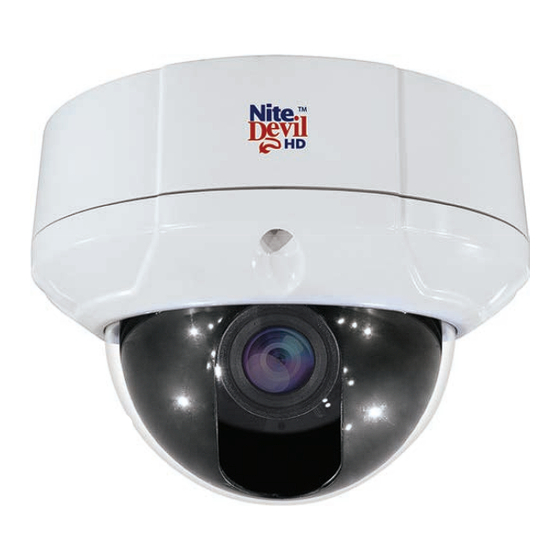

- Page 1 SEE220 Handbook & Instructions Stunning 1080p HD-TVI CCTV camera with built in Balun and internal connections for neat & easy installation Maximum IR Maximum IR Sensitivity Sensitivity XSEE220 XSEE220...
- Page 2 True day-night mechanical IR cut fi lter Maximum IR Sensitivity With a built in Balun the SEE220 can be installed with either CAT5 Dual TVI and analogue outputs, dual power (12V DC and 24V AC), or Composite co-ax cable allowing fl exible installation options.
-
Page 3: Focus Adjustment
Inside The SEE220 Zoom Adjustment Tilt Axis Unlocking this screw allows you to adjust the Unlock this screw and one on the other zoom in and out of the camera. side to tilt the camera up and down. Focus Adjustment... -
Page 4: Mounting The Camera
Mounting The Camera The camera can be mounted on a wall, ceiling or attached to an To ensure that the camera is weatherproof, a rubber grommet is optional wall bracket. provided through which the cable enters the camera. Prior to the end of the installation you need to additionally The wall bracket seal the grommet with a fl exible silicone product. -
Page 5: Powering The Camera
Powering The Camera The dome requires either a 12V DC regulated power supply or There are four easy ways to cable the camera: a 24V AC power supply it draws a maximum current of around RG59+2 150mA @12V DC. No Balun required - easy and simple installation. Connections are not polarity sensitive therefore the power can be connected either way round, the power terminals are easy to RG59+4... - Page 6 RG59+2 Cable contains - 1 co-ax core + 2 power cores 12V DC or 24V AC PSU To DVR or Monitor...
- Page 7 RG59+4 ( PTZ Combo Cable ) Cable contains - 1 co-ax core + 2 power cores + 2 data cores 12V DC or 24V AC PSU To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
- Page 8 CAT5+2 Cable contains - 4 pairs data cores (CAT5E style) + 2 heavy duty power cores 12V DC or 24V AC PSU Balun B To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
- Page 9 CAT5 Cable contains - 4 pairs data cores ( CAT5E style ) 12V DC Balun B To DVR or Monitor RS485 Keyboard or Test Monitor to control OSD...
-
Page 10: Accessing The Menus
Accessing The Menus You can access the menus in the camera by three means: and confi rm selections. The directional arrows are then used to highlight and change parameters. Micro joystick on the PCB inside the dome. Alien TvI up the co-ax telemetry control. RS485 control using a keyboard, dvR, or CCTvMate test monitor. -
Page 11: Main Menu
Main Menu MAIN MENU SUB MENU OPTIONS LENS dC / MANUAL 1. MOdE: OUTdOOR / INdOOR 2. IRIS SPEEd: 1 ~15 (8) ExPOSURE ShUTTER AUTO / FLK / 1/25 ~ 1/50000 / x2 ~ x30 1~15 (15) SENS-UP AUTO / OFF AUTO: 1. - Page 12 Main Menu Continued MAIN MENU SUB MENU OPTIONS WhITE BALANCE / AWCSET / INdOOR / OUTdOOR / MANUAL / AWB MANUAL: 1. BLUE: 0 ~ 100 (50) 2. REd: 0 ~ 100 (50) dAy & NIGhT AUTO / COLOUR / B/W / ExT AUTO: 1.
-
Page 13: Special Menu
Special Menu SPECIAL MENU SUB MENU OPTIONS CAM TITLE / ON SET CAMERA NAME ANd POSITION d-EFFECT FREEZE / ON MIRROR / MIRROR / v-FLIP / ROTATE NEG. IMAGE / ON MOTION / ON 1. SELECT: AREA1 ~ AREA4 (AREA 4. - Page 14 Special Menu Continued SPECIAL MENU SUB MENU OPTIONS dEFECT LIvE dPC / OFF 1. AGC LEvEL: 0 ~ 255 (64) 2. LEvEL: 0 ~ 100 (64) WhITE dPC / OFF 1. POS/SIZE: directions to adjust position, 3. dPC vIEW: / ON SET to confirm position, directions to adjust 4.
-
Page 15: White Balance
Getting The Most Out Of The SEE220 What the menu options do day & Night The camera has a comprehensive menu system that allows you to set up the camera to get the most out of it in different demanding situations, below is a This setting allows you to lock the camera in a colour or B&W mode or have... - Page 16 Accessories Wall Bracket 1ch Passive Baluns Mounting the camera onto a wall prevents rain from obscuring the camera’s vision. Send TvI or analogue Send TvI or analogue Send TvI or analogue CAM610 signals 100m down CAT5. signals 100m down CAT5. signals 100m down CAT5.
- Page 17 Accessories - Cable Antihum RG59+2 Antihum CAT5+2 Cable Contains: 1 co-ax core + 2 power cores Cable Contains: 4 pair data cores (CAT5E style) + 2 heavy duty power cores Glued foil sheath provides maximum Cables can be separated for fast, protection against interference and prevents Shotgun style - easy installation...
- Page 18 Accessories - Power Supplies 5-Amp 12V DC PSU With 9 Outputs 6-Amp 24V AC PSU With 6 Outputs Regulated 12v dC 5 Amp PSU with multiple outputs A 24v AC PSU with a 6 amp output, ideal for powering for use with up to 9 suitable CCTv cameras. Each a number of 24v AC cameras such as PTZ domes.
- Page 19 Accessories - dvR 10 Reasons is great value for money alien MegaHero 16ch Built-in video Analytics Order Codes (fi nds evidence instantly!) MEGA204K 4ch 1TB: hybrid Technology for Analogue, TvI & IP (futureproof ) MEGA208K 8ch 1TB: high defi nition hdMI Output (along with VGA &...
-
Page 20: Accessories - Tools
Accessories - Tools 3 In 1 Test Monitor BNC Ratchet Crimp • 3 In 1 TvI, IP & Analogue • ONvIF 2 Compatible • Coaxitron & RS485 Control • Network & Cable Testing • 12v dC Output & POE • Full Qwerty Keyboard •... - Page 21 Accessories - voiceOff Programmable Audio Alarm Unit • Trigger Up To 9999 • RS232 Connection Sounds • Weatherproof • 20 Alarm Inputs Trigger • Activate Remotely 20 Recordable Warnings Over The Internet • Removable Sd Card • Additional Sound Files •...
- Page 22 Accessories - Signage Pre-Printed CCTV Warning Signs • • Unique sign Id & QR Code Pre-drilled Mounting holes • • Anti Glare Plastic Rounded Corners • • AntiFade Ink Weatherproof • data Compliant Ready The Who Is Watching Me signage provides an off -the-shelf solution for CCTv scheme operators.
-
Page 23: Fault Finding
Fault Finding No picture The camera is built to the highest standards and every unit is fully tested prior to packing so if you experience an installation The camera cannot function without the correct working problem you need to investigate your cabling, connections, power supply. -
Page 24: Technical Specifications
Technical Specifications FUNCTION SPECIFICATION FUNCTION SPECIFICATION Imaging Sensor 1/2.8” Sony Wide dynamic Range (WdR) digital Resolution 1080p @ 25/30fps Backlight Compensation BLC / hSBLC / Off Lens Type 2.8-12mm 2.1MP varifocal Gain Control Selectable video Output Level 1.0v p~p (75Ω, Composite) Language English - ( Multiple) Minimum Illumination...
