IP-CAM828 - Quick Start Guide
The NiteDevil Hero can stay in full colour around the clock using its built in white light LEDs to
produce superb full colour images. Up to 25m IR range (true day/night filter) and up to 20m white
light range, 4K (8MP) resolution, built in PoE, H265 and H264 codec.
This model also features blue and red deterrence LEDs which can warn off intruders, similar to law
enforcement strobe lights. *Adjustable with compatible NVR / DVR Firmware.
www.zipdvr.com/howto/TIP459
-How-To-Add-IP-Cameras.html
Document ref: qIP-CAM828B

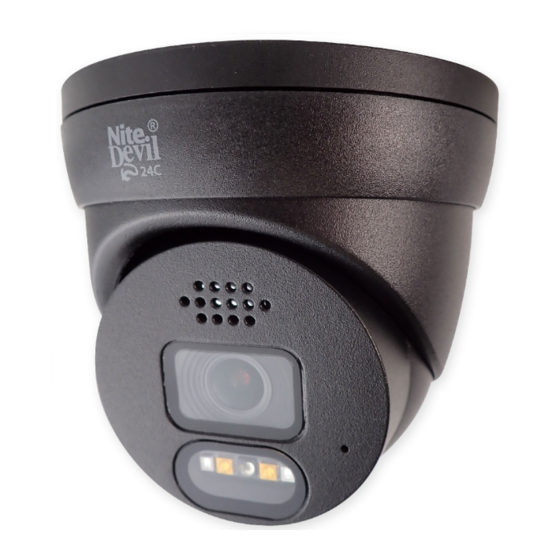

3.6mm IP NiteDevil Hero Mini Eyeball 4K
User Information
·
The camera must not be exposed to
conditions above the IP66 rating.
·
Do not touch the camera connections with
wet hands.
·
There are no user serviceable parts in the
camera and opening or attempting to repair
the product will void the warranty.
·
Only use a regulated 12V DC Supply or a Type
802.3af or above PoE Supply.
·
Do not install or use the camera if damaged.
NiteDevil.com
NiteDevil is a registered trademark of System Q Ltd
Full Instruction Manual
www.systemq.com/PDF
/manual/xIP-
CAM828.pdf
Powering the camera
Option 1 - Power the camera from 12V
DC (via the 2.1mm DC Socket), the
maximum current consumption is
420mA. The camera is polarity sensitive
so connections must be correctly
made.
Option 2 - Power the camera using a
PoE 48V RJ45 Socket. When connecting
ZIP PoE NVR plug the camera directly
into the NVRs built in PoE switch.
The camera should automatically
become visible after being connected
for approximately 1 minute.
If using a separate PoE switch or an
IPmitter (wireless bridge), the camera
needs to be manually configured, scan
the QR code to the left for the "how to
guide".
© 2023 System Q Ltd
1
