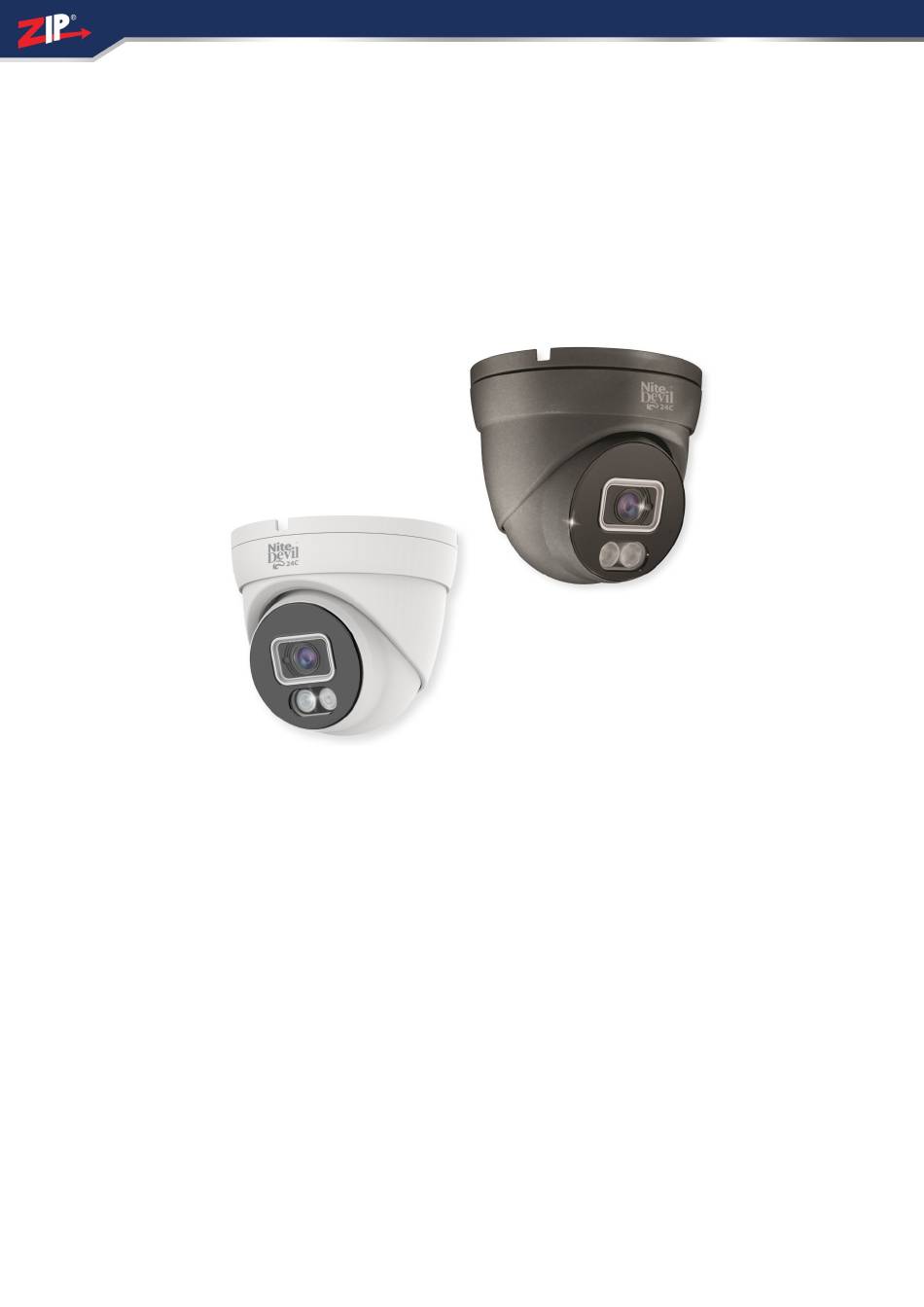

- Page 1 Instruction Manual SEE708 © 2023 System Q Ltd ZipNVR.com...
-
Page 2: Table Of Contents
SEE708 Table of Contents Part 1 Introduction 1 SEE708 ..........................1 Part 2 Tools & Handy Extras Part 3 Connections Part 4 OSD 4-In-1 Technology Part 5 Mounting 1 NiteDevil Eyeball ......................3 Part 6 OSD Menu 1 8MP OSD Menu ....................... 5 2 Key Menu Settings ...................... -
Page 3: Part 1 Introduction

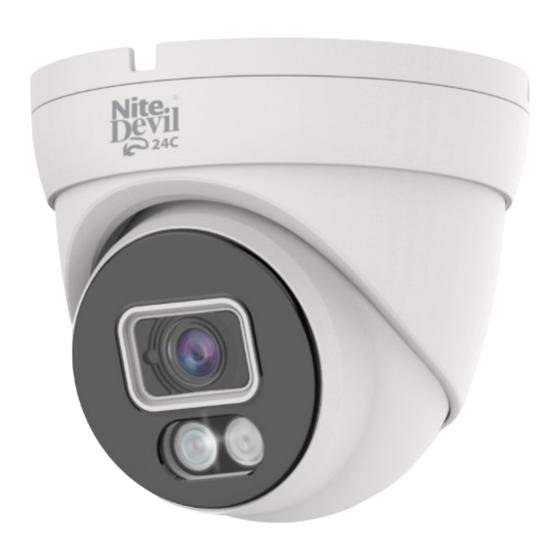

Index Introduction 1.1 SEE708 The all new NiteDevil® 24C can stay in full colour around the clock using the minimal amount of natural light to produce superb full colour images. It really is a game changer in performance and should be used as a part of any CCTV system requiring full colour images in key areas around entrances etc. -
Page 4: Part 3 Connections
SEE708 Connections The camera has a 2.1mm socket which requires 12V DC, use a regulated power supply rated above the current draw of the camera. The camera is polarity sensitive so connections must be correctly made. The camera has a standard BNC connector for video output, the output can be... -
Page 5: Part 5 Mounting
Index Mounting 5.1 NiteDevil Eyeball A template is provided in the box for marking the hole positions for the fixing screws. © 2023 System Q Ltd ZipDVR.com... -
Page 6: Part 6 Osd Menu
SEE708 OSD Menu Access to the camera menu is by Coaxitron. For the ZIP DVRs, ZIP Coaxitron is set as default. To access the Cameras Menu via coaxitron:- 1. Click on the image in Live view 2. Click on the PTZ button at the bottom of the screen 3. -
Page 7: 8Mp Osd Menu
Index 6.1 8MP OSD Menu Video Mode TVI / AHD / CVI / CVBS Format 60Hz / 50Hz / NTSC / PAL Language English / Spanish / French / Chinese Exposure Exposure Mode Global High / Middle / Low Back Exit Save –... -
Page 8: Key Menu Settings
SEE708 6.2 Key Menu Settings Exposure Mode - AUTO / GLOBE / GLOBAL sets the required shutter speed for the current light level. The shutter speed will automatically detect the required length of time to keep the digital sensor exposed to light. FLK option sets the shutter speed to stop synchronisation with lighting so that pulsing effect is minimised. -
Page 9: Part 7 Audio Over Coax
Index Audio Over COAX The Audio over COAX (Coaxial Audio) is compatible with the ZIP SUPA-S & XTRA204-216 range of recorders. Setting the Input type determines which audio inputs are used. Base-band Audio - Sets the audio type to the physical RCA Phono type connection on the back of the recorder. -
Page 10: Part 8 Troubleshooting
SEE708 Troubleshooting 8.1 Camera Rebooting / Turning Off A. Check the voltage to the camera (under load) using a digital multi-meter, if below 10.8V then move the power supply closer to the camera. B. For 12V DC cameras, only use regulated power supply rated above the current consumption, so that the camera is always receiving the correct supply which is rated above the current consumption. -
Page 11: Part 9 General Maintenance
Index D. Ensure that the BNC – BNC lead that is connected between the camera and DVR has no shorts between the ground and the centre core (positive) or open circuits along the centre core (positive) or open circuits along the ground. General Maintenance ·... -
Page 12: Part 10 Specification
SEE708 Specification 10.1 SEE708 Resolution 4K (8MP) Lens Type 2.8mm Fixed Lens Image Output 1 Volt Peak-Peak 75 ohm Min.Illumination 0 Lux IR On Day/Night 24C / Mechanical IR (True Day-Night) InfraRed LEDs 2 White LEDs / 2 IR LEDs... -
Page 13: Part 11 Conditions
Index Conditions 11.1 General Company Disclaimer All specifications are approximate. System Q Ltd reserves the right to change any product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible in any way for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment that these instructions refer to. -
Page 15: Index
Index Index - V - Video Loss - A - Voltage drop - W - Adjustment - C - WEEE Declaration Cleaning Connections Copyright - D - Declaration Dimensions Disclamer - G - General Disclaimer - H - Handy Extras - M - Maintenance Mounting...
