GENUV GUVx-T1XC-3LW Series Configuration And Best Practices Technical Notes

Technical Note
Probe Application Guide lines for Water treatment

1. Features of LW probes.

- UV measuring in water
- Custom products can be supplied.
- Output type : DC 0~5V or 4 – 20mA Current output
- NIST, KRISS traceable calibration possible

2. Applications

- Monitoring Water treatment system
- DVGW probes for ballast water system
- UV lamp monitoring

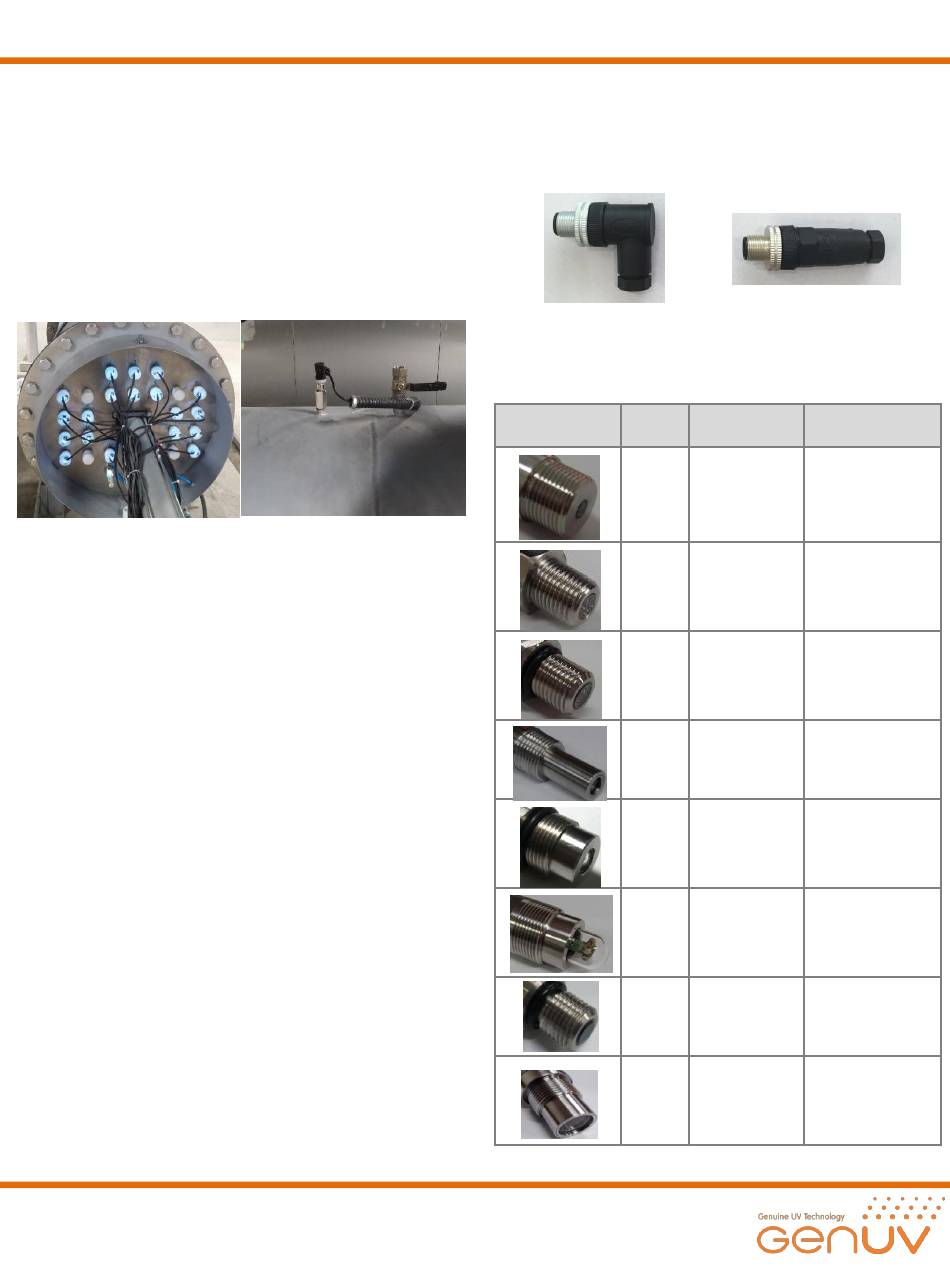

Water treatment systems operating examples

3. The features and advantages of the product

- High reliability (It can be use 10bar pressure)
- Highly visible barrier: pure ultraviolet light (UVA, UVB,UVC)
sensors using. No need for a separate filter
- Custom Product supply available to meet customer orders
- Calibration Service offers tailored to customers' requests
-Voltage of Analog type (0 ~ 5V) or current (4-20㎃) can
provide
- Built-in temperature sensor available
- excellent corrosion resistance STS314-L Material
- Reliable implementation at an affordable price

4. Advantage of using a UV sensor probe

- Can accurately measure the illuminance values of the
Chamber inside
- UV lamp intensity control based on measure intensity
- Can be monitored ON / OFF status of a UV lamp
- UV light can be seen for lamp replacement time.
5. Point that must be taken into account in product
selection
- Consider the thread type of Socket that you try to install.
- Select maximum detection power range.
- Select the required output Type (0 ~ 5V, 4 ~ 20mA)
- Check the operating voltage (5V or 24V)
- In the case of current output (4-20mA), operating voltage
9~24V only possible selection.
- The chosen shape and length of the Connector
- Wire type selection: in case of the current output (4-20mA),
and can be selected from among 2 Wire and 3wire
- Length 5m Connection default and possible adjustment
according to customer's request
(Voltage output type is available up to 10m)
• Connector type
- install by adopting a form suitable for the installation
Environment.
'L' Angled connectors
• Fixing Hole Specifications
Product
Product photos
Name
LW10
LW5
LW5.1
LW8
LW9
LW11
LW13
DVGW
GUVx-T1XC-3LWx
GUVx-T11GC-I8LWx
'I' shaped connector
Fixing Hole
Recommendation
Specifications
PT3/4", 16 ㎜ Chamber type
PT 1/4", 12 ㎜ Chamber type
PF 1/4", 12 ㎜ Chamber type
NPT1/2", 12 ㎜ Chamber type
PT3/4", 11 ㎜ Chamber type
PT 1 1/4", 21
Chamber type
㎜
PF 1/4 "/12 ㎜ Chamber type
A high-pressure
G1" 34mm
mercury lamp
Chamber type
