- Page 1 Ver.1.0 Instruction Manual MG-06 (UV Radiometer) 1. Product Features and Applications 2. Product Specification and Configuration 3. Product Installation 4. Operation 5. Relay Operation method 6. Relative Reaction Curves of UV Sensors 7. A/S Request in Case of Product Failure 8.
- Page 2 Page 1 1. Product Features and Application 1) Features Display is 3 types : Relative Power (RP), Accumulative Time (AT) Output type : Relay contact Standard panel : DIN 48 * 48 (LED display) 2) Applications UV Lamp Monitoring / Water Sterilizer / Air Cleaner/ UV Hardener / UV Irradiator 2.
- Page 3 Page 2 3. Production Installation 1) Mounting the Sensor Probe a. Operation temperature of Sensor Probe is -30 ~ 85 ℃ (-22 ~ 185℉) b. UV sensor of Sensor Probe and UV light source should be fixed in set distance to do verticality. Once a mounting distance has been determined, make sure to use the same distance for any additional sensors used for other lamps;...
- Page 4 Page 3 4. Operation 1) Setting Mark Name Range Application Lower limited According the actual requirement, set the lamp low limited C-01 value of the UV- 0~100% warming line. In case the inspected value lower than last value, low Alarm warning up and the delay be actived.

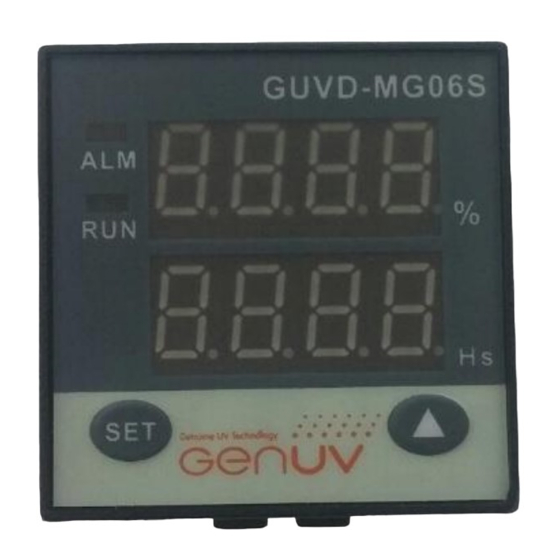

- Page 5 Page 4 4). Process of Parameter Resetting to 100% GUVD-MG06S GUVD-MG06S Press the set key last for 3sec. *When you set the relative power 100% , the AT time will set to 0 hrs. e.x) Setting of C-01 a. Press [Set Key] + [Page down Key] together, enter picture ④. b.
- Page 6 Page 5 5) Alarm codes explanation Mark Name Application Reason and solution As the UV relative Quartz glass on the top of sensor is dirty. Cleaning it. UV low limited value down to 50% of E-01 The irradiance of the lamp maybe weak, please warning original setting, device replace the UV lamp.
- Page 7 Power cable Sensor Probe AC power AC Power Supply Back side of MG-06 , Numeric is terminal Number. Capacitor Fig. 6 Connect diagram of MG-06 Fig. 7 Wiring diagram of Green light and Red light 220㎊/2kV (Red light means abnormal , Green light means normal) In normal status , the relay will connect #6 and #7 , the Green light will be ON and Red light will be off In abnormal status , the relay will connect #7 and #8 , the Green light will be of and Red light will be ON.
- Page 8 Page 7 7. A/S Request in Case of Product Failure 1) Should any failure is found in product, please call the sales company or customer center for A/S. 2) Product warranty period is 1 year from the date of procurement with no charge. However, failure which is caused by user’s misuse or carelessness within warrant period or any failure after the warrant period shall be chargeable for it’s A/S.
