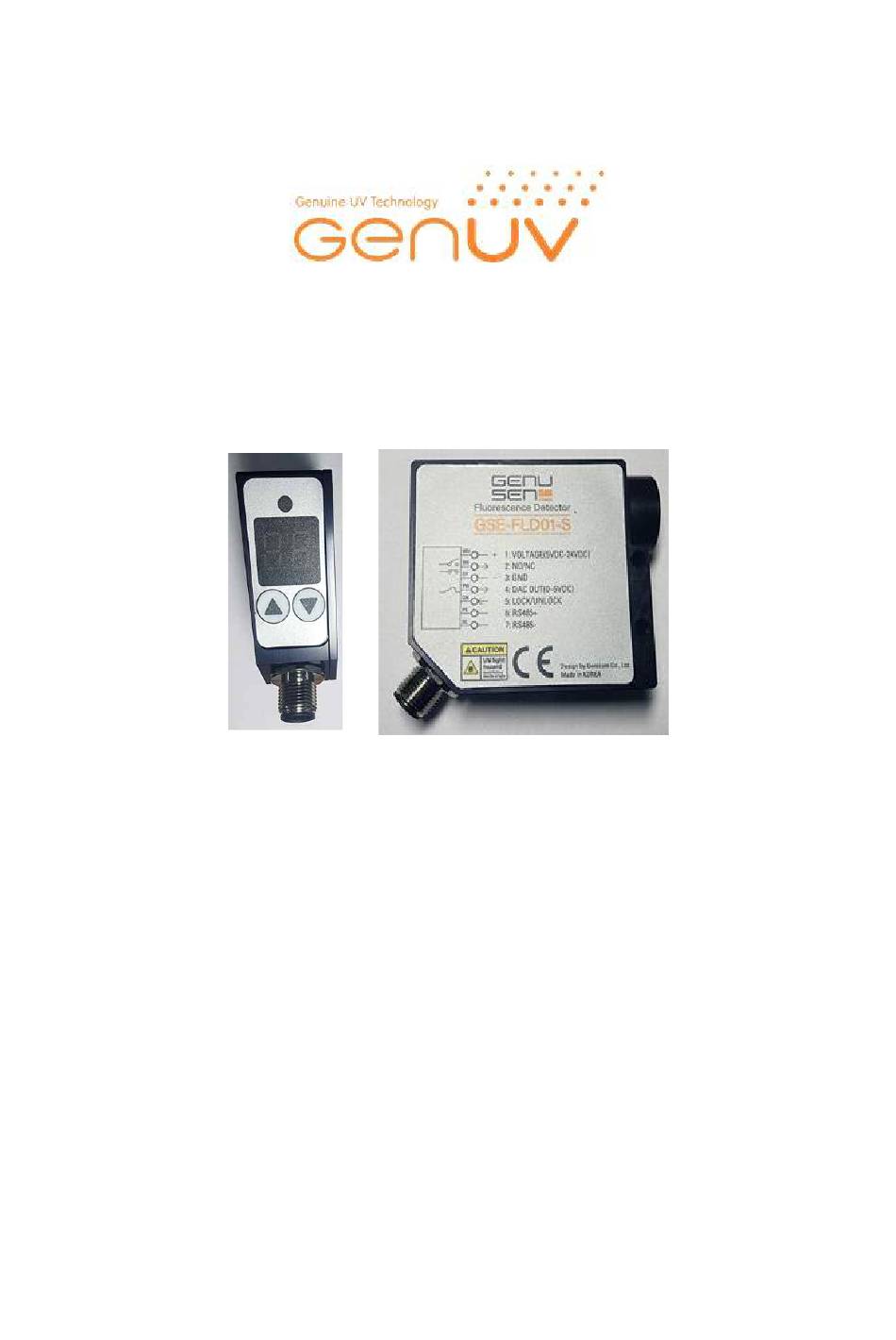

- Page 1 GSE-FLD01-S User Manual GSE-FLD01-S User Manual chlee 230919...
- Page 2 1. Introduction GSE-FLD01-S is one of the fluorescence detectors widely used around the world. It can be used on fast or slow conveyor lines with user-selectable REMOTE ENABLE, RS485 communications and other features. The detector can be operated with two buttons.
- Page 3 - Set the upper and lower limits of the fluorescence detector using the teaching function. 3. Process values(fluorescence amount) The amount of light read by GSE-FLD01-S is the amount of fluorescence. The meter reads the fluorescence energy while the sensor is exposed. GSE-FLD01-S measures and displays the amount of fluorescence as a percentage compared to when there is fluorescence.
- Page 4 UV irradiation Although this product is not a UV light source, it is used in a UV environment. See the UV light documentation. It recommends protection methods for UV irradiation in a UV environment...
-
Page 5: Setting Description
4. The operation of Fluorescence detector LED indicating whether fluorescence is detected amount of fluorescence Button Button has teaching function and comparison value correction performs its function. Connector for Display, Power, RS485 4.1. Setting Description: Fluorescence detector ON: Operates immediately when power is turned on. “RUN”... - Page 6 threshold level. 1. Press and hold the T/+ key for a few seconds until the yellow LED flashes. 2. Place the target at an appropriate distance from the sensor and press the P/- key. The display will blink three times and the sensor will adjust the LED intensity level to obtain the appropriate signal level.
- Page 7 (01: Device address, 03: Command code, 00 00:start address, 00 06: data length, CRC checksum) TX data: 01 03 00 00 00 04 44 09 RX data: 01 03 08 00 00 03 84 01 2C 00 01 64 0F Description: device address (01), Command code (03), Data length (08), Operation time (00 00), Detection strength (03 84), non detectiopn strength(01 2C), Device address(00 01), Upper CRC (64), Lower CRC(0F)
-
Page 8: Cleaning And Calibration
8. Cleaning and Calibration 8.1. Cleaning Use a soft cloth to clean the display window and lens. Warning Never use acetone to clean the display unit and lens. It destroys the device. To clean the optical window, please refer to the optics cleaning tool provided below. Cleaning windows too often can cause calibration problems.
