- Page 1 Manual Smart UV Checker 2.0 GUVX-SXXSUC2.0-LA10 Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
- Page 2 Contents Smart UV Checker 2.0 [GUVX-SXXSUC2.0-LA10] Manual _ English ·························Page 2 ~ 12 Page 1 Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
- Page 3 Smart UV Checker 2.0 [GUVX-SXXSUC2.0-LA10] Manual Page 2 Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
-
Page 4: Table Of Contents
Contents Product Features and Specifications Relative Response Curve Caution Product Operation Method 4-1. Android App Windows Configuration 4-2. APP Window Description 4-3. SAVE File Description 4-4. Error Window Request for A/S in Case of Abnormality Page 3 Genicom Co., Ltd. 2020-rev.1-HJ.KIM... -
Page 5: Product Features And Specifications
1. Product Features and Specifications Description: The GUVX-SXXSUV2.0-LA10 are portable instruments with a Android App display. UVC –LED Item Blue light UV INDEX GUVA- GUVB- GUVC- GUVL- GVBL- GUVI- Model name S12SUC2.0- S31SUC2.0- S10SUC2.0- S10SUC2.0- S12SUC2.0- S11SUC2.0- LA10 LA10 LA10 LA10 LA10 LA10... -
Page 6: Relative Response Curve
2. Relative Response Curve 1) GUVA-S12SUC2.0-LA10 2) GUVB-S31SUC2.0-LA10 3) GUVC-S10SUC2.0-LA10 4) GUVL-S10SUV2.0-LA10 5) GVBL-S12SUV2.0-LA10 6) GUVI-S11SUV2.0-LA10 3. Caution Wear protective gear when monitoring UV lamps. Allow lamps to warm-up prior to taking reading (at least 5 minutes). Do not subject the meter to extremes in temperature, humidity, shock or dust. -
Page 7: Product Operation Method

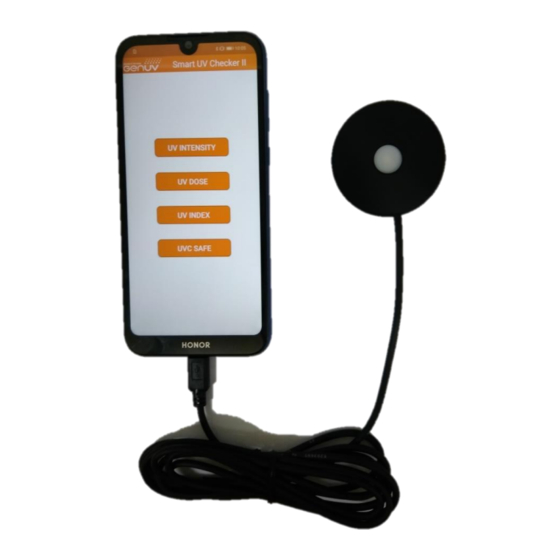

4. Product Operation Method 4-1) Android App Windows Configuration 1) APP ICON 2) Run App after connecting Probe 3) Start Logo Window 4) Menu Window (Smart UV Checker Ⅱ 5) UV INTENSITY Window 6) UV DOSE Window 7) UV INDEX Window 8) UVC SAFE Window [Smart UV Checker 2.0 Window’s] Page 6... -
Page 8: App Window Description
4-2) APP Window Description A) UV Intensity a) UV BAND : UV Measurement Band c) MIN., MAX., AVG of UV Intensity Measurement B) UV DOSE a) UV BAND : UV Measurement Band b) Real-Time Graph : UV DOSE Measurement Graph c) UV Power(UV Intensity), DOSE Measurement Start ~ End Time Accumulated Time, Dose Value Page 7... - Page 9 C) UV INDEX ※ Normal operation only on GUVI-S11SUC2.0-LA10 Probes. a) UV INDEX Graph b) UV Index Value c) The Sun's damaging rays and a guideline to protection*. Page 8 Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
-
Page 10: Save File Description
D) UV SAFE ※ Normal operation only on GUVC-S10SUC2.0-LA10 Probes. (GUVL-S10SUC2.0-LA10 Probe will also be added in the future.) a) Input of UVC Wavelength Value b) UV Safe Graph c) Irradiation and Biological Effective Irradiation Value 4-3) SAVE File Description A) UV Intensity a) Save File Name : UV_Intensity_2019-11-21_10:18:31.csv b) It can be viewed in the micro-office Excel program. - Page 11 B) UV DOSE a) Save File Name : UV_Dose_2020-06-15_08:56:32.csv b) It can be viewed in the micro-office Excel program. c) Example of save File Date/Time UV Power(mW/cm²) Dose(mJ/cm²) 2020-06-15 8:55 2020-06-15 8:55 0.055 0.055 2020-06-15 8:55 0.094 0.149 2020-06-15 8:55 0.088 0.237 2020-06-15 8:55...
-
Page 12: Error Window
D) UV SAFE a) Save File Name : UVC_Safe_2020-06-15_18:09:39.csv b) It can be viewed in the micro-office Excel program. c) Example of save File Date/Time Irradiation(mW/cm²) Biological effective irradiation(mW/cm²) 2020-06-15 18:08 0.03 0.015 2020-06-15 18:08 0.031 0.0155 2020-06-15 18:08 0.032 0.016 2020-06-15 18:08 0.033... -
Page 13: Faq
Error item Check list Check that the light source is on. For UV index meters, measurements may be impossible on cloudy days. Make sure that the incident surface of the sensor probe is perpendicular to the light source. When the measured value is [0.0] Check the detection wavelength range of the measuring instrument and the wavelength of the light source. - Page 14 MEMO Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
- Page 15 Genicom Co., Ltd. 2020-rev.1-HJ.KIM...
