Atomic 3000 LED
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martin Atomic 3000 LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Harman Martin Atomic 3000 LED

Summary of Contents for Harman Martin Atomic 3000 LED

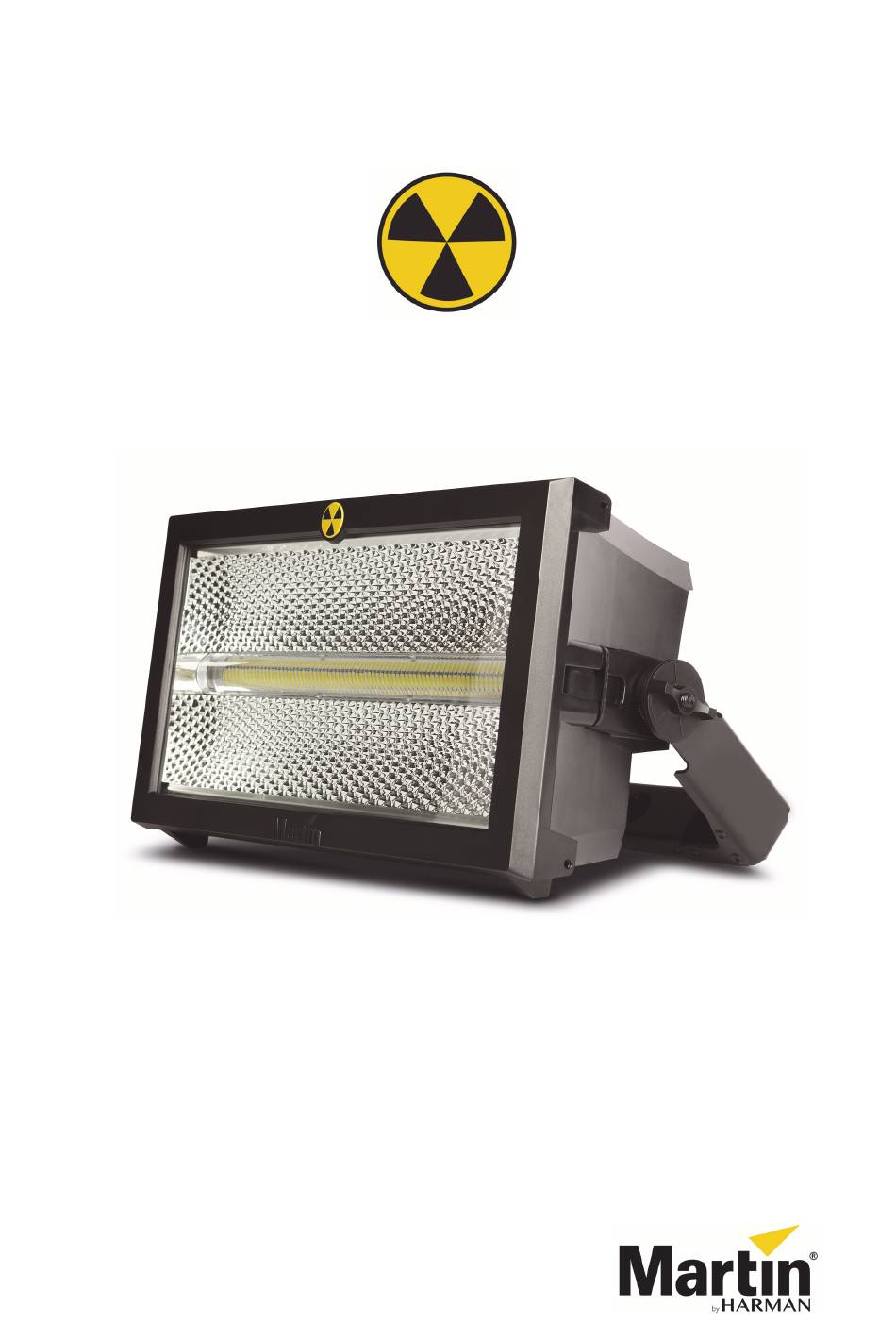

  • Page 1 Atomic 3000 LED User Manual...

  • Page 2: Dimensions

    Martin Professional or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional or its affiliates or subsidiaries. Martin Atomic 3000 LED products are covered by one or more of these patent applications: DK PA2015 70217;...

  • Page 3: Safety Information

    Safety Information WARNING! Read the safety precautions in this section before installing, powering, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: WARNING! WARNING! WARNING! WARNING! WARNING! WARNING! Refer to user manual Safety hazard.
  • Page 4 • Use only a source of AC power that complies with local building and electrical codes and has both overload and ground-fault (earth-fault) protection. • Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices.
  • Page 5 • When suspending the fixture, ensure that the supporting structure and all hardware used can hold at least 10 times the weight of all the devices they support. • Install the fixture only as described under “Physical installation” on page 11. In all truss-mount installations where the fixture is not hanging vertically in ‘free hanging mode’, use a rigging clamp that completely encircles the truss chord, and bolt the clamp directly to the fixture’s mounting bracket with a grade 8.8 strength bolt and unworn self-locking nut.

  • Page 6: Table Of Contents

    Contents Dimensions ............... . 2 Safety Information .

  • Page 7: Fixture Overview

    Fixture overview Safety cable Mounting bracket Quarter-turn fastener attachment point attachment points Tilt adjustment wheel DMX input AC mains power Control buttons Display input Safety cable attachment point (use for Atomic Colors if installed) Air filter grill Tilt release screws adjustment wheel Base of fixture,...

  • Page 8: Introduction

    Introduction Thank you for selecting the Atomic 3000 LED™, an intelligent lighting fixture from Martin Professional™. This powerful LED-based stroboscopic effect light builds on the industry-standard Martin Atomic 3000 DMX™ strobe effect, and features: • A ‘Beam’ LED array that gives powerful strobe and blinder effects •...

  • Page 9: Ac Power

    AC power Warning! Read “Safety Information” on page 3 before connecting the Atomic 3000 LED to AC mains power. Warning! For protection from electric shock, the Atomic 3000 LED must be grounded (earthed). The power distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection.

  • Page 10: Data Link

    Data link Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing the Atomic 3000 LED. A DMX 512 data link is required in order to control the Atomic 3000 LED via DMX. The Atomic 3000 LED has 5-pin XLR connectors for DMX data input and output. The pin-out on all connectors is pin 1 = shield, pin 2 = cold (-), and pin 3 = hot (+).

  • Page 11: Physical Installation

    Physical installation Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing the Atomic 3000 LED. Warning! Check that all surfaces to be illuminated are minimum 1 m (3 ft. 4 in.) from the fixture, that combustible materials (wood, fabric, paper, etc.) are minimum 20 cm (8 in.) from the fixture, that there is free airflow around the fixture and that there are no flammable materials nearby.

  • Page 12: Mounting The Fixture On A Truss

    Mounting the fixture on a truss The Atomic 3000 LED can be clamped to a truss or similar rigging structure in any orientation. When mounting on a truss: • Check that the rigging structure can support at least 10 times the weight of all fixtures and equipment to be installed on it.

  • Page 13: Atomic Colors Scroller

    2. See Figure 5. Fasten the omega bracket to the fixture’s mounting bracket at A (or to the fixture housing itself at B) with quarter-turn fasteners. Fastening to the mounting bracket is preferable, as this will let you adjust the aim of the fixture. 3.
  • Page 14 Warning! The Atomic 3000 LED has two safety cable attachment points (see Figure 1 on page 7). Secure the Atomic Colors scroller against falling with a safety cable passed through the attachment point on the right when viewed from the back of the fixture. Use the other attachment point for the safety cable that secures the fixture.
  • Page 15 4. Fasten the carabiner clip on the Atomic Colors safety cable to the safety cable attachment point on the right-hand side of the Atomic 3000 LED when looking at the back of the fixture. Make sure that the clip is fully closed, repositioning the clip if necessary, so that the safety cable is secure.

  • Page 16: Setup

    Setup Warning! Read “Safety Information” on page 3 before installing, powering, operating or servicing the Atomic 3000 LED. Control panel and menu navigation The onboard control panel and backlit graphic display on the back of the fixture are used to set the Atomic 3000 LED’s DMX address, configure individual fixture settings, read out data and execute service utilities.

  • Page 17: Dmx Address Setting

    Control panel shortcuts Two shortcuts are available in the control panel before you enter the menus: • Pressing and holding the MENU button for 2 seconds opens a shortcut menu that lets you reset the fixture or rotate the display. •...

  • Page 18: Personality

    Personality The Atomic 3000 LED provides several options that let you optimize the fixture for different applications in the PERSONALITY menu: • DIMMER CURVE provides four dimming options that apply to both the Beam and the Aura light output (see Figure 9): DMX % DMX % DMX %...

  • Page 19: Default And Custom Settings

    - If the fixture is set to reduced cooling fan speed, increase the speed in the COOLING MODE menu. - If necessary, clean the fixture, particularly the air vents. - Check that there is sufficient airflow around the fixture. If possible, increase ventilation. - If possible, provide reduced ambient temperature by moving the fixture away from sources of heat, providing airflow from a cooler source of air, etc.

  • Page 20: Dmx Signal Monitoring

    DMX signal monitoring The Atomic 3000 LED provides data on the DMX signal it is receiving in the DMX LIVE menu. This information can be useful for troubleshooting control problems. RATE displays the DMX refresh rate in packets per second. Values lower than 10 or higher than 44 may result in erratic performance, especially when using tracking control.

  • Page 21: Operation And Effects

    Operation and effects Warning! Read “Safety Information” starting on page 3 before installing, powering, operating or servicing the Atomic 3000 LED. The Atomic 3000 LED can be controlled using a DMX control device. See “DMX protocol” on page 27 for a full list of the channels and values required to control the different effects via DMX.

  • Page 22: Beam Color With The Atomic Colors Scroller

    FX offset (synchronizing FX across multiple fixtures) You can set fixtures so that they all start their FX cycle at the same time or you can shift any fixture’s FX start time so that it displays its FX in sync with another fixture but with a time offset (delayed start). Consider an FX cycle as consisting of 360°...

  • Page 23: Service And Maintenance

    Service and maintenance Warning! Read “Safety Information” on page 3 before servicing the Atomic 3000 LED. Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. Be prepared for the fixture to light suddenly if connected to power. Warning! Refer any service operation not described in this user manual to a qualified service technician.

  • Page 24: Control Menu Service Utilities

    Warning! Disconnect from power and allow to cool before cleaning. To clean the fixture: 1. Disconnect the fixture from power and allow it to cool for at least 10 minutes. 2. Vacuum or gently blow away dust and loose particles from the outside of the fixture and the air vents at the back and base with low-pressure compressed air.
  • Page 25 Installing using a USB memory device Important! Do not remove a USB memory device while the fixture is updating files. The following are required in order to install firmware using a USB memory device: • The Atomic 3000 LED firmware update file, available for download from the Martin website at http://www.martin.com.

  • Page 26: Fixture Readouts

    Fixture readouts See also “Fixture information readouts” on page 19. DMX input signal DMX LIVE menu lets you view the DMX values received on each channel in the mode it is currently set to. If the fixture does not behave as expected, reading the DMX values can help you troubleshoot the problem.

  • Page 27: Dmx Protocol

    DMX protocol 3-Channel DMX Mode Fade Default Channel value Function status value Beam flash intensity Snap Blackout Minimum → maximum intensity 1- 255 Beam flash duration Snap 0 - 255 7→ 650 ms Beam flash rate Snap 0.289 → 16.67 Hz 0 - 255 Table 2: DMX Protocol - 3 Channel Mode 4-Channel DMX Mode...

  • Page 28: Extended Dmx Mode

    Extended DMX Mode Fade Default Channel value Function status value Main control channels Beam flash intensity Snap Blackout Minimum → maximum intensity 1- 255 Beam flash duration Snap 0 - 255 7→ 650 ms Beam flash rate Snap Slow (0.289) → fast (16.67 Hz) 0 - 255 Beam special effects 0 - 5...
  • Page 29 Fade Default Channel value Function status value FX synchronization No sync Offset shift 10° Offset shift 20° Offset shift 30° Offset shift 40° Offset shift 50° Offset shift 60° Offset shift 70° Offset shift 80° Offset shift 90° Offset shift 100° Offset shift 110°...
  • Page 30 Fade Default Channel value Function status value Aura color presets (‘color wheel’ effect) 0 - 10 Open. RGB color mixing enabled 11 - 15 Color 1 - LEE 790 - Moroccan pink 16 - 20 Color 2- LEE 157 - Pink 21 - 25 Color 3 - LEE 332 - Special rose pink 26 - 30...

  • Page 31: Fx: Pre-Programmed Effects

    FX: pre-programmed effects The table below lists the pre-programmed dynamic effects (macros) that can be controlled using DMX channels 6 and 7 in Extended mode. Select an effect on channel 6 by sending the value listed in the table. Adjust effect parameters such as speed and intensity on channel 7, and adjust synchronization of effects across different fixtures on channel The dimmer channel will always control the intensity of the selected FX.

  • Page 32: Onboard Control Menus

    Onboard control menus Default settings are indicated in bold print Menu Item Options Notes DMX address (default address = 1). XXX means that the DMX address range is limited so that the fixture will DMX ADDRESS 1 – XXX always have enough DMX channels within the 512 available.
  • Page 33 Menu Item Options Notes TOTAL X HOUR Display total hours of operation since manufacture POWER ON RESETTABLE X TIME → CLEAR COUNTER YES/NO Reset counter to zero HOUR TOTAL X POWER Display total hours of operation since manufacture CYCLES → RESETTABLE X CLEAR COUNTER YES/NO Reset counter to zero...

  • Page 34: Service And Display Messages

    Service and display messages The Atomic 3000 LED gives service and maintenance information by displaying a large 3- or 4-character short code and a smaller full-text message in the fixture’s display. The short code is visible at a distance, allowing easier reading if the fixture is overhead in a rig, for example, while the full-text message gives more detailed information.

  • Page 35: Error Messages

    Error messages Error messages indicate that there is a serious problem. The Atomic 3000 LED communicates errors as follows: • Error messages flash in the display. • If more than one error is detected, the fixture flashes all errors three times each. •...

  • Page 36: Troubleshooting

    Troubleshooting Problem Probable cause(s) Remedy No power to fixture. Check AC mains power and connections. Fixture is completely dead. Have faulty fixture serviced by Martin service Internal circuit fault. technician. Inspect connections and cables. Correct poor Fault on data link. connections.

  • Page 37: Specifications

    Specifications Physical Length ..............245 mm (9.7 in.) Width .
  • Page 38 Thermal Cooling....Forced air (temperature-regulated, low noise, user-definable fan settings) Maximum ambient temperature (Ta max.) ........40° C (104° F) Minimum ambient temperature (Ta min.) .
  • Page 39 Photobiological Safety Warning RISK GROUP 3 The labels shown on the left are displayed on this product. If a label becomes difficult or impossible to read, it must be replaced using the illustration on the left to reproduce a new label. WARNING FCC Compliance This device complies with Title 47 Part 15 of the FCC Rules.

  • Page 40: Powercon True1 Installation Instructions

    PowerCON TRUE1 installation instructions OPERATING & ASSEMBLY INSTRUCTION NAC3MX-W powerCON TRUE1 A. OPERATING INSTRUCTION Application: The powerCON TRUE1 system is certified as connector with breaking capacity according IEC 60320, VDE 0625. It is intended for use as appliance couplers and interconnection couplers. It serves to supply power to an appliance and from an appliance to another equipment.
  • Page 41 ASSEMBLY INSTRUCTION powerCON TRUE1 Slide the cable into the contacts and clamp with Torx size the screw with Torx size T8. Wiring Torque Value 0.7 Nm Þ brown black Þ blue white Þ green / yellow green Important: Push and turn simultaneously. Slide chuck onto insert (1) and then both into housing (2).
  • Page 44 • • • www.martin.com Olof Palmes Allé 18 8200 Aarhus N Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
