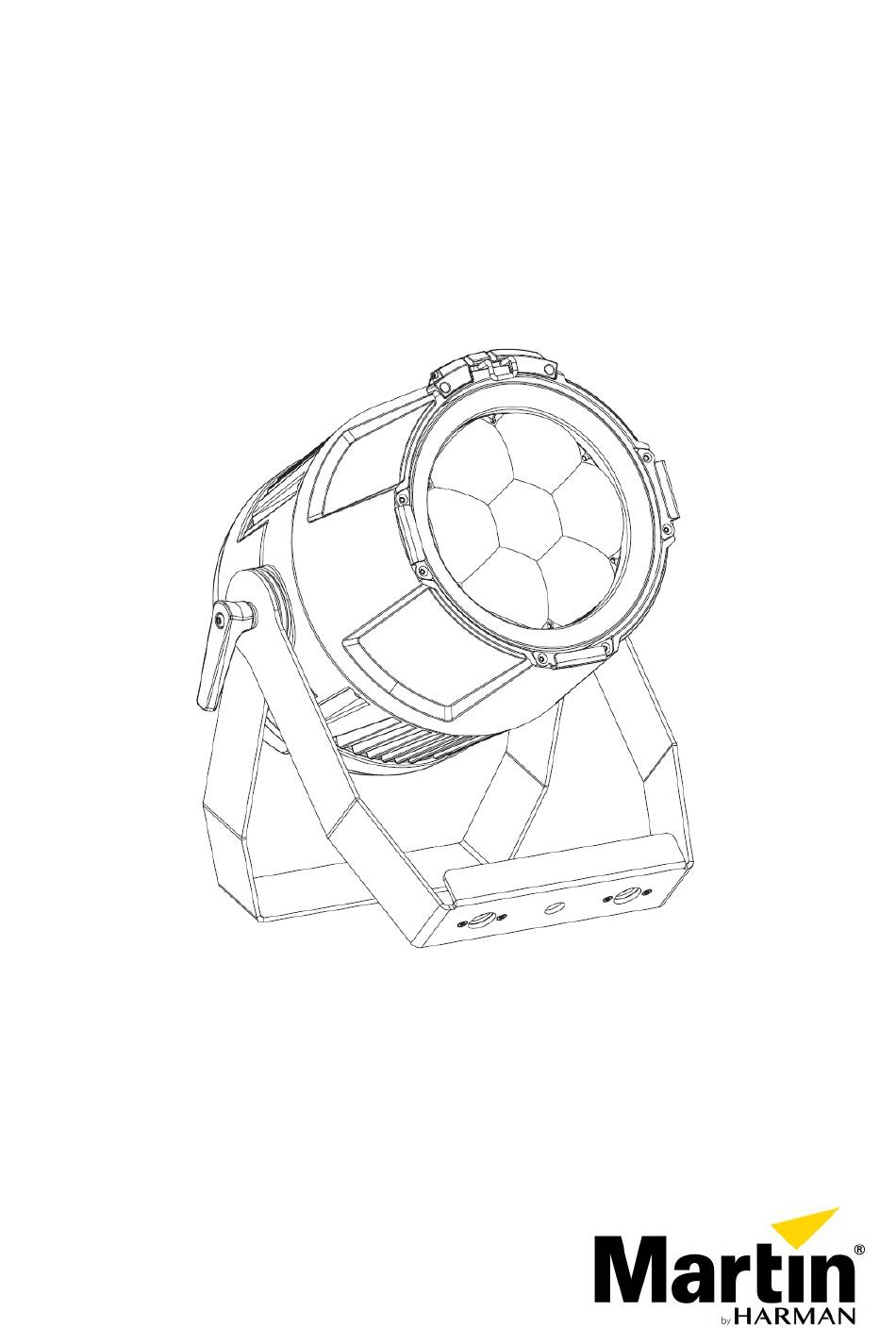

  • Page 1 ELP PAR User Guide...
  • Page 2 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.

  • Page 3: Table Of Contents

    Table of contents Safety information ................. 4 Introduction ................... 9 Before using the product for the first time ........9 Fixture overview ................. 10 Physical installation ................11 Standing the fixture on a flat, horizontal surface ......12 Fastening the fixture to a flat surface ..........13 Mounting the fixture on a truss ............

  • Page 4: Safety Information

    Safety information WARNING! Read the safety precautions in this manual before installing, operating or servicing this product. The following symbols are used to identify important safety information on the product and in this manual: Warning! Warning! Warning! Warning! Warning! Safety hazard. Powerful light See user Hazardous...
  • Page 5 Document revisions are indicated at the bottom of page 2. Technical Support If you have questions about how to install or operate the fixture safely, please contact Harman Professional Technical support: • For technical support in North America, please contact: HProTechSupportUSA@harman.com...
  • Page 6 Before using the fixture, check that all power distribution equipment and cables are in perfect condition and rated for the current requirements of all connected devices. Use only Neutrik PowerCON TRUE1 TOP cable connectors to connect to the fixture’s power sockets. Do not connect devices to power in a chain that will exceed the electrical ratings of any cable or connector used in the chain.
  • Page 7 and materials. Allow the fixture to cool for at least 15 minutes before handling. Keep flammable materials well away from the fixture. Keep all combustible materials (e.g. fabric, wood, paper) at least 0.5 m (1.7 ft.) away from the fixture housing. Ensure that there is free and unobstructed airflow around the fixture.
  • Page 8 the fixture when the product lights up suddenly. This can happen when power is applied, when the product receives a DMX signal, or when certain control menu items are selected. To minimize the risk of eye irritation or injury, disconnect the fixture from power at all times when the fixture is not in use and provide well-lit conditions to reduce the pupil diameter of anyone working on or near the fixture.

  • Page 9: Introduction

    Introduction The ELP PAR is a bright single-lens LED PAR Can with calibrated color output from seven RGBW LEDs and a motorized zoom with an angle that varies from 5.6° to 57.6° (field angle, one-tenth peak) or 4.2° to 35.4° (beam angle, half-peak).

  • Page 10: Fixture Overview

    Fixture overview 1 - Display 2 – Control buttons 3 – Tilt adjustment handle 4 – Mains power IN (Neutrik PowerCON TRUE1 TOP) 5 – Mains power OUT / THRU (Neutrik PowerCON TRUE1 TOP) 6 – DMX IN (Neutrik 5-pin XLR) 7 –...

  • Page 11: Physical Installation

    Physical installation Read ‘Safety information’ on page 4 before installing the fixture. Warning! See illustration below. Position or shade the head so that the front of the head will not be exposed to sunlight or any other strong light source from any angle – even for a few seconds.

  • Page 12: Standing The Fixture On A Flat, Horizontal Surface

    Mounting bracket angle scales See illustration on right. The fixture’s mounting bracket has angle scales printed on both sides next to the adjustment handles. The scales show the precise angle at which the head is tilted. There are two scales. The inner scale is for use when standing the fixture on the floor.

  • Page 13: Fastening The Fixture To A Flat Surface

    Fastening the fixture to a flat surface Use a stable horizontal surface that can support at least 10 times the weight of all the fixtures and equipment that it will support. Ensure that all fasteners used can support at least ten times the weight of all the fixtures and equipment that they will support.

  • Page 14: Securing With A Safety Cable

    Bolt a rigging clamp to a Martin omega bracket (available as an accessory by ordering P/N 91602001 from your Martin supplier) using a grade 8.8 steel bolt. See illustration on right. Fold the legs of the fixture’s mounting bracket together and fasten the omega bracket securely to the mounting bracket.

  • Page 15: Connecting To Ac Power

    Connecting to AC power Read ‘Safety information’ on page 4 before connecting the fixture to AC mains power. Before you connect other fixtures to the POWER OUT socket, see ‘Linking fixtures to power in a chain’ on page 16. For protection from electric shock, the fixture must be grounded (earthed).

  • Page 16: Linking Fixtures To Power In A Chain

    Linking fixtures to power in a chain If you obtain a 12 AWG / 2.5 mm power input cable and 12 AWG / 2.5 mm throughput cables from Martin (see “Accessories” on page 46), you can relay mains power from one fixture to another by connecting fixtures to power in a linked daisy-chain, POWER OUT throughput socket to POWER IN input socket.

  • Page 17: Connecting To Data

    Connecting to data A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 5-pin XLR connectors for DMX data input and output. The number of daisy-chained fixtures is limited by the number of DMX channels required by the fixtures in relation to the maximum 512 channels available in one DMX universe.

  • Page 18: Fixture Setup

    Fixture setup This section explains the fixture characteristics that can be set to determine how it can be controlled and will behave. These settings are made using the menus available in the control panel. Settings are retained in memory when the fixture is powered off.

  • Page 19: Dmx Address Setting

    Menu shortcuts Pressing and holding the MENU button for two seconds opens a small Shortcuts menu with two items: • RESET ALL carries out a complete reset of the fixture with all its effects. • ROTATE DISPLAY rotates the control panel display through 180°. This function makes it easier to read the control panel menus when changing from standing to hanging installation.

  • Page 20: Tungsten Emulation Mode

    Tungsten emulation mode In tungsten emulation mode, the fixture’s white light output is made warmer, the warm shift is increased at lower dimming levels, and an ‘afterglow‘ effect is added after dimming. This mode gives the ‘look and feel’ of a fixture that uses a 2800 K incandescent light bulb as its source.

  • Page 21: Blackout Or Hold If Dmx Signal Stops

    Blackout or Hold if DMX signal stops You can decide how the fixture should behave if you are controlling the fixture via DMX and then you stop sending the DMX data signal: 1. Select NO DATA MODE and press ENTER. The currently set mode will blink in the display.

  • Page 22: Display Rotation

    Display rotation The fastest way to rotate the control panel display through 180° to match the fixture’s orientation is to press and hold the UP button and then press the DOWN button. You can also rotate the display using the DISPLAY control menu: 1.

  • Page 23: Fixture Test

    Fixture test You can run an automatic sequence to test all the fixture’s effects or manually test individual effects using the control menus. Automatic effects test To perform a complete test of all of the fixture’s effects: 1. Select FIXTURE TEST → TEST ALL and press ENTER to confirm. The automatic test will run.
  • Page 24 Firmware version To see which software version is installed in the fixture: 1. Select INFORMATION → SW VERSION and press ENTER. The display will indicate the currently installed firmware version. 2. Use the UP and DOWN buttons to scroll through firmware revisions. 3.

  • Page 25: Dmx Live

    DMX Live You can view the DMX values currently being received on each of the fixture’s DMX channels. This can be useful for troubleshooting purposes. To view the DMX values being received: 1. Select DMX LIVE and use the UP and DOWN buttons to scroll through the value being received on each channel.

  • Page 26: Focus Shortcut

    When in manual control mode, pressing any button on the control panel lights up the control panel display and shows the message MANUAL CONTROL MODE. Focus shortcut The fixture features a ‘focus shortcut’ mode that lets you adjust the zoom effect.
  • Page 27 There are three scene capture controls on the Control / Settings DMX channel: • Capture current scene stores the currently displayed scene in the fixture’s memory. • Captured scene playback = ON sets the fixture to show the scene that is stored in memory if the fixture stops receiving a DMX signal.

  • Page 28: Effects

    Effects See ‘DMX protocol’ on page 34 for a full list of the DMX channels and values required to control the different effects. Shutter effect The electronic ‘shutter’ effect provides instant open and blackout, variable speed regular and random strobe. Dimmer Overall intensity can be adjusted 0-100% using smooth continuous electronic dimming with 16-bit control resolution.

  • Page 29: Rdm

    The ELP PAR responds to the following RDM PIDs: Name Description 0x0001 DISC_UNIQUE_BRANCH Fixture discovery 0x0002 DISC_MUTE Fixture discovery 0x0003 DISC_UN_MUTE Fixture discovery 0x0020 QUEUED_MESSAGE Get Queued Messages Get Status/Error 0x0030 STATUS_MESSAGES Information 0x0031 STATUS_ID_DESCRIPTION Status/Error Description 0x0032 CLEAR_STATUS_ID Clear Status/Error Queue 0x0050 SUPPORTED_PARAMETERS Parameter discovery...
  • Page 30 0x1021 SELF_TEST_DESCRIPTION Self test Description Enable/Disable Fixt. Off via 0x8001 DMX_RESET User-Changeable Fixture 0x8003 FIXTURE_ID Number 0x8004 COLOR_MODE Set Color Mode 0x8301 EFFECT_SPEED Set Effects Speed 0x8308 DISPLAY_ERRORS_ENABLE Show Errors on Display 0x8310 DIMMER_CURVE Set Dimmer Curve 0x8312 DISPLAY_AUTO_OFF Display Auto Off 0x8325 VIDEO_TRACKING Video Tracking On/Off...

  • Page 31: Maintenance

    Maintenance Read ‘Safety information’ on page 4 before servicing the fixture. Refer any service operation not described in this user manual to a qualified service technician. Disconnect the fixture from mains power and allow to cool completely before cleaning or servicing. Service fixtures in an area where there is no risk of injury from falling parts, tools or other materials.

  • Page 32: Uploading New Firmware

    3. Clean lenses by wiping gently with a soft, clean lint-free cloth moistened with a weak detergent solution. Do not rub the surface hard: lift particles off with a soft repeated press. Dry with a soft, clean, lint-free cloth or low-pressure compressed air.

  • Page 33: Service And Repairs

    4. Locate the latest ELP PAR firmware in Martin Companion (Firmware → ELP → ELP PAR). 5. Start the firmware update by clicking Update Firmware in Martin Companion. Do not disconnect the Martin Companion Cable or power off the fixture(s) until the upload is complete and the fixture(s) has successfully rebooted.

  • Page 34: Dmx Protocol

    DMX protocol Fade Channel Value Function type fault Strobe and shutter effects 0-19 Shutter closed 20-49 Shutter open Snap 50-200 Strobe, slow → fast 201-210 Shutter open 211-255 Random strobe, slow → fast Dimming coarse 0→100% 0-65535 Fade Dimming fine Red coarse 0→100% 0-65535 Fade...
  • Page 35 Fade Channel Value Function type fault 33-34 Double CT Blue (LEE 200) (contd.) 35-36 Slate Blue (LEE 161) 37-38 Full CT Blue (LEE 201) 39-40 Half CT Blue (LEE 202) 41-42 Steel Blue (LEE 117) 43-44 Lighter Blue (LEE 353) 45-46 Light Blue (LEE 118) 47-48...
  • Page 36 Fade Channel Value Function type fault Random colors (contd.) 244 - 247 Random color, fast Snap 248 - 251 Random color, medium 252 - 255 Random color, slow Zoom narrow → wide coarse 0→100% 0-65535 Fade 32768 Zoom narrow → wide fine Control / Settings 0 - 9 No function (disables calibration) –...
  • Page 37 Fade Channel Value Function type fault Enable calibration – 5 s. (contd.) No function Store dimmer calibration – 5 s. 103 - 113 No function Store zoom calibration – 5 s. 115 - 198 No function Reset ALL calibration settings to factory defaults –...

  • Page 38: Control Menus

    Control menus To access the control menus, press the MENU button. Use the UP and DOWN buttons to navigate the menus. Select any required menu option using the ENTER button. For more information, see ‘Using the control menus’ on page 18. Default fixture settings are shown in bold.
  • Page 39 NORMAL Normal orientation DISPLAY ROTATE Inverted orientation ROTATION 180° Control panel DISPLAY 10 - 100 display intensity in INTENSITY DISPLAY All temperature °C readouts in Celsius TEMPERATURE All temperature UNIT °F readouts in Fahrenheit DEFAULT SETTINGS FACTORY Return all fixture settings except DEFAULT calibration to factory defaults FIXTURE TEST...
  • Page 40 Display temperatures of all PCBs TEMPERATURES LED / BASE and the integrated PSU Display speeds in RPM of all FAN SPEED LED / PSU cooling fans including the PSU cooling fan DMX LIVE STROBE 0 - 255 DIMMER 0 - 255 Scroll to display DMX values DIMMER FINE 0 - 255...
  • Page 41 Save current custom calibration SAVE settings. Important! See note below Replace factory default calibration settings with SAVE SETTING SAVE custom values or zero values. Important! See note below Reset all calibration CLEAR ALL values to zero. RESTORE VALUES Important! See note below Important note •...

  • Page 42: Troubleshooting

    Troubleshooting This section describes a few common problems that may occur during operation and provides some suggestions for easy troubleshooting: Symptom Potential cause Remedies No light from Power supply issue Ensure that the mains fixture or fans not such as faulty supply is connected and working.

  • Page 43: Dimensions

    Dimensions All dimensions are in millimeters ® Martin ELP PAR User Guide...

  • Page 44: Specifications

    Specifications Physical Dimensions incl. bracket (LxWxH) ... 312x287x401 mm (12.3x11.3x15.8 in.) Weight ................. 7.8 kg (17.2 lbs.) Dynamic Effects Color mixing ..................RGBW Color presets ......48 color presets, virtual color wheel effects Color temperature ..........Variable 1800 – 12 850 K Electronic dimming ......
  • Page 45 Connections AC power input ........... Neutrik PowerCON TRUE1 TOP AC power throughput ......... Neutrik PowerCON TRUE1 TOP DMX data in/out ............. Neutrik 5-pin locking XLR Electrical AC power ............100-240 V nominal, 50/60 Hz Typical power consumption ..............300 W Typical half-cycle RMS inrush current at 240 VAC ........
  • Page 46 Included Items Adjustable mounting bracket Accessories Power input cables, 16 A Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) ......P/N 91611797 Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W (female), 5 m (16.4 ft.) ......P/N 91611786 Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W (female), 1.5 m (4.9 ft.) ......
  • Page 47 Supplier’s Declaration of Conformity Harman Professional, Inc. have issued an FCC Supplier’s Declaration of Conformity for this product. The Declaration of Conformity is available for download from the ELP PAR area of the Martin website at www.martin.com...
  • Page 48 Disposing of this product Martin® products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of RUSH by Martin products ®...
