Martin®, HARMAN and all other trademarks in this document pertaining to services or products by Martin Professional or its affiliates and subsidiaries are registered as the property of HARMAN Professional Denmark.
Table of contents Dimensions ...................... 2 Safety information .................... 4 Introduction ...................... 7 Before using the product for the first time .......... 7 Fixture overview ....................8 Physical installation ..................9 Fixture location ................... 9 Mounting the fixture ................9 Fastening the fixture to a flat surface ..........
Martin website at http://www.martin.com Technical Support If you have questions about how to install, service or operate the fixture safely, please contact Harman Professional Technical support: • For technical support in North America, please contact HProTechSupportUSA@harman.com / phone: (844) 776-4899 •...
Page 5
Protection from electric shock Ensure that the fixture is electrically connected to ground (earth). Disconnect the fixture from AC power when not in use. Do not open the fixture or remove any cover. Refer any service operation not described in this manual to an authorized Martin Service partner. Shut down power to the entire installation at the main power distribution board and lock out power before carrying out any installation or maintenance work.
Page 6
Do not attempt to bypass thermostatic switches or fuses. Do not modify the fixture in any way not described in this manual or install other than genuine Martin parts. Do not stick filters, masks or other materials onto any lens or other optical component.

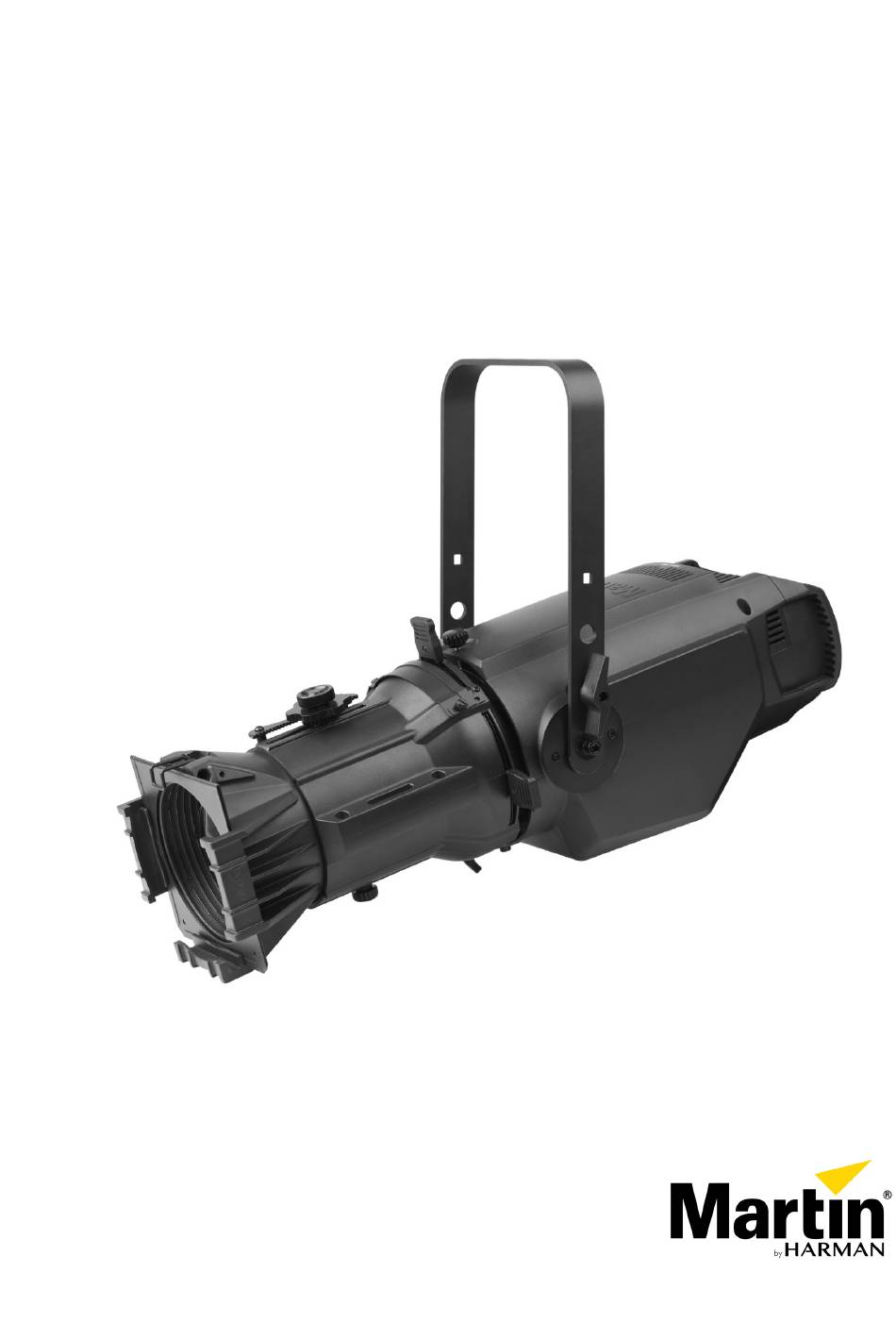

Introduction The ELP WW from Martin® is an ellipsoidal/profile lighting fixture with a 260 W warm white LED engine that produces a sharp gobo projection with a flat field. Four fixed beam angle lens tubes and two zoom lens tubes are available for the fixture. We recommend that you order the lens tube of your choice at the same time as ordering the fixture body.
Physical installation Warning! Read ‘Safety information’ on page 4 before installing the fixture. Warning! The safety and suitability of lifting equipment, installation location, anchoring method, mounting hardware and electrical installation are the responsibility of the installer. All local safety regulations and legal requirements must be observed when installing and connecting the fixture.
2. Block access under the work area. 3. Bolt a rigging clamp securely to the mounting yoke. The bolts used must be M12, grade 8.8 steel minimum, and fastened with a self-locking nut. 4. Working from a stable platform, mount the fixture on the truss and fasten the rigging clamp onto the truss.
Changing the lens tube Four different lens tubes with fixed beam angles of 19°, 26°, 36° or 50° are available for the fixture. Two zoom lens tubes with either 15°-30° or 25°-50° zoom ranges are also available. All lens tubes are available in black or white finish.
AC power Warning! Read ‘Safety information’ on page 4 before installing the fixture. Warning! The 18 AWG / 0.75 mm mains power input cable supplied with the fixture is rated 6 A and can supply only one fixture with mains power. Do not connect any device to the fixture’s MAINS OUT socket when using this input cable.
Control data A DMX 512 data link is required in order to control the fixture via DMX. The fixture has 5-pin XLR connectors for DMX data input and output. Up to 32 devices can be linked together on a single daisy chain. The total number of fixtures in one 512-channel DMX universe is limited by the number of DMX channels required by the fixtures.
Fixture setup This section explains the fixture characteristics you can set that determine how it can be controlled and will behave. You choose the settings using the menus available from the control panel, and they are retained even when the fixture is powered off. Options can also be set over the DMX link using RDM from a suitable controller, see “Setting options by RDM”...
For independent control, each fixture must be assigned its own control channels. Two fixtures of the same type may share the same address if identical behavior is desired. Address sharing can be useful for diagnostic purposes and symmetric control. To set the fixture’s DMX address: 1.
Page 16
To set the fixture’s dimmer curve, select DIMMER CURVE from the PERSONALITY menu and press ENTER to confirm. Use the UP and DOWN buttons to select the desired mode. Press ENTER to save your selection. PWM Frequency Sets the frequency of the PWM dimming used on the fixture. It can sometimes be necessary to change this if flickering is seen on TV cameras running at a high shutter speed.
Page 17
Press ENTER to confirm (or press MENU to exit without making a change). Fixture Test This menu allows you to run self-test sequences on the fixture’s LED emitters. A sequence of LED test, dimmer test, strobe test will be run. Fixture information The INFORMATION menu allows you to view various fixture information: Power on time, LED hours, Software version, Fixture ID, RDM unique ID, Fan speeds, temperatures.
Setting options by RDM You can remotely configure the fixture over the DMX line using a suitable RDM-compatible controller that is connected to the installation via a DMX data link. A full list of the RDM functions that the ELP fixture supports is given at the end of this chapter. These functions are generally referred to using the more specific term ‘PIDs’...
Effects This section describes the effects provided by the ELP WW. See ‘DMX protocol’ on page 24 for a full list of the DMX channels and values required to control the different effects. Dimming Overall intensity can be precisely adjusted from 0 to 100% using 16-bit coarse and fine control. In 1Ch or 2Ch mode only 8-bit intensity control is available.
Use of gobos and irises The fixture will accept an A-size or B-size goboholder or an iris (items not included) in the gobo/accessory gate. There is a sliding cover over the gate to prevent light spill and retain the goboholder in the fixture. To install a goboholder or iris: 1.
Maintenance Warning! Read ‘Safety information’ on page 4 before servicing the fixture. Refer any service operation not described in this user manual to a qualified service technician. Excessive dust, smoke fluid, and particle buildup degrades performance, causes overheating and will damage the fixture. Damage caused by inadequate cleaning or maintenance is not covered by the product warranty.
firmware using a Windows PC running the Martin Companion software suite with a Martin Companion Cable USB/DMX hardware interface connected to the DMX link or directly to the fixture’s DMX IN connector. You can check the currently installed firmware version in the INFORMATION menu in the fixture’s control panel.
DMX protocol Channel DMX range Function 0-255 Dimmer 0-100% 0-255 Dimmer Fine Shutter 000-031 Blackout 032-063 Open 064-095 Strobe (Slow-Fast) 096-127 Open 128-159 Pulse effect in sequences 160-191 Open 192-223 Random strobe effect (Slow-Fast) 224-255 Open 0-255 Dimmer fade time Martin®...
Control menus To access the control menus, press the MENU button. Use the UP and DOWN buttons to navigate the menus. Select any required menu option using the ENTER button. For more information, see ‘Using the control menus’ on page 31. Default fixture settings are shown in bold.
Page 26
Personality Cool Mode Fan optimized for light Reg fan (continued) intensity (temperature is controlled by regulating fan speed, light output is unaffected) Full Fans set to full/low constant speed (temperature is controlled by regulating light output). Display Sleep Display remains permanently on 2 min Display goes into sleep...
Page 27
Information Fixture ID 0 - 9999 User-settable fixture ID (continued) number RDM UID XXXXXXXXXX Displays fixture’s unique RDM ID Temperature LED / CPU Displays temperature in °C Temp of all PCBs and LED DMX Live Dimmer, 0 - 255 Scroll to see values being Shutter etc.
Troubleshooting This section describes a few common problems that may occur during operation and provides some suggestions for easy troubleshooting: Symptom Potential cause Remedies No light from fixture. Shutters are all pushed Pull out the 4 shutter blades. in, blocking the light. Power supply issue Ensure that the mains supply is connected such as blown fuse,...
Specifications Physical Length ....................... 648 mm (25.5 in.) Width ........................ 259 mm (10.2 in.) Height ....................... 254 mm (10.0 in.) Height (with bracket ..................427 mm (16.8 in.) Weight ........................7.7 kg (17 lb.) Dynamic Effects Electronic dimming ......................0 - 100% Strobe and pulse effects ..........
Page 30
Installation Mounting ......................Adjustable bracket Location ........................ Indoor use only Orientation ..........................Any Minimum distance to combustible materials ............0.2 m (0.7 ft.) Minimum distance to illuminated surfaces ............... 0.5 m (1.6 ft.) Connections AC power in/thru ................Neutrik PowerCON TRUE1 DMX &...
Page 31
Ordering Information Fixtures without lens tubes Martin ELP WW (fixture body only) ..............P/N 9045107781 Martin ELP WW (fixture body only), White ............P/N 9045115165 Lens tube options* Martin ELP Lens Tube 19° ................P/N 9045107782 Martin ELP Lens Tube 26° ................P/N 9045107783 Martin ELP Lens Tube 36°...
Page 32
Supplier’s declaration of conformity Harman Professional, Inc. have issued an FCC Supplier’s Declaration of Conformity for this product. The Declaration of Conformity is available for download from the product’s pages on the Martin website at www.martin.com Disposing of the product...
