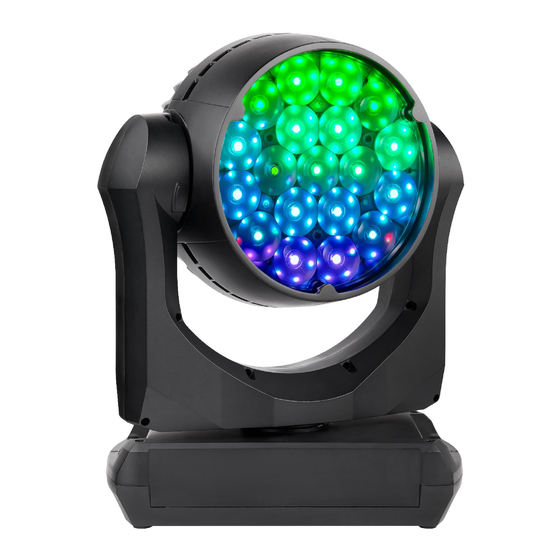

Harman Martin MAC Aura PXL User Manual
  1. Manuals
  2. Brands
  3. Harman Manuals
  4. Lighting Equipment
  5. Martin MAC Aura PXL
  6. User manual

Harman Martin MAC Aura PXL User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

MAC Aura™ PXL
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martin MAC Aura PXL and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Martin MAC Aura PXL

Summary of Contents for Harman Martin MAC Aura PXL

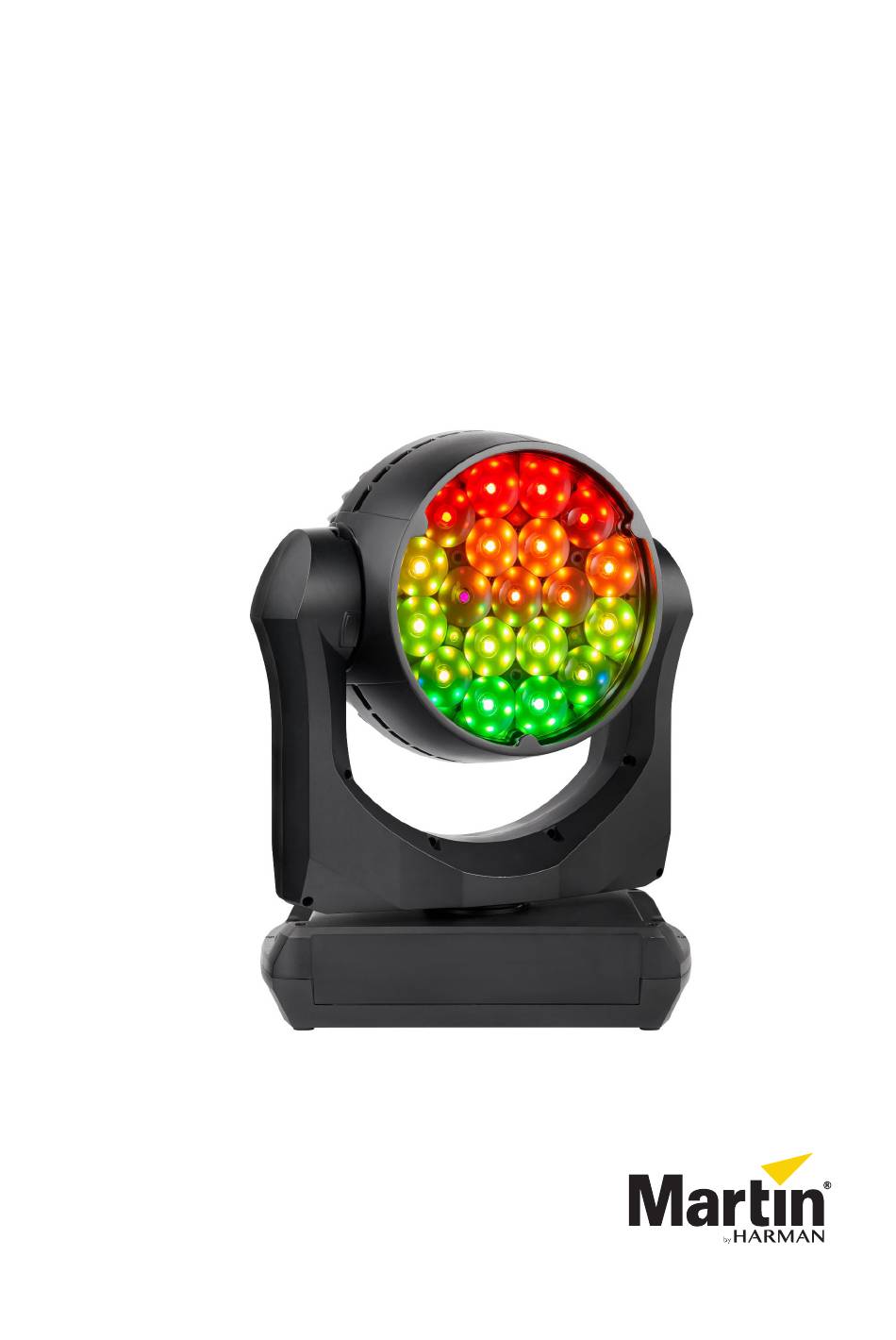

  • Page 1 MAC Aura™ PXL User Guide...
  • Page 2 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.

  • Page 3: Table Of Contents

    Contents Introduction ............... . 4 Operating the fixture .

  • Page 4: Introduction

    Introduction Warning! Before installing, operating or servicing the MAC Aura PXL, read the latest version of the product’s Safety and Installation Manual, paying particular attention to the Safety Precautions section. The Safety and Installation Manual is supplied with the fixture. The latest version is also available for download from the MAC Aura PXL area of the Martin website at www.martin.com.

  • Page 5: Effects

    Effects This section gives details of the effects available in the MAC Aura PXL lighting fixture. See the DMX protocol tables starting on page 22 for details of the channels and commands used to control the effects via DMX. Effects control Where fine control is available, the main control channel sets the first 8 bits (the most significant byte or MSB), and the fine channels set the second 8 bits (the least significant byte or LSB) of the 16-bit control byte.
  • Page 6 Pixel mapping See Figure 1. The MAC Aura PXL’s 19 Beam pixels and 141 Aura pixels are numbered as shown. Individual RGB control of each of the fixture’s Beam pixels is available on channels 33 - 89 in Extended and Ludicrous DMX modes.

  • Page 7: Effects Overview

    Effects overview Shutter and strobe effects The MAC Aura PXL’s electronic shutter effect provides instant blackout and snap open as well as regular or random strobe effects with variable speed from approx. 1 Hz to approx. 20 Hz. In Compact DMX Mode, the strobe/shutter channel 1 is global – it controls both Beam and Aura. In Basic, Extended and Ludicrous DMX Modes, the strobe/shutter channel 1 controls the Beam only.

  • Page 8: Pre-Programmed Fx

    Tungsten emulation The tungsten lamp emulation option available on the Fixture Control / Settings channel gives the warm appearance and warm shift dimming characteristics of a tungsten lamp fixture. Pan and tilt 16-bit pan and tilt control is available in all DMX modes. Pre-programmed FX The MAC Aura PXL offers two separately controllable effects engines.

  • Page 9: Control Panel

    Control panel You can configure individual fixture settings (such as the MAC Aura PXL’s DMX address), read out data, execute service operations and view error messages using the fixture’s backlit graphic display and control panel. DMX ADDRESS DMX RANGE 1–68 A - XLR connectors E- Enter B - EtherCON connectors...
  • Page 10 The status LED is only active when the display is active. If the display enters sleep mode, the LED will also sleep. Battery power The MAC Aura PXL’s onboard battery gives access to the most important functions in the control panel when the fixture is not connected to AC power.

  • Page 11: Control Options

    Control options You can control the MAC Aura PXL using DMX and/or Martin P3 protocol. The fixture auto-senses the type of data that it is receiving and will respond correctly with no need for manual protocol selection. The following options are available: •...

  • Page 12: Rdm

    and 16-bit control of pan and tilt. It also includes a Fixture Control / Settings channel that lets you configure fixture settings over the DMX link. • Basic Mode includes all the functionality of Compact Mode but it but it also offers a P3 Mix channel that allows you drive colors by DMX, P3 video pixels or a mix of both.
  • Page 13 The MAC Aura PXL accepts video pixel control using Martin’s proprietary P3 protocol that has been a well-established standard in the industry for over 10 years. It lets you send a video signal from a media server or other video source to P3-compliant video display devices and LED lighting fixtures over Ethernet cable using Martin’s reliable P3 data protocol.

  • Page 14: Fixture Setup

    Fixture setup The onboard control panel (see “Control panel” on page 9) and the Control / settings DMX channel let you configure the fixture via a range of fixture settings. Fixture ID The MAC Aura PXL lets you set a four-digit ID number to ease identification of the fixtures in an installation. When a fixture is powered on for the first time, it displays its DMX address by default.

  • Page 15: Factory Defaults

    • VIDEO TRACKING optimizes performance if the MAC Aura PXL is used with a video source. In normal use, the fixture processes the signal it receives, tracking (or smoothing out) changes in values in order to ensure smooth fading between colors and/or intensities. This signal processing takes fractions of a second and is normally invisible, but if the fixture is used to display video the processing can interfere with video response times.

  • Page 16: Fixture Information Readouts

    • all the settings in the PERSONALITY menu, • the fixture’s DMX address, and • the fixture’s DMX control mode: Compact, Basic, Extended or Ludicrous. Fixture information readouts The following fixture information can be called up in the display: • POWER ON TIME provides two counters: - The TOTAL counter is not user-resettable and displays total hours powered on since manufacture.

  • Page 17: Manual Control

    Manual control The MANUAL CONTROL menu lets you reset the MAC Aura PXL and operate the fixture without a DMX controller. To execute commands in the MANUAL CONTROL menu, select a menu item for the effect that you want to control, then enter a value from 0 to 255 to apply a command. The menu items and values correspond to the commands listed in the DMX protocol on page 22.

  • Page 18: Installing Firmware

    Installing firmware You can check the currently installed firmware (fixture software) version in the INFORMATION menu in the MAC Aura PXL’s control panel. Firmware updates are available from the Martin website and can be downloaded automatically from within the Martin Companion software suite on a PC connected to the Internet. You can install firmware updates using one of the following methods: •...
  • Page 19 1. Connect your PC to the Internet and launch the Martin Companion application. The application will automatically download the latest Martin fixture firmware from the Martin cloud. 2. Read the firmware release notes carefully to check for any instructions or warnings. 3.

  • Page 20: Adjusting Settings Via Dmx

    Adjusting settings via DMX Certain fixture settings and parameters can be adjusted from the DMX controller on the Fixture Control / Settings channel. Commands sent on this channel override any settings entered in the fixture’s onboard control menus. To help you avoid accidentally applying a setting that may disrupt a light show, for example, most of the commands must be held for a certain time before they are applied.
  • Page 21 4. Send a ‘Store ...’ command for the effect on the Fixture control/settings channel and hold for 5 seconds to activate. Calibration offsets are now stored in memory and normal DMX control is restored. Calibration offsets that are stored in memory are not affected by powering the fixture off and on or by updating the fixture software.

  • Page 22: Rdm

    The MAC Aura PXL can communicate using RDM (Remote Device Management) in accordance with ESTA’s American National Standard E1.20-2006: Entertainment Technology RDM Remote Device Management Over DMX512 Networks. RDM is a bi-directional communications protocol for use in DMX512 control systems, it is the open standard for DMX512 device configuration and status monitoring.
  • Page 23 Product information  DEVICE_INFO  DEVICE_MODEL_DESCRIPTION  MANUFACTURER_LABEL   DEVICE_LABEL   FACTORY_DEFAULTS  SOFTWARE_VERSION_LABEL DMX Setup   DMX_PERSONALITY  DMX_PERSONALITY_DESCRIPTION   DMX_START_ADDRESS  SLOT_DESCRIPTION Sensors  SENSOR_DEFINITION   SENSOR_VALUE Usage information   DEVICE_HOURS  ...
  • Page 24 Manufacturer-specific RDM Parameter IDs allowed allowed RDM parameter ID’s (slot 21-22) Notes DMX protocol   DMX_RESET Fixture behavior   EFFECT_SPEED   DISPLAY ERRORS ENABLE   DIMMER_CURVE   FOCUS_TRACKING   DISPLAY_AUTO_OFF   HIBERNATION MODE ...

  • Page 25: Dmx Protocol

    DMX protocol MAC Aura PXL firmware version 1.0.0. Compact DMX Mode Fade Default Channel DMX Value Function type value Strobe / Intensity Strobe/shutter effect 0 - 19 Shutter closed 20 - 49 Shutter open Snap Strobe, slow → fast 50 - 200 201 - 210 Shutter open Random strobe, slow →...
  • Page 26 Fade Default Channel DMX Value Function type value Spring yellow (Lee 100) Deep amber (Lee 104) Chrome orange (Lee 179) Orange (Lee 105) Gold amber (Lee 021) Millennium gold (Lee 778) Deep golden amber (Lee 135) Flame red (Lee 164) Red magenta Medium lavender Snap...
  • Page 27 Fade Default Channel DMX Value Function type value Hibernation mode = ON – 5 sec. Hibernation mode = OFF – 5 sec. No function 63 - 64 Pan and tilt limits = ON – 5 sec. Pan and tilt limits = OFF – 5 sec. Store lower pan limit –...

  • Page 28: Basic Dmx Mode

    Basic DMX Mode Channels 1- 17 in Basic Mode are identical to Compact Mode apart from channels 1 - 11. In Compact Mode, channels 1 - 11 control the whole fixture (Beam and Aura) as one unit. In Basic Mode, channels 1 - 11 control the Beam only, and channels 24 - 32 control the Aura.
  • Page 29 Fade Default Channel DMX Value Function type value Offset shift 290° Offset shift 300° Offset shift 310° Offset shift 320° Offset shift 330° Offset shift 340° Snap cont. Offset shift 350° Synchronized: all fixtures start FX cycles at same time No function 37 - 100 101 - 120...
  • Page 30 Fade Default Channel DMX Value Function type value Chrome orange (Lee 179) Orange (Lee 105) Gold amber (Lee 021) Millennium gold (Lee 778) Deep golden amber (Lee 135) Flame red (Lee 164) Red magenta Medium lavender Pure white Snap cont. No function 82 - 190 Continuous rotation...

  • Page 31: Extended Dmx Mode

    Extended DMX Mode DMX channels 1 - 32 in Extended Mode are identical to Basic Mode. Note that, as in Basic Mode, channels 1 - 11 control the Beam only, and channels 24 - 32 control the Aura. Fade Default Channel DMX Value Function...
  • Page 32 Fade Default Channel DMX Value Function type value Beam pixel 10 Red Fade 0 - 255 0 - 100% Beam pixel 10 Green Fade 0 - 255 0 - 100% Beam pixel 10 Blue Fade 0 - 255 0 - 100% Beam pixel 11 Red Fade 0 - 255...

  • Page 33: Ludicrous Dmx Mode

    Ludicrous DMX Mode DMX channels 1 - 89 in Ludicrous Mode are identical to Extended Mode and Basic Mode. Note that, as in Basic and Extended Modes, channels 1 - 11 control the Beam only, and channels 24 - 32 control the Aura Fade Default Channel...

  • Page 34: Fx: Pre-Programmed Effects

    FX: pre-programmed effects Important: FX are implemented in the MAC Aura PXL from firmware version 1.1.0 which will be available soon after the release of the first fixtures. You can quickly check which firmware version a → fixture is running using INFORMATION FW in the fixture’s control menus.
  • Page 35 Effects types Available from MAC Aura PXL firmware version 1.1.0. Effect value No FX Beam intensity FX Beam Wave (sine wave) Beam Step (50/50 on/off) Beam Pulse Beam Blackout Strobe Beam 2x Strobe Beam 3x Strobe Beam 4x Strobe Beam Up, Down, Flash Beam Up, Flash, Down, Flash Beam Random Levels Beam Sparkle Stars...
  • Page 36 Beam color FX Beam Rainbow Wave Beam Rainbow Step Beam Rainbow Pulse Beam RGB Wave Beam RGB Step Beam RGB Pulse Beam CMY Wave Beam CMY Step Beam CMY Pulse Beam Random Mix Wave Beam Random Mix Step Beam Random Mix Pulse Beam Spectrum Shifter Beam Red White Blue Fade Beam Red White Blue Snaps...
  • Page 37 Aura Random Chase 1 pixel Step Aura Random Chase 1 pixel Pulse Aura Random Chase 3 pixel Wave Aura Random Chase 3 pixel Step Aura Random Chase 3 pixel Pulse Aura Random Chase 6 pixel Wave Aura Random Chase 6 pixel Step Aura Random Chase 6 pixel Pulse Aura Vertical Wave Aura Horizontal Wave...
  • Page 38 Aura color FX Aura Rainbow Wave Aura Rainbow Step Aura Rainbow Pulse Aura RGB Wave Aura RGB Step Aura RGB Pulse Aura CMY Wave Aura CMY Step Aura CMY Pulse Aura Random Mix Wave Aura Random Mix Step Aura Random Mix Pulse Aura Spectrum Shifter Aura Red White Blue Fade Aura Red White Blue Snaps...

  • Page 39: Control Panel Menus

    Control panel menus Available when running MAC Aura PXL firmware version 1.0.0. The table below gives details of the menus available in the fixture’s control panel. Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) DMX address (default address = 1).
  • Page 40 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) LINEAR Optically linear dimming curve SQUARE LAW Square law dimming curve DIMMER CURVE INV SQ LAW Inverse square law dimming curve S-curve (fixture emulates incandescent S-CURVE lamp voltage linear RMS dimming curve) Color temperature and dimming...
  • Page 41 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Enable error messages and warnings in NORMAL display Disable error messages and warnings in ERROR MODE display (the status LED will still light to SILENT PERSONALITY indicate fixture status if an error has been...
  • Page 42 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Run test sequence of effects. To test a specific effect, use Up/Down BEAM DIMMER ... AURA V COLOR buttons to scroll through groups. Press TEST EFFECTS WHEEL Enter to pause and press again to restart...

  • Page 43: Service And Display Messages

    Service and display messages The MAC Aura PXL gives service and maintenance information by displaying a large 3- or 4-character short code and a smaller full-text message in the fixture’s display. The short code is visible at a distance, allowing easier reading with the fixture still in the rig, for example, while the full-text message gives more detailed information.

  • Page 44: Error Messages

    Error messages Error messages indicate that a problem is present. The MAC Aura PXL communicates errors as follows: • Error messages flash in the display. • If more than one error is detected, the fixture flashes all errors three times each. •...
  • Page 45 Short code Long message and explanation UPL ERR LED DRV UELD Could not upload new LED driver firmware during a firmware upload. Error cleared when new firmware is uploaded successfully or power is cycled off and on. UI TEMP CUTOFF UITC User interface (LCD display and control panel) temperature cutoff activated.
  • Page 46 www.martin.com...
