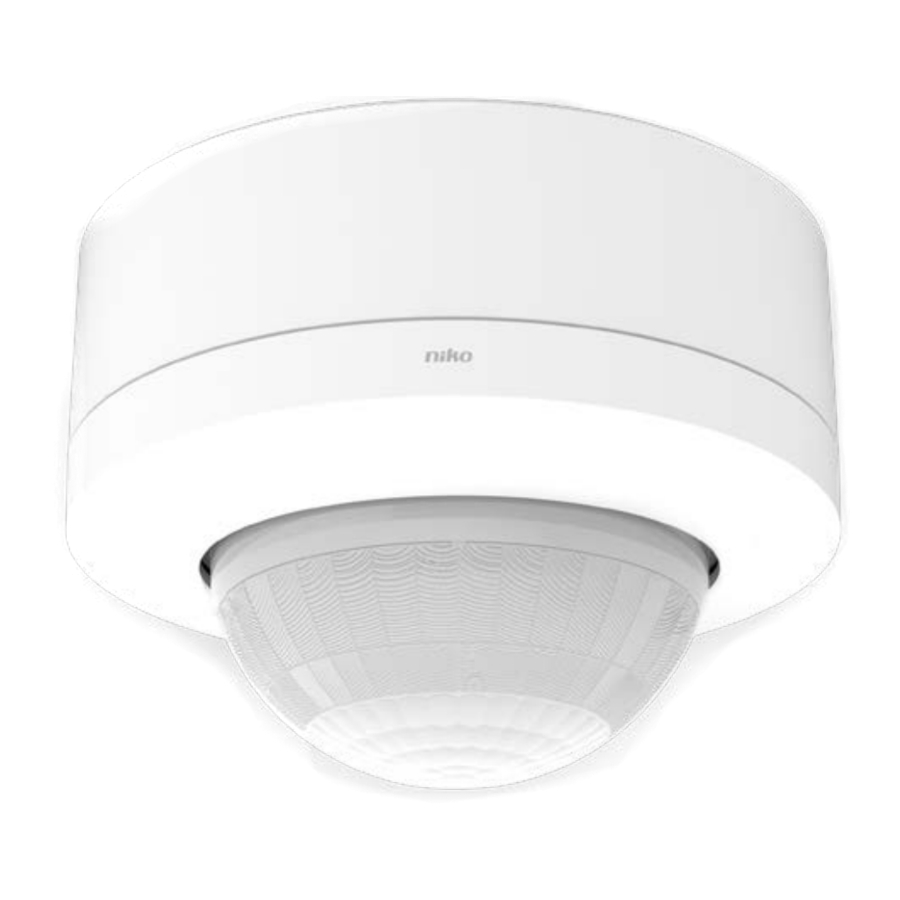

Niko 353-702111 - M42LR 230 V, 1 channel, 32-37 m, 360°, for Surface Mounting Manual
Installation
If a grommet needs to be replaced, please make sure the new grommet is halogen-free.
Wiring
* Remove if you want to use the contact as a dry contact (potential-free).
This product must be secured with a miniature circuit breaker (MCB) of max. 16 A in the electrical cabinet. The MCB rating is limited by national installation rules.
Dimensions
Dismantling
App settings
 |  |  | |
| Factory settings | Switch ON/OFF | 500 lux | 15 min |
LED behaviour
| Green LED continuous on |  | Connection OK | |
| Green LED breathing |  | Connection OK, overrule ON | |
| Green LED flashing |  | Warming up | Wait |
| Red LED continuous on |  | Error | More info --> |
| Red LED breathing |  | Warning | |
| Blue LED flashing |  | Walk test active |
Detection area
Measured according to EN/IEC63180
Troubleshooting
| Problem | Possible cause | Proposed solution |
Load does not turn on | The wiring is not correct | Check the wiring scheme |
| The ambient light is too strong | Check the response value luminosity and raise the value if necessary | |
Load does not turn off | The switch-off delay is too long | Check the switch-off delay and shorten the delay if necessary |
| The detector receives false triggers | Check for any objects that may cause false triggering and remove them from the detection range or lower the sensitivity | |
App cannot connect to the detector | Bluetooth® has been disabled on your mobile device | Enable Bluetooth® on your mobile device |
Specifications
| Article number | 353-702111 |
| Configuration | 230 V Master |
| Input voltage | 230 Vac ± 10%, 50 Hz |
| Maximum power consumption | 0.2 W |
| Circuit breaker | maximum MCB rating 16 A* |
| Relay contact | NO (max. µ10 A), potential-free |
| Maximum load incandescent and halogen lamps (cosφ = 1) | 2300 W |
| Maximum load fluorescent lamps (cosφ ≥ 0.5) | 1200 VA |
| Maximum load economy lamps (CFLi) | 350 W |
| Maximum load LED lamps 230 V | 350 W |
| Maximum load LED driver | 500 VA |
| Maximum load electronic transformer | 500 VA |
| Maximum capacitive load | 140 µF |
| Maximum switching current | 165 A/20 ms – 800 A/200 µs |
| Light intensity range | 20 – 2000 lux, ∞ |
| Number of channels | 1 channel |
| Switch-off delay | pulse, 15 s – 120 min, ∞ |
| Hysteresis on light intensity | + 10% |
| Detection angle | 360 ° |
| Detection range (PIR) | Ø 37 m from a height of 3 m |
| Ambient temperature | -25 – +40°C |
| Mounting method | surface mounting |
| Mounting height | 2 – 3.5 m |
| Colour | white (RAL 9010) |
| Dimensions visible (HxWxD) | 100 x 100 x 70.7 mm |
| Dimensions (HxWxD) | 100 x 100 x 70.7 mm |
| Wire capacity | 1.5/2.5 mm² |
| Maximum range Bluetooth ® (free field, depending on the device) | 50 m |
| Operating frequency | 2.4 GHz |
| Maximum radio frequency power | -2 dBm |
| Protection degree | IP54 |
| Impact resistance | IK04 |
| Modification of settings | app (iOS/Android) and 2-way Bluetooth ® communication |
| Halogen-free | yes |
| Marking | CE |
* The MCB rating is limited by national installation rules.
