350-34001
350-34002
350-340X3
350-340X4
350-34902
350-34001
PM350-3400x

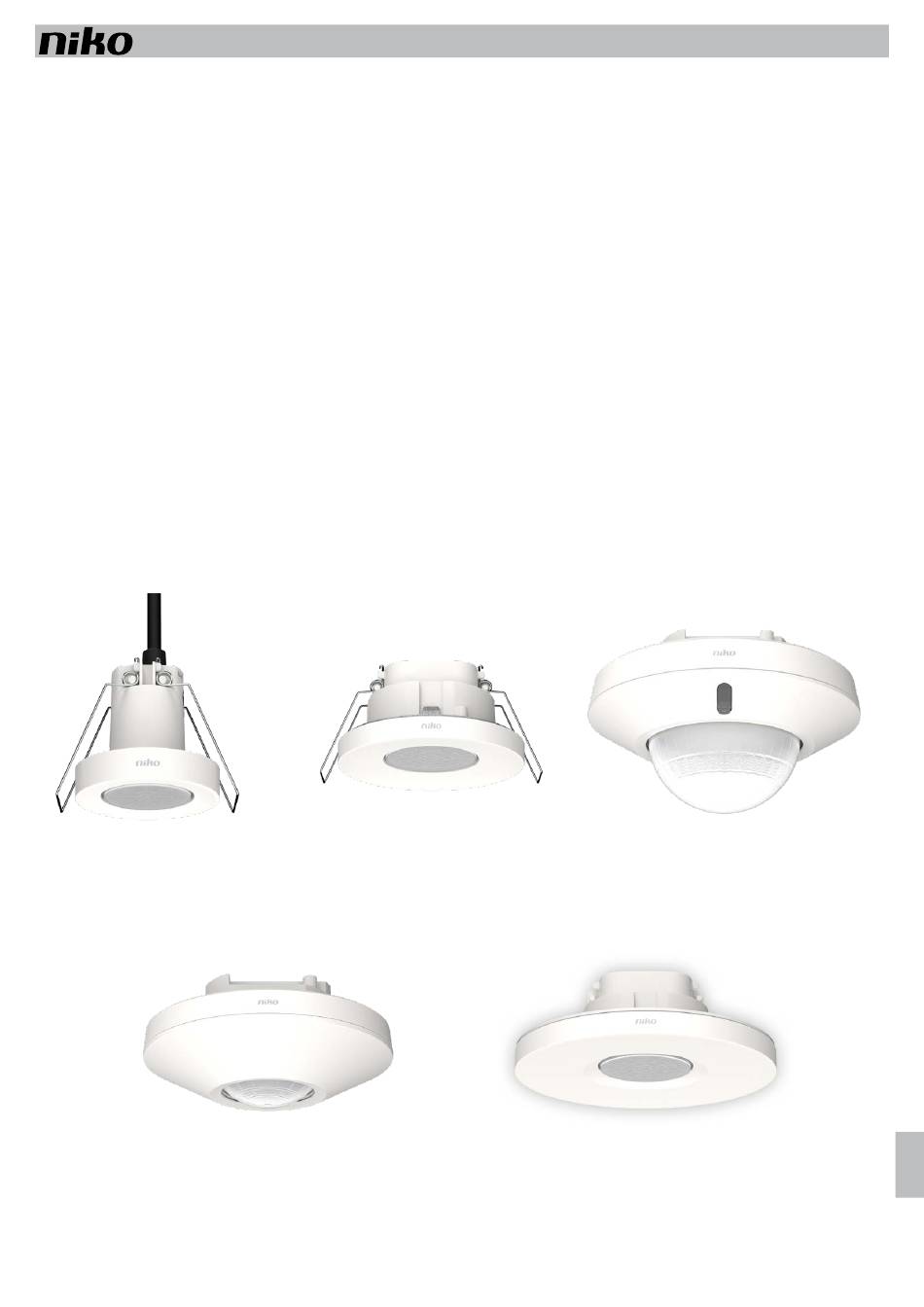

KNX TECHNICAL MANUAL FOR
MINI PRESENCE DETECTOR P34MR, KNX, 8-10 M, 360°,
FOR FLUSH MOUNTING
PRESENCE DETECTOR P34MR, KNX, 9-10 M, 360°,
FOR FLUSH MOUNTING AND FLUSH-MOUNTING BOX
MOTION DETECTOR M34LR, KNX, 39-41 M, 360°,
FOR FLUSH-MOUNTING BOX
MOTION DETECTOR M34HC, KNX, HIGH CEILING, 15-29 M, 360°,
FOR FLUSH-MOUNTING BOX
PRESENCE DETECTOR P34MR, KNX, 9-10 M, 360°, 105 MM DIAMETER,
FOR FLUSH-MOUNTING BOX
350-34002
350-340X4
350-34001/350-34002/350-340X3/350-340X4/350-34902
350-340X3
350-34902
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Niko 350-340-3 Series
Summary of Contents for Niko 350-340-3 Series
- Page 1 350-34001/350-34002/350-340X3/350-340X4/350-34902 KNX TECHNICAL MANUAL FOR 350-34001 MINI PRESENCE DETECTOR P34MR, KNX, 8-10 M, 360°, FOR FLUSH MOUNTING 350-34002 PRESENCE DETECTOR P34MR, KNX, 9-10 M, 360°, FOR FLUSH MOUNTING AND FLUSH-MOUNTING BOX 350-340X3 MOTION DETECTOR M34LR, KNX, 39-41 M, 360°, FOR FLUSH-MOUNTING BOX 350-340X4 MOTION DETECTOR M34HC, KNX, HIGH CEILING, 15-29 M, 360°, FOR FLUSH-MOUNTING BOX...
-
Page 2: Functional Description
350-34001/350-34002/350-340X3/350-340X4/350-34902 Content table 1 FUNCTIONAL DESCRIPTION ........................................................2 DEFAULT MODE............................................................3 COMMUNICATION OBJECTS........................................................4 PARAMETERS ............................................................General ............................................................LED behaviour ..........................................................Channels ............................................................Automatic (Switching Mode) ......................................................Automatic (Dimming Mode) ......................................................Lux Value Switch ..........................................................Alarm Mode ........................................................... Constant Light Control ........................................................ - Page 3 350-34001/350-34002/350-340X3/350-340X4/350-34902 Channel 2 External dimming steps Dimming steps Receives a dimming steps telegram from an external device Channel 2 External dimming level Dimming level Receives a dimming value telegram from an external device Channel 2 Lux level switch On/Off Sends an on/off telegram to an actor when a specific lux level is reached Channel 2 Lock mode On/Off Receives a lock/unlock telegram...
-
Page 4: Led Behaviour
350-34001/350-34002/350-340X3/350-340X4/350-34902 4.2. LED behaviour Parameter Description LED behaviour when motion This parameter is used to configure whether the LED turns on or remains off when motion is detected. is detected Default value: ON The LED turns on when motion is detected. The LED remains off when motion is detected. - Page 5 350-34001/350-34002/350-340X3/350-340X4/350-34902 Channel 2 This parameter allows you to select and activate the functions of channel 2. Automatic 1. When in Automatic mode, the load is activated automatically when motion is detected and the ambient light level is below the lux setting value.
- Page 6 350-34001/350-34002/350-340X3/350-340X4/350-34902 Switch-off lux adjustment This parameter allows you to activate the switch-off brightness: if there is enough brightness, the detector will not be switched on by motion. If the detector was already switched on, it will be switched off again. # lux (0=always ON, 2000 lux max) default If the lux level exceeds this value, the detector will switch off.
- Page 7 350-34001/350-34002/350-340X3/350-340X4/350-34902 Parameter Description Switching or dimming mode This parameter allows you to configure whether the light merely switches on / off or also needs to be dimmable. Default value: Switch Switch The output value of the detector is binary (1/0). The output value of the detector is expressed in %.
-
Page 8: Alarm Mode
350-34001/350-34002/350-340X3/350-340X4/350-34902 4.7. Alarm mode Parameter Description Detection time frame This is the length of a monitoring window (if motion is detected during this time frame, it is considered positive). # seconds This is the time it takes for the detector to switch on after motion has been detected. Amount of detected motion This is the number of subsequent frames with motion detections, that will trigger an alarm. -
Page 9: Constant Light Control
350-34001/350-34002/350-340X3/350-340X4/350-34902 4.8. Constant Light Control Parameter Description Switch-on brightness This is the value that is sent when the light is switched on. setting 0-100% If the brightness level remains below this value, the detector will switch on. Switch-off brightness This is the value that is sent when the light is switched off. setting 0-100% If the brightness level exceeds this value, the detector will switch off. - Page 10 350-34001/350-34002/350-340X3/350-340X4/350-34902 Switch back to Automatic You can use this parameter to switch from Manual mode back to Automatic mode after the last motion or via object 22. After motion When motion is no longer detected, the detector will switch back to Automatic mode. Object The detector will switch back to Automatic mode via object 22.
- Page 11 350-34001/350-34002/350-340X3/350-340X4/350-34902 4.10. Additional Parameters in advanced mode Advanced parameters are made accessible by activating ‘advanced mode’ and ‘night mode’. 4.10.1 General / Advanced Mode Parameters Parameter Description Send lux value on KNX bus The measured brightness level is sent on the bus (object 2). Disable The measured brightness level is not sent on the bus.
- Page 12 350-34001/350-34002/350-340X3/350-340X4/350-34902 Switch between day and Immediately switch between day and night mode or only when there is no presence being detected anymore. Default value: By next detected motion night mode By next detected motion The detector switches between day / night mode at the next motion detection (if it was off first). Immediately The detector immediately switches between day and night mode.
-
Page 13: Support & Contact
Déposez votre produit usagé à un point de collecte agréé. Tout comme les fabricants Niko prepares its manuals with the greatest care and strives to make them as complete, et importateurs, vous jouez un rôle important dans la promotion du tri, du recyclage et de la correct and up-to-date as possible.
