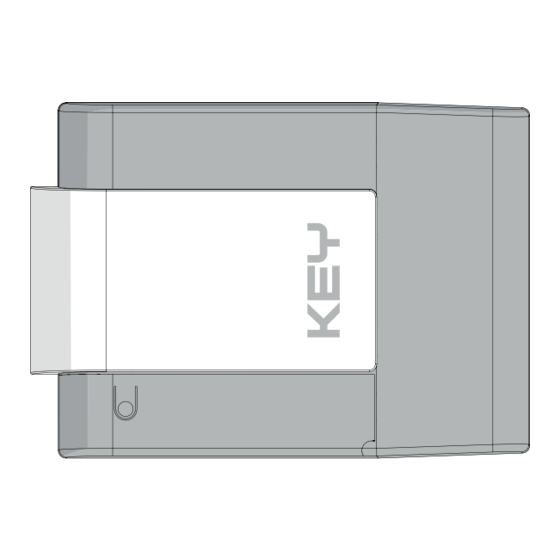

- Page 1 Instructions and warnings for installation and use HALO Garage door opener IMAGES P. 45...
-
Page 2: Table Of Contents
List of cables required page 6 Preliminary checks page 7 Product installation page 7 Halo assembly and installation with LED rail page 7 3-part rail assembly page 8 Single rail assembly page 8 Connection of the motor casing to the steel... -
Page 3: Safety Warnings
If in any doubt regarding installation, do not proceed never make modifications to any part of the and contact the Key Automation Technical Service automation system other than those specified for clarifications. in this manual. Operations of this type can only lead to malfunctions. - Page 4 the product cannot be considered to provide the actuating member should be stored in direct effective protection against intrusion. If effective vicinity of the door; protection is required, the automation system must be combined with other devices; install any fixed control at a height of at least 1,5m and within sight of the door but away from moving the product may not be used until the automation parts;...
-
Page 5: Product Introduction
The special flat design of the motor housing also makes it possible . Halo is equipped with an encoder, a control unit and an inte- to install it less invasively near the door cross beam or the spring grated 4-channel receiver. -
Page 6: Technical Specifications
USE LIMITS USE LIMITS Sectional Up-and-over slide-away Sectional Up-and-over slide-away 900HA8 with 3 m rail 900HA12, 900HA12E, 900HA12L with 3 m rail S max=11m² S max=10m² S max=16m² S max=16m² H max = 2,6m H max = 3m H max = 2,6m H max = 3m 900HA8 with 4 m rail 900HA12, 900HA12E, 900HA12L with 4 m rail... -
Page 7: Preliminary Checks
4 - PRODUCT INSTALLATION 4.1 - Halo assembly and installation with LED rail Before starting assembly operations, make sure to have all the nec- fectly horizontal rail. Then tighten the nuts in the indicated sequence essary tools available (FIG. -
Page 8: 3-Part Rail Assembly
4.2 - 3-part rail assembly Assemble the rail (FIG. 4) then pull the belt (FIG. 7) 4.3 - Single rail assembly Pull the belt (FIG. 7) 4.4 - Connection of the motor casing to the steel rails Follow the instructions in section 4.1 (FIG. 13, 14, 16) 4.5 - Installation with motor casing on cross beam Follow the instructions in section 4.1 from FIG. -
Page 9: Radio Controls Programming
STEP BY STEP NO contact control between SBS and COM Open/Stop/Close/Stop control or control based on software selection NO contact STOP between STOP and COM. The contact can be activated at any time and will immediately lock the STOP automation system, disabling any function including automatic closing SBS, STOP input common RED LED indicating programming of control panel parameters MENU... -
Page 10: Learning Of Opening And Closing Values
DELETING A REMOTE CONTROL PHASE DESCRIPTION EXAMPLE Press the RADIO button until the LED L2 lights up (about 3 seconds) >3s ► Within 10 seconds, press and hold a button of the remote control that you wish to delete until the LED L2 on ►... -
Page 11: Changing A Control Unit Parameter
Release the MENU button. LED L1 emits long flashes. Press the MENU button again upon the: 5th flash for the HALO 800 motor 6th flash for the HALO 1200 motor If the procedure is successful, LED L1 will emit a long flash, otherwise it will flash repeatedly at a fast rate Repeat the procedure from point 4 above 4.13 - Changing a control unit parameter... -
Page 12: Using The Display Programmer
In normal mode, i.e. when the system is powered on normally and the display programmer is connected, press X until the wording “Key Automation” is displayed. In this way, you will be able to view the following status messages: SCROLL DOWN... -
Page 13: Testing And Commissioning
5 - TESTING AND COMMISSIONING THE AUTOMATION SYSTEM The system must be tested by a qualified technician, who must the relevant regulatory requirements, especially the EN12445 perform the tests required by the relevant standards in relation standard which specifies the test methods for gate and door to the risks present, to check that the installation complies with automation systems. - Page 14 FIGURES Ø 7 5 + 4 13 + 10 RAL3 + RAL4 RAB3X1P RAB3 + RAB4 + RAB6 PUSH = 26-28 mm Ø 13 mm...
- Page 15 A - 5 cm...
- Page 17 A +3 cm H - 10cm Ø 7 mm...
- Page 18 F1AT KUBE/DYL SHIELD BATTERY SAFETY PACK NOTJUMPED SAFETY JUMPED * FOR EDGE CONFIGURATION SEE TABLE 3 12/24 12/24 COM OUT AC/DC AC/DC Ø 10 mm...
- Page 19 TAB. 1A Clear passage Door Height B (mm) L (mm) Arm Type Note H-10 cm [m] H [m] TAB. 1B Clear passage Door Height B (mm) L (mm) Arm Type Note H-10 cm (m) H (m) door springs in the back TAB.
- Page 20 TAB. 2 L= 300 L= 380 L= 430 L= 480 L= 530 L= 580 L= 630 TAB. 3 PARAMETERS VALUES DEFAULT 1 = off 2 = 5 sec Automatic closing time (sec) 3 = 10 sec 4 = 20 sec 5 = 30 sec 1 = off 6 = 60 sec...
- Page 21 Photocells Safety sensitive edge 1 = board edge sensitivity 8k2 2 = board edge sensitivity NC 1 = 8k2 sensitive edge 3 = board edge sensitivity 2x8k2 1 = Detection always enabled Photocell detection override at end of travel 2 = 10 cm 1 = off 3 = 20 cm 4 = 30 cm...
- Page 22 6 - DECLARATION OF CONFORMITY DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY The undersigned Nicola Michelin, General Manager of the company Key Automation srl, Via Meucci 23 - 30027 San Dona’ di Piave (VE) – ITALIA declares that the product type: HALO...
- Page 23 Key Automation S.r.l. Via Meucci 23 - 30027 San Donà di Piave (VE) T. +39 0421 307456 - info@keyautomation.it www.keyautomation.com Instruction version Designed and engineered in Italy, manufactured in Extra-EU 580HALO REV.08...
