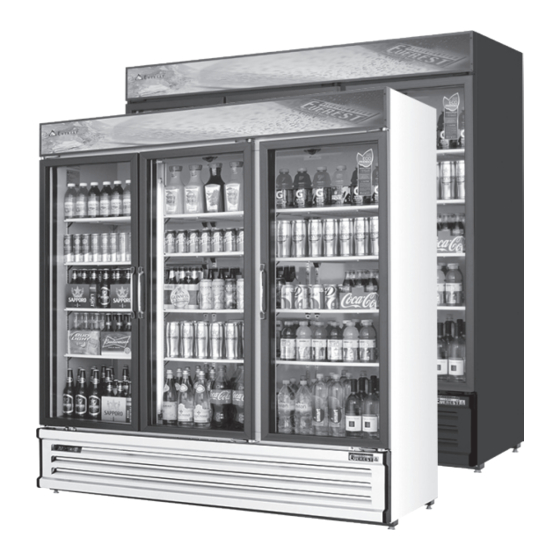

EVEREST REFRIGERATION EMGR5B Owner's Manual

Glass door merchandisers & chromatography refrigerators
Hide thumbs
Table of Contents

Advertisement

Quick Links

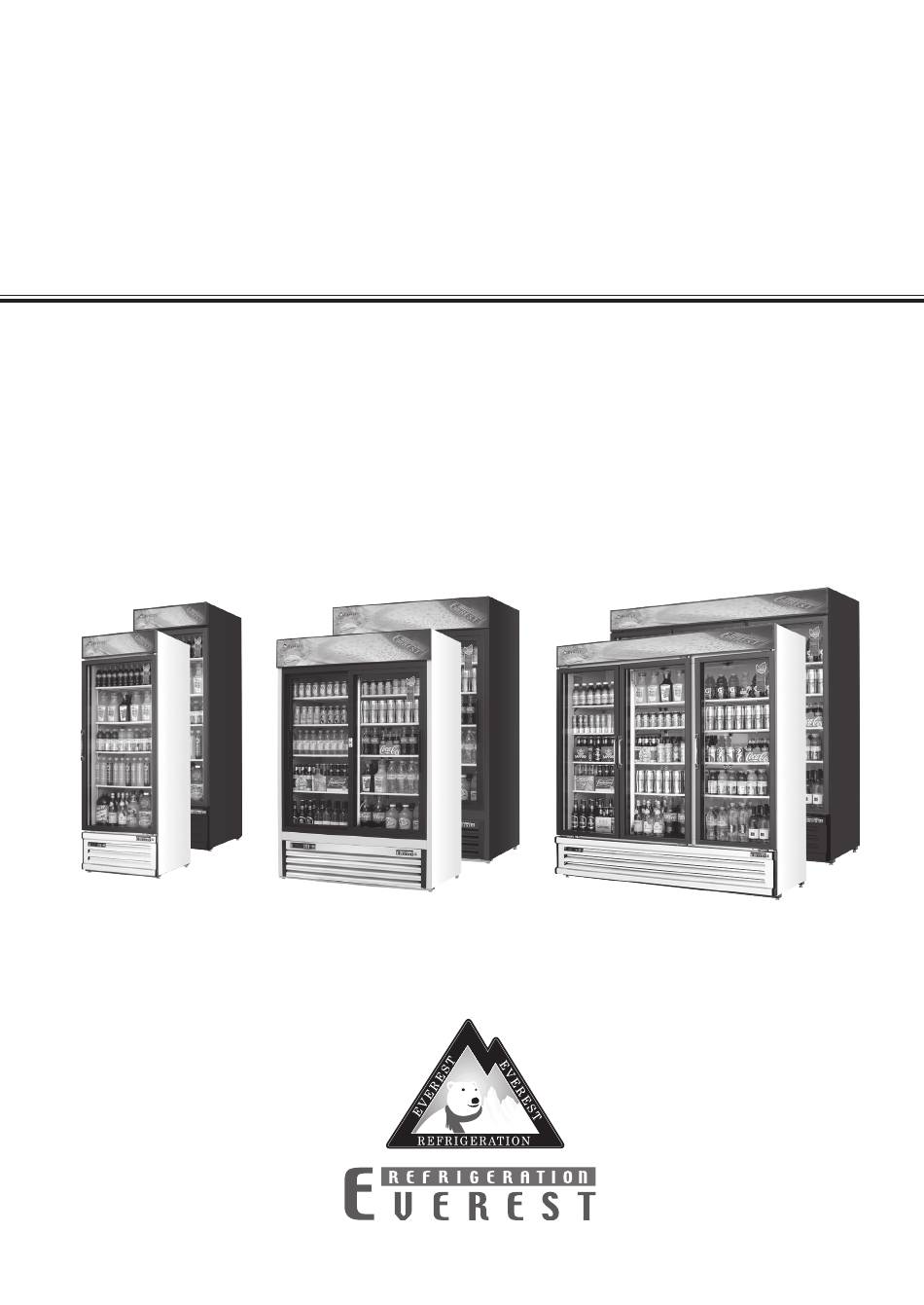

Glass Door Merchandisers
& Chromatography Refrigerators
Owner's Manual
EMGR5(B), EMGR8(B), EMGR10(B), EMGR20(B),
EMGR24(B), EMGR24U, EMSGR33(B), EMSGR48(B),
EMSGR69(B), EMGR33(B), EMGR48(B), EMGR69(B),
EMSGR24C, EMSGR33C, EMSGR48C,
EMSGR69C, EMGR33C, EMGR48C, EMGR69C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMGR5B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVEREST REFRIGERATION EMGR5B

Summary of Contents for EVEREST REFRIGERATION EMGR5B

  • Page 1 Glass Door Merchandisers & Chromatography Refrigerators Owner’s Manual EMGR5(B), EMGR8(B), EMGR10(B), EMGR20(B), EMGR24(B), EMGR24U, EMSGR33(B), EMSGR48(B), EMSGR69(B), EMGR33(B), EMGR48(B), EMGR69(B), EMSGR24C, EMSGR33C, EMSGR48C, EMSGR69C, EMGR33C, EMGR48C, EMGR69C...
  • Page 2 this page intentionally left blank...

  • Page 3: Table Of Contents

    Glass Door Merchandisers & Chromatography Refrigerators EMGR5(B), EMGR8(B), EMGR10(B), EMGR20(B), EMGR24(B), EMGR24U, EMSGR33(B), EMSGR48(B), EMSGR69(B), EMGR33(B), EMGR48(B), EMGR69(B), EMSGR24C, EMSGR33C, EMSGR48C, EMSGR69C, EMGR33C, EMGR48C, EMGR69C Contents 1, 2 Hydrocarbon Guidelines ������������������������������ 3, 6 Installation Instructions ��������������������������������� General Safety �������������������������������������������������� Electrical Safety ������������������������������������������������ Chromatography Features �������������������������������...

  • Page 4: Hydrocarbon Guidelines

    Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION.
  • Page 5 PROPANE (R290) IS HIGHLY APPROVED FOR USE AS A REFRIGERANT IN COMMERCIAL, SELF-CONTAINED UNITS IN THE US UNDER LIMITED USE CONDITIONS. IT CAN ONLY BE USED IN NEW EQUIPMENT. BACKFITTING OR MODIFICATIONS OF OLD EQUIPMENT ARE NOT ALLOWED. IT MUST BE CHARGED IN A STRICTLY LIMITED VOLUME OF UP TO 150 GRAMS (5.3 OZ) PER REFRIGERATION CIRCUIT.

  • Page 6: Installation Instructions

    Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1.
  • Page 7 Shelf Installation 1. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips. This will result in shelf mounting instability.
  • Page 8 Product Load Level & Shelf Placement Product Load Level for EM Series (Sliding Door Models) Glass Sliding Door Load Level 10" Load Level 10" Airflow Guard Load Level 10" Shelf Front Rear Load Level 10" Air Vent Air Flow Side View Installation Instructions...
  • Page 9 Product Load Level & Shelf Placement Product Load Level for EM Series (Swing Door Models) Load Level 10" Glass Swing Door Load Level 10" Airflow Guard Load Level 10" Shelf Front Rear Load Level 10" Load Level 10" Air Vent Air Flow Side View Installation Instructions...

  • Page 10: General Safety

    • If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit, and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and trays to avoid any risk of injury or entrapment.

  • Page 11: Electrical Safety

    Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Everest units come as 115 volts, 60 hertz, not responsible for issues resulting from improper single phase.

  • Page 12: Chromatography Features

    Chromatography Features The following chromatography features come standard only for specific merchandiser models identified with a suffix C. • Two Access Ports on each side wall for routing probes and cables, as well as access to mixing compounds. • Water-Proof, heavy duty receptacle covers with locking tabs for each access port.

  • Page 13: Operation

    Operation Use your Everest product according to its intended functions. Warranty is void if the following guidelines are not met. Starting your Everest Product After plugging in the unit, the current temperature and compressor symbol will appear on the digital temperature control’s LED display. will flash at short intervals for 1 minute after which the compressor(s) and condenser fan motor(s) will initiate.
  • Page 14 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature Set Button Cabinet Temperature Manual Defrost / Down Button...
  • Page 15 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
  • Page 16 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress Auxiliary Cabinet in Defrost Down Button /...
  • Page 17 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.

  • Page 18: Care And Maintenance

    Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility.
  • Page 19 Condenser Coil Air Filter Cleaning Instructions This section applies to all Everest products. The condenser coil requires monthly cleaning to keep the metal fins clear of lint, dust and grease build-up. A clogged condenser coil severely reduces your product’s energy efficiency and places strain on the compressor and other components leading to advanced failure.
  • Page 20 SWING Doors 1. Remove two screws from the top of the vented grill. 2. Pull on the top edge of the vented grill 3. Lift the vented grill vertically until the two keyholes on its bottom edge clears the stationary bolts. 4.
  • Page 21 SLIDING Doors 1. The top of the vented grill is held in place by magnets. 2. Lightly pull on the top edge of the vented grill so that it swings open a quarter of the way. 3. Lift the vented grill vertically until the two keyholes on its bottom edge clears the stationary bolts.
  • Page 22 Condenser Coil Cleaning Instructions (Continued) 1. Use a long bristled brush in a vertical sweeping motion to remove lint, dust and debris from in between the metal fins of the condenser coil. Do not apply heavy pressure so as not to bend the fins. 2.

  • Page 23: Door Reversal Instructions

    Door Reversal Instructions This section applies only to models EMGR20, EMGR24, EMGR24B and EMGR24C. Door reversals must be performed by qualified technicians. A second person is required. Safety goggles must be worn to protect from spinning parts. Warranty is void if the following guidelines are not met. Before After 1.
  • Page 24 Door Reversal Instructions (Continued) Lock Screw Right Top Hinge Shaft Right Bottom Hinge Shaft Lock Screw C- 1 C- 2 4. Locate the door spring shaft on the top right corner of the door . The head of the shaft has C- 1 C- 2 4 screw holes, one of which is occupied by a lock screw that maintains door spring tension...
  • Page 25 Door Reversal Instructions (Continued) 12. Detach the bottom hinge by removing the 3 screws holding it in place . Detach the bottom hinge. 13. The right top hinge becomes the left bottom hinge . Install the right top hinge into the left bottom position using 3 screws.

  • Page 26: Troubleshooting Guide

    Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating Check if the side and middle gaskets are properly with the current temperature and accompanied attached to the frames and sealing properly.
  • Page 27 Condensation in the interior cabinet. temperature. Provide additional exhaust vents and observe the clearance allowance specified on page 3. The door or door gasket may not be sealing properly. Check product placement in the cabinet The cabinet temperature is too warm. as it may prevent the door from fully closing.

  • Page 28: Warranty Information

    Warranty Registration Registering your new appliance is important. In the unlikely event a safety notification or warranty service is required, we will have the means to contact you. Your completed appliance registration also verifies your ownership in the event of an insurance loss or theft. You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below: 8.
  • Page 29 Warranty Certificate YEAR YEAR YEAR PARTS & LABOR ELECTRICAL COMPRESSOR...
  • Page 30 this page intentionally left blank...
  • Page 31 this page intentionally left blank...
  • Page 32 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 800-444-6285 / 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com v042423...
