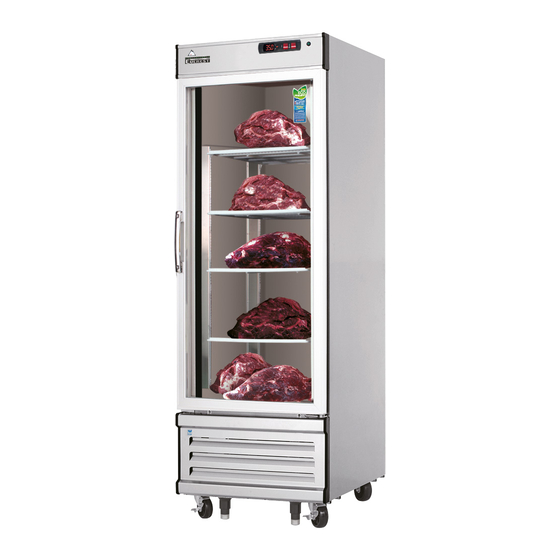

EVEREST REFRIGERATION EDA1 Owner's Manual

Dray ager & thawing refrigerators
Hide thumbs Also See for EDA1:
Table of Contents

Advertisement

Quick Links

Download this manual
Dry Ager & Thawing Refrigerators
Bottom Mounted Condensing Unit
Owner's Manual
EDA1
EDA2
www.everestref.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDA1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVEREST REFRIGERATION EDA1

Summary of Contents for EVEREST REFRIGERATION EDA1

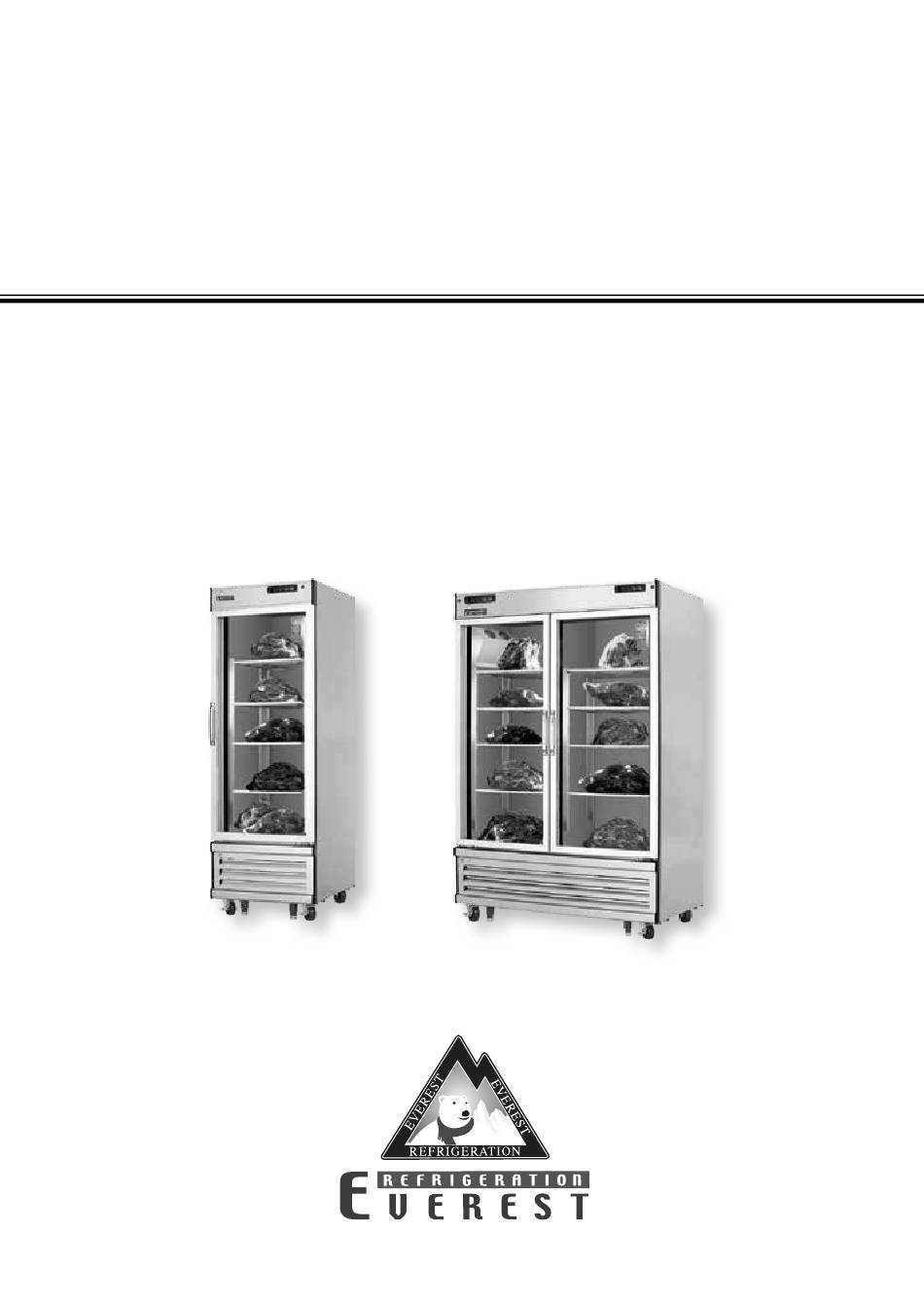

  • Page 1 Dry Ager & Thawing Refrigerators Bottom Mounted Condensing Unit Owner’s Manual EDA1 EDA2 www.everestref.com...

  • Page 2: Table Of Contents

    Dry Ager & Thawing Refrigerators Bottom Mounted Condensing Unit EDA1, EDA2 Contents 1, 2 About Dry Ager ..........3, 4 Hydrocarbon Guidelines ......Installation Instructions ........General Safety ..........Electrical Safety ..........Operation ............Aging Fan and Air Guide ........

  • Page 3: About Dry Ager

    About Dry Ager Use your Everest product according to its intended functions. Warranty is void if the following guidelines are not met. What is Dry Aging? Dry aging is a process in which meats are exposed to circulated air under refrigerated conditions for a certain period (typically weeks), which enhances the maturation of meats.
  • Page 4 Where can meat be purchased for Dry Aging? You can purchase meat from any butcher shop and wholesale or retail stores. If the meat already comes packaged (vacuum-sealed, paper-wrapped, etc.), simply remove the original packaging before aging. Keep in mind that the meat should be fresh and free from contamination before it is placed inside the Dry Ager.

  • Page 5: Hydrocarbon Guidelines

    Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION.
  • Page 6 PROPANE (R290) IS HIGHLY APPROVED FOR USE AS A REFRIGERANT IN COMMERCIAL, SELF-CONTAINED UNITS IN THE US UNDER LIMITED USE CONDITIONS. IT CAN ONLY BE USED IN NEW EQUIPMENT. BACKFITTING OR MODIFICATIONS OF OLD EQUIPMENT ARE NOT ALLOWED. IT MUST BE CHARGED IN A STRICTLY LIMITED VOLUME OF UP TO 150 GRAMS (5.3 OZ) PER REFRIGERATION CIRCUIT.

  • Page 7: Installation Instructions

    Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1.

  • Page 8: General Safety

    • If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and shelves to avoid any risk of injury or entrapment.

  • Page 9: Electrical Safety

    Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Everest units come as 115 volts, 60 hertz, single Assign the unit to a dedicated, undamaged phase and equipped with a NEMA 5-15P.

  • Page 10: Operation

    Operation This section applies to all Everest products. Use according to the described and intended functions. Warranty is void if these guidelines are not met. Starting your Everest Product After plugging in the unit, the current temperature and compressor symbol will appear on the digital temperature control’s LED display will flash at short intervals for 1 minute after which the...
  • Page 11 Dry Aging Fan and Air Circulation Guide Everest Dry Ager & Thawing Refrigerators are equipped with dual sets of interior fans. The first set is the standard evaporator fan for cooling/refrigeration. The second set is the Dry Ager fan designed to enhance the Dry-Aging process.
  • Page 12 Meat Hanger Installation Guide Stainless steel meat hangers and hooks can be purchased separately as an additional accessory for the Everest Dry Ager & Thawing Refrigerator. These items can be used to Dry Age a large chunk of meat instead of aging smaller slices on shelves. The manner of application is up to the user’s preference.
  • Page 13 Meat Hanger Installation Guide (Continued) 3. Tighten the rod stopper using the hex bolt and nut. Make it slightly loose so that it can rotate. 4. Align meat hanger bracket #1 to the holes of the interior wall and secure it in place by first inserting the bottom screws.
  • Page 14 Meat Hanger Installation Guide (Continued) 5. Insert the top screws and tighten them completely. Finish tightening the bottom screws. 6. Take meat hanger bracket #2 and repeat steps 1 to 5 on the opposite wall. Meat Hanger Installation Guide...
  • Page 15 Meat Hanger Installation Guide (Continued) 7. Rotate rod stopper #1 to open. Do the same for rod stopper #2 on the opposite wall. 8. Take the rod and cap each end with the rubber covers. Meat Hanger Installation Guide...
  • Page 16 Meat Hanger Installation Guide (Continued) 9. Place one end of the rod on bracket #1. 10. Place the other end of the rod on bracket #2. Meat Hanger Installation Guide...
  • Page 17 Meat Hanger Installation Guide (Continued) 11. Rotate rod stopper #1 to put it in the lock position. 12. Use the thumbscrew to lock rod stopper #1. Meat Hanger Installation Guide...
  • Page 18 Meat Hanger Installation Guide (Continued) 13. Repeat steps 11 and 12 for rod stopper #2 on the opposite wall. 14. Take the meat hook and hang it on the rod. Meat Hanger Installation Guide...
  • Page 19 Meat Hanger Installation Guide (Continued) Note: Based on the user’s preference, the bracket’s location can be adjusted either to the back or to the front of the cabinet interior. The meat hanger is now ready for use. It can hold weights up to 120 lbs. Do not hang anything that exceeds this specified weight limit.

  • Page 20: Care And Maintenance

    Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility.
  • Page 21 Condenser Coil Cleaning Instructions * R404A freezer models are equipped with a condenser coil air filter. R290 refrigerator models are not equipped with a condenser coil air filter. If your product is an R290 refrigerator model, you may skip this section. This section applies to all Everest products.
  • Page 22 Condenser Coil Cleaning Instructions (Continued) 4. Use a commercial condenser coil cleaner for metal fins that are coated in grease. Allow the cleaner to saturate the area. Follow the recommended wait time printed on the product packaging. 5. The grease and cleaning solvent will pool at the base of the metal fins.

  • Page 23: Door Reversal Instructions

    Door Reversal Instructions Some products have field reversible doors to accommodate specific kitchen layouts. Door reversals must be performed by qualified technicians. A second person is required. Safety goggles must be worn to protect from spinning parts. Warranty is void if the following guidelines are not met.
  • Page 24 Door Reversal Instructions (Continued) 5. Extra precaution must be taken for the following steps. Release the door tension from the door spring by inserting a sharp pointed implement into one of the door hinge shaft’s unoccupied tension lock screws C- 2 6.

  • Page 25: Troubleshooting Guide

    Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating The compressor operates continuously or with the current temperature and accompanied for prolonged periods.
  • Page 26 Troubleshooting Guide (Continued) The cabinet temperature is too warm. If the gasket is loose, reattach. Hot food items may have been stored in the The condenser coil may be clogged with dust, cabinet. The interaction between hot and cold grime or debris. Clean them following the temperatures will promote condensation.

  • Page 27: Warranty Information

    Warranty Registration Registering your new appliance is important. In the unlikely event a safety notification or warranty service is required, we will have the means to contact you. Your completed appliance registration also verifies your ownership in the event of an insurance loss or theft. You may register online at www.EVERESTref.com or use your smart phone to scan the QR code below: 8.
  • Page 28 Warranty Certificate EVEREST warrants to the first purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as specified by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
  • Page 29 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 800-444-6285 / 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com v106020...
