EVEREST REFRIGERATION EMGR5 Owner's Manual

Glass door merchandiser refrigerators, chromatography refrigerators
Hide thumbs Also See for EMGR5:
Table of Contents

Advertisement

Quick Links

www.EVEREST
ref com
.

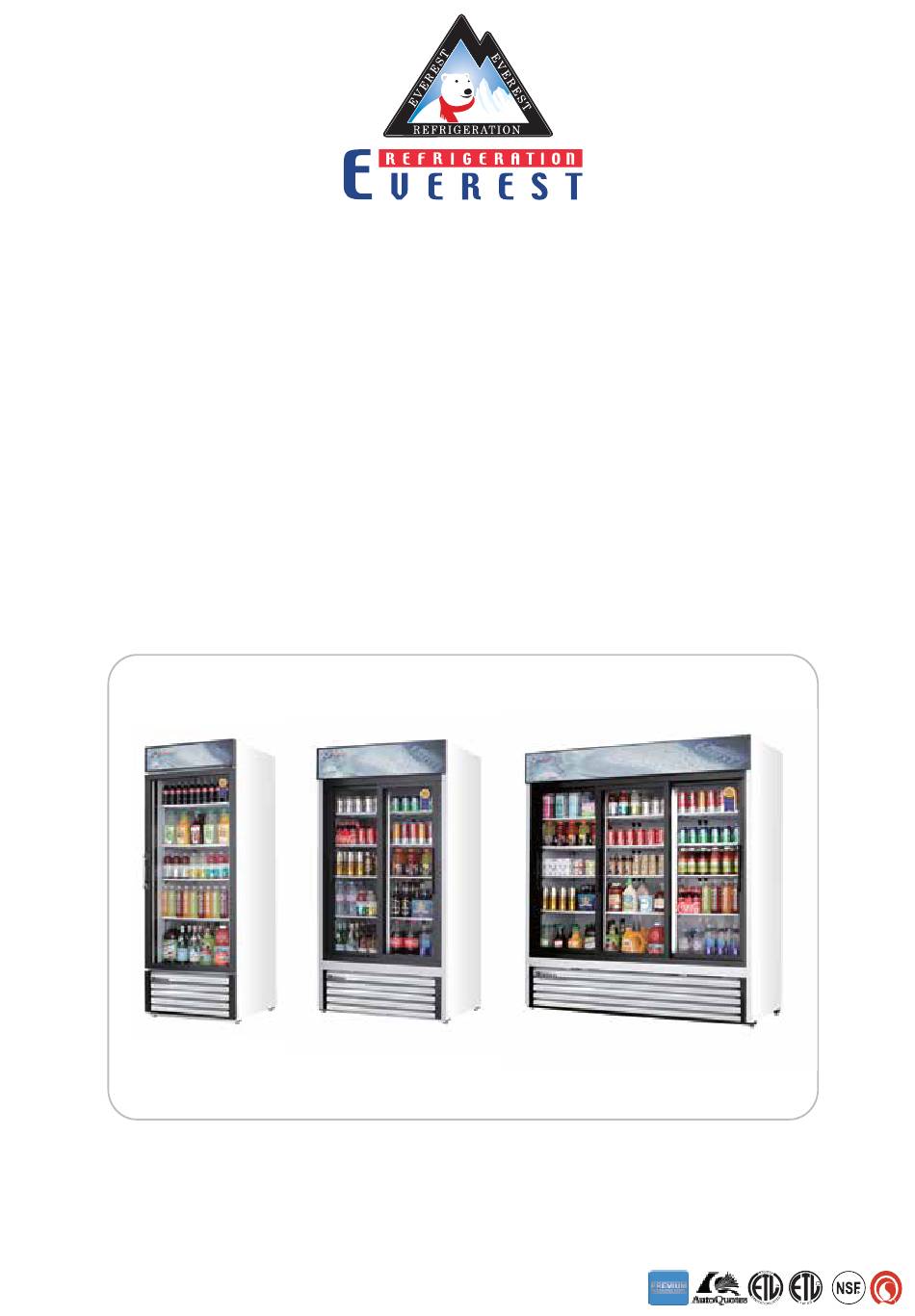

Owner's Manual for models:
Glass Door
EMGR5, EMGR8, EMGR10, EMGR20, EMGR24(B)
Merchandiser Refrigerators
EMSGR33, EMSGR48, EMSGR69
EMGR33(B), EMGR48(B), EMGR69(B)
Chromatography Refrigerators
EMGR24C, EMGR33C, EMGR48C, EMGR69C
EMSGR33C, EMSGR48C, EMSGR69C
A Step Above the Standard
Thank you for choosing EVEREST
R
US
C
ISO-9001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EMGR5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EVEREST REFRIGERATION EMGR5

Summary of Contents for EVEREST REFRIGERATION EMGR5

  • Page 1 Owner’s Manual for models: Glass Door EMGR5, EMGR8, EMGR10, EMGR20, EMGR24(B) Merchandiser Refrigerators EMSGR33, EMSGR48, EMSGR69 EMGR33(B), EMGR48(B), EMGR69(B) Chromatography Refrigerators EMGR24C, EMGR33C, EMGR48C, EMGR69C EMSGR33C, EMSGR48C, EMSGR69C A Step Above the Standard Thank you for choosing EVEREST...

  • Page 2: Safety Notices

    Safety Notices Safety Notices REFRIGERATION WARNING - When using your appliance, always follow basic precautions, including the following : When installing the unit, be careful that the Before starting the unit for the rst electrical cord is not under the unit or time, make sure the unit pressed against the wall.
  • Page 3 Safety Notices Safety Notices REFRIGERATION WARNING - Read and follow all safety notices in this installation guide. These notices provide helpful safety and e cient operation information. Failure to do so may lead to serious injury and / or damage to the unit. To minimize shock and re hazards, be sure To prevent damage to the electrical not to overload the outlet into which the...
  • Page 4 Caution! Caution! REFRIGERATION To prevent electrical shock and damage to Do not use the the electrical cord, please hold electrical cord the plug head when plugging or plug if they and unplugging the unit. are damaged in any way. Do not put your hands under Avoid installing the the unit when moving it.
  • Page 5 Installation Guide Installation Guide REFRIGERATION Install the unit on a hard and level surface The unit should be positioned at least 7” or the unit could produce undesired noises. away from the wall for proper ventiliation. Back Wall 7” 7” Indoor Use Only Dusty and High Humidity Areas Outdoor use may cause a decrease in...
  • Page 6 Maintenance guide Maintenance guide REFRIGERATION Shelf Cleaning Door Gasket Cleaning Periodically remove the shelves from the unit To preserve the life span of the door gasket and clean them clean the gasket with mild soap with mild soap and warm water. and water on a regular basis.
  • Page 7 How to reverse door - EMGR24 How to reverse door - EMGR24 REFRIGERATION 1. The front top signboard and front bottom grill must be removed to access the door hinge mounting screws. Remove the front top signboard by removing the 3 screws which attach it on the top and the 2 screws which attach on the bottom.

  • Page 8: Troubleshooting

    Trouble Shooting Trouble Shooting REFRIGERATION Please check the following before requesting service. Symptom Possible Solutions Condensing unit a. Ensure the electrical cord has been connected. fails to start b. Ensrue the unit is turned on. Cabinet does not a. Check the door gaskets for proper seal. b.
  • Page 9 Shelves Shelves REFRIGERATION Shelves The unit’s shelves are adjustable so that the refrigerated compartment can be configured to suit your needs. Shelf Clip The shelf clip pilasters are spaced and labeled in 1” increments for your convenience. 1” Pilaster To install a shelf, hook the shelf clips into the pilasters by inserting the top part of the clips first and then the bottom.

  • Page 10: Specification

    Specifications Specification REFRIGERATION EMGR5 EMGR8 EMGR10 Model Capacity(Cu.Ft.) Door (Swing) (Swing) (Swing) Shelves Compressor (HP) Power (V-Hz-Ph) 115-60-1 115-60-1 115-60-1 Temp. Range(F) 32 ~ 42 32 ~ 42 32~ 42 Refrigerant R-134A R-134A R-134A Crated Weight(LBS) Amps(A) 4.60 3.45 3.45...
  • Page 11 Specifications & Temperature Setting Specifications & Temperature Setting REFRIGERATION EMGR24C EMGR33C EMGR48C EMGR69C Model Capacity(Cu.Ft.) Door (Swing) (Sliding) (Sliding) (Sliding) Shelves Compressor (HP) Power (V-Hz-Ph) 115-60-1 115-60-1 115 -60-1 115-60-1 Temp. Range(F) 32 ~ 42 32 ~ 42 32~ 42 32 ~ 42 R-134A Refrigerant...

  • Page 12: Cad Drawings

    24" 25 7/8" 1 1/2" 24 3/8" 24" 26 1/4" 1 1/2" 24 3/4" 25" 23 3/4" 23 3/4" 24 3/4" EMGR5 EMGR8 EMGR10 33 1/2" 32 1/4" 32" 1 1/2" 1 1/2" 30 3/4" 28 3/8" 30" 26 3/8"...
  • Page 13 CAD Drawings CAD Drawings REFRIGERATION Glass Door Merchandiser Refrigerators 33 1/2" 32" 30" 1 1/2" 39 3/8" 72 7/8" 53 1/8" 19 3/8" 19 3/8" 23 1/2" 23 1/2" 23 1/2" 26 1/8" 26 1/8" EMSGR33 EMSGR48, EMSGR69 EMSGR33 EMSGR69 EMSGR48 30 3/4"...
  • Page 14 CAD Drawings CAD Drawings REFRIGERATION Chromatography Refrigerators 2 Access Ports with Covers 33 1/2" 1 1/2" 32" 28 3/8" Duplex GFCI Electrical Outlet with Cover 28 1/4" 6 ft. Long Power Cords (NEMA5-15P) EMGR24C, EMSGR33C EMSGR48C, EMSGR69C EMGR24C 39 3/8" 53 1/8"...
  • Page 15 CAD Drawings CAD Drawings REFRIGERATION Chromatography Refrigerators 39 3/8" 2 Access Ports with Covers 30 3/4" 3/4" 30" Duplex GFCI Electrical Outlet with Cover 18 1/4" 18 1/4" 6 ft. Long Power Cords (NEMA5-15P) EMGR33C EMGR48C, EMGR69C EMGR33C 53 1/8" 72 7/8"...

  • Page 16: Critical Information

    Critical Information Critical Information REFRIGERATION CONDENSER COIL MAINTENANCE Failure to maintain a clean condenser coil will eventually result in compressor failure and product loss. Mechanical failures due to a lack of or improper maintenance are not covered under warranty. Keeping the condenser coil clean will maximize energy savings. Cleaning of the condenser coil is part of regular maintenance and is not covered under warranty.

  • Page 17: Warranty Certificate

    Warranty Certificate Warranty Certificate REFRIGERATION EVEREST warrants to the original purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as speci ed by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
  • Page 18 Memo Memo REFRIGERATION REFRIGERATION...
  • Page 19 Memo Memo REFRIGERATION REFRIGERATION...
  • Page 20 REFRIGERATION REFRIGERATION A Step Above the Standard 201 W. Artesia Blvd., Compton CA 90220 Tel : 310-323-6586, 800-444-6285 Fax : 310-323-7524, 310-761-1127 Visit our website at www.EVERESTref.com...
