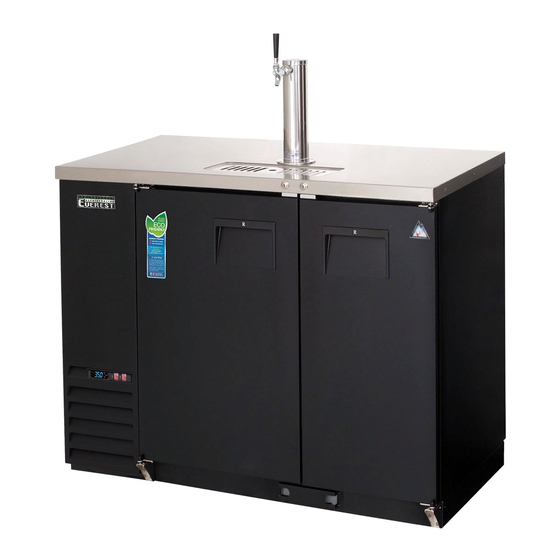

EVEREST REFRIGERATION EBD1 Owner's Manual

Direct draw keg refrigerators

Hide thumbs

Table Of Contents

Quick Links

Download this manual

Direct Draw

Keg Refrigerators

Owner's Manual

EBD1, EBD2, EBD3, EBD4

EBDS2-24, EBD2-24, EBD3-24, EBD4-24

EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG

EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24

EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24

EBD2-CT, EBD3-CT, EBD4-CT

www.EVERESTref.com

Table of Contents

Need help?

Do you have a question about the EBD1 and is the answer not in the manual?

Questions and answers

Summary of Contents for EVEREST REFRIGERATION EBD1

Page 1 Direct Draw Keg Refrigerators Owner’s Manual EBD1, EBD2, EBD3, EBD4 EBDS2-24, EBD2-24, EBD3-24, EBD4-24 EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24 EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24 EBD2-CT, EBD3-CT, EBD4-CT www.EVERESTref.com...
Page 3: Table Of Contents
Direct Draw Keg Refrigerators EBD1, EBD2, EBD3, EBD4, EBDS2-24, EBD2-24, EBD3-24, EBD4-24, EBD2-BB, EBD2-BBG, EBD3-BB, EBD3-BBG, EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24, EBDS2-BBG-24, EBD2- BBG-24, EBD3-BBG-24, EBD2-CT, EBD3-CT, EBD4-CT Contents 1. Hydrocarbon Guidelines 2. Installation Instructions 3. General Safety 4. Electrical Safety 5. Operation 6.
Page 4: Hydrocarbon Guidelines
1. Hydrocarbon Guidelines This section applies to R290 Hydrocarbon units only. To identify the refrigerant type, see the data plate in the cabinet interior. WARNING - THIS UNIT USES R290, A HYDROCARBON, PROPANE REFRIGERANT THAT IS ENVIRONMENTALLY FRIENDLY BUT IS ALSO HIGHLY FLAMMABLE AND EXPLOSIVE. PLEASE READ THIS MANUAL CAREFULLY AND FOLLOW ALL SAFETY PRECAUTIONS CONTAINED HEREIN TO AVOID THE RISK OF FIRE OR EXPLOSION.
Page 5 • General service and repairs must be performed in well-ventilated areas. • General service and repairs must be performed only by professionals authorized by Everest Refrigeration. • Component shall be replaced with Everest-issued, like components to minimize the risk of possible ignition resulting from incompatible parts or improper repairs.
Page 6: Installation Instructions
2. Installation Instructions This section applies to all Everest products. Correct installation ensures proper performance and longevity of your appliance. Professional installation by a trained refrigeration technician and electrician is recommended. Warranty is void if the following guidelines are not met. 1.
Page 7 Shelf Installation 1. Some models come standard with shelves, shelf clips and notched pilasters. Each shelf requires four clips. Attach the shelf clips onto the pilasters by inserting its top hook into a pilaster notch followed by the bottom hook. Do not use pliers or other crimping tools to modify the shape of the shelf clips.
Page 8 Product Load Level & Shelf Placement Models : EBD1, EBD2, EBD3, EBD4, EBDS2-24, EBD2-24, EBD3-24, EBD4-24 EBD2-BB, EBD3-BB, EBDS2-BB-24, EBD2-BB-24, EBD3-BB-24, EBD2-CT EBD3-CT, EBD4-CT Front View Side View Airflow Front Rear Installation Instructions...
Page 9 Product Load Level & Shelf Placement Models : EBD2-BBG, EBD3-BBG, EBDS2-BBG-24, EBD2-BBG-24, EBD3-BBG-24 Front View Load Level 11” Load Level 11” 2” Side View Airflow Load Level 11” Front Rear Load Level 11” 2” Installation Instructions...
Page 10 Draft Assembly - Single Faucet Air Distributors are included in Direct Draw Keg Refrigerators that have Faucet Handle multiple faucets and kegs. Each keg Tower Cover is connected to a valve on the air Faucet distributor. Tower Regulator Air Distributor Beer Line Keg Coupler Tank...
Page 11 Draft Assembly - Dual Faucet Air Distributors are included in Direct Draw Keg Refrigerators that have multiple faucets Tower Cover and kegs. Each keg is connected to a Faucet Handle valve on the air distributor. For Direct Draw Keg Refrigerators with a single keg and faucet the keg is connected directly to the Regulator.
Page 12 Draft Assembly Instructions ( Continued ) 1) Position the base of the draft tower so that the tower shaft and screw holes align perfectly with the corresponding openings on the worktop. Feed the beer line through the main opening. 2) Secure the base of draft tower to the work top using the provided screws. Installation Instructions...
Page 13 Draft Assembly Instructions ( Continued ) 3) Take the cold air hose and insert the flat end into the air baffle located in the cabinet interior. 4) Remove the top cap and insulation pad from the draft tower. Insulation (Foam) Insulation (Foam) 5) Take the cold air hose and insert the hooked end through the bottom of the tower.
Page 14 6) Secure the top cap and insulation pad back on the draft tower. Ensure that they are tightly sealed in place. 7) Connect any exterior rubber or silicone drain hose that matches the ¾” diameter drain fitting located at the front, bottom section of the unit. The Direct Draw Keg Refrigerator does not include an exterior drain hose.
Page 15 Safe Drilling Areas for CO2 Ports (EBD1) Everest recommends only a qualified technician or keg installation professional to perform this modification. Warranty is void if the following guidelines are not met. Right Side Left Side Drill Safe Area Do Not Drill Drill holes for CO2 lines anywhere within the highlighted areas.
Page 16 Safe Drilling Areas for CO2 Ports (Type A) Everest recommends only a qualified technician or keg installation professional to perform this modification. Warranty is void if the following guidelines are not met. BBD2-0801-XXXX to BBD2-1209-XXXX Type A applies to the following BBD3-0801-XXXX to BBD3-1209-XXXX serial numbers: BBD4-0801-XXXX to BBD4-1209-XXXX...
Page 17 Safe Drilling Areas for CO2 Ports (Type B) Everest recommends only a qualified technician or keg installation professional to perform this modification. Warranty is void if the following guidelines are not met. BBD2-1210-XXXX to Present Type A applies to the BBD3-1210-XXXX to Present following serial numbers: BBD4-1210-XXXX to Present...
Page 18 Keg Installation *NOTE: The CO2 distributor can be used to share the single CO2 tank between multiple kegs. 1 ) Choosing the CO2 tank location A ) Cabinet Exterior: For CO2 tanks placed outside of the unit, it is necessary to drill a hole for the CO2 port anywhere in the safe areas indicated in Chapter 2.
Page 19 Keg Installation ( continued ) 6) Connecting the Beer Line to the Keg Coupler A) Before proceeding, remove any protective film or wrap from the keg coupler. B) Attach the rubber washer to the beer line hex fitting. C) Connect the beer line from the tower to the screw fitting on top of the keg coupler. 7) Tapping the Keg A) Pull on the top handle of the keg coupler and push down until it locks in place.
Page 20: General Safety
• If you suspect a refrigerant leak or a compromised refrigeration system, disconnect the unit, and contact Everest Refrigeration immediately. • When disposing the unit, remove all doors and shelves to avoid any risk of injury or entrapment. Ensure that the refrigerant in the condensing unit is properly disposed of by a qualified refrigeration technician according to governmental codes, requirements, and regulations.
Page 21: Electrical Safety
4. Electrical Safety This section applies to all Everest products. Basic safety precautions must be observed when using electrical appliances in addition to the following. Warranty is void if these guidelines are not met. Do not use extension cords, adapter plugs or Everest units come as 115 volts, 60 hertz, single other third party electrical connections.
Page 22: Operation
5. Operation Use your Everest product according to its intended functions. Warranty is void if the following guidelines are not met. Starting your Everest Product The default temperature setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The After plugging in the unit, the current temperature factory recommended temperature range is between 33.0°F (1.0°C) to 40.0°F (4.0°C) for refrigerators and...
Page 23 Carel ‘Easy’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Compressor Running Alarm in Progress Power / Up Button Temperature Set Button Cabinet Temperature Manual Defrost / Down Button...
Page 24 Setting the Temperature ( continued ) 2. Toggle through the desired temperature by pressing UP or DOWN The number increases or decreases by a decimal point. 3. The recommended setting is 35.0°F (2.0°C) for refrigerators and -4.0°F (-20.0°C) for freezers. The available temperature setting range is 33.0°F to 54.0°F (1.0°C to 12.0°C) for Refrigerators and -10.0°F to 54.0°F (-23.0°C to 12.0°C) for Freezers.
Page 25 Carel ‘ir33’ Digital Temperature Control Everest units are equipped with a Carel Digital Temperature Control. The type of controller is dependent on the model and production date. Evaporator Fan Running Program Button Compressor Running Up Button / Alarm in Progress Auxillary Cabinet in Defrost Down Button /...
Page 26 Initiating Manual Defrost The controller has an automatic defrost cycle in place so initiating manual defrost is not necessary unless there is an abnormal accumulation of ice around the evaporator coil. 1. Press and hold down the Manual Defrost Button until the Defrost Symbol appears on the LED display.
Page 27: Care And Maintenance
6. Care and Maintenance This section applies to all Everest products. Regular care and maintenance of your appliance will significantly extend service life and dependability. In severe cases, lack of upkeep will contribute to the rapid decline in performance and component health. Care and maintenance is the product owner’s personal responsibility.
Page 28 The condenser coil is located at the back of the unit. Unscrew the front grill and detach completely to expose the Condenser Coils for cleaning. All units depicted except EBD1 EBD2-CT The condenser coil is located at the front, left side of the unit.
Page 29 Condenser Coil Cleaning Instructions It is necessary to clean the condenser coil of to ensure that it is free of lint, dust and grease build-up. Warranty is void if the following guidelines are not met. 1. Ensure that the unit is disconnected from the outlet before performing maintenance.
Page 30: Troubleshooting Guide
7. Troubleshooting Guide In most cases, your Everest product may be exhibiting behavior that is typical of standard operation. Observe the following when troubleshooting symptoms. ‘cht’ or ‘CHt’ appears on the LED alternating The door, drawer or gasket may not be sealing with the current temperature and accompanied properly.
Page 31 Condensation on the unit’s exterior surfaces. The temperature may be set too high. Adjust the setting to 35.0°F (2.0°C) for refrigerators or -4.0°F Highly humid environments will contribute to the (-20.0°C) for freezers. condensation build up on exterior panels. Providing ample ventilation and air movement to a space will Hot food items may have been placed in the cabinet.
Page 32: Warranty Information
Everest product. This tag is located in the upper left or right interior compartment for models with doors, or the exterior left or right exterior housing for models with drawers. Please retain this information for service-related purposes. ESR1 MODEL : EBD1 1/4 HP+ COMPRESSOR : R290 REFRIGERANT : * Use of other than specified refrigerant voids warranty 3.17 Oz...
Page 33 WARRANTY REGISTRATION CARD 3 Year Parts and Labor Warranty* 5 Year Compressor Warranty Name of Business Owner : Date : Signature of Business Owner : Business Name : Telephone : Email : Street Address : City : State : Zip : Place of Purchase : Date Purchased : Date Installed :...
Page 34 Warranty Certificate Three (3) Year Labor & Parts Warranty EVEREST warrants to the first purchaser of every new EVEREST unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal and proper use and maintenance service as speciﬁed by EVEREST and upon proper installation and start-up in accordance with the instruction packet supplied with each unit.
Page 36 A Step Above The Standard 201 W. Artesia Blvd., Compton, CA 90220 Tel: 310-323-6586 Fax: 310-323-7524 / 310-761-1127 www.EVERESTref.com ver. 11/02/18...
