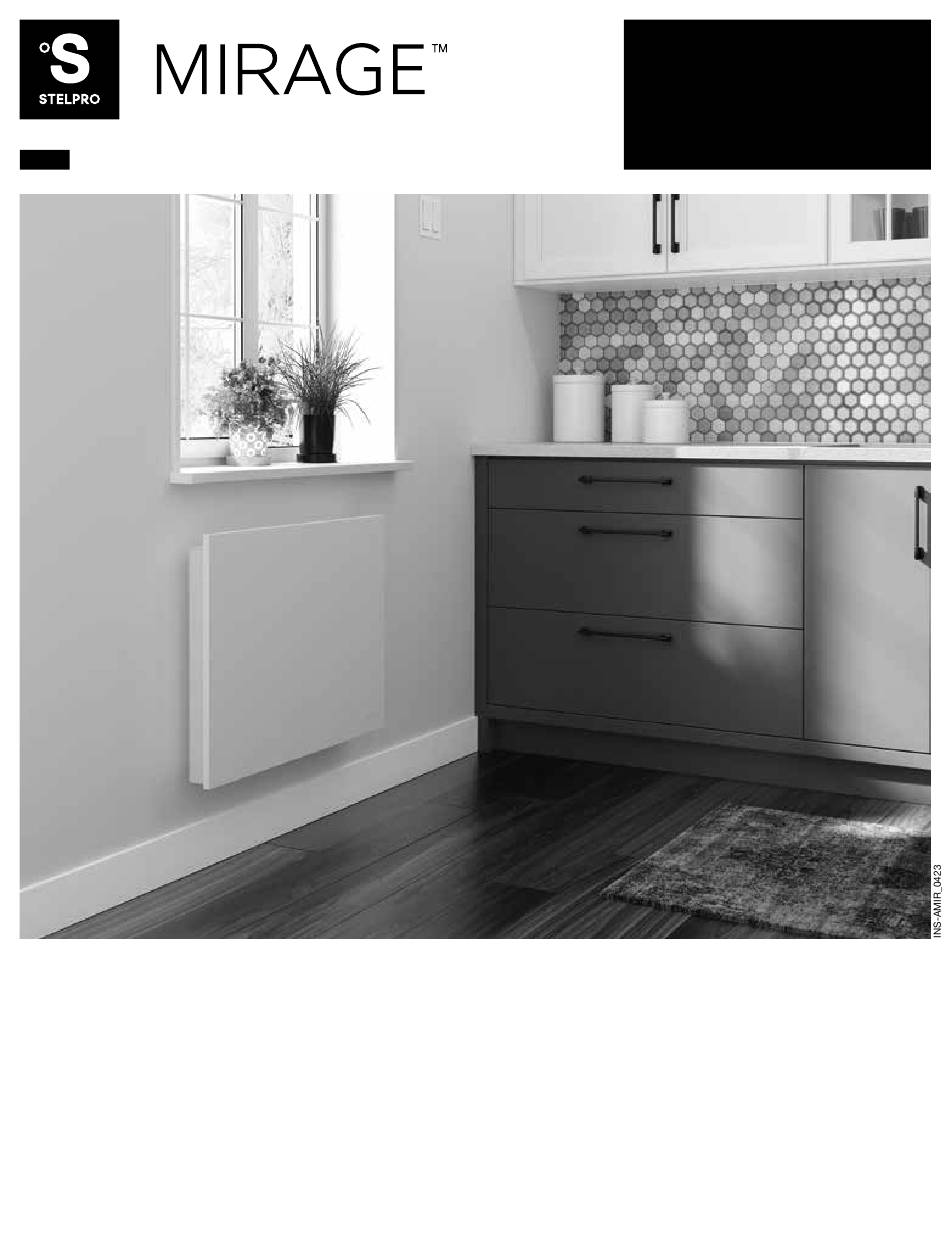

OWNER'S MANUAL
AMIR...
AMIR...WC
CONVECTOR
AMIR
AMIR...P
THANK YOU FOR YOUR PURCHASE!
QUESTION? PROBLEM? CONTACT STELPRO CUSTOMER SERVICE.
WWW.STELPRO.COM
CONTACT@STELPRO.COM
1-844-STELPRO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIRAGE AMIR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Stelpro MIRAGE AMIR Series

  • Page 1 OWNER’S MANUAL AMIR... AMIR...WC CONVECTOR AMIR AMIR...P THANK YOU FOR YOUR PURCHASE! QUESTION? PROBLEM? CONTACT STELPRO CUSTOMER SERVICE. WWW.STELPRO.COM CONTACT@STELPRO.COM 1-844-STELPRO...
  • Page 2: Important Instructions

    This corresponds to 10 W/square foot (0.09 m²) based on a standard ceiling the unit needs to be cleaned based on the amount of dirt accumulated on height of 8 feet (2.44 m). The recommended capacity is usually sufficient for the air inlets and outlets and inside the unit. Accumulated dirt can cause the normal heating needs. Please note that wall and window insulation quality unit to turn yellow or cause a component to fail. Failure to install and maintain affects heat loss and impacts the power required to heat a room. If neces- the unit in accordance with these instructions poses a fire hazard. Activation of sary, refer to a specialist who can calculate these heat losses and optimize the thermal protection indicates that the unit has been subjected to abnormal the required capacity or consult the “Online heating calculation” section of the operating conditions. If the thermal protection remains activated or repeatedly Stelpro Design website (residential buildings). To heat and increase the comfort activates and deactivates, the unit should be inspected by a qualified electri- of a large room, install several units instead of just one. For example, 2 x 1000 cian or a recognized repair centre to ensure that it is not damaged (refer to the W instead of 1 x 2000 W. If the power of the unit is insufficient for the size of the limited warranty terms beforehand). room, it will run continuously, causing it to age prematurely or turn yellow. If the unit is damaged or defective, turn off the power supply at the circuit Do not install the unit where objects could be heat damaged. Respect dis- breaker/fuse and have it repaired at an authorized service centre (refer to the tances and positions indicated in the installation section of this guide. limited warranty terms beforehand).
  • Page 3: Tools And Materials

    INSTALLING THE CONVECTOR TO ENSURE A SAFE AND EASY INSTALLATION, TAKE A FEW MINUTES TO READ THIS INSTALLATION GUIDE. WHAT’S IN THE BOX THE BOX TOOLS AND MATERIALS Flat screwdriver Phillips screwdriver Wire stripper Stud finder Level Tape measure Convector Wall bracket Twist-on wire connectors* models: Four to six #6 to #10 round-head wood screws and...
  • Page 4 TURN OFF THE POWER SUPPLY To protect yourself from the risk of electric shock, turn off the power to the power cables at the electrical panel. REMOVE THE WALL BRACKET FROM THE UNIT 1. Lay the unit flat on a clean, non-abrasive surface to avoid damaging the front of the unit.
  • Page 5: Connecting The Wiring

    CONNECTING THE WIRING WARNING: Use only copper wire that can withstand a temperature of 75°C (167°F). 1. Unscrew and remove the junction box door and set it aside. Phillips screwdriver 2. Pull the wires out of it. 3. If necessary, strip the wires from the power cable [A] using a wire stripper.
  • Page 6 HANG THE UNIT ON THE WALL BRACKET CAUTION: Ensure that the convector is correctly engaged in the wall bracket to avoid dropping and damage. 1. Insert the unit into the lower 2. Tilt the top of the unit and 3. Push the unit to ensure it is hooks [A] of the wall bracket.
  • Page 7 CONTROL WITH A BUILT-IN ELECTRONIC THERMOSTAT TEMPERATURE CONTROL AND DISPLAY NIGHT MODE The thermostat has two modes: the DAY mode, identified on the digital HOW TO SET THE NIGHT TEMPERATURE screen by a ( ) icon and the NIGHT mode, identified by a ( ) icon. To By pressing down the top or bottom button, you will enter the setting mode switch from one mode to the other, simultaneously press down both buttons indicated by the flashing MOON icon.
  • Page 8 2) misuse, abuse, misapplication, lack of maintenance, 5 years (3 years on electronic components). This warranty applies to the original improper servicing (other than that intended by STELPRO) or use other than purchaser only; it is not transferable and cannot be prolonged or extended. that for which the product was designed; 3) an act of God or an event beyond...

This manual is also suitable for:

Mirage amir wc seriesMirage amir p series
