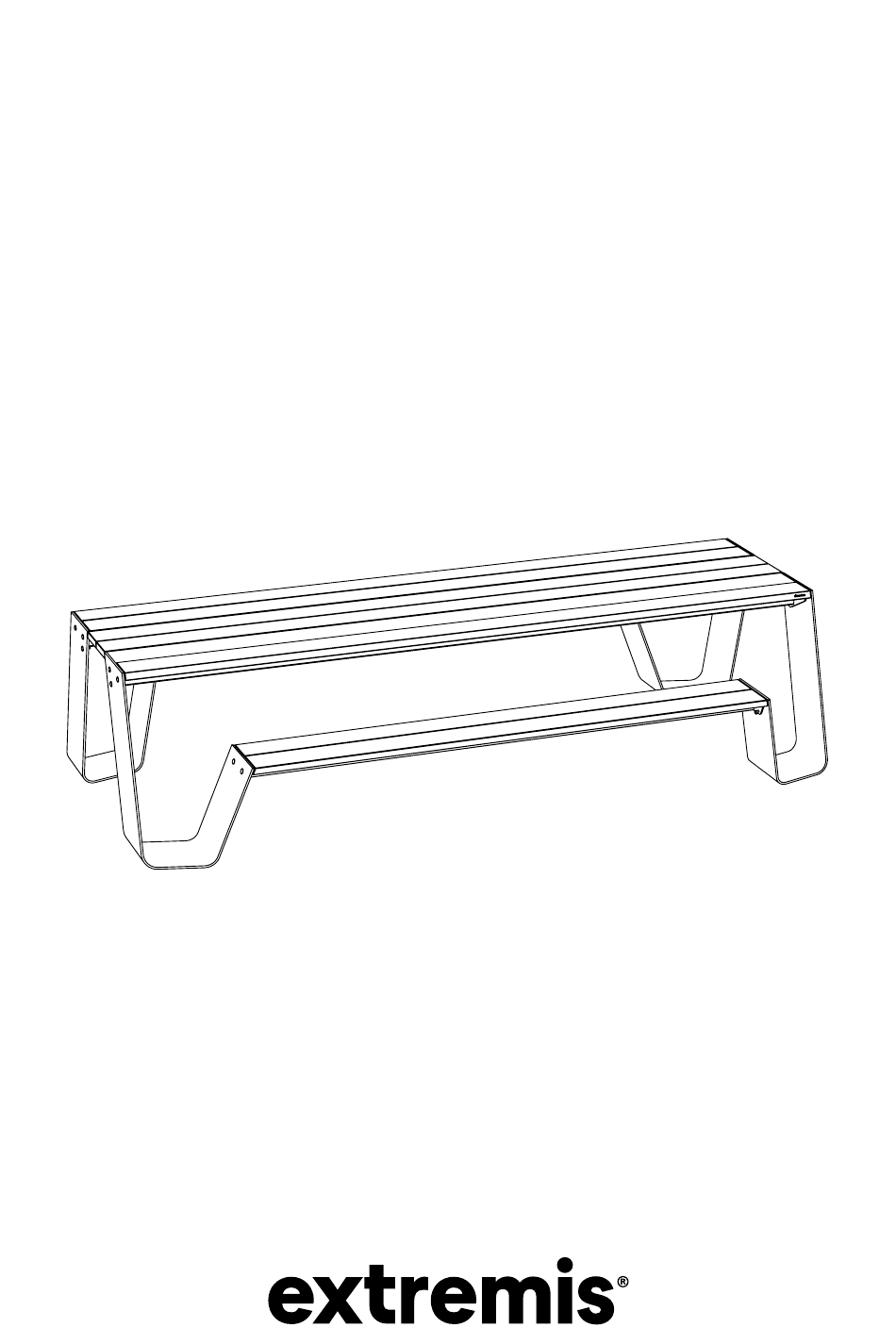

  • Page 1 Hopper picnic...
  • Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
  • Page 4 Table of contents Mounting kit  Exploded view  Assembly Hopper picnic  Assembly backrest  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
  • Page 5 Table of contents Assembly floor fastening set  Assembly floor fastening  Warnings - Text instructions - Maintenance  This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.

  • Page 6: Mounting Kit

    Mounting kit 11 x M10 11 x M10 HOP571 Mounting kit to fix aluminium legs to tabletop & bench 11 x M10 11 x M10 11 x M10x30 HOP157 Mounting kit to fix galvanized legs to tabletop & bench...
  • Page 7 2 x M10 6 x 5x25 HOW417 HOP152 Mounting kit Mounting kit aluminium backrest slat to fix to the supports to bench supports 2 x M10 2 x M10x40 HOP478 Mounting kit to fix galvanized supports to bench...

  • Page 8: Exploded View

    Exploded view...
  • Page 9 Hopper picnic N° 17 45’ The packaging material must stay intact for the rest of the assembly!
  • Page 12 With galvanized legs HOP157 12 x M10 12 x M10 12 x M10x30...
  • Page 13 With powder coated aluminium legs HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 12 x M10 12 x M10...
  • Page 14 Remove packaging before mounting the benches 9a. Go to page 18 if you want to assemble a backrest ...
  • Page 16 With galvanized legs 10a. HOP157 8 x M10 8 x M10 8 x M10x30...
  • Page 17 With powder coated aluminium legs 10b. HOP571 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 8 x M10 8 x M10...
  • Page 18 Backrest With galvanized legs 15’ Remove these bolts, nuts and spring washers at the outside of the bench...
  • Page 19 With powder coated aluminium legs Remove these bolts, nuts and spring washers at the outside of the bench...
  • Page 20 With galvanized legs HOP478 2 x M10 2 x M10x40...
  • Page 21 With powder coated aluminium legs HOW417 Tighten carefully! Excessive force may 15 Nm MAX! damage the coating! 2 x M10...
  • Page 22 HOP152 Tighten carefully! 10 Nm Excessive force may MAX! cause some damage! 6 x 5x25...
  • Page 23 Floor fastening set 15’ On the inside of the legs...
  • Page 24 On the inside of the table...

  • Page 25: Floor Fastening

    Floor fastening 15’...
  • Page 26 These dimensions are theoretical They may vary slightly in practice Dimensions (mm) Hopper picnic 180 1356 1620 1280 Hopper picnic 240 1956 2220 1280 Hopper picnic 300 2556 2820 1280 Hopper picnic 360 3156 3420 1280...
  • Page 27 Warnings Text instructions Maintenance Warnings  Assembly text instructions  Maintenance ...
  • Page 28 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the table. • Not grafitti proof. •...
  • Page 29 • Thorough cleaning with Extremis Wood Cleaner. • We strongly recommend that you treat your wood with wood oil to protect it from stains - Small cracks and crevices can also appear as part of this process.
  • Page 30 • Dark colors can get very hot in sunny weather. Sunbrella • Not waterproof, store inside! • Shake or brush off loose dirt immediately. • UV color fasteness: 7/8 (ISO 105-B02).
  • Page 31 Assembly text instructions 1 - 2 - 3 - ... Take a look at the drawings, starting from page 9 Hopper picnic (p9) 1. Remove the lid of the box. The packaging material must stay intact for the rest of the assembly! 2.
  • Page 32 each table leg. Screw the supplied nuts and spring washers onto the threaded rods. b. With powder coated aluminium legs Screw the supplied nuts and spring washers into the threaded rods. Backrest (p18) 1. a. With galvanized legs Unscrew the 2 nuts and spring washers at the outside of the bench frame.
  • Page 33 located. 2. Remove the table and drill holes in the marked locations. 3. Use the most appropriate fasteners for the surface on which the Hopper is to stand.

  • Page 34: Maintenance

    For a thorough cleaning, we can recommend our Extremis Wood Cleaner. This is a bio-degradable cleansing shampoo for wooden furniture. The product removes grey discolouration, green deposits and dirt.
  • Page 35 You are free to protect your wood from UV, inclement weather and stains. Needless to say we strongly recommend to do this once a year. Extremis Wood Protector is a 100% natural product based on linseed oil. It is colorless, but the wood will be darker after this treatment. Remove all residues of old applications.

  • Page 36: Regular Cleaning

    Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These surfaces are best cleaned with a neutral cleaning product diluted in water.
  • Page 37 MACHINE WASHING Rarely It is also possible to put the blankets and cushion covers in a washing machine (30°). Do not dry clean or tumble dry. The fabric can be creased. Ironing will help to recover the waterrepellent coating of the fabric, but only at a cool setting (delicates).
  • Page 38 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
