The warranty does not cover damages related to battery leakage or misuse. Gentec-EO will repair or replace, at its option, any device that proves to be defective during the warranty period, except in the case of product misuse.
Page 3
Revision 3.7 SAFETY INFORMATION Do not use a Gentec-EO device if the monitor or the detector looks damaged or if you suspect that the device is not operating properly. Appropriate installation must be done for water-cooled and fan-cooled detectors. Refer to the specific instructions for more information.

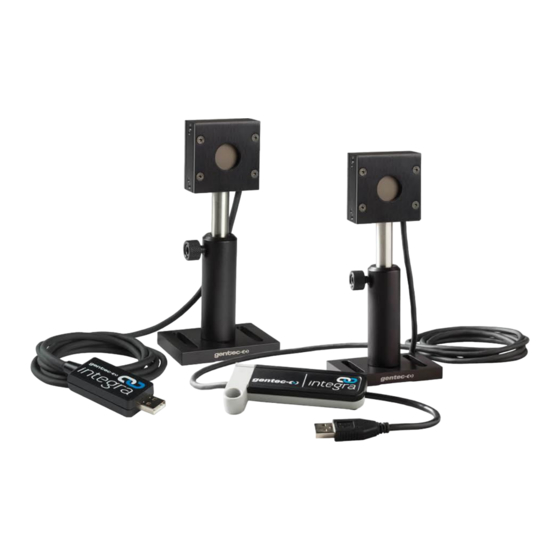

The small but powerful meter of the INTEGRA series presents a direct USB or RS-232 connection so you can plug it into your PC. Simply use the PC-Gentec-EO software supplied with your product and be ready to make power or energy measurements within seconds! Each detector of the INTEGRA series offers the same incredible performance as the usual detector and meter combination, from pW to kW and from fJ to J.
INTEGRA user manual Revision 3.7 Example for the external trigger timing requirements: If the head detector has a risetime of Tresp = 20 µs, the time frame will be from (20% * 20 µs = 4 µs) before the laser pulse to (20 µs – 1 µs = 19 µs) after the laser pulse. ...
Energy detectors can only be used with pulsed lasers. Adjust the zero: The power read by PC-Gentec-EO when no laser beam is incident on the detector may not be exactly zero. For power measures, this is because the detector is not thermally stabilized OR there was a heat source in the field of view of the detector when you connected the PC-Gentec-EO.
Do not adjust the zero for energy detectors, such as the QE series. iv. Avoid forced airflow or drafts around the detector. 3. USER INTERFACE Please refer to the PC-Gentec-EO manual for more information concerning the user interface. The manual can be downloaded on our website at: https://gentec-eo.com/downloads/specsheets-manuals.
INTEGRA user manual Revision 3.7 4. USB AND RS-232 SERIAL COMMUNICATION 4.1. DESCRIPTION The INTEGRA has two communication modes: the binary mode for fast data acquisition and the ASCII mode. Both modes will require text input commands which must follow the rules stated in Section 4.3.
INTEGRA user manual Revision 3.7 RS-232 INTEGRA COM port settings Bits per second 115,200 Data bits Parity None Stop bits Flow control None Click OK to begin entering serial commands in the HyperTerminal window. 4.2.3. To echo commands The commands you type will not appear in the HyperTerminal window unless you set up the HyperTerminal to do so.
The INTEGRA’s resolution is 12 bits for the joulemeter mode. To be compatible with other Gentec-EO monitors, a 14-bit value is sent, but the two LSBs of the low byte are not significant. Only joulemeters support the binary mode. Thermopiles in energy mode, thermal heads in standard mode and photo detectors are coded in ASCII.
Page 12
INTEGRA user manual Revision 3.7 Examples to decode binary commands The two data bytes are 0x40 and 0xB6. In binary they are: 0100 0000 and 1011 0100. The byte order bit is 0 for the high byte and 1 for the low byte. The high byte is therefore 0x40, and the low byte is 0xB6.
INTEGRA user manual Revision 3.7 4.5. LIST OF SERIAL COMMANDS FOR THE INTEGRA (SUMMARY) Command name Command Description Display Set scale Manually sets the scale Set scale up Changes scale to the next higher scale Set scale down Changes scale to the next lower scale Get current scale index Returns scale index between 0 and 41 Set autoscale...
Page 14
INTEGRA user manual Revision 3.7 The serial command format is: All text commands must begin with a trig character (*) and MUST NOT end with a line feed or a carriage return. All parameters MUST NOT have a space between the command and the list of parameters, nor between the parameters themselves.
INTEGRA user manual Revision 3.7 4.6. DETAILED DESCRIPTION OF THE SERIAL COMMANDS FOR INTEGRA (COMPLETE) 4.6.1. Display 01 - Set scale This command is used to force the display of the current data into a specific scale. The lower scale is always zero, the higher scales can be found in the table below. The autoscale mode applies the best scale for the current values in real time.
Page 16
INTEGRA user manual Revision 3.7 03 - Set scale down This command is used to force the display of the current data into a lower scale. Command Parameters Answer None 04 - Get current scale index This command returns the scale index between 0 and 41. Please refer to set scale command (SCS) details for the complete scale index table.
Page 17
INTEGRA user manual Revision 3.7 07 - Display valid scale This command is used to display all of the valid scales the connected head supports. The scales are displayed in the scale index. Please refer to the set scale section for the table correspondence.
Page 18
None Returns the trigger level in % Example Command: *GTL Answer (original series 1.00.00): 2.0<CR><LF> Answer (new series): Trigger level: 2.0<CR><LF> 10 – Get measure mode display This command returns the INTEGRA’s measurement mode. Depending on the head, it can be power mode in W, energy mode in J or single shot energy mode in J (SSE).
Answer None Data in ASCII (scientific notation with the new series only) or in binary format. Example For example, with the original series v1.00.XXX, an 8.002557-microwatt reading would be displayed as shown below. Command: *CVU Answer: 8.002557e-06<CR><LF> For example, with the new series, a 506,601-watt reading and a -12.25631-milliwatt reading would be displayed as shown below.
Page 20
INTEGRA user manual Revision 3.7 In the original series v1.00.XX, the joulemeters and photodiodes also use the scientific notation. For example, with a joulemeter, a reading of around 500 millijoules would be displayed as shown below until the command *CSU is sent.
Page 21
Example This example is for a 32-Hz laser. Command: *CTU Answer (original series v1.00.XX): 5.066E-01,32.0<CR><LF> Answer (new series): +5.066010e -01,32.0<CR><LF> 15 - Stop the CAU or CEU command This command is used to stop the real-time transfer enabled by the CAU and CEU commands.
Page 22
INTEGRA user manual Revision 3.7 18 - Set binary joulemeter mode This command is used to set the monitor in binary or ASCII mode. Refer to Section 4.4 for the INTEGRA binary mode description. This is for joulemeters only. Command Parameters Answer 0= ASCII...
514 nm, you must enter 00514. In the new series, specifying zero as a wavelength or providing an out-of-bound value as a parameter cancels the command. In the original series v1.00.XX, the closest valid value is used when an out-of-bound wavelength is provided.
Page 24
1 µm In the new series, specifying zero as a wavelength or providing an out-of-bound value as a parameter cancels the command. In the original series v1.00.XX, the closest valid value is used when an out-of-bound wavelength is provided. Command...
INTEGRA user manual Revision 3.7 4.6.4. Control 23 - Set anticipation This command is used to enable or disable the anticipation processing when the device is reading from a wattmeter. The anticipation is a software-based acceleration algorithm that provides faster readings using the detector’s calibration. Command Parameters Answer...
Page 26
INTEGRA user manual Revision 3.7 25 - Noise suppression Sets or queries the sampling size of the noise suppression. For pyroelectric detectors and UM detectors only. The INTEGRA joulemeter instrument has a special proprietary algorithm that can lower the noise-induced error when reading low energy levels or energy readings of any level with noise present.
Page 27
INTEGRA user manual Revision 3.7 27 - Clear zero offset This command undoes the zero offset command to set the zero point at zero. Command Parameters Answer None 28 - Get zero offset This command returns whether the zero offset has been activated or not. Command Parameters Answer...
Page 28
INTEGRA user manual Revision 3.7 30 - Set user multiplier This command is used to set the value of the multipliers. Command Parameters Answer Eight-character numerical value Default: 1 Example The following example sets multiplier = 33. Command: *MUL00000033 Answer: *MUL3.3000e1 31 - Get user multiplier This command returns the multiplier value.
Page 29
INTEGRA user manual Revision 3.7 33 - Get user offset This command returns the offset value. Command Parameters Answer None Current offset value Example Command: *GUO Answer: User Offset: 1.5000000E-03<CR><LF> 34 - Set single shot energy mode This command is used to toggle to single shot energy mode when using a wattmeter. It is recommended to wait at least 2 seconds after this command before sending another command to avoid communication problems.
INTEGRA user manual Revision 3.7 36 - Get attenuator This command returns the attenuator status. If the attenuator is not available, it will always be off. Command Parameters Answer None 1: On 0: Off Example Command: *GAT Answer: Attenuator: 0<CR><LF> 37 –...
Page 31
INTEGRA user manual Revision 3.7 39 - Query version This command is used to query the device to get information about the firmware version and the device type. Command Parameters Answer None Version and device type Example Command: *VER Answer: INTEGRA Version 1.00.00<CR><LF>...
Page 32
INTEGRA user manual Revision 3.7 Hexadecimal structure Converted Definition value Valid Address Value 000E 2968 10600 Maximum wavelength LSB (nm) 000F 0000 Maximum wavelength MSB (nm) 0010 00C1 Minimum wavelength LSB (nm) 0011 0000 Minimum wavelength MSB (nm) 0012 0001 Is Attenuator available LSB (1= yes 0 = no) 0013 0000...
Page 33
INTEGRA user manual Revision 3.7 Command Parameters Answer None A hexadecimal structure described in the table below. The first byte represents the validity of the structure: 0 represents a valid line while 1 is the end of the structure. The next 4 bytes represent the address line, and the last 4 bytes are the actual value.
INTEGRA user manual Revision 3.7 Hexadecimal structure Converted Definition value Valid Address Value 0023 CC 00 0024 CC CC 00 = Null termination character 0025 CC CC 0026 CC CC Bytes reserved for longer detector names. May 0027 CC CC contain invalid data.
6. MAINTENANCE 6.1. FREE SOFTWARE UPGRADE Keep up to date with the latest versions of PC-Gentec-EO software to get the new features and options. As new and improved versions of the device firmware are created, it is in your best interest to update your INTEGRA.
INTEGRA user manual Revision 3.7 7. DECLARATION OF CONFORMITY Application of Council directive(s): 2014/30/EU EMC Directive tests in compliance with FCC part 15 subpart B Manufacturer’s name: Gentec Electro Optics, Inc. Manufacturer’s address: 445, Saint-Jean-Baptiste, Suite 160 Québec (Québec) G2E 5N7 Canada Representative’s name: Laser Component S.A.S.
Page 37
INTEGRA user manual Revision 3.7 Test name Performance Test specifications Results Standards criterion Voltage dips: 0% during 1 cycle Voltage Dips, Short Interruptions and 40% during 10 cycles Voltage Variation Immunity on AC Input Pass 70% during 25 cycles IEC61000-4-11 (2004) Short interruptions: 0% during 250 cycles I, the undersigned, hereby declare that the equipment specified above...
INTEGRA user manual Revision 3.7 8. UKCA DECLARATION OF CONFORMITY Application of Council directive(s): 2014/30/EU EMC Directive tests in compliance with FCC part 15 subpart B Manufacturer’s name: Gentec Electro Optics, Inc. Manufacturer’s address: 445, rue Saint-Jean-Baptiste, Suite 160 Québec (Québec) G2E 5N7 Canada Representative’s name: Laser Component S.A.S.
Page 39
INTEGRA user manual Revision 3.7 Test name Performance Test specifications Results Standards criterion Voltage dips: 0% during 1 cycle Voltage Dips, Short Interruptions and Voltage 40% during 10 cycles Variation Immunity on AC Input Pass 70% during 25 cycles IEC61000-4-11 (2004) Short interruptions: 0% during 250 cycles I, the undersigned, hereby declare that the equipment specified above...
INTEGRA user manual Revision 3.7 9. APPENDIX A: WEEE DIRECTIVE Recycling and separation procedure for WEEE directive 2002/96/EC This section is used by the recycling centre when the monitor reaches its end of life. Breaking the calibration seal or opening the monitor will void the INTEGRA warranty. For the head, please refer to the head’s manual.
