Gentec-EO MIRO ALTITUDE User Manual

Laser power and energy meter
Hide thumbs Also See for MIRO ALTITUDE:
Table of Contents

Advertisement

Quick Links

Download this manual
MIRO ALTITUDE user manual - Revision 1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIRO ALTITUDE and is the answer not in the manual?

Questions and answers

Related Manuals for Gentec-EO MIRO ALTITUDE

Summary of Contents for Gentec-EO MIRO ALTITUDE

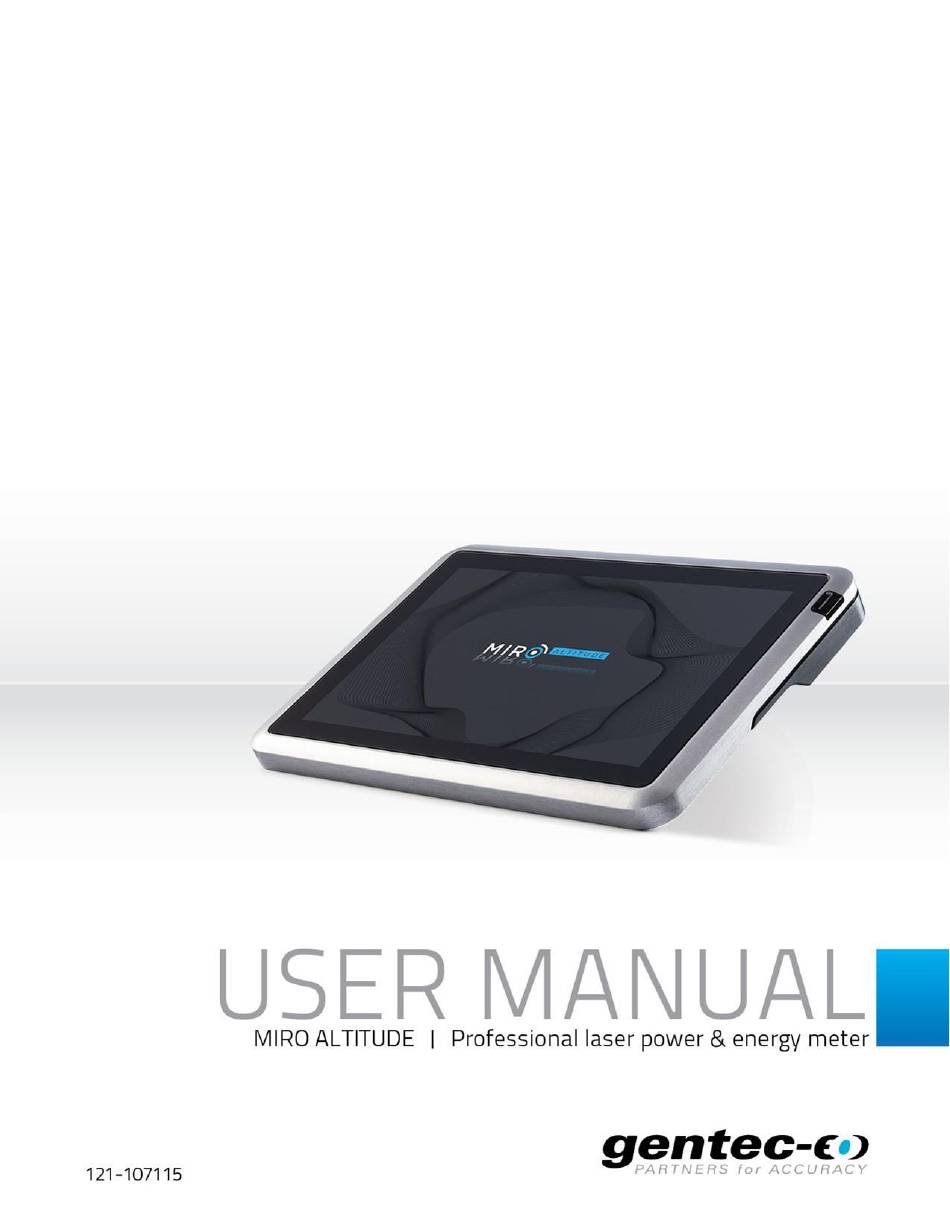

  • Page 1 MIRO ALTITUDE user manual - Revision 1.2...

  • Page 2: Warranty

    All Gentec-EO products carry a one-year warranty from the date of shipment on material or workmanship defects when used under normal operating conditions. Gentec-EO will repair or replace, at its sole discretion, any product that proves to be defective during the warranty period.

  • Page 3: Safety Information

    MIRO ALTITUDE user manual - Revision 1.2 SAFETY INFORMATION Do not use a Gentec-EO device if the monitor or the detector looks damaged or if you suspect that the device is not operating properly. Appropriate installation must be done for water-cooled and fan-cooled detectors. Refer to the specific instructions for more information.

  • Page 4: Table Of Contents

    MIRO ALTITUDE user manual - Revision 1.2 Table of contents MIRO ALTITUDE: Laser power and energy meter....................6 Introduction ................................. 6 What’s included with your MIRO ALTITUDE ....................6 Quick launch guide ............................. 7 1.3.1 Quick procedure to measure power and energy ..................7 1.3.2...
  • Page 5 MIRO ALTITUDE user manual - Revision 1.2 2.5.3 Ethernet ..............................48 2.5.4 RS232 ................................ 48 2.5.5 Analog output ............................49 2.5.6 Trigger ............................... 51 2.5.7 About ................................. 54 Update procedure ..............................55 Declaration of Conformity ............................57 UKCA declaration of Conformity........................... 60...

  • Page 6: Miro Altitude: Laser Power And Energy Meter

    • Built-in file manager to save and view your recorded measurement sessions To obtain optimum results from your MIRO ALTITUDE meter, we suggest you carefully read this manual. This user manual corresponds to MIRO ALTITUDE software version 1.01.00. Software updates are provided on the Gentec-EO website: www.gentec-eo.com/products/miro-altitude.

  • Page 7: Quick Launch Guide

    Section 2. 1.3.1 Quick procedure to measure power and energy 1. Press the power button to turn on the MIRO ALTITUDE, which is in the right upper part of the front of the device. 2. Connect the power or energy detector to the input port of the MIRO ALTITUDE.

  • Page 8: Wavelength Adjustment

    The wavelength can be set according to the laser being used. Tap on the wavelength setting in the left-hand tab: A menu will appear which allows selection of the wavelength. MIRO ALTITUDE will then apply the calibration factor corresponding to the selected wavelength to convert the detector signal into measured values (see...

  • Page 9: Zero Offset

    1.3.3 Zero offset The power measurement of the MIRO ALTITUDE might not be exactly zero even if there is no laser beam on the sensor. The Zero button sets the detector current value to zero. Subsequent measurements will be taken based on this new zero power level.

  • Page 10: Session Playback

    MIRO ALTITUDE user manual - Revision 1.2 1.3.5 Session playback The view function ( ) in the file manager displays recorded data such as screenshots and recordings that are stored on the internal memory and on a USB drive (see Section 2.4.6).

  • Page 11: Specifications

    When low-sensitivity detectors are used for low power measurements, the application of the polarization tension can produce a measurement error. It is fundamental to use the ZERO function to redefine the zero of the MIRO ALTITUDE before taking measurements under these conditions. It is a best practice to use the ZERO function.

  • Page 12: Detector Compatibility

    ✓ ✓ ✓ ✓ ✓ ✓ INTEGRA V2 UP / XLP ✓ USB-A ✓ INTEGRA V2 QE* ✓ ✓ ✓ INTEGRA V2 PH *Except QE8B models Typical value. Hardware and firmware dependent. Contact your nearest Gentec-EO agent for more information.

  • Page 13: Mechanical Description

    MIRO ALTITUDE user manual - Revision 1.2 1.6 MECHANICAL DESCRIPTION Front panel of the MIRO ALTITUDE Top panel of the MIRO ALTITUDE Left side panel of the MIRO ALTITUDE...

  • Page 14: Features

    Touchscreen The MIRO ALTITUDE has a 10.1” multi touchscreen with an active surface of 217.56 mm (L) x 136.2 mm (H). To clean your screen, it is recommended to use a cleansing cloth or a soft, dry and lint-free cloth. If necessary, you can humidify the cloth with one of the following elements: water, isopropyl alcohol (IPA) 70% or lower, or a cleaner for eyeglasses.
  • Page 15 You must specify the maximum output voltage and the maximum value of the power or energy range through the MIRO ALTITUDE application or the series commands. The measured power or energy is then converted to the output voltage considering the measurement range specified according to the following equation: = (measurement ×...
  • Page 16 MIRO ALTITUDE user manual - Revision 1.2 Trigger signal To perform energy measurements, you can connect the MIRO ALTITUDE to an external trigger, using a BNC cable. The beginning of the external trigger signal must arrive in a time window relative to the beginning of the laser pulse.
  • Page 17 Through the USB-C communication port, a computer can receive data from the MIRO ALTITUDE and control it remotely. The USB-C port can be used for charging the MIRO ALTITUDE. At least 18 W is required to charge the battery while the device is running.

  • Page 18: User Interface

    Only one is active at a time. Different buttons and icons allow you to interact with the MIRO ALTITUDE user interface. The following table describes the different buttons and icons on the MIRO ALTITUDE.
  • Page 19 MIRO ALTITUDE user manual - Revision 1.2 Icon Name Type Description Measurement settings panel Button Opens the Wavelength menu and displays the Wavelength currently used wavelength Indicator Button Opens the Range menu and displays the current Range range indicator Button...
  • Page 20 MIRO ALTITUDE user manual - Revision 1.2 Icon Name Type Description Displays the spread between the highest and Icon and PTP stability lowest point in the sample as a percentage of the indicator average Icon and Displays the spread of the data around the...

  • Page 21: Control Center

    MIRO ALTITUDE user manual - Revision 1.2 File manager Icon Name Type Description Local storage Button Opens the on-board storage folder USB storage Button Opens the file folder of an attached USB drive Displays file management options such as move,...

  • Page 22: Navigation

    MIRO ALTITUDE user manual - Revision 1.2 2.2.2 Navigation The control center allows you to quickly access the three main interfaces of the MIRO ALTITUDE by tapping the corresponding buttons. The active interface is identified with a blue border. When the instrument is turned on, it enters the display interface.

  • Page 23: Display

    The detector connection panel then shows the specific information of the detector. In this section you will find the detector connection type, its name, its serial number, its calibration date, its next calibration due date and a disconnect button that will disconnect the detector from the MIRO ALTITUDE. 2.3 DISPLAY The display interface is composed of three sections: 1.

  • Page 24: Navigation Bar

    MIRO ALTITUDE has an internal memory with enough space to store many recordings. It is possible to record directly on a USB drive or in the MIRO ALTITUDE internal memory. See Section 2.4.5 for how to move recorded files. It is possible to set the default recording settings to facilitate data recording. To do this, please refer to Section 2.5.2 of this manual.
  • Page 25 MIRO ALTITUDE. When logging data in power mode (wattmeter), the sample rate controls the speed at which data is saved.
  • Page 26 MIRO ALTITUDE user manual - Revision 1.2 The sample duration defines the time during which the MIRO ALTITUDE will perform the data recording. Available time units are second, minute, hour and day. By default, the duration is 10 minutes. Minimum duration is 1 second, and maximum duration is 10 days.
  • Page 27 Finally, it is possible to define where the recording will be saved. By default, the recordings will be stored in the internal memory of the MIRO ALTITUDE, but it is also possible to record directly on a USB drive. Of course,...
  • Page 28 MIRO ALTITUDE. Battery The MIRO ALTITUDE has a lithium-ion battery that offers 6 hours of running time. The status of the battery is represented by an icon and a percentage that indicates the available capacity. When the low battery icon appears (<...

  • Page 29: Measurement Settings Panel

    MIRO ALTITUDE user manual - Revision 1.2 2.3.2 Measurement settings panel The options listed on the left side of the screen define the measurement settings and can be set by you. Certain settings are available only for specific detector types.
  • Page 30 When a detector is initially connected, the auto range mode will be selected by default. In this operating mode, the MIRO ALTITUDE will select the proper range according to the current measurement. It is possible to manually select a fixed range amongst those available. For maximum accuracy, when the reading is made in a manually selected range, you should always use the next highest range that will be measured.
  • Page 31 By using advanced algorithms and known physical properties of the detector, this function allows the MIRO ALTITUDE to provide a very accurate power measurement faster than the natural response of a thermopile power detector. It accelerates the natural response by a factor of up to 10. Turning off the anticipation will result in a slower response but will reduce the noise level and provide a more stable measured value in a noisy environment.
  • Page 32 QED attenuator or PH series power detectors). Toggle the attenuation setting into the correct mode so that MIRO ALTITUDE can use the correct calibrated sensitivity. By activating the attenuation setting, only the wavelengths at which the detector is calibrated with the attenuator will be available in the wavelength menu.

  • Page 33: Display Area

    Thermal noise is caused by a detector that has not been thermally stabilized, or there was a heat source in the field of view of the detector when the MIRO ALTITUDE was turned on (for example, the hand or body of the user). This feature can also be used to take relative measurements. Use this function once your power meter has achieved thermal equilibrium to ensure accurate measurements.
  • Page 34 MIRO ALTITUDE user manual - Revision 1.2 Scope display (scrolling graph) The scope display gives a quick look at the laser beam long-term stability and trend as a function of time (as could be seen on an oscilloscope). The chart x-axis is 60 seconds. When at least one minute of recording has passed, the chart will scroll to show the most recent 60 seconds of data.
  • Page 35 MIRO ALTITUDE user manual - Revision 1.2 Needle display The needle display is a simple and intuitive way to view the measured value. It is an excellent tool for laser tuning or alignment. The deflection of the digital needle is proportional to the real-time measurement. The 0 is on the left-hand side of the dial, whereas the range’s maximum value is on the right-hand side.

  • Page 36: Statistics

    MIRO ALTITUDE user manual - Revision 1.2 Bar display This display features a large band that fills up in blue from left to right according to the measurement. The current measurement value is displayed in larger digits than in the scope and needle displays. Once again, the minimum and maximum values are indicated by the small white triangles.
  • Page 37 MIRO ALTITUDE user manual - Revision 1.2 The statistics that are calculated can be found in the following table: Statistical parameters Power Energy Definition Average value ✓ ✓ Average from the start of values in the sample, E or P Maximum value ✓...

  • Page 38: File Manager

    2.4.1 File management The file manager shows the content of the internal memory of your MIRO ALTITUDE (Local storage) and of any USB drives connected to the device (USB storage). In the file manager, you can rename files and folders, delete them, move or copy them to a USB drive to analyze the data on a PC or to share them with your colleagues.
  • Page 39 ( ) that opens a session recording or a screenshot directly on the MIRO ALTITUDE when tapped. For files and folders, there is a vertical menu icon ( ) for accessing a list of...

  • Page 40: Internal Memory

    2.4.4 USB drive A USB drive (ideally in FAT32 format) can be plugged into the MIRO ALTITUDE at any time. The file manager will be updated to show the “USB storage” drive. Files can be copied from the local storage drive to the external drive.

  • Page 41: File And Folders Management

    The Rename option allows you to rename a file or a folder. The Move option will move a file or a folder and its contents to your USB drive. This option is only available if a USB drive is connected to your MIRO ALTITUDE.
  • Page 42 MIRO ALTITUDE user manual - Revision 1.2 The choices in this menu are updated according to the items selected. To exit the multi-selection mode, tap on above the item list. Folders can also be created from the More options menu.

  • Page 43: Viewing Screenshots And Data Recordings

    MIRO ALTITUDE user manual - Revision 1.2 2.4.6 Viewing screenshots and data recordings The view function ( ) opens saved screenshots or recordings that are stored on the internal memory or on a USB drive. Tap on Show to confirm you want to view the file.
  • Page 44 MIRO ALTITUDE user manual - Revision 1.2 On your MIRO ALTITUDE, you can press on the graph to see a vertical cursor that indicates the measurement at that point. By sliding your finger along the data, this cursor moves along for you to be able to easily view the desired data.

  • Page 45: Settings

    The Settings menu allows you to configure and save several useful settings that will help make the most of the MIRO ALTITUDE. You can configure the recorded data, the Ethernet connection, the RS232 connection, the analog output and the measurement trigger level. In addition, the About menu contains information on the MIRO ALTITUDE.
  • Page 46 After the screen has not been touched for the specified amount of time, its brightness is reduced for 10 seconds, and then the display turns off completely. The MIRO ALTITUDE keeps working normally when the screen is off: if a recording is in progress, it will not be interrupted. Turn the screen back on with a short tap on the power button.

  • Page 47: Recording

    MIRO ALTITUDE user manual - Revision 1.2 Number of digits This setting changes the number of digits after the comma that are displayed when making a measurement. Tap on the button to show the list of options. The default setting lets the device choose the best option according to the range.

  • Page 48: Ethernet

    MIRO ALTITUDE user manual - Revision 1.2 2.5.3 Ethernet The Ethernet settings manage the Ethernet communication parameters of MIRO ALTITUDE. For the moment, these settings can be viewed but cannot be modified. These settings will be available soon in a new software update that will be accessible for download on the Gentec-EO website.

  • Page 49: Analog Output

    MIRO ALTITUDE user manual - Revision 1.2 2.5.5 Analog output The analog output settings allow you to obtain a signal coming from the MIRO ALTITUDE by using external equipment, such as a continuous line recorder, a computer with an analog interface and a voltmeter. To use this feature, use a standard BNC cable.
  • Page 50 MIRO ALTITUDE user manual - Revision 1.2 To select the input signal that comes from the detector, tap on Selected measurement. The following menu will appear. The unit will be determined according to the connected detector. For a wattmeter, the unit will be W for watt, and for a joulemeter the unit will be J for joule.

  • Page 51: Trigger

    MIRO ALTITUDE user manual - Revision 1.2 2.5.6 Trigger To analyze the energy of a pulse, it is important to know the measurement trigger settings to make sure all pulses are properly detected and measured. Pyroelectric and photodiode energy detectors use the trigger, as well as thermal detectors in energy mode.
  • Page 52 When the external trigger is activated, the Trigger level option turns grey as it is not used. The external trigger allows connecting an external device such as a laser with a trigger output to the MIRO ALTITUDE to trigger the pulse measurement. See the specification table in Section 1.4 for electrical and pulse duration specifications.
  • Page 53 30 J, only pulses above 3 J will be measured. Warning: if you select a trigger level with a high value, the MIRO ALTITUDE might not be able to detect all the pulses of widely varying energy levels in auto range mode. The auto range function uses the energy level of the last measured pulse to establish the range level.

  • Page 54: About

    This information will tell you if your device is up to date. If you must get in touch with one of our representatives regarding your MIRO ALTITUDE, they may ask you to provide the information in this section.

  • Page 55: Update Procedure

    MIRO ALTITUDE user manual - Revision 1.2 3. UPDATE PROCEDURE Note: the following instructions are for updating from V1.00.04 and above. If your MIRO ALTITUDE unit has software version V1.00.02, contact Gentec-EO. Updating the MIRO ALTITUDE is done by following these easy steps: Look for the latest MIRO ALTITUDE update and download the file on your computer: https://www.gentec-eo.com/resources/download-center.
  • Page 56 MIRO ALTITUDE user manual - Revision 1.2 After the first step, the MIRO ALTITUDE will restart itself automatically. When step 4 is complete, the MIRO ALTITUDE will shut down.

  • Page 57: Declaration Of Conformity

    MIRO ALTITUDE user manual - Revision 1.2 4. DECLARATION OF CONFORMITY Application of the Council Directives(s): 2014/30/EU EMC Directive Manufacturer’s Name: Gentec Electro-Optics, inc. Manufacturer’s Address: 445, St-Jean-Baptiste, office 160 (Québec) Canada G2E 5N7 European Representative’s Name: Laser Components S.A.S Representative’s Address:...
  • Page 58 MIRO ALTITUDE user manual - Revision 1.2 Product regulations...
  • Page 59 MIRO ALTITUDE user manual - Revision 1.2 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Québec Date: Wednesday, April 14, 2021 (President)

  • Page 60: Ukca Declaration Of Conformity

    MIRO ALTITUDE user manual - Revision 1.2 5. UKCA DECLARATION OF CONFORMITY Application of the Council Directives(s): 2014/30/EU EMC Directive Manufacturer’s Name: Gentec Electro-Optics, inc. Manufacturer’s Address: 445, St-Jean-Baptiste, office 160 (Québec) Canada G2E 5N7 European Representative’s Name: Laser Components S.A.S Representative’s Address:...
  • Page 61 MIRO ALTITUDE user manual - Revision 1.2 Product regulations...
  • Page 62 MIRO ALTITUDE user manual - Revision 1.2 I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s) Place: Québec Date: Wednesday, May 25, 2022 (President)

  • Page 63: Weee Directive

    Recycling and sorting procedure from WEEE Directive 2002/96/EC This section is meant for the recycling center when the device has reached its end life. Breaking the calibration seal or opening the device will void the MIRO ALTITUDE’s warranty. Sorting Paper: manual and certificate...
  • Page 64 MIRO ALTITUDE user manual - Revision 1.2...

This manual is also suitable for:
