WARNING:
Using power tools may result in overtourquing screws causing threads to strip.
We are not responsible for replacements on parts where powertools where used.
CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about
2
Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email
support@sisterbayfurniture.com. Our Customer Service Department is available Monday-Friday 8:30 a.m. to 4:30 P.m. CST
HDPE
HARDWARE:
8x
16x
0-3016
0-3017
1x
7/16 Socket Head Wrench
(NOT INCLUDED)
Allen Wrench
7/16 Wrench
(NOT INCLUDED)
PARTS:
1x
29-1 Top
Laguna
Collection

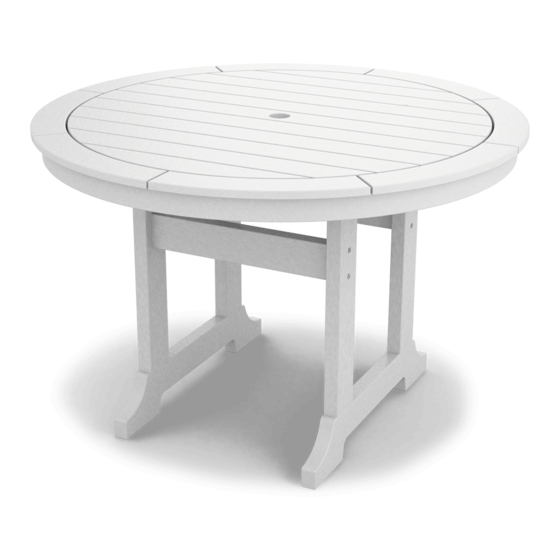

48" Dining Table.
MODEL No: 29-1
8x
0-2980
8x
8x
0-5285
0-4354
1/4 -20x2.5"
1/4 x2.5"
1x
29 H-Frame
2x
29-1 Leg Assem
Advertisement
Table of Contents
Related Manuals for Sister Bay Laguna 29-1
Summary of Contents for Sister Bay Laguna 29-1
- Page 1 CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email support@sisterbayfurniture.com.
- Page 2 Laguna Collection 48" Dining Table. MODEL No: 29-1 DETAIL A Place leg assembly [1x] onto the tabletop frame, aligning leg slots with holes in the Lay tabletop flat on cardboard or another flat surface to avoid scratching. frame. Insert [4x] bolts with [4x] washers through leg slots and frame holes. (DETAIL A) Fasten [4x] bolts with washer, lock washer, and nut.
- Page 3 Laguna Collection 48" Dining Table. MODEL No: 29-1 DETAIL C DETAIL B Insert H-Frame [1x] into each slot on legs. Place the other leg assembly [1x] onto the tabletop frame and insert the H-Frame Slide screws [4x] through holes in legs and tighten using the allen wrench (included) into the slots.
- Page 4 Laguna Collection 48" Dining Table. MODEL No: 29-1 DETAIL D Slide screws [4x] through holes in legs and tighten using the allen wrench (included). (DETAIL D) Use the allen wrench to tighten the screws from Step 3.
- Page 5 Laguna Collection 48" Dining Table. MODEL No: 29-1 Final Step: Stand back, nod, and think, "Yep, I did awesome!"...
