WARNING:
Using power tools may result in overtourquing screws causing threads to strip.
We are not responsible for replacements on parts where powertools where used.
CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about
2
Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email
support@sisterbayfurniture.com. Our Customer Service Department is available Monday-Friday 8:30 a.m. to 4:30 P.m. CST
HDPE
8x
16x
0-2980
0-3017
0-3016
1/4-20
1/4"
7/16 Socket Head Wrench
(NOT INCLUDED)
7/16 Wrench
(NOT INCLUDED)
2x
25 Bracket
1x
25-1 Foot B
1x
1x
25 Top
25-1 Foot A
Hudson

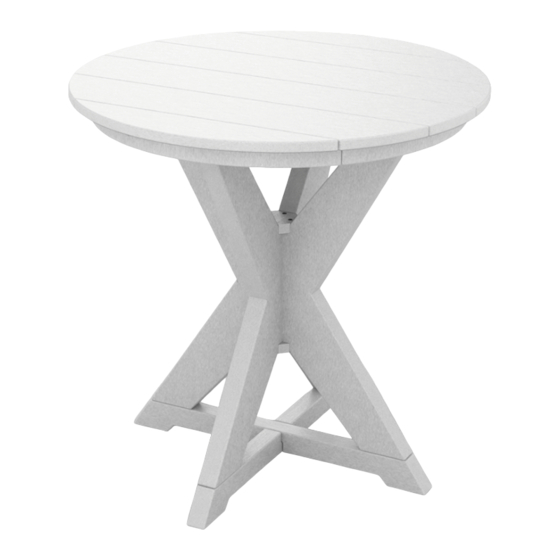

30" Dinning Table.

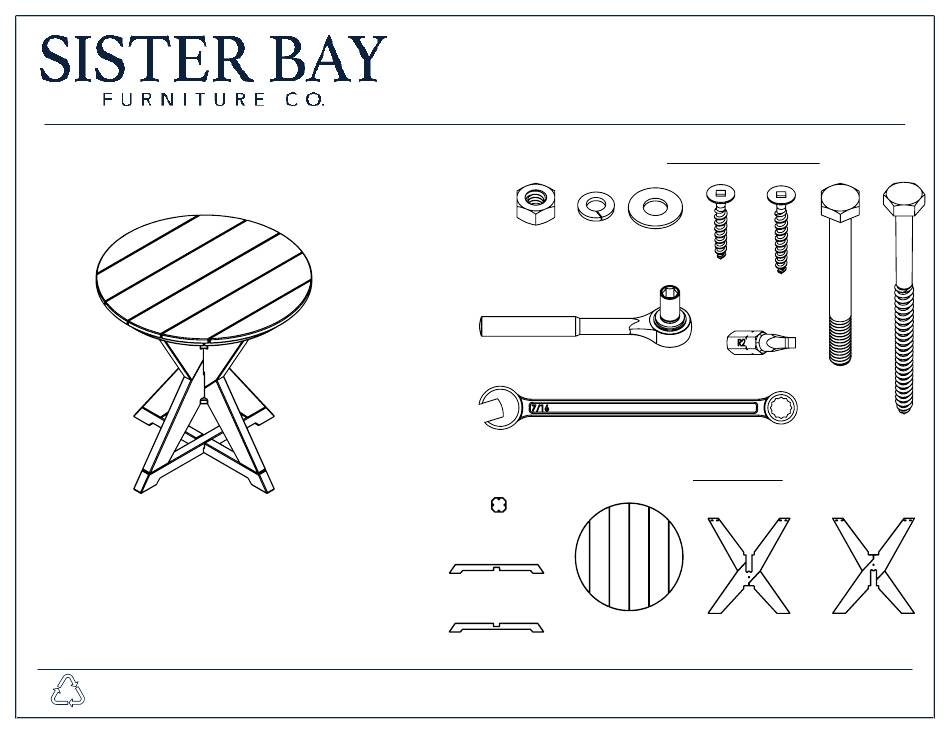

HARDWARE:
20x
1x
1/4"
8x
0-5239
#8x1.25"
0-5235
#8x1.5"
1x
R2 SQ Bit
1/4 -20x2.5"
PARTS:
1x
25-1 Leg B Asm
Collection
MODEL No: 25-1
8x
0-5285
4x
0-2996
1/4 x4"
1x
25-1 Leg A Asm
Advertisement
Table of Contents
Related Manuals for Sister Bay Hudson 25-1
Summary of Contents for Sister Bay Hudson 25-1
- Page 1 CARE & MAINTENANCE: To clean your product, use mild soap and water. For heavy soil build-ups use any non-abrasive household cleaners or ask your Sales Representative about Sister Bay Furniture Cleaner.Please contact our Customer Service Department for assembly assistance, questions or replacement parts at (800) 505-7926 or email support@sisterbayfurniture.com.
- Page 2 Hudson Collection 30" Dinning Table. MODEL No: 25-1 DETAIL B DETAIL A Insert Leg A Asm into Leg B Asm. Lay table top on carboard or other flat surface to avoid scratches on surface. Place [1x] Bracket on top and fasten [4x] screws with R2 SQ bit driver. Place leg assembly from step 1 onto table top frame, align leg slots with Repeat step B on the opposite side.
- Page 3 Hudson Collection 30" Dinning Table. MODEL No: 25-1 DETAIL C DETAIL D Place Foot B on the legs followed by Foot A Use wrench (not included) to fasten Foot B to legs with [2x] hex screws & washer (DETAIL C.) Repeat step B for Foot A.
- Page 4 Hudson Collection 30" Dinning Table. MODEL No: 25-1 Final step: Run your hand over the top and admire a job well done!
