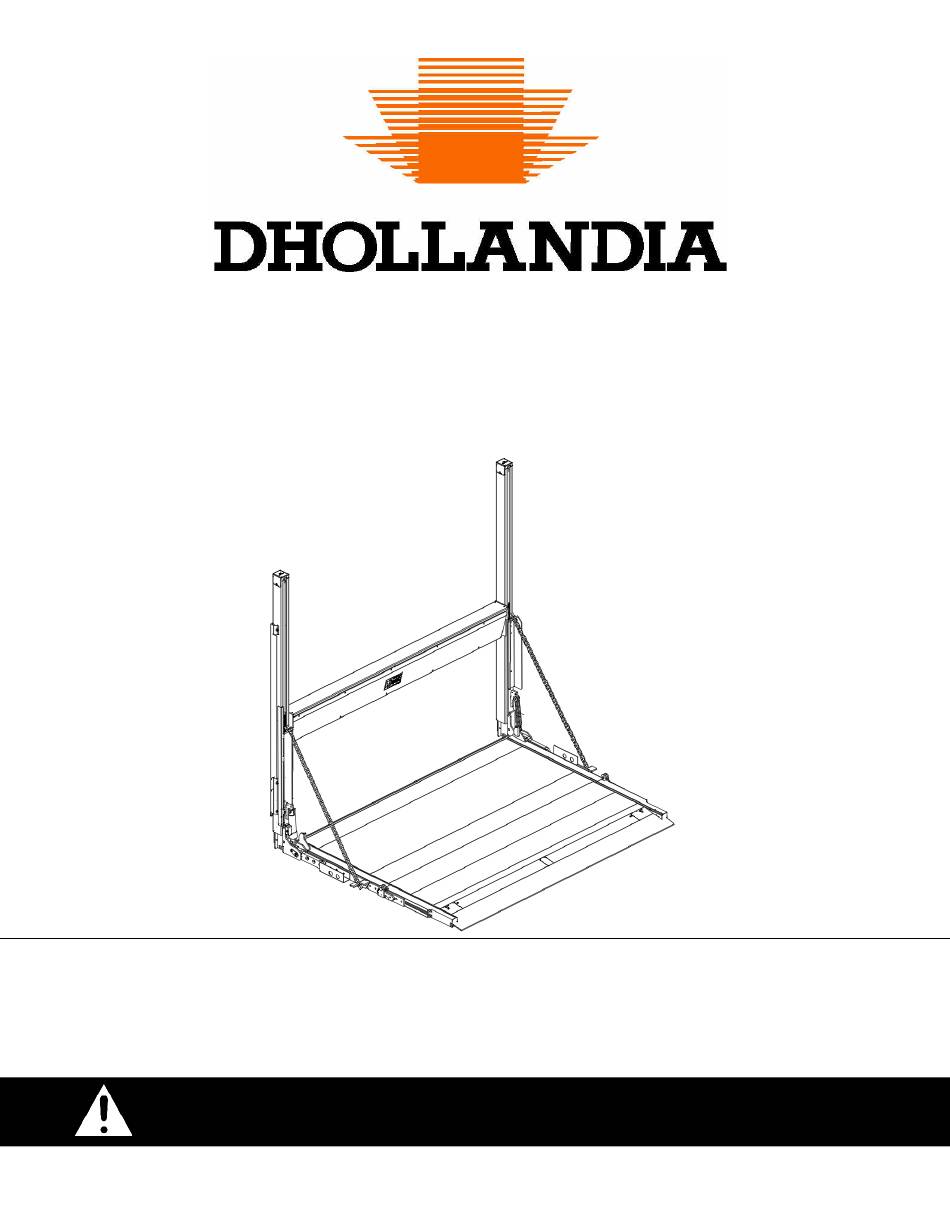

DH-VOM*
INSTALLATION MANUAL
Manufacturer:
DHOLLANDIA US, L.L.C.
E-mail : Technical.US@dhollandia.com
270 Southridge Parkway
Bessemer City North Carolina, 28016
website : www.dhollandia.com
Read the manual in its entirety before operating the liftgate
Keep this manual in the vehicle cab, as reference for the driver and liftgate operator
Order ref: xxx Doc: FIT_US installation manual VOM_US EN_2023 Rev: 0 Date: APRIL 17, 2022
