§1 - Introduction
•

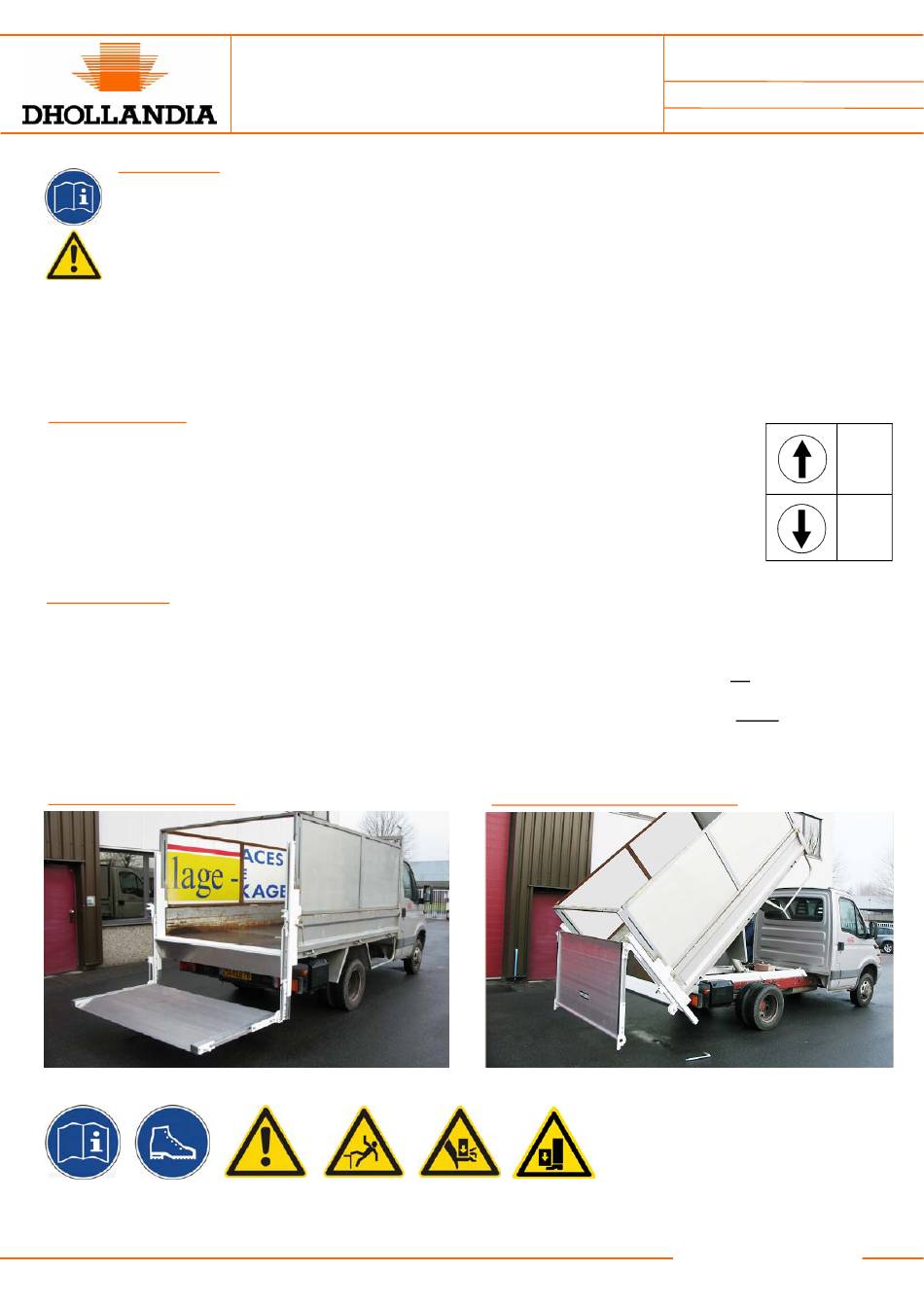

This manual forms a quick guide for the use of the lift model DH-VO.07.K1 or DH-VO.15.K1 with option OVU010 DUMP-
THROUGH.
•
This manual handles with the particular user and safety instructions involved in working with a DUMP-THROUGH lift. It
must be read in conjunction with the general user's manual with regards to the safety instructions for the operator
(chapter A), the periodic maintenance (chapter B), and the legal requirements regarding period testing and certification
(chapter C).
•
In case of doubt, stop immediately, and ask further advice from DHOLLANDIA prior to continuing.
§2 - Electrical controls
The lift can be operated by a variety of electrical controls, which fall outside of the scope of this supplement
•
manual. For further information, please refer to the general user's manual issued with the lift.
•
Where operations involve an electrical control, the functions will be shown as shown on right side
§3 - General outline
DUMP-THROUGH OVU010 column lifts are designed to be mounted at the rear of tipper bodies, and can be used in 2 different
•
ways
1. CASE1: From the closed road-position behind the vehicle body, the platform can be unlocked at the top of the lift runner, and
deployed to serve as normal tail lift, to load and unload goods from the ground to the vehicle floor (and vice versa)
2. CASE 2: From the closed road-position behind the vehicle body, the platform can be unlocked at the bottom of the lift runner,
and transformed into top-hinged rear door, so that loose goods (sand, gravel,...) loaded onto the truck bed can be dumped
through and between the lift platform and the rear of the vehicle floor.
Fig. 3.1 - OVU010 used as tail lift
Consult the user's manual before getting started. Follow all safety instructions. Check if the lift can be used safely, and that no urgent
maintenance or repair is required. DO NOT continue if any unsafe condition exists
Created / amended by : Lok3
Approved by : Pol Derie
Quick user's guide for DH-VO...K1
Dump-through
(option OVU010)
Fig. 3.2 - OVU010 in dump-through position
1/5
Doc :USE-DHVO.15.K1 dump through-EN
-2013-01
Doc date :
2013-03-12
Last Rev date :
n/a
Lift
Lower
DHOLLANDIA
