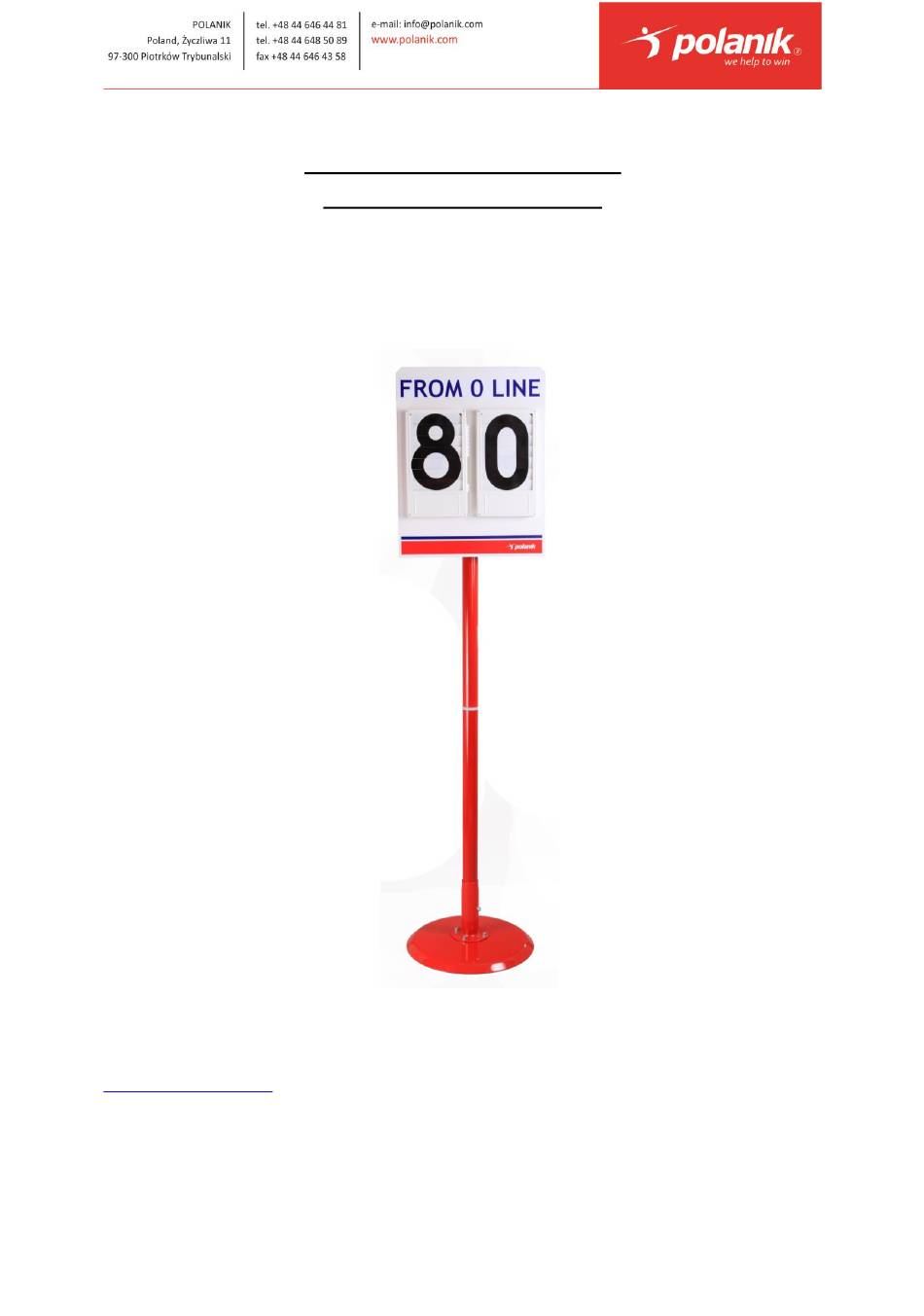

- Page 1 TECHNICAL SPECIFICATION INSTRUCTION MANUAL Pole vault stand position board T2-S410 File:2016-08-11 WSPARCIE TECHNICZNE Paweł Ciechanowski p.ciechanowski@polanil.com...
- Page 2 I. General description and use The T2-S410 board is used during pole vault competitions to inform about chosen by an athlete distance between a stand and a landing area. Main features: Innovative construction – consist of parts easy to assembly, transport and store.
- Page 3 II. Technical specification Code T2-S410 Type 2-digits Number of components Board Waterproof, foamed PVC with thickness 10mm Numeric units Plastic, switched manually, easy to replace Steel, powder painted, two-segment post with synthetic connector, rotation 360°, blocked Supporting structure in desired position with hand wheel...
- Page 4 III. Parts/sets list Q-ty Item Part/set description Part/set sketch Round base S-0028-000-00-01-02 Clamping ring with constant tube S-271-02-00 Backing plate with rotary tube with bell S-246-03-00 Pole vault board with brackets and digital plastic units S-0410-000-04-00-00 Technical specification / Instruction manual T2-S410...
- Page 5 IV. Assembly The pole vault stand position board T2-S410 is delivered partially disassembled. The sequence of the assembly operations is described in this manual. Assembly starts with setting the base.(item 1). Then screw down the clamping ring with the constant tube(item 2) to the base, using screws(item 6) and washers (item 5).
- Page 6 4) Technical specification described above is in accordance with the factory’s internal engineering standards. Additional Information 5) Declaration for: Buyer/Distributor/User Signed for and in behalf for: POLANIK Spółka z Ograniczoną Odpowiedzialnością 2016-08-11 Piotrków Tryb. (Date and place of issue) Paweł Ciechanowski Product Manager 6) ………………………………………...
