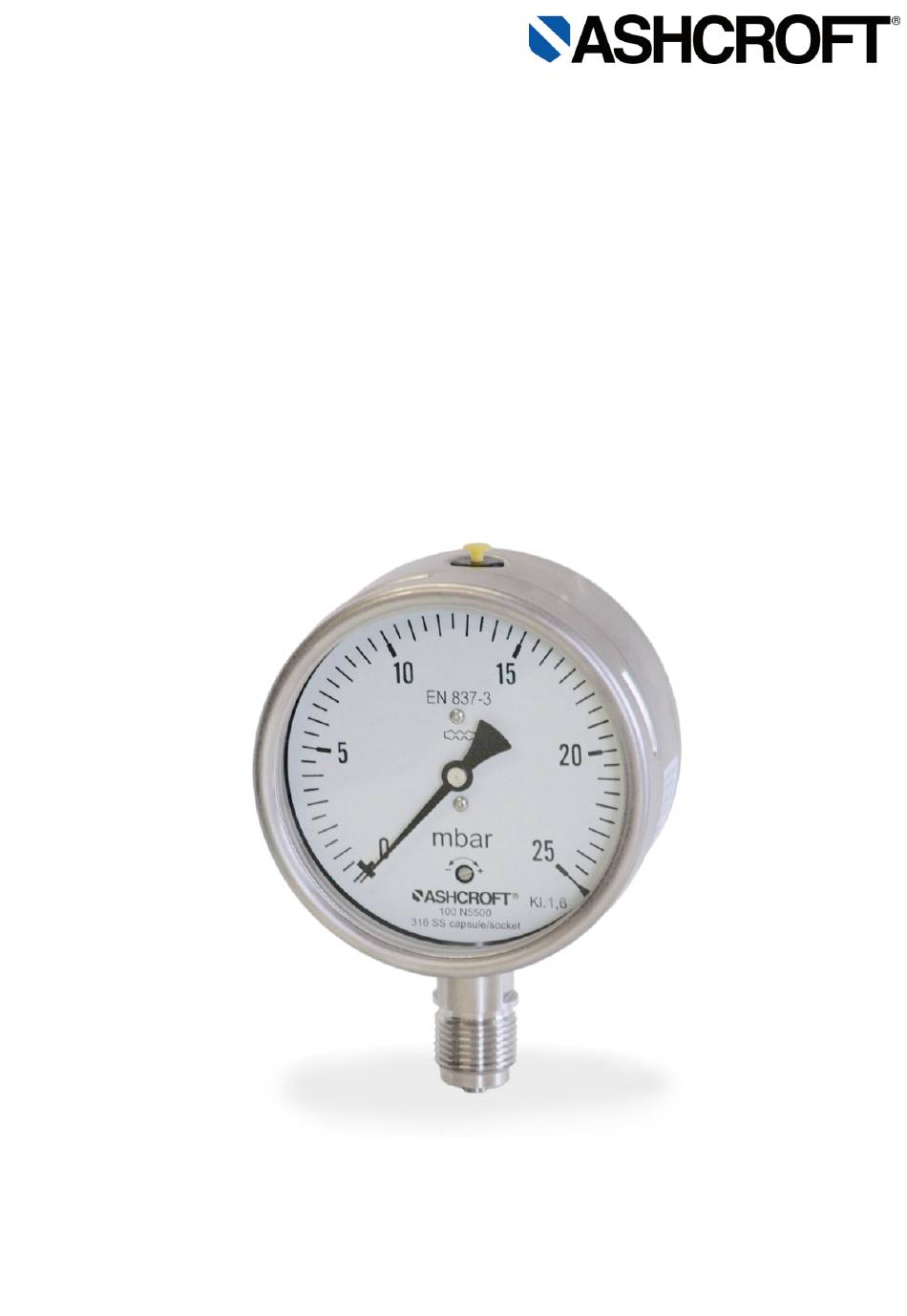

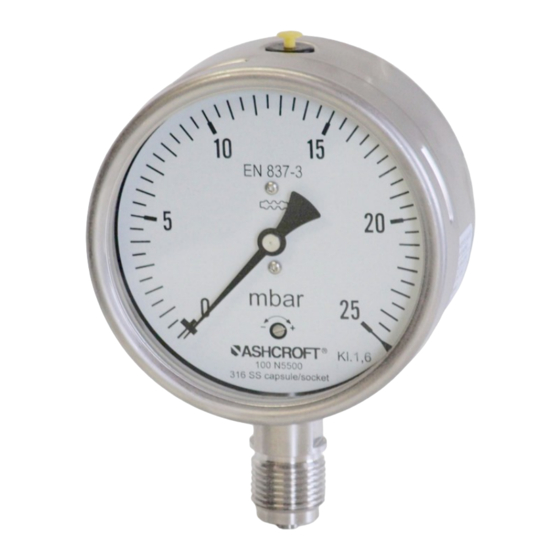

- Page 1 Installation and Maintenance Instruction Manual Capsule pressure gauge, model N5500 for industrial application In the following configuration: • ###N5500### capsule pressure gauge without switching contact IM-N5500-E-Rev 0 02/2013 Page 1 of 8 P/N 095I109-01EN...
- Page 2 Table of contents: General remarks ................................. 3 Purpose of this Manual ............................3 Symbols ................................3 Limits of liability ..............................3 Copyright ................................3 Warranty ................................3 Manufacturer’s address, customer services......................3 Safety ..................................4 General sources of hazards ..........................4 Use in accordance with intended purpose ......................
- Page 3 Disposal ................................8 Appendix ................................. 8 11.1 Data sheet for capsule pressure gauge N5500 ....................8 1 General remarks 1.1 Purpose of this Manual This Operating Manual contains fundamental and essential advice to be followed for the installation, operation and servicing of the device.
- Page 4 This device is fitted with a rear wall or plug capable of being blown out. For a description, please refer to Chapter 6.3.4. The window of model N5500 uses instrument glass (optional multi-layer safety glass). 2.7 Environmental protection Page 4 of 8...
- Page 5 This device may optionally contain a filling liquid (e.g. glycerin or silicone oil). The provisions set out in the REACH regulation on production and use of chemicals are to be respected, and the relevant safety data sheets from the manufacturers of the chemicals are available on our website for download. 3 Technical data The detailed technical information can be found in the documents in the Appendix, Chapter 11.
- Page 6 5.4 Accessories Please contact the manufacturer regarding special tools and accessories. 6 Transport 6.1 Safety The pressure gauge should be protected against the effects of knocks and impacts. The device should only be transported in the packaging provided, to protect against glass breakage. The device should only be transported in a clean condition (free of residues of measuring media).
- Page 7 With liquid measurement media, the pressurized connection pipe must be degassed, since any gas bubble inclusions result in measurement error. If water is used as the measurement medium, the device must be frost-protected. Safety notice: Only mount using the correct open-jawed wrench, and do not twist the device itself. 7.4 Starting up The precondition for start-up is proper installation of all electrical feed lines and metering pipes.
- Page 8 Please help to protect the environment and dispose of or recycle the devices and components used in accordance with the applicable regulations. 11 Appendix 11.1 Data sheet for capsule pressure gauge N5500 Detailed data sheet is available from suppliers website (see 1.6 Manufacturer’s address, customer services) This table refers to specific documents:...
