Tork 93T Service & Parts Manual

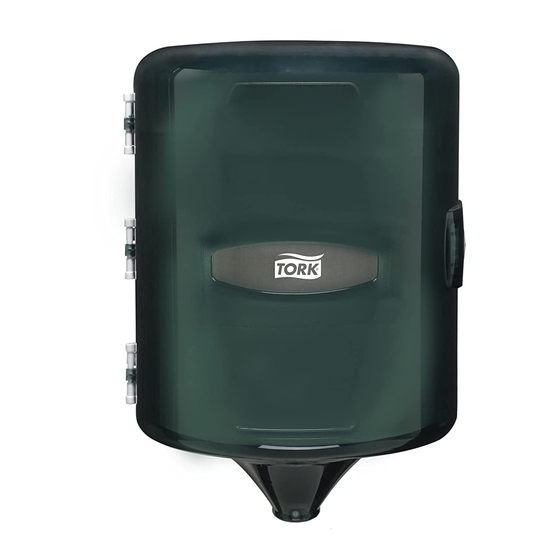

Tork hand towel centerfeed dispenser

Washroom Dispenser Service and Parts Manual

Tork Hand Towel Centerfeed Dispenser

93T

Parts

Tork Hand Towel Centerfeed Dispenser:

M23 System: 93T (smoke)

Dispenser Dimensions HxWxD (Inches):

12.75 x 10.125 x 10 (32.39 x 25.72 x 25.40 cm)

Centerfeed Towel Product Options:

RC530 (Tork Universal, 2 ply)

Part Description

93T COVER

#15 DISP KEY

FUNNEL DOOR

Part Description

OPENING SETTING

ADJUSTMENT

SCREW

1 of 5

Revision Date: 12-17-09

Replacement SKU

#15 KEY

Replacement SKU

Table of Contents

Do you have a question about the 93T and is the answer not in the manual?

Page 1 Washroom Dispenser Service and Parts Manual Tork Hand Towel Centerfeed Dispenser Revision Date: 12-17-09 Tork Hand Towel Centerfeed Dispenser: M23 System: 93T (smoke) Dispenser Dimensions HxWxD (Inches): 12.75 x 10.125 x 10 (32.39 x 25.72 x 25.40 cm) Centerfeed Towel Product Options:...
Page 2 Replacement SKU Description & Replacement Instructions 93T COVER The cover for the 93T can be removed by opening the cover and pulling the cover away from the rest of the dispenser. The hinges will separate. #15 KEY #15 DISP KEY FUNNEL DOOR The funnel door is used in the installation of a centerfeed towel roll.
Page 3 Preventive Maintenance The 93T should be cleaned any time there is heavy paper dust build-up inside the dispenser. If paper dust is not a problem, approximately every year is a good frequency for cleanings. The following is the recommended procedure to cleaning: 1) Open the dispenser and remove the roll of paper.
Page 4 Washroom Dispenser Service and Parts Manual Tork Hand Towel Centerfeed Dispenser Revision Date: 12-17-09 Troubleshooting Problem: Towel not dispensing properly. • Review the instructions in the Loading Instructions and Settings section to confirm the paper is being properly loaded into the dispenser and the opening of the funnel is set at the correct size.
Page 5 Washroom Dispenser Service and Parts Manual Tork Hand Towel Centerfeed Dispenser Revision Date: 12-17-09 93T – Tork Hand Towel Centerfeed Dispenser Mounting Instructions 5 of 5...
