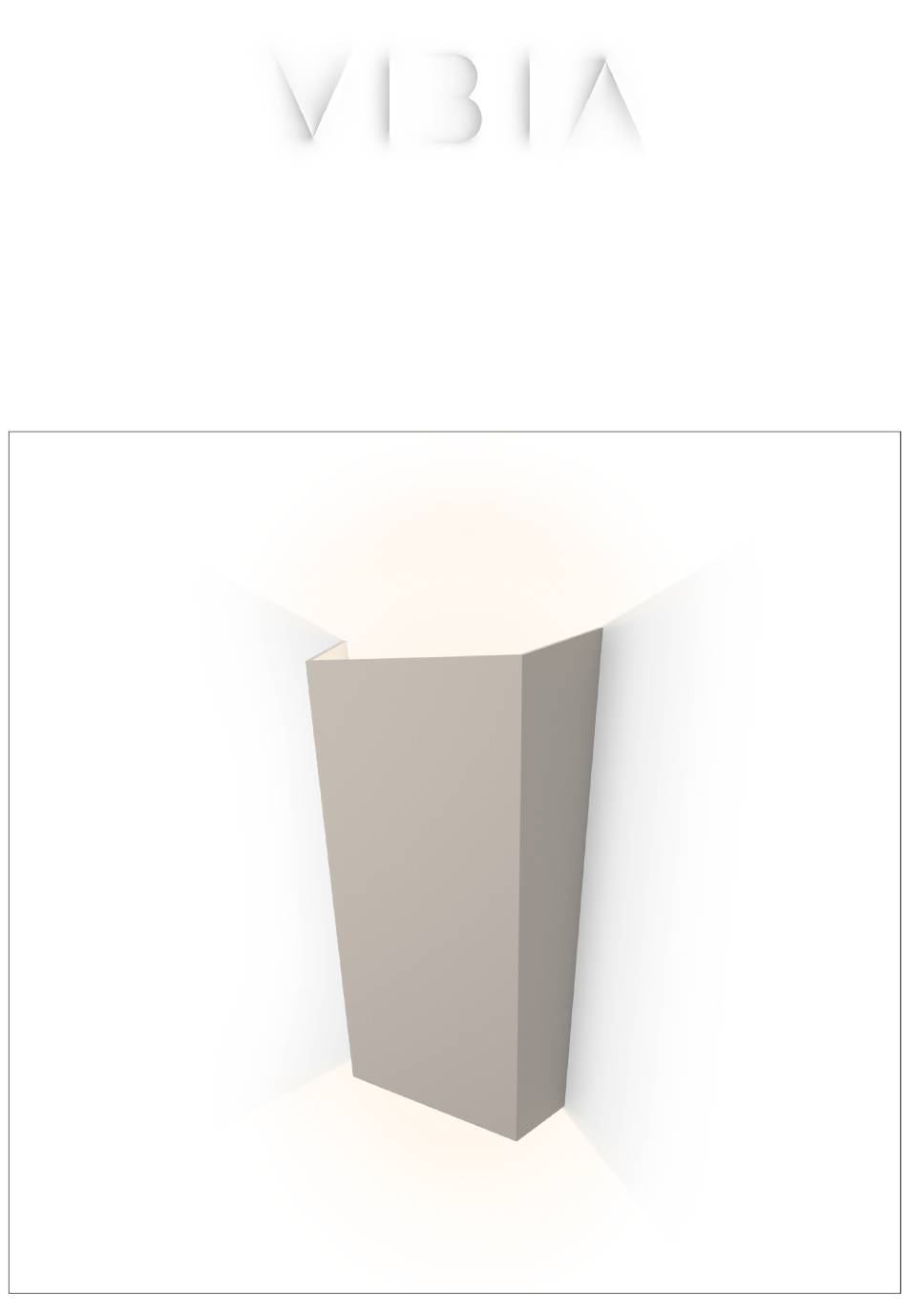

- Page 1 Assembly instructions / Instrucciones de montaje / Montageanleitung Istruzioni di montaggio / Instructions de montage Break Plus Design by Xuclà Version E01...
- Page 2 - Die Leuchte nicht assistance contact iniciar la instalación de iniziare l'installazione de commencer auseinanderbauen, VIBIA. Any change or la luminaria. Guardar dell'apparecchio. Salva l'installation du modification to the estas instrucciones baulich ändern oder queste istruzioni per luminaire.
- Page 3 Index / Índice / Index / Indice / Index Step 1 Product Spec Sheet Step 2 Supplied Materials Step 3 Installation Preparation Step 4 Electrical Connection Step 5 Product Assembly 3/12...
- Page 4 Step 1/5 Product Spec Sheet Technical specifications / Especificaciones técnicas / Technische Daten Specifiche tecniche / Caractéristiques techniques 4116 Net Weight / Peso Neto / Netto-Gewicht / Peso netto / Poids net 2,20 Kg. 2 x LED 4W 350mA. IP65 Bi-volt 50/60 Hz IP65...
- Page 5 Step 2/5 Supplied Materials Supplied material / Material suministrado / Geliefertes Material Materiale incluso / Matériel fourni 4116 1. Allen key / Llave allen / Inbusschlüssel / Chiave a brugola / Clé Allen 1 un. 2. Lighting fixture / Estructura luminaria / Leuchtenstruktur / Struttura lampada / Structure du luminaire 1 un.
- Page 6 Step 3/5 Installation Preparation 6/12...
- Page 7 Step 3/5 Installation Preparation - Wall plugs (not supplied) - Tacos de fijación (no suministrados) - Dübel (nicht im Lieferumfang) - Tasselli di fissaggio (non inclusi) - Chevilles de fixation (non fournies) - Screws (not supplied) - Tornillos (no suministrados) - Schrauben (nicht im Lieferumfang) - Viti...
- Page 8 Step 4/5 Electrical Connection 4.1A ON/OFF CONNECTION 4.2A Ø Min. 4 mm Ø Max. 8 mm 10 mm 5 mm 4.3A 4.4A 8/12...
- Page 9 Step 4/5 Electrical Connection DALI & CASAMBI CONNECTION WITH REMOTE WATERTIGHT BOX 4.1B CLOSED OPENED O Min. 4,5 mm O Max. 10 mm DALI SYSTEM DIMMING CASAMBI SYSTEM DIMMING Refs.: Refs.: 4116XX/11 4116XX/1Z - Only for product references ending in Z - Only for product references ending in 1 - Solo para los productos terminados en Z - Solo para los productos terminados en 1...
- Page 10 Step 4/5 Electrical Connection 4.2B DALI & CASAMBI CONNECTION WITH REMOTE WATERTIGHT BOX CLOSED OPENED 100-240V DA 1 / DA 2 4.3B - Electric cable (not supplied) - Cable eléctrico (no suministrados) O Min. 4 mm O Max. 8 mm - Stromkabel 10 mm 5 mm...
- Page 11 Step 5/5 Product Assembly 11/12...
-
Page 12: Maintenance
Verbindung stata acquistata. l’avez acheté. bei dem Sie die Leuchte bezogen haben. VASELINE - VASELINA - WAZELINE Vibia Lighting, S.L.U. 7 gr. Spain & Portugal T. +34 934 796 970 International T. +34 934 796 971 customer.service@vibia.com www.vibia.com...
