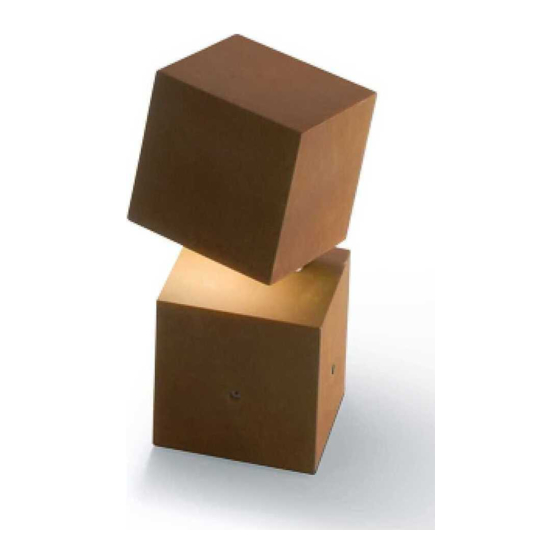

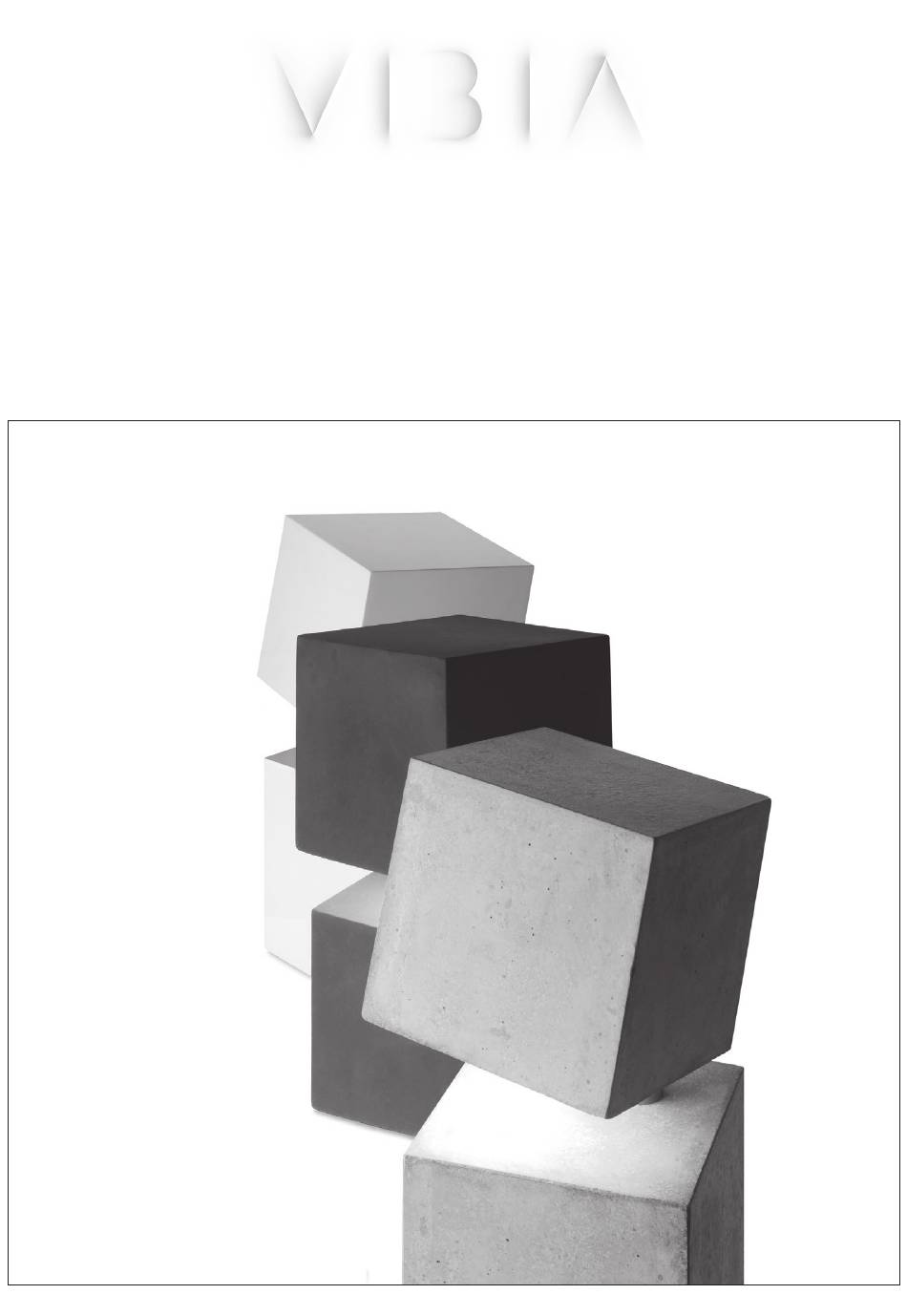

- Page 1 Assembly instructions / Instructions de montage Break Design by Xuclà & M.Alemany Version U03...
- Page 2 Supplied material / Matériel fourni 4106 1. Components bag / Sachet d’accessoires 2 un. 2. Lighting fixture / Structure du luminaire 1 un. Technical specifications / Caractéristiques techniques 4106 Net Weight / Poids net 10.25 lbs. 1x LED SPOT 6.2W 350 mA 50-60 Hz...
- Page 3 - Do not disassemble, modify or try to repair this fitting. dommages incombera à l’installateur. In order to get technical assistance contact VIBIA. Any change or modification to the light fitting can null the - Nous vous recommandons de lire attentivement ces manufacturer’s guarantee.
- Page 4 IMPORTANT: IMPORTANT: Caution: to avoid possible electrical shock, make certain electricity Attention: Coupez l'alimentation électrique avant d'installer votre is shut off at main panel before wiring. luminaire. 1. Read the instructions completely before continuing. 1. Read the instructions completely before continuing. 2.
- Page 5 3. Open the box and keep the two supports on the bottom in place 3. Open the box and keep the two supports on the bottom in place and dispose of the others. Do not move the lamp (A) to avoid and dispose of the others.
- Page 6 5. Connect the mains in your junction box ensuring a watertight 5. Fix the fixation flats (B) to the ground using the most adequate connection. Fix the ixation flats to the ground using the most ade- fixing tools (not supplied). Connect the mains ensuring a water quate fixing tools (not supplied).
- Page 7 7. To join the lamp to the fixation flats, install the guide bushes (C) 7. To join the lamp to the fixation flats, install the guide bushes (C) and tighten the 4 screws (D) supplied along with a Allen key. and tighten the 4 screws (D) supplied along with a Allen key.
-
Page 8: Maintenance
Maintenance Entretien Use a slightly-wet cotton cloth for cleaning. Pour nettoyer le luminaire, utilisez un chiffon en coton légère- ment humidifié d’eau. In case of malfunction or damage, please contact the retai- En cas d’incident ou de défaillance du luminaire, contactez ler who sold the lamp.
