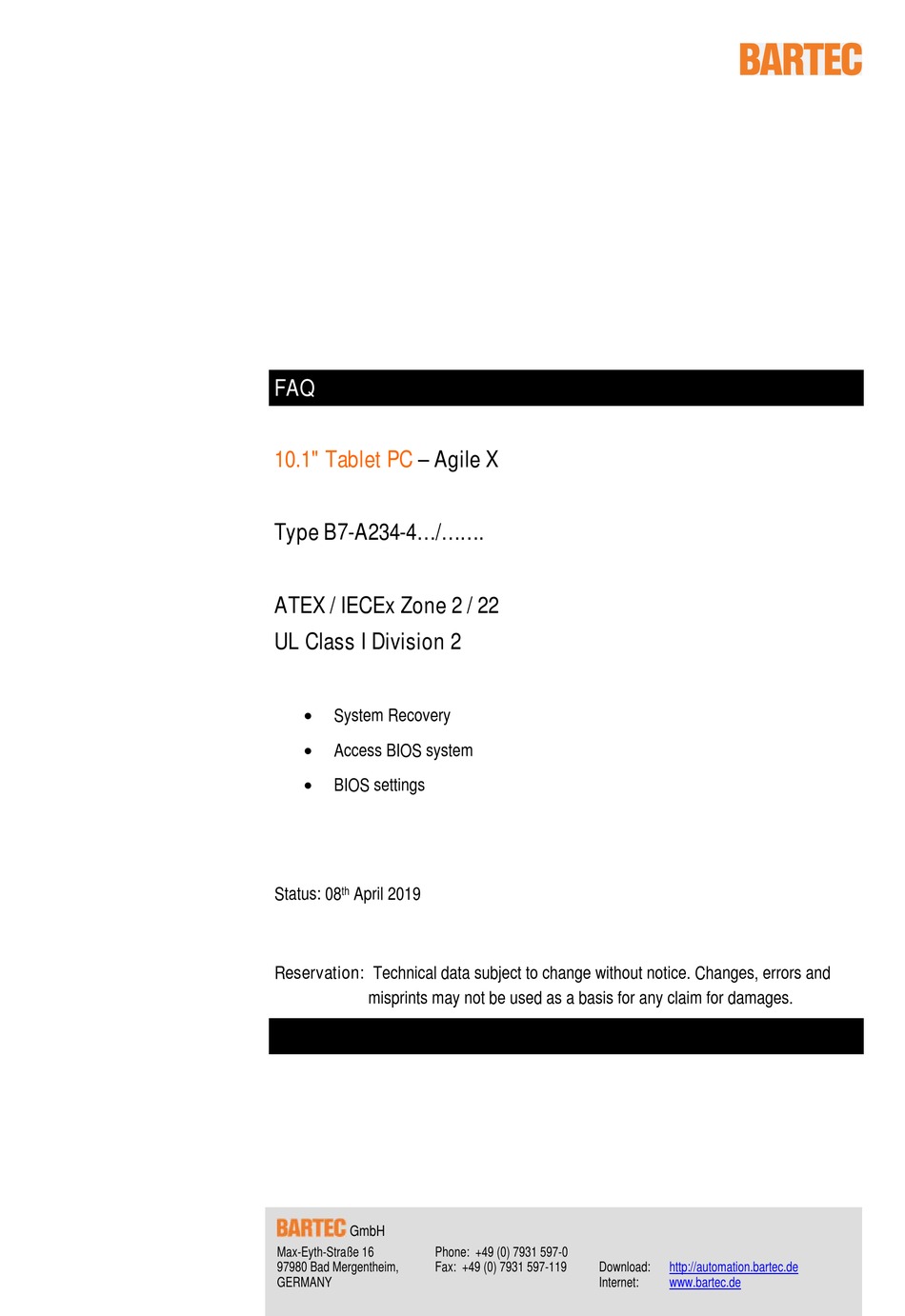

FAQ
10.1" Tablet PC
– Agile X
Type B7-A234-4.../.......
ATEX / IECEx Zone 2 / 22
UL Class I Division 2
System Recovery
Access BIOS system
BIOS settings
Status: 08
April 2019
th
Reservation: Technical data subject to change without notice. Changes, errors and
misprints may not be used as a basis for any claim for damages.
GmbH
Max-Eyth-Straße 16
Phone: +49 (0) 7931 597-0
97980 Bad Mergentheim,
Fax: +49 (0) 7931 597-119
GERMANY
Download:
http://automation.bartec.de
Internet:
www.bartec.de
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bartec Agile X B7-A234-4 Series
Summary of Contents for Bartec Agile X B7-A234-4 Series
- Page 1 Reservation: Technical data subject to change without notice. Changes, errors and misprints may not be used as a basis for any claim for damages. GmbH Max-Eyth-Straße 16 Phone: +49 (0) 7931 597-0 97980 Bad Mergentheim, Fax: +49 (0) 7931 597-119 Download: http://automation.bartec.de GERMANY Internet: www.bartec.de...
- Page 3 10.1" Industry Tablet – Agile X Typ B7-A234-.…/…….. 1. Turning On / Off ............................ 2 Turning On ............................2 Turning Off ............................2 2. Using Recovery Wizard to Restore Computer ................... 3 3. Access BIOS System ..........................4 4. BIOS Settings ............................6 ...
-
Page 4: Turning On/Off
10.1" Industry Tablet – Agile X Typ B7-A234-.…/…….. Turning On / Off Turning On Press and hold the power switch for 3 seconds until the blue LED power indicator light is lit up. Do not press the power switch repeatedly. ... -
Page 5: Using Recovery Wizard To Restore Computer
10.1" Industry Tablet – Agile X Inbetriebnahme Typ B7-A234-.…/…….. Using Recovery Wizard to Restore Computer The tablet computer has a dedicate recovery partition stored on the hard drive of the tablet to enable quick one-key recovery process. This partition occupies about 11GB of the storage space, and comes built-in to each tablet computer. - Page 6 10.1" Industry Tablet – Agile X Typ B7-A234-.…/…….. Wait up to the recovery process has finished. During the recovery process, a command prompt will show up to indicate the percent of recovery process. After recovery is completed (finished), the tablet computer will restart automatically.
- Page 7 10.1" Industry Tablet – Agile X Inbetriebnahme Typ B7-A234-.…/…….. 3. Press ESC key to enter BIOS Setup Menu. 4. Use direction keys on keyboard to move to the different submenus. DANGER We highly recommend to not change settings in the BIOS menu. ...
-
Page 8: Bios Settings
10.1" Industry Tablet – Agile X Typ B7-A234-.…/…….. BIOS Settings DANGER We highly recommend to not change settings in the BIOS menu. Changes can make the Agile X inoperable. BIOS Menu - Advanced Miscellaneous Configuration OS Selection... - Page 9 10.1" Industry Tablet – Agile X Inbetriebnahme Typ B7-A234-.…/…….. Sample picture for Windows 7 Professional for embedded systems Setting for operating system: Setting for operating system: Windows 7 Professional for Windows Embedded 8.1 Industry Pro embedded systems Windows 10 IoT - LTSB ...
- Page 10 10.1" Industry Tablet – Agile X Typ B7-A234-.…/…….. BIOS Menu - Advanced CSM Configuration Storage & Video Sample picture for Windows 7 Professional for embedded systems Setting for operating system: Setting for operating system: Windows 7 Professional for Windows Embedded 8.1 Industry Pro ...
- Page 11 10.1" Industry Tablet – Agile X Inbetriebnahme Typ B7-A234-.…/…….. Windows 10 IoT - CBB Storage = Legacy only Storage = UEFI Video = Legacy only Video = UEFI BIOS Menu - Boot This option is only available at older BIOS version older than v1.40. In versions v1.40 or higher this setting is automatically detected.
