Rec-li60 battery operated compression tool

Advertisement

Quick Links

Customer Manual
取扱 明書

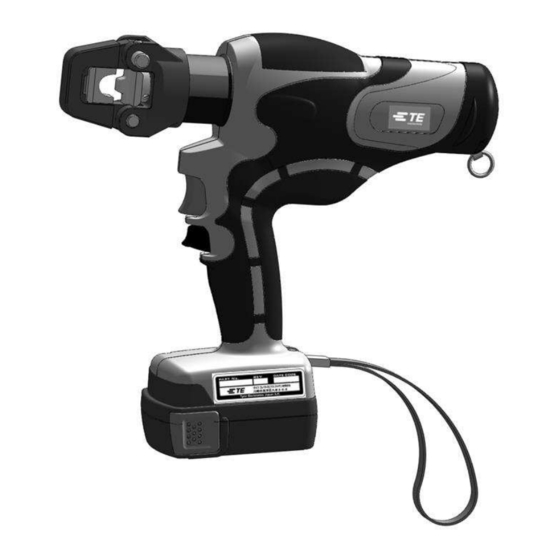

TE REC-Li60 BATTERY OPERATED COMPRESSION TOOL
TE REC-Li60
Part Number 2155369
部品番号 2155369
書類 当社 より変更管理 れ おり 必要 応 変更 れ
最新 改訂 関
当社本支店 お問い合わせ
This TE controlled document is subject to change. For latest revision call local TE representative.
©2011 Tyco Electronics Japan G.K.,
a TE Connectivity Ltd. Company
All Rights Reserved
TE logo is a trademark.
ッテリ 油圧式工具
LANGUAGE 言語
ENGLISH FROM 2 of 26 to 12 of 26.
JAPANISE FROM 13 of 26 to 26 of 26.
タイコエ
ャパン合同会社 TE Connectivity Ltd.
* Trademark
Other products, logos, and company names might be trademarks of their respective owners.
ープ
409-78005
06 APR 2023 Rev B3
26 of 26
LOC B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2155369 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TE Connectivity 2155369

  • Page 1 ャパン合同会社 TE Connectivity Ltd. ープ ©2011 Tyco Electronics Japan G.K., * Trademark 26 of 26 a TE Connectivity Ltd. Company All Rights Reserved TE logo is a trademark. Other products, logos, and company names might be trademarks of their respective owners. LOC B...
  • Page 2: Table Of Contents

    Customer Manual 409-78005 取扱 明書 This Operator’s Guide and Service Manual contains details on using the equipment and important notes for its use. Please read and understand all of the instructions and safety information in this manual to operate the equipment safely.
  • Page 3: Important Safety Precautions

    Customer Manual 409-78005 取扱 明書 Important Safety Precautions 1. Use the battery and the charger designed for the tool   Use the battery designed for the tool Do not charge the battery with the charger other than recommended in this instruction manual ...
  • Page 4: For Safe Operation

    Customer Manual 409-78005 取扱 明書 For Safe Operation 1. Keep work area clean  Cluttered areas and benches injuries 2. Bystanders  Make sure all bystanders are clear of the work area when handling, starting and operating tool 3. Store batteries or idle tools ...
  • Page 5: Precautions For The Crimping Tool

    Customer Manual 409-78005 取扱 明書 Precautions for the crimping tool  This tool is designed to an average operating life of 10,000 times of crimping. Do not use the tool after this operating life is over.  Select the appropriate male and female indent dies combination for the connector to be crimped Incorrect combinations will result in inferior connection of the conductors.
  • Page 6: Parts And Standard Accessories

    Customer Manual 409-78005 取扱 明書 Parts and Standard Accessories ●Battery Operated Crimping Tool RE ‐L 60 BP-1420LN ● a e y pac ●JIS (Japan Industrial Standard) Indent die (2 pieces) Nest die 4 pieces CH-21J ● ● a y ca e a cover ●Te Attach a terminal cover when not...
  • Page 7: Options

    Customer Manual 409-78005 取扱 明書 Options ●Shoulder strap Particular Use To indent crimp for non insulated terminals and sleeves 5.5-60mm2 Specifications Tool: TE REC-Li60 Output force: 54KN Applicable range: 5.5-60mm2( For Non insulated terminals and sleeves) Motor: 14.4 V DC Motor Dimensions (L x H x W): 286 x271 x 84 mm Weight:...
  • Page 8: Guide To Compression Cycles For Jis(Japan Industrial Standard) Dies

    Customer Manual 409-78005 取扱 明書 Guide to Compression Cycles For JIS(Japan Industrial Standard) DIES This guide indicates the number of cutting cycles that the tools can be expected to perform when the battery is fully charged. These figures are approximate and may vary according to the charging conditions. When the compression capacity is reduced to about 1/2 of a normal cycle, this indicates that the battery life is exhausted and the battery pack should be replaced with a new one.
  • Page 9: Operating Instructions

    Customer Manual 409-78005 取扱 明書 OPERATING INSTRUCTIONS Charging 1 Connect the AC Plug of the Charger CH-21J to an AC outlet. The Indicator Lamp blinks [STAND BY] in red Note: The rated voltage for this unit is 100V-240V. Use of voltages over 260V will result in damage to the charger.
  • Page 10: Trigger And Release Button

    Customer Manual 409-78005 取扱 明書 To attach the battery pack, slide it into the tool until it stops. To detach the Battery Pack, pulling out the battery pack while pressing the latches. After inserting the battery Pack, check it is securely in place by pulling it gently.
  • Page 11 Customer Manual 409-78005 取扱 明書 The head is 180°rotatable. Rotate the head to the desired position for the job. Place the connector and press the Trigger and advance the ram so that the connector is held between the dies. Insert the conductor into the connector. Press the Trigger until the compression is completed.
  • Page 12: Maintenance And Inspection

    Customer Manual 409-78005 取扱 明書 MAINTENANCE AND INSPECTION Daily maintenance is required to ensure that the tool is kept in good working condition. Do not store the tool in a humid environment. If tool is broken at more than 10,000 times normal operation, do not replace the broken parts and use the tool again.
  • Page 13 Customer Manual 409-78005 取扱 明書 取扱 明書 本機 取り扱い 注意事項 つい 明 あり 使用前 よくお うえ 正 く 全 使用くだ い [目次] 全上 ご注意 ・・・・・・ P ~P 使用上 ご注意 ・・・・・・ P 各部 名称および標準付属品 ・・・・・・ P 用途 ・・・・・・ P 仕様 ・・・・・・ P 標準圧着可能回数...
  • Page 14 Customer Manual 409-78005 取扱 明書 全 注意 Rev B3 14 of 26...
  • Page 15 Customer Manual 409-78005 取扱 明書 Rev B3 15 of 26...
  • Page 16 Customer Manual 409-78005 取扱 明書 Rev B3 16 of 26...
  • Page 17 Customer Manual 409-78005 取扱 明書 Rev B3 17 of 26...
  • Page 18 Customer Manual 409-78005 取扱 明書 使用 注意 Rev B3 18 of 26...
  • Page 19 Customer Manual 409-78005 取扱 明書 各部 名称および標準付属品 ッテリ 式油圧工具 TE REC-Li60 CH-21J Rev B3 19 of 26...
  • Page 20 Customer Manual 409-78005 取扱 明書 用途 仕様 ッテリ 油圧式工具 TE REC-Li60 54kN 公称出力 5.5 ~ 60mm (銅線用裸圧着端子およびスリ ブ) 圧着範囲 14.4V DC モ 電動機 286mm (長 ) × 271mm (高 ) × 84mm (幅) 外形寸法 (BP 1420LN 装着) 2.5kg ( イス BP 1420LN 含 ) 質量...
  • Page 21 Customer Manual 409-78005 取扱 明書 1 回 満充電 可能 圧着回数 目 標準圧着可能回数 イス 電線 組合せ表 別売品 案内 Rev B3 21 of 26...
  • Page 22 Customer Manual 409-78005 取扱 明書 使用方法 充電器 CH-21J イン ッ 電源 コー を差し込 す Rev B3 22 of 26...
  • Page 23 Customer Manual 409-78005 取扱 明書 Rev B3 23 of 26...
  • Page 24 Customer Manual 409-78005 取扱 明書 Rev B3 24 of 26...
  • Page 25 Customer Manual 409-78005 取扱 明書 保 点検 保証書 つい 修理 き Rev B3 25 of 26...
  • Page 26 ャパン合同会社 TE Connectivity Ltd. ープ ©2011 Tyco Electronics Japan G.K., * Trademark 26 of 26 a TE Connectivity Ltd. Company All Rights Reserved TE logo is a trademark. Other products, logos, and company names might be trademarks of their respective owners. LOC B...
