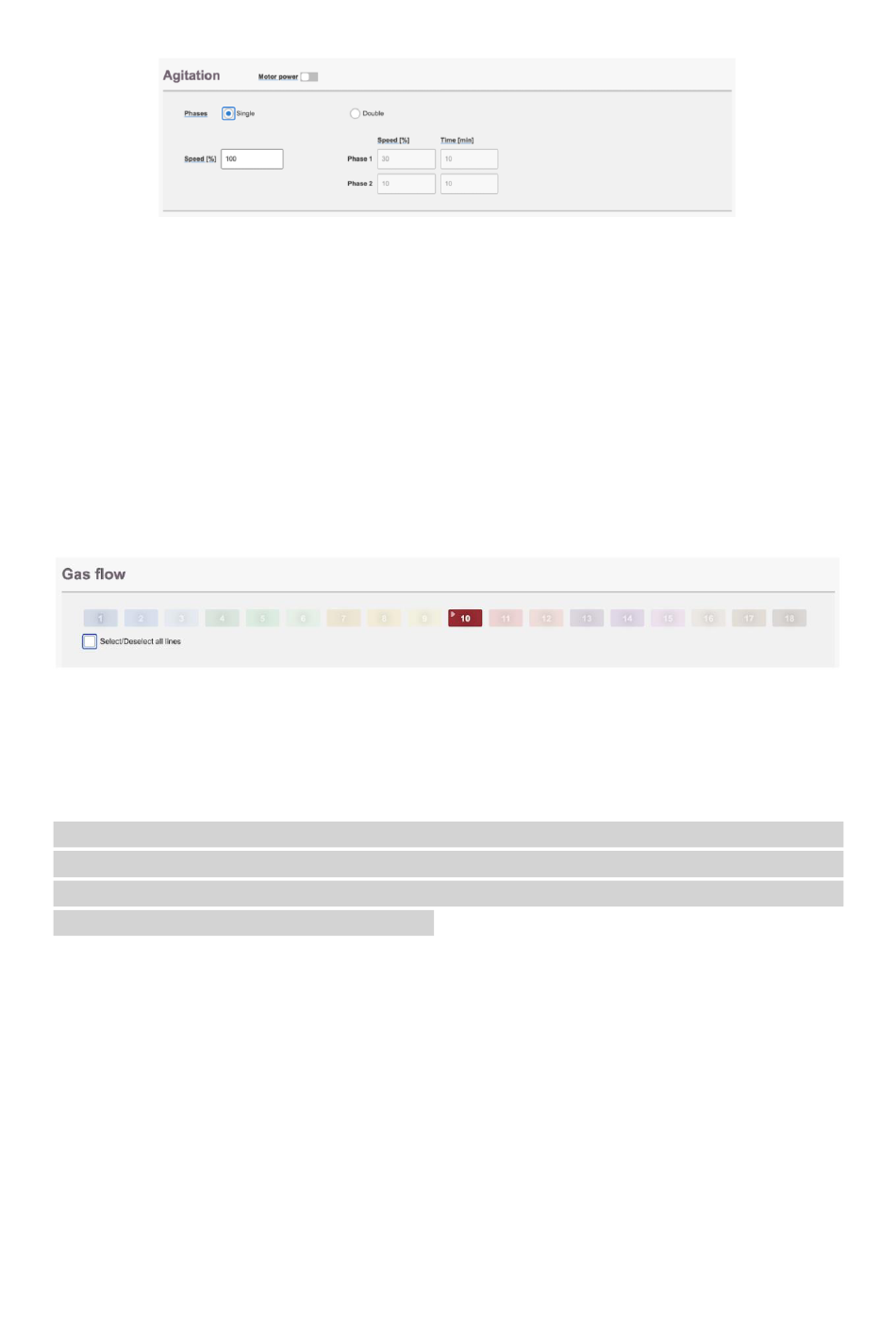

Figure 17. Controlling the agitation system through the software.
The software provides two graphs, accumulated gas volume as a function of time and flow
rate as function of time. The gas volume can be presented in three different ways: without
normalization, with normalization without considering the moisture content (dry), and with
normalization considering the moisture content (wet). There are three possible units for the
gas flow: NmL / min, NmL / h, and NmL / day.
Once the gas registration starts, the box/line changes color from grayish to the corresponding
color of a specific line, see line 10 in Figure 18. In this part, it is also possible to select all lines
at once.
Figure 18. Gas flow segment in the Graph page.
In this new software, users have the option to zoom in both graphs in order to get a better
visualisation of the real-time data.
NOTE: The graph requires at least two data points (i.e., flow cell openings) in order to display
information. To simulate an opening during testing, briefly remove the FCU and place it right
back; wait a few seconds and then repeat the action one more time. If everything is working
properly, a line should appear in each graph.
Users can download and generate the report at any time from the Report tab. With Aurora
Software, the raw data can be downloaded in a csv format either for each line separately or
gathered in one file. Different settings can be applied to generate the report (Figure 19).
