Marshall JVM410C Combo, JVM410H Head Manual

Panels Overview

Overview

Channels, Modes & Memory

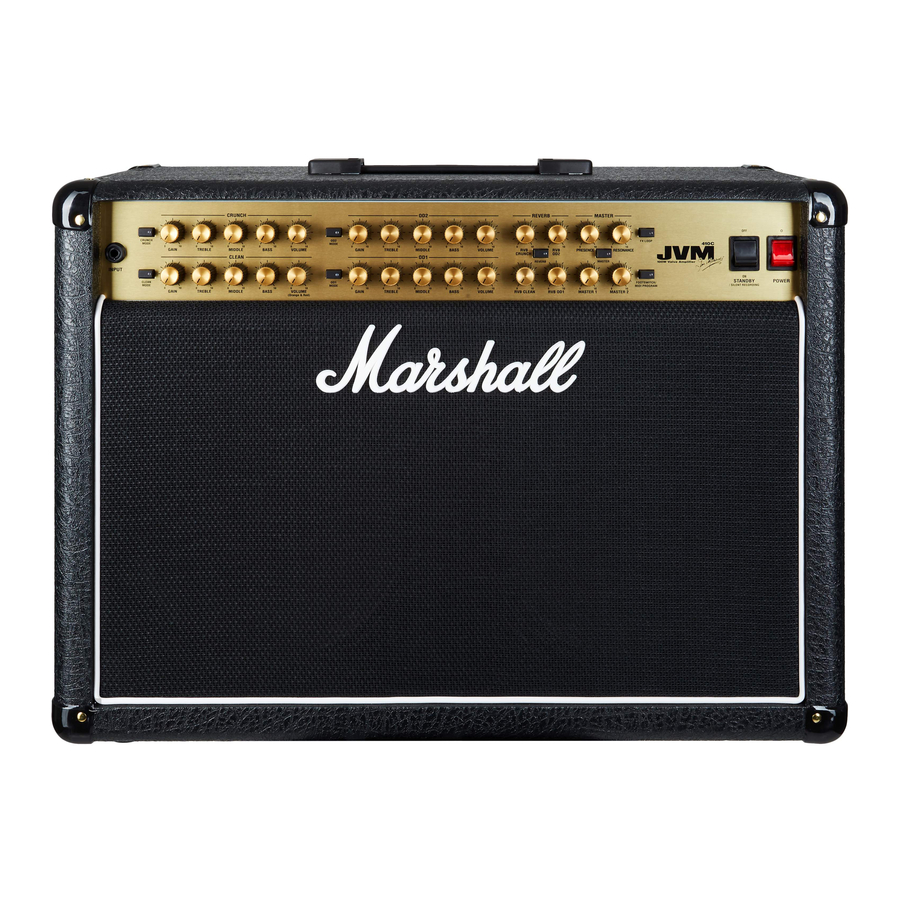

Presenting the 4-channel, 100 Watt, all-valve JVM amplifier (JVM410H head or JVM410C 2x12" combo). Its 4 channels boast 3 modes, giving you a total of 12 different modes to choose from - each with its own unique gain structure. Even though its front panel contains a total of 28 control knobs and 8 LED switches, the JVM is simple to understand and operate thanks to its extremely logical front and rear panel layouts.

The front panel contains dedicated sets of controls for each of its 4 channels - CLEAN,
CRUNCH, OD1 & OD2 - plus MASTER and REVERB sections. Each channel contains the familiar controls, Volume, Bass, Middle, Treble and Gain. The REVERB section consists of 4 Reverb level controls, one for each channel while the MASTER section is comprised of 2 footswitchable Master Volumes, plus master RESONANCE and PRESENCE controls that work universally on all 4 channels.

Each of the 4 channels has 3 switchable modes. These are selected by the MODE switch dedicated to each channel. To select a channel press its respective MODE switch (or step on the relevant button on the supplied 6-way footswitch - see section II. Footswitch). To scroll through the selected channel's 3 modes keep pressing the said button and the colour of the LED in the switch will change from green to orange to red and then back to green. Doing this steps-up the gain level each time (red being the highest and green the lowest for each channel) and changes the channel's tonal voicing to suit.

When you leave and then reselect a channel, it will automatically recall the last active mode as all 4 channels remember the last mode they were in until a change is made. For instance, if you select the Crunch channel's orange mode and then go to the Clean channel, when you reselect the Crunch channel it will still be orange.

In addition to channel and Mode selection, other features switchable via the front panel and the supplied 6-way footswitch are Reverb (on/off) Master Volume selection (1 or 2), and Series/Parallel effects loop (on/off). All 3 of these options are also remembered by each Mode.

To sum up, each of the JVM's 12 Modes will remember it's most recent Reverb, FX loop and Master Volume selection. Additionally mode setups can also be saved and recalled to one of 128 locations via MIDI.

Footswitch (UK patent pending)

The JVM410H or JVM410C come supplied with a 6-way programmable footswitch which can be connected to the amp via any standard guitar cable.

*Please note that the supplied Footswitch lead is unscreened and not suitable for guitar.

The 6-button footswitch features 7 LEDS marked CLEAN, CRUNCH, OD1, OD2, MASTER, REVERB & FX. The LEDs for each of the 4 channels are 3-coloured Green, Orange and Red, visually telling you which channel and mode is selected alongside the status of Master, Reverb and FX loop.

The footswitch enables you to assign any of its 6 switches to instantly recall any front panel function (Switch Store Mode) or complete channel setup (Preset Store Mode) in any order and combination.

For example, you could program it so that:

Switch Store Mode

Any footswitch is assigned to act as any one of your amp's front panel switches: Channel/Mode; Reverb on/off; Master Volume 1/2 and FX Loop on/off.

If a switch is assigned to select a particular channel once is has been activated, it can be used to scroll through the three modes, just like its respective front panel switch.

Or...

Preset Store Mode

Each switch can be programmed to instantly call up a combination of JVM button options to form a Preset. For example, you could program it so that:

Footswitch #1 = Crunch channel, green mode with Master Volume '1', Reverb 'on' and FX loop 'off'.
Footswitch #2 = Clean channel, red mode with Master Volume '2', Reverb 'off' and FX loop on.

All the settings are stored within your footswitch; this means it can be plugged into any JVM 4-Channel amplifier and all your footswitch settings can be instantly recalled.

Details on how to program your footswitch can be found later in this manual.

Power Amp

The power amp stage of the 100 Watt JVM is based on the same as the one found in the JCM800 2203 and 1959 Superlead amplifiers, responsible for the legendary Marshall roar it has been adjusted to suit the variety of tones found in the JVM. This section features Presence and Resonance control to help shape the overall tone of your JVM amplifier.

Your JVM is also equipped with a Silent Recording mode. When the STANDBY switch is OFF the power amplifier section is disabled but the rest of the amplifier remains fully operational.

Studio Quality Reverb

The Marshall JVM410H and JVM410C are equipped with a studio quality digital reverb routed in parallel to the main signal and mixed by means of a valve. When the reverb is engaged no degradation of the direct signal occurs and when off it is effectively removed from the circuit. Each of the JVM's 4 channels also has its own dedicated Reverb level control.

The Reverb switching has been designed to avoid abrupt cut offs in the reverb tail so when changing from channel to channel or switching the reverb off, its tail naturally decays.

The Basics

We recommend that you fold out the inside back cover of this manual so that diagrams of the amp's front and rear panels are visible while you read.

MAINS INPUT & FUSE (16)
Your amp is provided with a detachable mains (power) lead, which is connected here. The specific mains input voltage rating that your amplifier has been built for is indicated on the back panel.


Before going any further, make sure your amplifier is compatible with your electrical supply. If you have any doubt, please get help from a qualified technician your Marshall dealer can help you in this respect.

The correct value of mains fuse is specified on the rear panel of the amplifier. NEVER attempt to bypass the fuse or fit one of the incorrect value.

Mains (POWER) Switch (17)
This is the On/Off switch for the mains electric power to the amplifier.

warning Note: Please ensure the amplifier is switched off and unplugged from the mains electricity supply whenever it is moved!

INPUT Jack Socket (18)
You must always use a screened (shielded) guitar cable and never use an unscreened (unshielded) speaker cable. Also, this cable should be one of good quality. If you are in any doubt regarding this, your Marshall dealer will be more than happy to help and advise you.

Getting Started & Powering Up

  1. Make sure that the speakers/cabinet(s) are connected to the correct impedance LOUDSPEAKER jack(s) on the rear panel (1). See specifics regarding impedance matching. If you're using an extension cabinet make sure it's powerful enough to handle a 100 Watt amp and also that you're using a proper speaker cable. Never use a screened (shielded) guitar cable for this purpose
    1. Failure to do any of the above will damageyour amp.
    2. NEVER use your amp without a (speaker) load attached when the Standby Switch is ON.
      Marshall recommends you always leave a (speaker) load attached to the unit.
  2. Ensure that both MASTER VOLUMES on thefront panel (6) are set to zero.
  3. Connect the Footswitch Cable to the
    Footswitch and then connect to the FOOTSWITCH Socket on the rear panel of amplifier.
  4. Connect the supplied mains (power) lead intothe MAINS INPUT on the rear panel first and then into an electrical outlet.
  5. Plug your guitar into the INPUT jack socket on the front panel.
  6. Turn the front panel POWER switch on. Thiswill glow red then wait for a couple of minutes.
  7. After waiting a couple of minutes, engage theSTANDBY switch. Leaving the amp on 'Standby' for a period allows the valves to come up to their correct operating temperature. In order to prolong valve life, the STANDBY switch should also be used to turn the amplifier on and off during breaks in a performance.

STANDBY Switch & Silent recording (19)
As stated above the STANDBY Switch is used in conjunction with the POWER Switch to 'warm up' the amplifier before use and to prolong the life of the output valves.

When the amplifier is in standby mode the whole preamplifier section continues running at its nominal voltages whilst the power amplifier remains in a standby status. This allows the amplifier to be used for silent recording or preamplification purposes.

Only when the STANDBY is off can the amplifier be used without a load. Always ensure a load is connected when leaving the silent recording mode, i.e. when switching the STANDBY switch ON.

Channel Overview

The JVM's front panel is divided into 2 main sections: Channels and Master. Each of its 4 channels has 3 modes which are distinguished by a different coloured light (green, orange or red) appearing in the respective MODE switch; the preamplifier's gain structure is uniquely reconfigured for each and every mode.

CLEAN CHANNEL

CLEAN GREEN MODE: This is the cleanest of the three modes and, in keeping with traditional clean amps it uses a simple and straightforward circuit, keeping the signal as pure as possible. In this Mode the channel's Volume control is taken out of circuit as is the case in vintage amplifiers of this nature. This is the only JVM mode where this happens.

CLEAN ORANGE MODE: By adding another gain stage after the tone stack we get a punchier sound that's easy to overdrive. As in the rest of the modes the channel's Volume control is now active.

CLEAN RED MODE: This mode pushes the original clean sound even more and transforms itself into a pseudo high gain channel with the addition of yet another gain stage after the tone stack.

In keeping with the classic clean amps of yesteryear, all three modes of this channel feature what is known as a pre-gain tone stack (i.e. the tone network lies before the channel's main gain stage). The reverse (i.e. the tone network being after the main gain stage) is typical of most Marshalls and, as a result, the Clean channel's tone controls work in a slightly different way than you might expect. In addition to controlling the tone of the channel they also affect how it reacts in terms of gain, allowing you to shape how the signal distorts.

For example, turning up the Middle control on higher Gain settings will focus the distortion there, making your sound 'sing' in a traditional blues/rock way. Also, because of the channels' 'tone then gain' topology, when a lot of gain is dialled in (especially in the case of the RED mode), it may appear that its tone controls aren't doing as much as you'd expect or sound over distorted. This is because the signal is being distorted after the tone stage, minimising the effectiveness of the Bass, Middle and Treble controls.

CRUNCH CHANNEL

At this point the JVM reverts to the more typical Marshall preamp circuit characteristic of 'gain then tone'. This is also true of the OD1 and OD2 channels.

CRUNCH GREEN MODE: This mode shares the preamp topology of the classic Marshall JTM45/1959 'Plexi' models (i.e.: gain + gain + tone) but with a bit more of gain than is found in the originals.

CRUNCH ORANGE MODE: This mode is reminiscent of the Marshall JCM800 2203 amplifier, a staple of hard rock. The gain structure is gain + gain + gain + tone.

CRUNCH RED MODE: this shares the topology of the Orange mode but with more gain, giving you sounds similar to a hot-rodded JCM800.

OD1 CHANNEL

OD1 GREEN MODE: This is very similar to the hot-rodded JCM800 sound found in 'Crunch Red', allowing you to dial-in two distinctly different yet similar crunch sounds if you so wish - one in each channel.

OD1 ORANGE MODE: This adds another gain

stage to the 'OD1 Green' circuit, resulting in a sound that's perfect for singing leads and hard rock/heavy metal tones.

OD1 RED MODE: Adds more gain to the 'OD1 Orange' for a high gain Marshall sound.

OD2 CHANNEL

This channel is similar to the OD1 channel but with even more gain and a slightly different tone network with the Middle control shifted down to being centred around 500 Hz instead of the more typical Marshall value of 650 Hz. The result is 3 high gain modes that are ideal for both lead and modern rhythm metal tones.

Front Panel Operation

Channel Section

Pressing a channel button has two functions:
When coming from a different channel it recalls the last setting in the new selected channel.

When pressing in the same channel it cycles the modes: GREEN > ORANGE > RED > GREEN...
Each mode remembers the FX, Reverb and Master settings.

Example: You are in OD1 ORANGE with FX + REVERB and you press CLEAN. The amp switches to the last Clean mode you had (let's assume it was CLEAN GREEN with REVERB). If you press the OD1 switch you go back to OD1 ORANGE with FX + REVERB. This allows bouncing between channels without losing the settings. If you now press OD1 again, you go to OD1 RED with whatever FX, MASTER and
REVERB settings you had last time you were in this mode.

Pressing REVERB switches the reverb ON and OFF in the current channel.

Pressing FX LOOP switches the parallel FX loop ON and OFF in the current channel.

Master Section

REVERB Control

Alongside the REVERB switch each channel has its own reverb control allowing individual level settings of the effect.

MASTER 1 / MASTER 2

These are the master volume controls of the amplifier. They can be assigned individually to each of the modes as you wish and their setting will be remembered in each of the modes.

PRESENCE, RESONANCE

These controls are power amplifier controls and only have effect when playing through a speaker (not in silent recording). They affect how the power amplifier reacts to the connected speakers and how much control the amplifier has over them.

Increasing the RESONANCE control emphasises the natural speakers resonance for an improved bass response. In the same way, increasing the PRESENCE control emphasises the speaker's high frequencies which will be heard as an improved high frequency response which adds presence to the sound.

Presence and Resonance constitute a powerful power amplifier equaliser, allowing responses from a '^' shape when they are fully off, which is felt as a mid boost, to a 'v' shape when they are turned clockwise, which is felt as a scooped sound. Again, the effectiveness of these controls is highly dependant on the kind of connected speakers. Care has to be taken to avoid over excursion of the speaker cones in high resonance settings.

FX LOOP

This is a programmable FX loop which features a MIX control on the rear panel and it is located after the pre-amp, right before the reverb and serial loop circuits. Pressing the FX Switch engages this effects loop. Please refer to the Serial / Parallel Loop description later on in the handbook for its operation.

FOOTSWITCH / MIDI PROGRAM

This switch has a dual function:

Pressing it once we enter the FOOTSWITCH PROGRAM mode. It is indicated by a continuous red light.

Pressing it twice we enter the MIDI PROGRAM mode. It is indicated by a blinking red light.

Footswitch program and use

The JVM range features a new type of fully configurable footswitch. Connection to the amplifier requires a standard mono 1/4" jack to jack cable. Any guitar lead will work and practically there should be no limit in its length.

When the front panel FOOTSWITCH / MIDI PROGRAM switch is off, the footswitch operates in safe mode and executes the commands the moment the switch is pressed down.

If you enter the FOOTSWTICH PROGRAM mode (LED red) you will be able to program the footswitch but nevertheless the footswitch and the amplifier will remain fully operational with the only difference that the commands will be executed when releasing the footswitches, as opposed to the normal mode.

Each of the individual footswitches has 2 modes of operation: preset store and switch store.

In preset store mode, any of the footswitches can be configured to store the current amplifier status. The current channel, master, FX and reverb status will be stored and recalled when the respective footswitch is pressed.

To store the current status simply:
Set the amplifier to FOOTSWITCH PROGRAM mode (red light ON).
Press and hold the desired switch for about 3 seconds.
The FX footswitch LED will flicker a couple of times indicating that the preset has been stored.
In switch store mode, any of the footswitches can be configured to replicate the front panel switches and the amplifier will react exactly in the same way as when you operate them on the front panel.

All the front panel switches can be mapped to any of the footswitches without any limitation. The only exception is the FOOTSWITCH / MIDI PROGRAM key which cannot be assigned to the footswitch.

To assign any of the front panel keys (except FOOTSWITCH / MIDI PROGRAM) to any of the footswitches simply:
Set the amplifier to FOOTSWITCH PROGRAM mode (red light ON).

Press and hold the desired footswitch.
While holding the footswitch down, in less than 3 seconds, press the front panel switch you want to map.
The FX footswitch LED will flicker a couple of times indicating that the switch has been mapped.

From now on the selected footswitch will act exactly in the same way as if you press the related front panel switch.

Keys and presets can be assigned as wished without limitation and in any order (again, except the FOOTSWITCH / MIDI PROGRAM key). The footswitch configuration is stored in the footswitch itself, not in the amplifier. Resetting the amplifier will not affect the footswitch configuration as well.

The footswitch can be hot-swapped and synchronises itself with the amplifier after connection. However it is recommended to connect the footswitch lead to the footswitch side first and then connect it to the amplifier.

MIDI operation

Pressing the FOOTSWITCH / MIDI PROGRAM switch twice puts the amplifier in MIDI waiting mode, the LED will flash until a valid MIDI program change command is received.

On reception of a MIDI program change command the amplifier stores the current status (Channel + FX + Reverb + Master Settings) in the MIDI program number received. It is possible to store up to 128 different MIDI presets.

To exit this status without waiting for incoming MIDI data press the FOOTSWITCH / MIDI PROGRAM switch again.

warning Note about MIDI channels: By default the amplifier is configured to listen to MIDI channel #1 but it can be changed to listen to any of the 16 MIDI channels as follows:

Switch the amplifier off (Power switch, not Standby).
Press and hold the FOOTSWITCH / MIDI PROGRAM switch.
Switch the amplifier on (Power switch).
Release the FOOTSWITCH / MIDI PROGRAM switch, the LED will start to flash.
Send ANY MIDI command using your MIDI pedalboard or any other MIDI equipment.

The amplifier will detect which channel came in and configure itself to listen to that MIDI channel only. From now on any MIDI preset you had previously stored will be activated only on the new channel regardless of what channel you used before, this allows a fast reconfiguration should there be a MIDI conflict with any other outboard equipment.

If you want to exit the MIDI channel selection without any action press the FOOTSWITCH / MIDI PROGRAM switch while waiting for MIDI data.

Rear Panel Operation

SERIAL / PARALLEL FX LOOP

The JVM is equipped with a series / parallel FX loop. Connect your external FX gear input to the JVM SEND jack, and the FX output to the JVM RETURN jack. As described previously, this effects loop can be bypassed from the front panel and the amount of effect can be dialed in with the MIX control.

The +4dBu/-10dBV switch allows you to configure the loop for its use with either professional equipment (+4dBu setting) or with guitar level effects like effects pedals (-10dBV setting).

When MIX is set to WET all the signal goes through the external loop, adding more direct (unprocessed) signal as you turn it towards DRY. This allows you to mix any amount of the external effect without loosing or degrading the direct signal quality.

When mixing the WET and DRY signals the external effects processor's output should be configured to remove the direct (unprocessed) signal or unpleasant phasing effects may occur when mixing it again in the amplifier. If the amplifier sounds thin after connecting an external effect check that no direct signal is being returned from the processors output.

warning Note that if the FX loop is ON and the MIX control is set to WET without an external processor connected, the amplifier will be muted.

POWER AMP INSERT / SERIAL LOOP

This is a passive loop connected right before the master controls. It is a line level loop so it is recommended to only use high headroom devices to avoid signal degradation. Plugging only into the return jack allows the use of the JVM's power section overriding the preamp.

Master controls and the emulated line out are located after the serial loop so it is still possible to take advantage of those features when using an external preamplifier. The loop can be taken off the circuit by pressing the BYPASS switch, but as opposed to the Series / Parallel loop this switch cannot be programmed.

EMULATED LINE OUT

The pre master volume signal, processed through a 4x12 speaker cabinet emulator and electronically balanced is made available at this connector.

FOOTSWITCH

Connect the supplied footswitch using any standard 1/4" jack mono lead. Using any other type of footswitch rather than the supplied will have no effect and will be ignored by the amplifier.

MIDI In / Through

Connect any external MIDI gear to the MIDI In DIN socket. A copy of the signal in this connector will be available on the MIDI thru socket to allow daisy chaining of MIDI equipment. Note that the JVM only accepts incoming data and it is not able to send any MIDI commands.

SPEAKER Outputs

There are 5 speaker outputs available on the rear panel. They are labelled according to the intended impedances:
16Ω: connect any 16 ohms guitar cabinet to this jack.
8Ω: connect a single 8 ohms guitar cabinet or two 16 ohms guitar cabinets.
4Ω: connect a single 4 ohms guitar cabinet or two 8 ohms guitar cabinets.


although the JVM amplifier has 5 speaker outputs never attempt to connect more speakers than rated. The safe combinations are 1x16 Ohm, 1x8 Ohm, 1x4 Ohm, 2x16 Ohm or 2x8 Ohm. Any other speaker configuration may stress the power amplifier section and in extreme cases may lead to valve and/or output transformer failure.

HINTS & TIPS

Factory Reset
This will erase all the MIDI presets and set MIDI reception channel to #1. Please note that once the memory is erased it cannot be recovered.
Switch the amplifier off (power switch off, not standby switch).
Press and hold CLEAN CHANNEL / GAIN switch.
Switch the amplifier on (power switch on, not standby switch).
The 4 channel LEDs will glow red.
Release the switch.
To confirm the factory reset press CRUNCH MODE switch.
If you want to abort, press any other key.

Footswitch Reset:
It is possible to reset the footswitch to the factory default status. This is achieved as follows:
Unplug the footswitch at any of the cable sides.
Press and hold the switch #6 (right switch). Plug in the footswitch cord.
Release the switch and the FX led will start blinking.
If you want to erase the footswitch memory press the switch #5. To keep the memory press any of the #1 to #4 switches. Please note that once the memory is erased it cannot be recovered.
Release the switch and the footswitch will synchronise with the amplifier.

The factory default is as follows:
FSW #1: Clean Mode
FSW #2: Crunch Mode
FSW #3: OD1 Mode
FSW #4: OD2 Mode
FSW #5: Master
FSW #6: Reverb

Hints

Hint 1: It is possible to use different modes in the same channel with different volumes to avoid imbalance which can be especially interesting in the Clean channel. To do this simply create 2 presets in the footswitch assigning MASTER 1 or MASTER 2 to any of the modes.

If you do not connect any effect to the SERIAL / PARALLEL FX LOOP the MIX control can be used to act like an extra volume control in any of the channels.

Hint 2: To have a tuner output muting the amplifier, connect the tuner to the FX send and select the Clean channel. Turn the MIX control to WET and switch the FX loop on. Store this preset as described before and label it for example as 'tuner'. Obviously in this configuration it is not possible to connect any other effect to the loop.

Hint 3: To use a different preamplifier and combine it with the JVM channels, connect the external preamplifier output to the parallel loop return and turn the MIX to WET. Connect the external preamp input with a splitter to the amplifiers input (it might be necessary to use an active splitter to keep a high impedance and/or an isolated one to avoid ground loops). Switching the effects loop ON and OFF will alternate between the external preamp and the JVM preamp.

As the JVM reverb circuitry is connected after the parallel loop it is also possible to create a preset to add reverb to the external preamp. To do this, simply switch the reverb ON and create a preset in any channel with the reverb ON and FX ON and assign it to the footswitch. That would be external preamp + reverb.

You can also go further and assign a different Master level to both external and internal preamplifiers in the same way as you assigned reverb.

Hint 4: Notes about using 2 heads simultaneously. The suggested procedure is connect the 'master' head PREAMP OUT to the 'slave' head POWER AMP IN and switch the POWER AMP INSERT to ACTIVE in the 'slave' amplifier.

In order to track the master volume settings in both heads (as the master volume circuitry is wired after the loop) it is suggested to use MIDI control with both amplifiers programmed in the same way. Connect the MIDI IN of one of the amplifiers to the MIDI THROUGH of the other and the pedalboard or MIDI equipment to the remaining MIDI IN.

Technical Specification

JVM410H Head JVM410C Combo
Power (RMS) 100W 100W
Valves 5x ECC83 + 4x EL34 5x ECC83 + 4x EL34
Main Guitar - Input Impedance 470kΩ 470kΩ
Emulated Output - Level +4dBu +4dBu
FX Send Level - selectable -10dBV, +4dBu -10dBV, +4dBu
Weight 22kg 34.5kg
Size (mm) W, H, D 750 x 310 x 215 690 x 510 x 265

* EUROPE ONLY - Note: This equipment has been tested and found to comply with the requirements of the EMC Directive (Environments E1, E2 and E3 EN 55103-1/2) and the Low Voltage Directive in the E.U.

* EUROPE ONLY - Note: The Peak Inrush current for the JVM410H and JVM410C is 52 amps.

warning Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and the receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.

Follow all instructions and heed all warnings
KEEP THESE INSTRUCTIONS!

Videos

Marshall JVM410C Guitar Combo Amplifier Video

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Marshall JVM410C Combo, JVM410H Head Manual

Advertisement

Need help?

Need help?

Do you have a question about the JVM410C Combo and is the answer not in the manual?

Questions and answers

Table of Contents
