Summary of Contents for STIEBEL ELTRON VCR 180 MC

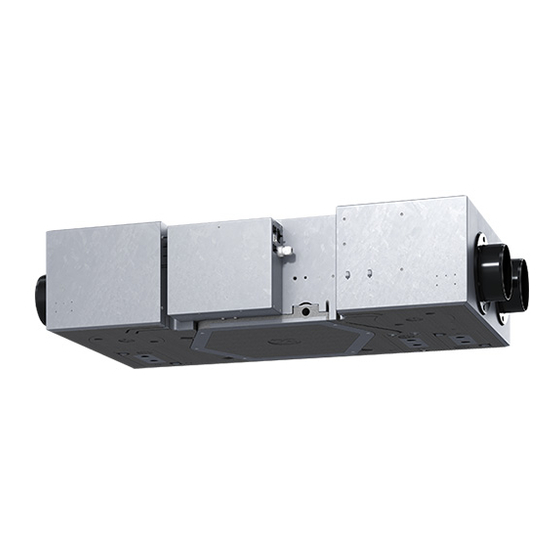

- Page 1 OPERATION AND INSTALLATION USO E INSTALLAZIONE Central ventilation unit with heat recovery | Unità di ventilazione centralizzata con recupero di calore » VCR 180 MC...
-
Page 2: Table Of Contents
10.6 Overflow apertures ��������������������������������������������� 15 Commissioning ��������������������������������������������� 16 11.1 Initial start-up ��������������������������������������������������� 16 11.2 Recommissioning ����������������������������������������������� 16 11.3 Appliance handover �������������������������������������������� 16 Settings ����������������������������������������������������� 16 12.1 Menus ������������������������������������������������������������� 16 12.2 Direct selection parameters ���������������������������������� 19 | VCR 180 MC www.stiebel-eltron.com... -
Page 3: Special Information
Read these texts carefully. example if damaged) by a qualified contrac- tor authorised by the manufacturer, using an Symbol Meaning original spare part. Material losses (appliance damage, consequential losses and environmen- tal pollution) Appliance disposal www.stiebel-eltron.com VCR 180 MC |... -
Page 4: Information On The Appliance
A confirmation of the specified output data can only be obtained if the conditions applicable to the relevant test match those of the standard shown in the heading of this chapter. Units of measurement Note All measurements are given in mm unless stated oth- erwise. | VCR 180 MC www.stiebel-eltron.com... -
Page 5: Appliance Description
When the "bypass mode" symbol goes out, close the window. Fan disable: The symbol is displayed in the event of the "Enable fan" is set to "Off". www.stiebel-eltron.com VCR 180 MC |... -
Page 6: Parameters Adjustable From The Home Screen
The table shows only the direct selection parameters to be set by the appliance user. The other direct selection parameters shown on the display may only be set by a qualified contractor or the service department. | VCR 180 MC www.stiebel-eltron.com... -
Page 7: Menus
If no faults are entered, dashes are shown. Possible faults are f Select "Start". Press "OK". listed for qualified contractors in the "Troubleshooting" chapter. f Set the start time. Press "OK". f Select "End". Press "OK". www.stiebel-eltron.com VCR 180 MC |... - Page 8 Only those parameters which are enabled for the appliance user, and therefore accessible without a code, are shown in the default settings. Qualified contracts can use the "View" parameter to enable actual values and parameters, which are reserved for qualified contrac- tors. | VCR 180 MC www.stiebel-eltron.com...
-
Page 9: Switching Off The Appliance
This option is set in the delivered condition. The "Bypass mode" symbol appears on the display. Extract air routing Bypass mode operates subject to the extract air autom. temperature. The "Bypass mode" symbol appears on the display. www.stiebel-eltron.com VCR 180 MC |... -
Page 10: Installation
Alternate operation means that, when the combustion equipment is commissioned, the mechanical ventilation system is switched off and/or cannot be started. Alternate operation must be ensured by appropriate measures, e.g. automatically enforced shutdown of the ventilation unit. | VCR 180 MC www.stiebel-eltron.com... -
Page 11: Appliance Description
- The installation room must have an adequate condensate drain with siphon. The type and location of the outside air intake must ensure that the least polluted outdoor air in the area of the building and sur- roundings is drawn in. www.stiebel-eltron.com VCR 180 MC |... -
Page 12: Transport
60 mm. f Fit the following parts onto each threaded pin in the se- f Before connecting the condensate drain hose to the appli- quence described. ance, pour water into the siphon. | VCR 180 MC www.stiebel-eltron.com... -
Page 13: Air Ducts
When venting the kitchen, ensure that the extract air vent is fitted as far as possible from the cooker. f Secure the air duct at the appliance air duct connection with self-adhesive aluminium sealing tape. www.stiebel-eltron.com VCR 180 MC |... -
Page 14: Programming Unit
Route the bus cable through the aperture in the wall mount- with at least 3 mm contact separation. ed enclosure from the back. WARNING Electrocution Before any work on the appliance, isolate the connecting cables in the control panel. | VCR 180 MC www.stiebel-eltron.com... -
Page 15: Overflow Apertures
Use the plug on the power cable to connect the appliance to a standard socket. Create suitable overflow apertures in the supply air area or over- flow area. This is essential, as bypass mode is not possible without www.stiebel-eltron.com VCR 180 MC |... -
Page 16: Commissioning
Set the current day of the week (Monday to Sunday). Programs Fan program Settings Adjustable values and functions Hour:Minute f Set the current time (00:00 to 23:59). Language f Set the required language. | VCR 180 MC www.stiebel-eltron.com... - Page 17 Monday - Sunday Offset condensate prevention Enable fan Ventilation unit Device software version Device software patch Mobile device serial no. Device type www.stiebel-eltron.com VCR 180 MC |...
- Page 18 Effect Ventilation unit inactive active Device type This parameter is set at the factory. The parameter can only be set after the controller assembly has been replaced. | VCR 180 MC www.stiebel-eltron.com...
-
Page 19: Direct Selection Parameters
If you interrupt the power supply to the appliance, check that humidity protection is ensured for the building. If the appliance needs to be taken out of use for an extended period, disconnect it from the power supply. f Replace the filters. www.stiebel-eltron.com VCR 180 MC |... - Page 20 Ensure that the direction of air flow through the filter is correct. G4, M5, F7: The direction of flow is indicated by an arrow on the side of the filter. | VCR 180 MC www.stiebel-eltron.com...
- Page 21 Nevertheless, we recommend removing the control panel cover. Then you can unplug the control cable and power cable from the printed circuit board. f Undo the screws securing the fans. f Clean the fans with a soft brush. www.stiebel-eltron.com VCR 180 MC |...
-
Page 22: Troubleshooting
105 Maximum The high limit safety cut- Isolate the appliance from the outdoor air out may respond. power supply. Check the air flow temperature rate. Check the triac for continui- exceeded ty. Check the sensor cable. | VCR 180 MC www.stiebel-eltron.com... -
Page 23: Specification
Electrical connection Condensate drain Diameter 16.5 Outdoor air Nominal diameter DN 150 g04 Exhaust air Nominal diameter DN 150 Extract air Nominal diameter DN 150 g06 Supply air Nominal diameter DN 150 Remote control www.stiebel-eltron.com VCR 180 MC |... - Page 24 Specification 17.2 Fan diagram The graph shows the pressure drop for examples of air distribution systems. Application range Maximum fan curve Air flow rate [ m³/h ] System curves Average value, static pressure [Pa] | VCR 180 MC www.stiebel-eltron.com...
- Page 25 X22 Supply air fan control cable Anschluss Netz Nicht belegt Nicht belegt Sensor Temp. & Luftf. AUL Netzleitung Zuluftluefter Sensor Temp. & Luftf. ABL Netzleitung Fortluftluefter Nicht belegt www.stiebel-eltron.com VCR 180 MC | Nicht belegt Ohne Funktion Interner Schwimmerschalter Ohne Funktion...
-
Page 26: Data Table
Min. ambient conditions, installation room (temperature) °C Max. ambient conditions, installation room (temperature) °C Available external pressure at max. air flow rate Heat recovery level Further details VCR 180 MC 201848 Maximum height for installation 2000 | VCR 180 MC www.stiebel-eltron.com... - Page 27 30 days; The STIEBEL ELTRON warranty for the unit is in addition to Warranty claim any rights and remedies you may have under the Australi- To make a valid warranty claim you must provide us with an Consumer Law.
- Page 28 Operating and Installation cian’s labour costs to inspect and test the unit. Guide (which is available on the Stiebel Eltron Austral- ia website and request); In order to properly test the unit, we may remove it to an- other location for testing.
- Page 29 FILTER INSPECTION LOG Filters in appliance Date Filter dirty Filter cleaned Filter changed Filters in extract air/supply air apertures (if present) Date Filter dirty Filter cleaned Filter changed www.stiebel-eltron.com VCR 180 MC |...
- Page 30 Hungary South Africa STIEBEL ELTRON Australia Pty. Ltd. STIEBEL ELTRON Kft. STIEBEL ELTRON Southern Africa (PT Y) Ltd 294 Salmon Street | Port Melbourne VIC 3207 Gyár u. 2 | 2040 Budaörs 30 Archimedes Road Tel. 03 9645-1833 | Fax 03 9644-5091 Tel.
