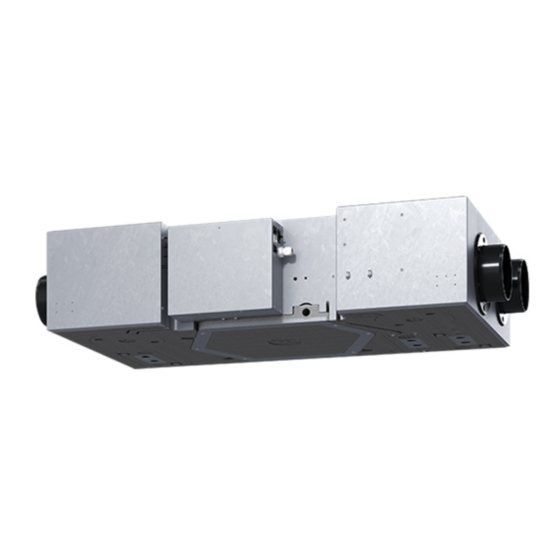

- Page 1 OPERATION AND INSTALLATION Central ventilation unit with heat recovery » VCR 180 MC...
-
Page 2: Table Of Contents
10.2 Connecting the condensate drain hose ��������������������� 11 10.3 Air ducts ���������������������������������������������������������� 11 10.4 Electrical connection ������������������������������������������� 12 10.5 Overflow apertures ��������������������������������������������� 13 Commissioning ��������������������������������������������� 13 11.1 Initial start-up ��������������������������������������������������� 13 11.2 Recommissioning ����������������������������������������������� 13 | VCR 180 MC www.stiebel-eltron.com... -
Page 3: Special Information
"Specification". Other symbols in this documentation Note General information is identified by the adjacent symbol. f Read these texts carefully. Symbol Meaning Material losses (appliance damage, consequential losses and environmen- tal pollution) Appliance disposal www.stiebel-eltron.com VCR 180 MC |... -
Page 4: Units Of Measurement
WC. Extract air and outdoor air are routed All measurements are given in mm unless stated oth- through separate air ducts. Extract air and outdoor air are filtered erwise. by separate filters. | VCR 180 MC www.stiebel-eltron.com... -
Page 5: Settings
4 "MENU" button appliance. The "service/fault" symbol flashes if a serious fault has 5 "HOME" button occurred. Call your qualified contractor. 6 "OK" button 7 "Intensive ventilation" button 8 "Intensive ventilation" indicator www.stiebel-eltron.com VCR 180 MC |... -
Page 6: Selecting The Fan Stage ����������������������������������������� 6 17.1 Dimensions And Connections
Effect OFF The fans are deactivated. "OFF" and the fan icon flash on the display. On The fans are enabled. „P80 : Day „ Monday Tuesday Wednesday Thursday Friday Saturday Sunday | VCR 180 MC www.stiebel-eltron.com... -
Page 7: P84 : Illumination Duration
Turn the Touch-Wheel anti-clockwise until the day disappears and dashes appear in the lower section of the display. Note In the case of overlapping time programs, the program with the highest number takes priority. www.stiebel-eltron.com VCR 180 MC |... -
Page 8: Cod
The appliance has no ON/OFF switch. Disconnect the power supply at the fuse/MCB in the domestic distribution board. Maintenance, cleaning and care f Never use abrasive or corrosive cleaning agents. A damp cloth is sufficient for cleaning the appliance. | VCR 180 MC www.stiebel-eltron.com... -
Page 9: Installation
Alternate operation means that, when the combustion equipment is started, the mechanical ventilation system is switched off and/ or cannot be started. Alternate operation must be ensured by appropriate measures, e.g. automatically enforced shutdown of the ventilation unit. www.stiebel-eltron.com VCR 180 MC |... -
Page 10: Appliance Description
Ensure the appliance is level after installation. The installation room must have an adequate condensate drain Material losses with siphon. Never use the air connections as handles for carrying the appliance. | VCR 180 MC www.stiebel-eltron.com... -
Page 11: Installation
1 Nut 2 Washer 3 Anti-vibration mounts 4 Anti-vibration mounts 5 Washer 6 Nut 7 Lock nut ???Hang the appliance so that the retainers of the appliance are between the anti-vibration mounts. www.stiebel-eltron.com VCR 180 MC |... -
Page 12: 10.4 Electrical Connection
Aspects such as carried voices and impact sound must also be taken into consideration in the case of ducts embedded in con- | VCR 180 MC www.stiebel-eltron.com... -
Page 13: 10.5 Overflow Apertures
Create suitable overflow apertures in the supply air area or over- f Check whether filters are fitted in the appliance. Never oper- flow area. ate the appliance without filters. f Check whether the condensate drain hose is damaged or kinked. www.stiebel-eltron.com VCR 180 MC |... -
Page 14: Actual Values
- Nominal flow rate (stage 2) : 125 m³/h Relative humidity of outdoor air - Offset : 25 m³/h Extract air dew point °C Supply air fan drive output Exhaust air fan drive output No function Ventilation unit operating time | VCR 180 MC www.stiebel-eltron.com... -
Page 15: Code
The "filter" symbol appears after a time set by the qualified con- tractor. The qualified contractor can lengthen or shorten the inter- val for inspecting filters depending on the level of contamination. www.stiebel-eltron.com VCR 180 MC |... - Page 16 Then you can unplug the control cable and power cable from the printed circuit board. f Undo the screws securing the fans. f Clean the fans with a soft brush. Cover 2 Condensate pan | VCR 180 MC www.stiebel-eltron.com...
-
Page 17: Troubleshooting
E105 Maximum The high limit safety cut- Isolate the appliance from the outdoor air out may respond. power supply. Check the air temperature flow rate. Check the triac for exceeded continuity. Check the sensor cable. www.stiebel-eltron.com VCR 180 MC |... -
Page 18: Specification
VCR 180 MC d45 b07 1113 VCR 180 MC b07 Electrical connection Condensate drain Diameter Outdoor air Diameter DN 150 g04 Exhaust air Diameter DN 150 Extract air Diameter DN 150 g06 Supply air Diameter DN 150 | VCR 180 MC www.stiebel-eltron.com... - Page 19 Specification 17.2 Fan diagram The graph shows the pressure drop for examples of air distribution systems. Application range Maximum fan curve Air flow rate [m³/h] System curves Average value, static pressure [Pa] www.stiebel-eltron.com VCR 180 MC |...
-
Page 20: Wiring Diagram
Netzleitung Zuluftluefter Sensor Temp. & Luftf. ABL Netzleitung Fortluftluefter Nicht belegt Nicht belegt Ohne Funktion Interner Schwimmerschalter Ohne Funktion Nicht belegt Ohne Funktion Nicht belegt Steuerleitung Fortluftluefter | VCR 180 MC www.stiebel-eltron.com Nicht belegt Steuerleitung Zuluftluefter Nicht belegt Nicht belegt... - Page 21 Min. ambient conditions, installation room (temperature) °C Application range, outdoor air (temperature) °C 0 - 45 Application range, extract air (temperature) °C 15 - 35 Further details VCR 180 MC 201848 Maximum altitude for installation 2000 www.stiebel-eltron.com VCR 180 MC |...
- Page 22 This will not affect warranties issued by any importers. Environment and recycling We would ask you to help protect the environment. After use, dispose of the various materials in accordance with national regulations. | VCR 180 MC www.stiebel-eltron.com...
- Page 23 FILTER INSPECTION LOG Filters in appliance Date filter dirty filter cleaned filter changed Filters in extract air/supply air apertures (if present) Date filter dirty filter cleaned filter changed www.stiebel-eltron.com VCR 180 MC |...
- Page 24 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
