Zennio GetFace IP ZVP-FFRA2 Assembly Instructions page 2

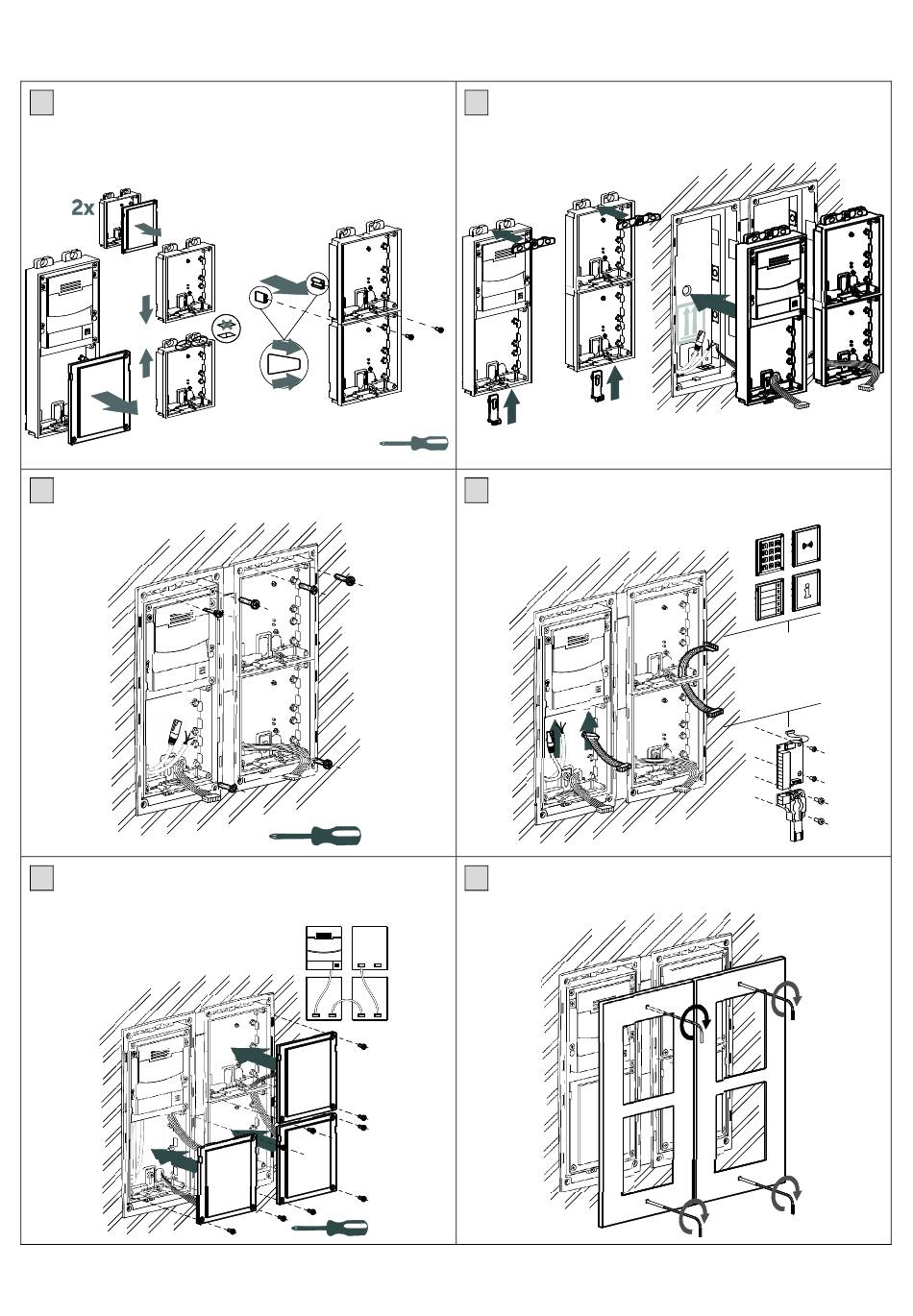

ASSEMBLY OF FRAME (MULTIPLE-COLUMN LAYOUT)
1
Please remove the blind panels and the additional modules
from the enclosures. After that, assemble the additional module
enclosures, opening the gaps previously. Then, fix the assembly
using the supplied parts and screws (included).
3
Fix the assemblies to the flush-mount boxes with screws.
5
Interconnect the additional modules with the bus as
indicated in the schema and then, fix the additional modules
with the supplied screws.
© Zennio Avance y Tecnología S.L.
2
Place the metallic parts supplied with the frame. Put the
assemblies inside the flush-mount box, pass previously the bus
through the gaps and recover the cables.
4
Make the connections of the basic unit and prepare the
additional modules. Pass the bus cables through the gaps.
6
Place the frames and fix them by using the supplied Allen
key.
Ed. 1 For more info www.zennio.com
Page 2 / 2
