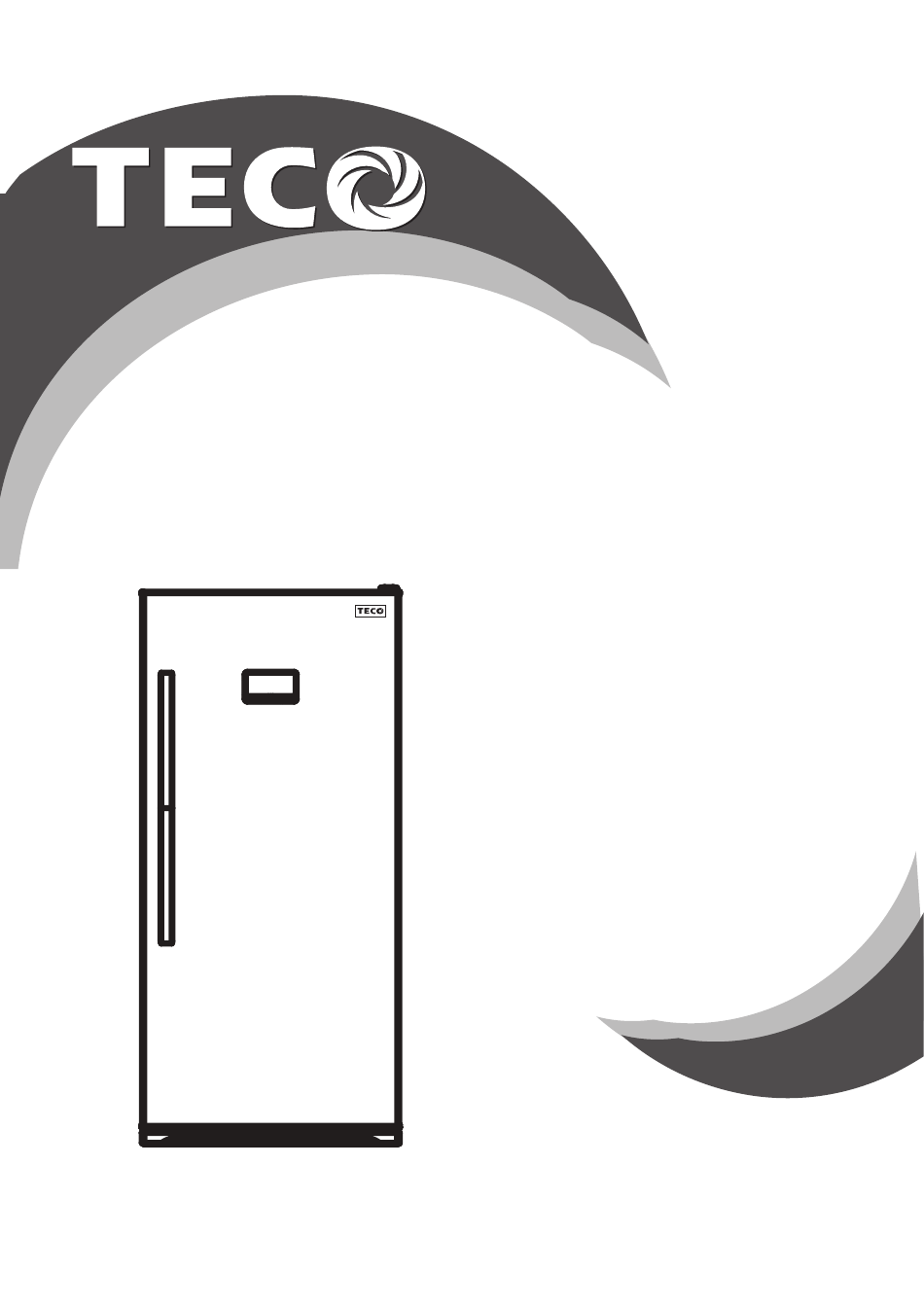

- Page 1 USER’S MANUAL FROST FREE SWITCHABLE / HYBRID REFRIGERATOR or FREEZER Models : TFF411WNBRM TFF411WNBLM TFF411SNBRM TFF411SNBLM To ensure proper use of the appliance and your safety, please read the following user manual completely before use.
- Page 2 Follow the operation instructions and safety notices in this manual. If any issue occur, do not attempt to fi x it yourself. Please contact TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST). This refrigerator is designed and approved for use with R132a refrigerant.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information............. 4 - 5 Name of Parts and Usage ........Packing List .............. Transporting the Appliance & Installation ....Installing the Handle ..........Installing the Kick Panel ........... Operating Instructions (Control Panel) ..... Temperature Settings ..........Energy Saving Tips .......... -
Page 4: Safety Information
fi lled with water. • If the supply cord is damaged, it must be replaced by authorised TECO service personal, service agent or similarly qualifi ed persons in order to avoid a hazard. • Do not store fl ammable, explosive, volatile and highly corrosive materials in the refrigerator. - Page 5 • This appliance is intended to be used in household and similar aplications such as: - staff kitchen areas in shops, offi ces and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...
-
Page 6: Name Of Parts And Usage
NAME OF PARTS AND USAGE 1. Internal Light Switch 6. Airfl ow Inlet 2. Internal Light Cover 7. Wire Drawer 3. Temperature Sensor 8. Door Rack(s) 4. Wire Shelve(s) 9. Wire Door Rack 5. Airfl ow Outlet 10. Kick Panel The refrigerator you purchased is subject to continuous improvement, which may not be completely consistent with the manual, however, the functions and operating methods will not change. -
Page 7: Packing List
PACKING LIST Check the packing list that all items have been included with you Part No. Item Qty. Kick Panel 1 piece 1 piece Door Handle Door Handle / Kick 1 kit Panel User manual 1 copy Warranty 1 copy Information Note: Product specifi... -
Page 8: Transporting The Appliance & Installation
TRANSPORTING THE APPLIANCE & INSTALLATION ● The appliance must be transported only in a vertical position. The packing must be intact during the transportation. ● When unpacking and re-packing the appliance, please memorise the position of each accessory of the appliance when unpacking it. When re-packing the appliance for transportation, ensure all accessories are secured before transportation. -
Page 9: Installing The Handle
DOOR HANDLE INSTALLATION It is recommended the refrigerator be disconnected from the mains power source before attempting to install the door handle. Please be aware, this appliance is available with the handle attachment on the right (THF411WNBLM/THF411SNBLM) or left (THF411WNBRM/ THF411SNBRM). -
Page 10: Installing The Kick Panel
INSTALLING THE KICK PANEL Open the door and remove the necessary items to install the kick panel (kick panel and screws). Refer to page 7. Install the kick panel onto the bottom beam of the refrigerator. Refer to the illustration below. Cover plate Remove the cover plate on the hinge side. -
Page 11: Operating Instructions (Control Panel)
● ● ● ● WARNING 1. High temperature alarm 2. Door open alarm (sounds if door is open >60 seconds) 3. Temperature setting / quick freeze time setting down (decrease) 4. Temperature setting / quick freeze time setting up (increase) 5. -
Page 12: Temperature Settings
SWITCH BETWEEN FRIDGE & FREEZER - TEMP. SETTING Setting the temperature also acts as the switch between Refrigerator and Freezer. To do this, fi rst UNLOCK the control panel by holding the Keypad Lock / Unlock button (refer to item 8 on page 11) for at least 3 seconds. Press either button 3 or 4 to set the temperature. -
Page 13: Maintenance
MAINTENANCE The appliance should be maintained and cleaned frequently. For your safety, unplug the appliance from the mains power source before performing any maintenance. 1.Interior and exterior maintenance Clean the interior of the appliance with clean water and wipe it dry with a dry cloth. - Page 14 COMPARTMENT, DRAWER & RACK MAINTENANCE Please be careful when handling and removing comparments, drawers and racks. Follow the steps below to remove, clean and replace each of the refrigerator items. SHELVES & DOOR RACKS To remove shelves for cleaning, pull the shelf out as far as possible and then lift slightly.
-
Page 15: Disconnection Of The Appliance
DISCONNECTION OF THE APPLIANCE If a power failure occurs, even in summer, the refrigerator could store food normally for some time. 1, Power failure During a power failure, do not put additional food in the appliance and reduce opening the door frequently. Place several ice cubes into a container if power failure is anticipated beforehand, and place it in the top of the fridge. - Page 16 SYMPTOM: The refrigerator does not work effi ciently as expected. SUGGESTION: It may be caused by heavy frost, warm temperature setting, frequently opening the door or low voltage. SYMPTOM: It makes an unusual noise. SUGGESTION: It may be caused by an unbalanced appliance or unstable surface, bottles are incorrectly placed and rattling, vibration from an object on top of, behind or beside the appliance.
-
Page 17: Specifications
SPECIFICATIONS THF411WNBLM THF411WNBRM Model Number THF411SNBLM THF411SNBRM Climate Class Classification of Group 1 / 7 Indoor Use Only Installation and Use Rated Total Gross Volume Rated Total Storage Volume Voltage Frequency Noise Level Refrigerant Type R132a Ambient Operating Temperature Height 1550 Dimensions (mm) Width... - Page 18 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Twin Tub Clothes Washers Auto Sensing Condenser and Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges ...
-
Page 19: Repairs, Service & Warranty
If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am-4pm Mon~Fri AEST) For warranty details please visit www.teco.com.au Complete and retain the following information:...
