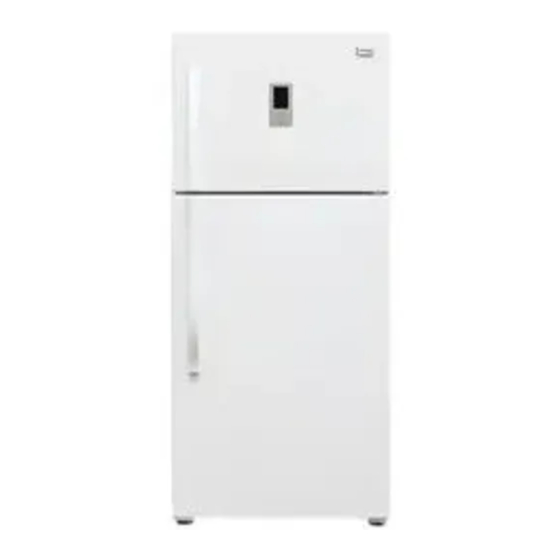

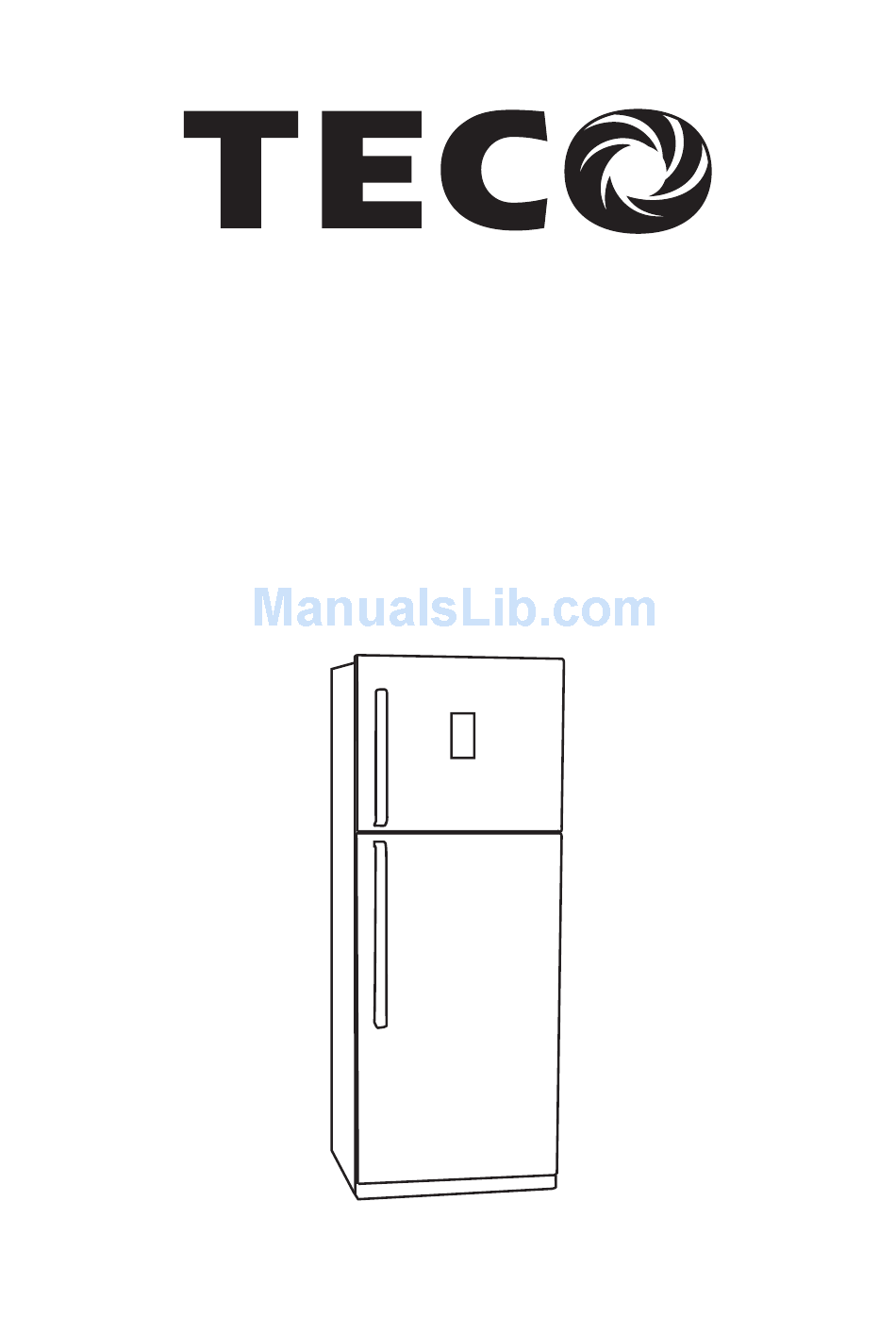

- Page 1 TOP MOUNT FROST FREE 470L REFRIGERATOR USER’S MANUAL Models : TFF470WNTA TFF470SNTA To ensure proper use of the appliance and your safety, please read the following user manual completely before operating this appliance.
- Page 2 Follow the operating instructions and safety notices in this manual. If any trouble arise, do not fi x it yourself or hand it to the after sales service centre, which have not been authorised. Please contact TECO service on 1300 660 037.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information..........1 - 2 Name of Parts and Usage........Packing List ............Transporting the Appliance & Installation ..... Door Handle Installation ........Operating Instructions .......... Energy Saving Tips ..........Control Panel ............Maintenance ............Disconnection of the Appliance ......Troubleshooting .......... -
Page 4: Safety Information
• Do not place objects on top of the appliance which are magnetic, heavy or fi lled with water. • If the supply cord is damaged, it must be replaced by authorised TECO service personal, service agent or similarly qualifi ed persons in order to avoid a hazard. - Page 5 • Do not store fl ammable, explosive, volatile and highly corrosive materials in the refrigerator. Containers with fl ammable gases or liquids can leak at low temperature. There is a risk of explosion or fi re. • Do not splash water on the appliance. It may cause malfunction or electric shock.
-
Page 6: Name Of Parts And Usage
NAME OF PARTS AND USAGE 1. Glass Freezer Shelf 6. Freezer Door Tray 2. Crisper Section 7. Small Freezer Door Tray 3. Glass Shelf 8. Twist Ice Maker 4. Vegetable Crisper Lid 9. Refrigerator Door Compartment with vent 10. Refrigerator Door Tray 5. -
Page 7: Packing List
PACKING LIST Check the packing list that all items have been included. TFF470WNTA Part No. Model TFF470SNTA Refrigerator 1 Piece Handle Freezer Handle 1 Piece 1x Allen Key Door Handle Kit 4x Screws 4x Hole Caps Crisper Container 1 Piece... -
Page 8: Transporting The Appliance & Installation
TRANSPORTING THE APPLIANCE & INSTALLATION 1.The appliance must be transported only in a vertical position. The packing must be intact during the transportation. 2. When unpacking and re-packing the appliance, please memorise the position of each accessory of the appliance when unpacking it. When re-packing the appliance for transportation, ensure all accessories are secured before transportation. -
Page 9: Door Handle Installation
DOOR HANDLE INSTALLATION The images below are for reference purposes and may differ from your refrigerator. The refrigerator must be disconnected from the mains power source before attempting to install the door handle. 1. Remove the door handle kit supplied with the refrigerator. Take the screws and install them into the holes on the door. -
Page 10: Operating Instructions
WARNING... -
Page 11: Control Panel
CONTROL PANEL Controlling the temperature of the refrigerator and freezer compartments, locking and unlocking the panel and quick freeze functions are set by the control panel. Refer to the descriptions below for correct operation. Control Buttons: A) (FRZ.) Freezer Temperature B) (REF.) Refrigerator Temperature C) MODE Button (Lock/Unlock and Quick Freeze) -
Page 12: Maintenance
MAINTENANCE The appliance should be maintained and cleaned frequently. For safety, unplug the appliance from the mains power source before cleaning. 1.Interior and exterior maintenance Clean the interior of the appliance with clean water and wipe it dry with a piece of dry cloth. Cleansers such as soap powder, abrasive cleaning powder, alkali cleansers, chemical cloth, thinners, alcohol, acid petroleum products and hot water should not be used to clean the refrigerator as they... -
Page 13: Disconnection Of The Appliance
DISCONNECTION OF THE APPLIANCE If a power failure occurs, even in summer, the refrigerator could store food normally for some time. 1, Power failure During a power failure, do not put additional food in the appliance and reduce opening the door frequently. Place several ice cubes into a container if power failure is anticipated beforehand, and place it in the top of the fridge. - Page 14 SYMPTOM: The refrigerator does not work. SUGGESTION: It may not be connected to the power supply (plug, power failure or blown fuse) and switched on. Check that the temperature dial is not set to 0 position. SYMPTOM: The refrigerator does not work effi ciently as expected. SUGGESTION: It may be caused by heavy frost on the ice box compartment, by a warm temperature setting or by frequently opening the door, or low voltage.
-
Page 15: Repairs, Service & Warranty
IF SERVICE IS REQUIRED: If you have a problem, and the problem persists after you have made the checks mentioned above, contact: TECO Australia’s Service on 1300 660 037 For warranty details please visit www.teco.com.au Complete and retain the following information:... -
Page 16: Specifi Cations
SPECIFICATIONS TFF470WNTA Model TFF470SNTA Climate class Classifi cation of Class 5T installation and use Indoor use only Rated Fridge Total Gross Freezer Volume (L) Voltage (V) 220~240 Frequency (Hz) Noise Level (dB) Refrigerant type R600a Ambient Operating temp ( 1745... - Page 17 NOTES: _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________ _______________________________________...
- Page 18 GBE-PV...
