Summary of Contents for TECO TFF270WNTBM

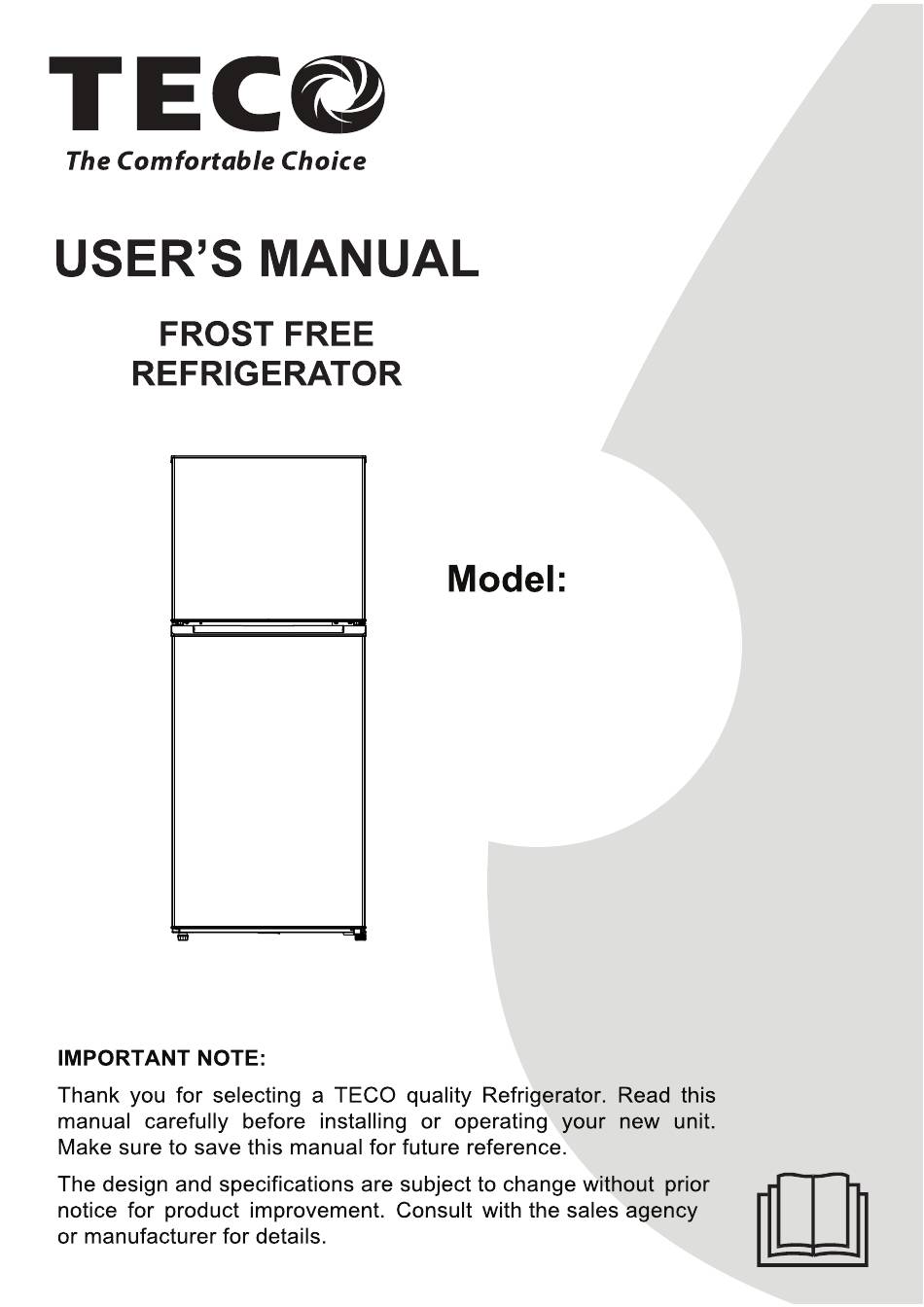

- Page 1 TFF270WNTBM TFF270SNTBM...
- Page 2 Follow the operating instructions and safety notices in this manual. If any trouble arise, do not attempt to fi x it yourself. Please contact TECO service on 1300 660 037 (8:30am - 4pm Mon~Fri AEST). This refrigerator is designed and approved for use with fl ammable R600a refrigerant.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Safety Information............. Name of Parts and Usage ........Packing List .............. Transporting the Appliance & Installation ....Operating Instructions ..........Temperature Settings ..........Energy Saving Tips ..........Reversing The Door ..........Maintenance ............Disconnection of the Appliance ....... Troubleshooting ............ -
Page 4: Safety Information
fi lled with water. • If the supply cord is damaged, it must be replaced by authorised TECO service personal, service agent or similarly qualifi ed persons in order to avoid a hazard. • Do not store fl ammable, explosive, volatile and highly corrosive materials in the refrigerator. - Page 5 • Do not splash water on the appliance. It may cause malfunction or electric shock. • Always switch off and unplug appliance before cleaning. • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 6: Name Of Parts And Usage
1. Cabinet 12. Freezer Door 2. Twist ice maker 13. Freezer Door Rack 3. Freezer Glass Shelf 14. Middle Hinge 4. Freezer Vent Adjustment 15. Refrigerator Door 5. Cold Compartment 16. Refrigerator Door Rack 6. Refrigerator Air Duct 17. Small Refrigerator Door Rack 7. -
Page 7: Packing List
PACKING LIST Check the packing list that all items have been included. Item Part No. Top Hinge Cover 1 Piece User’s Manual 1 Copy Note: Product specifi cations are subject to change without prior notice. -
Page 8: Transporting The Appliance & Installation
TRANSPORTING THE APPLIANCE & INSTALLATION ● The appliance must be transported only in a vertical position. The packing must be intact during the transportation. ● When unpacking and re-packing the appliance, please memorise the position of each accessory of the appliance when unpacking it. When re-packing the appliance for transportation, ensure all accessories are secured before transportation. -
Page 9: Operating Instructions
● ● ● ● WARNING... -
Page 10: Energy Saving Tips
LED DISPLAY When the refrigerator is powered on, for three (3) seconds the display will show all temp. indicators and then display the current temp. setting. This display will also be used to display error codes if a fault should occur (refer to Page 16). -
Page 11: Reversing The Door
REVERSING THE DOOR Follow these steps to reverse the door from the supplied position. Before proceeding, ensure the appliance is unplugged, turned off and empty of all contents. STEP 1. Top Hinge A) Locate and remove the top hinge cover, screws and hinge from the right side. - Page 12 STEP 3. Bottom Hinge A) Remove both adjustable feet by completely unscrewing them. B) Remove the screws holding the bottom hinge and remove the bottom hinge. STEP 4. A) Screw the adjustable foot into the right side. B) Fasten the bottom hinge into place on the left side. NOTE: Do not fasten completely until after the door has been correctly positioned.
-
Page 13: Maintenance
4. Interior light The refrigerator is fitted with several LED internal lights, that are not replaceable. If the lights stop working, please contact TECO Service (refer to page 19). 5. Empty the drip tray Do not attempt to remove the drip tray from the rear of the refrigerator. - Page 14 COMPARTMENT, CRISPER & RACK MAINTENANCE Please be careful when handling and removing compartment, crisper and racks. Follow the steps below to remove, clean and replace each of the refrigerator items. GLASS SHELVES & DOOR RACKS To remove glass shelves for cleaning, pull the shelf out as far as possible and then lift slightly.
-
Page 15: Disconnection Of The Appliance
DISCONNECTION OF THE APPLIANCE If a power failure occurs, even in summer, the refrigerator could store food normally for some time. 1, Power failure During a power failure, do not put additional food in the appliance and reduce opening the door frequently. Place several ice cubes into a container if power failure is anticipated beforehand, and place it in the top of the fridge. - Page 16 SYMPTOM: The refrigerator does not work effi ciently as expected. SUGGESTION: It may be caused by heavy frost, warm temperature setting, frequently opening the door or low voltage. SYMPTOM: It makes an unusual noise. SUGGESTION: It may be caused by an unbalanced appliance or unstable surface, bottles are incorrectly placed and rattling, vibration from an object on top of, behind or beside the appliance.
-
Page 17: Speci Fiations
TFF270WNTBM TFF270SNTBM 220-240 1657... - Page 18 Did you know? TECO Australia’s product range also includes: Top Load Clothes Washers Front Load Clothes Washers Twin Tub Clothes Washers Auto Sensing Vented Clothes Dryers Refrigerators Chest and Vertical Freezers Bar Fridges ...
-
Page 19: Repairs, Service & Warranty
If you have a problem, and the problem persists after you have made the checks mentioned in this manual, contact: TECO Australia’s Service on 1300 660 037 (8:30am-4pm Mon~Fri AEST) Service Email had.service@teco.com.au Spare Parts had.parts@teco.com.au For warranty details please visit www.teco.com.au... -
Page 20: Warranty Information
Teco's warranty information for the product purchased is available at www.teco. com. au. A copy of the warranty may also be obtained by contacting Teco's Warranty and Service Department on 1300 660 0 37 during business hours (Mon - Fri 8.30am - 4pm AEST).
