LEGRAND Wattstopper FDP-301SR Manual

No: 27929 – 04/23 rev. 9
Catalog Number • Numéro de Catalogue • Número de Catálogo: FDP-301SR
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China

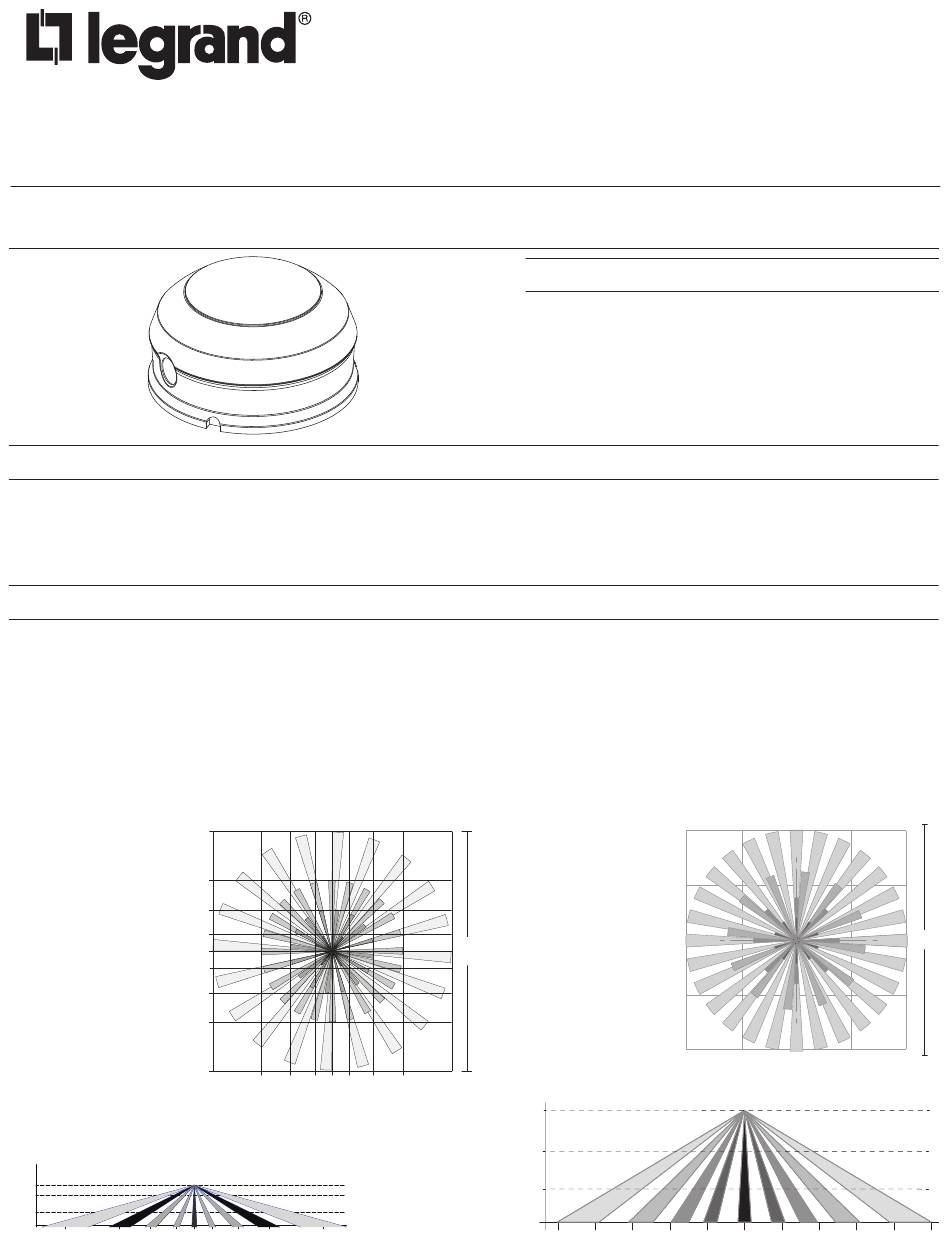

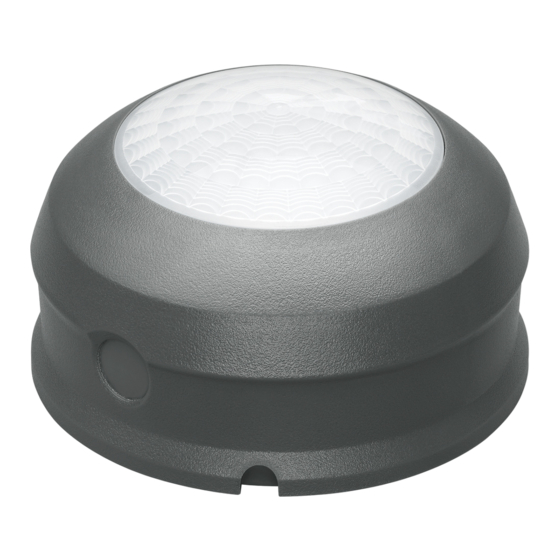

The FDP-301SR sensor is a passive infrared sensor with continuous dimming that is compatible with Philips Advance Xitanium SR
drivers. The device is available with an integrated 4 pin, IP65 and IK09 rated NEMA connector (a 4 pin socket sold separately and which
attaches to the luminaire). When connected to a Philips Advance Xitanium SR LED Driver, the FDP-301SR sensor can be powered from
the driver. The device can be commissioned locally with the Wattstopper Sensor Configuration App or through a compatible network
lighting controller (compatibility pending).
The FDP-301SR is available with two different lens options. The L2 lens provides coverage at a height of up to 15 feet, while the L7 lens
provides coverage for a height of up to 40 feet. The L2 and L7 are multi-cell, multi-tier Fresnel lenses with a 360° view. The coverages shown
in the diagrams are maximum, measured in linear feet. They represent coverage for full-step walking motion, with no barriers or obstacles.
Passive Infrared Sensing in Outdoor Environments
Outdoor environments can have ambient temperature variations that may affect sensor detection and coverage areas. High
temperatures at the covered area (above 80°F) reduce the detection zone of the sensor. Consider adding more sensors if the ambient
temperatures are expected to be high. Additionally, high floor level temperature may require larger movement for detection. In some
cases, sensors mounted above 40' may only detect large heat signatures such as automobiles.
FDP‑L2: 360°
Coverage
24'
The FDP-L2 is designed
for mounting at heights
16'
between 8' to 15'. It
provides a 48' diameter
12'
coverage area when
9'
mounted at a height
0
of 8', or a 78' diameter
9'
coverage area at 15'.
12'
16'
24'
Coverage Side View
0
8'
12'
15'
39' 30' 26' 16.5'
DESCRIPTION AND OPERATION
LENS OPTIONS AND COVERAGE
Coverage Top View @ 8ft.
24' 16' 12' 9' 0 9' 12'
0 16.5' 26' 30' 39'
Wattstopper
Low Voltage, PIR Occupancy Sensor In IP65 Enclosure with DALI
®
and Bluetooth
Détecteur de mouvements à infrarouge passif basse tension dans
boîtier IP65 avec DALI et Bluetooth
Sensor de presencia PIR de bajo voltaje y bajo consumo de
energía en carcasa IP65 con tecnología DALI y Bluetooth
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Input Voltage ................................................................12–20VDC
Power Consumption from DALI Bus .................................... 16mA
Wiring ..........................................................................18–20AWG
Terminal Connection .................................................... SR +, SR –
Operating Temperature ....................... -40F (-40C) to 167F (75C)
Dimensions ............ Diameter 3.26" (83mm), Height 2.04" (52mm)
Enclosure ............................................... IP65 (NEMASTD) , IK09
FDP‑L7: 360°
Coverage
The FDP-L7 has a
lens that covers a 100'
diameter area at a
height of 40'.
48'
16' 24'
0'
15'
27'
40'
50'
®
Low Energy Technology
SPECIFICATIONS
Coverage Top View @40ft
50'
25'
0'
25'
50'
50' 25'
Coverage Side View
40' 30' 20' 10' 0'
100'
0' 25' 50'
10' 20' 30' 40' 50'
