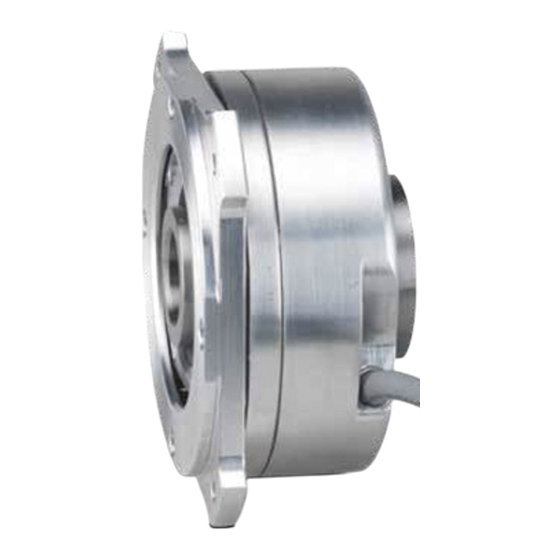

Fagor H2AM-D87-F Installation Manual

Fagor H2AM-D87-F Installation Manual

Angular encoder

Advertisement

Quick Links

ENCODER ANGULAR MODELO: H2AM-D87-F
ANGULAR ENCODER MODEL: H2AM-D87-F
MANUAL DE INSTALACION / INSTALLATION MANUAL
Manual Code: 14460262
Manual Version: 2006

Advertisement

loading
Need help?

Need help?

Do you have a question about the H2AM-D87-F and is the answer not in the manual?

Questions and answers

Summary of Contents for Fagor H2AM-D87-F

  • Page 1 ENCODER ANGULAR MODELO: H2AM-D87-F ANGULAR ENCODER MODEL: H2AM-D87-F MANUAL DE INSTALACION / INSTALLATION MANUAL Manual Code: 14460262 Manual Version: 2006...
  • Page 3: Precaución / Caution

    Precaución / Caution H2AM-D87 - v2006 - página / page 1/12...
  • Page 4 Dimensiones eje hueco D = 20 mm / Dimensions hollow shaft D = 20 mm Posición cero Zero position + 15º H2AM-D87 - v2006 - página / page 2/12...
  • Page 5 Detalle / Detail D Pa = Par de apriete / Tightening torque (**) Material exclusivo suministrado por Fagor. Código indicado para pedido / Exclusive material supplied by Fagor. Code shown for ordering units. H2AM-D87 - v2006 - página / page 3/12...
  • Page 6 Llave de montaje T-20 Mounting wrench T-20 Cod.:82620250 (**) (SW) Tamaño de la llave hexagonal / Size of Allen wrench H2AM-D87 - v2006 - página / page 4/12...
  • Page 7 4 x M3 Pa = 1Nm Rodamiento Bearing 4 x M4 Pa = 2.5Nm 4 x arandela / washer D8/4.3 H2AM-D87 - v2006 - página / page 5/12...
  • Page 8 Dimensiones eje hueco D = 50 mm / Dimensions hollow shaft D = 50 mm Posición cero Zero position + 15º H2AM-D87 - v2006 - página / page 6/12...
  • Page 9 Posibilidades de montaje / Mounting options Retire la etiqueta de protección durante la instalación del encoder. No apriete las levas hasta que el eje no esté completamente insertado en el encoder. Remove the protection label during the installation of the encoder. Do not tighten the cams until the shaft is not completely inserted in the encoder.
  • Page 10 Ayuda de montaje Bearing of mating shaft Suelte la ayuda de montaje una vez que el encoder esté completamente fijo: inserte la llave SW3 y tire Release the mounting aid once the encoder is completely fixed: insert SW3 key and pull ...
  • Page 11 Características eléctricas / Electrical characteristics H2AM-23-D87 H2AM-25-D87 Montaje rígido con fijaciones Alimentación 5 V (3.6...12), 250 mA Power supply Rigid mounting with clamps Resolución / Número posiciones por vuelta 23 bits 25 bits (33 554 432) Resolution / Number of positions per turn (8 388 608) Longitud de cable 30 m / 99 ft...
  • Page 12 H2AM-D87 - v2006 - página / page 10/12...
  • Page 13 Cables para conexión directa de encoders absolutos Fagor a sistemas Mitsubishi Cables for direct connection of Fagor absolute encoders to Mitsubishi systems Conexión directa con cable y conector incluido Direct connection with cable and connector included Modelo / Model encoder: H2AM-...-MB Longitud / length = 1, 3 m Conexión con alargadera...
  • Page 14: Declaración De Conformidad / Declaration Of Conformity

    Condiciones de garantía / Warranty terms Las condiciones de garantía de este producto están disponibles en la zona de descargas del sitio web corporativo de FAGOR. http://www.fagorautomation.com. (Tipo de fichero: Condiciones generales de venta-Garantía). The warranty conditions for this product are available in the downloads section of FAGOR’s corporate website at http://www.fagorautomation.com.
  • Page 16 FAGOR AUTOMATION S. COOP. Bº San Andrés Nº 19 Apdo de correos 144 20500 Arrasate/Mondragón - Spain - Web: www.fagorautomation.com Email: info@fagorautomation.es Tel.: (34) 943 719200 Fax: (34) 943 791712...

This manual is also suitable for:

H2am-23-d87H2am-25-d87
