COMO POSICIONAR EL IMAN DE REFERENCIA
HOW TO POSITION THE REFERENCE MAGNET
Manual code: 14460108
Manual version: 0911
Se recomienda el uso de siliconas neutras.
Neutral silicone should be used.
DIN EN 100
2
Sellar con silicona los extremos de
los labios.
Seal both ends of the lips with silicone.
5
Montar el taco. Prestar atención para
no dañar la junta.
Mount the end-block carefully so as not
to damage the gasket.
FAGOR AUTOMA TION S.COOP.
Bº San Andrés Nº19 – Apdo. de correos 144
20500 Arrasate - Mondragón
Spain
OFF
ON
3
Dar un cordón de silicona en toda la
vuelta en el interior del perfil.
Apply a string of silicone all around inside
the profile.
6
Sellar con silicona las uniones entre
los labios y la junta-taco. Dar un punto
de silicona en el taco.
Seal the union between lips and end-block
gasket with silicone. Apply a drop of
silicone on the end-block.
1
Tras quitar el protector y sacar el porta-imán, mover
el imán a la posición deseada. Volver a meter el
porta-imán.
After taking the protector and the magnet holder out,
place the magnet in the desired position. Insert the
magnet holder again.
1
Tangente
Tangent

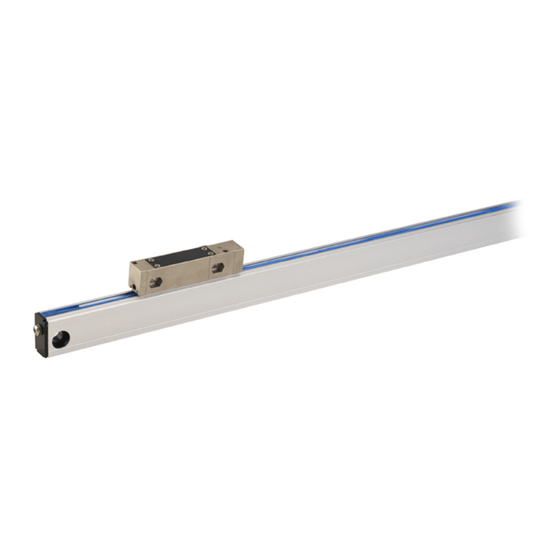

ENCODER LINEAL S
S LINEAR ENCODER
5
2
4
3
4
Dar silicona en la parte superior de
la junta-taco.
Apply silicone on top of the end-block
rubber seal.
7
Bloquear el taco. Limpiar los restos
de silicona.
Push the end-block into the place. Clean
the excess silicone off.
Click
Tel. 34-943 71 92 00
Fax 34-943 79 17 12
www.f agorautomation.com
E-mail inf o@f agorautomation.es
