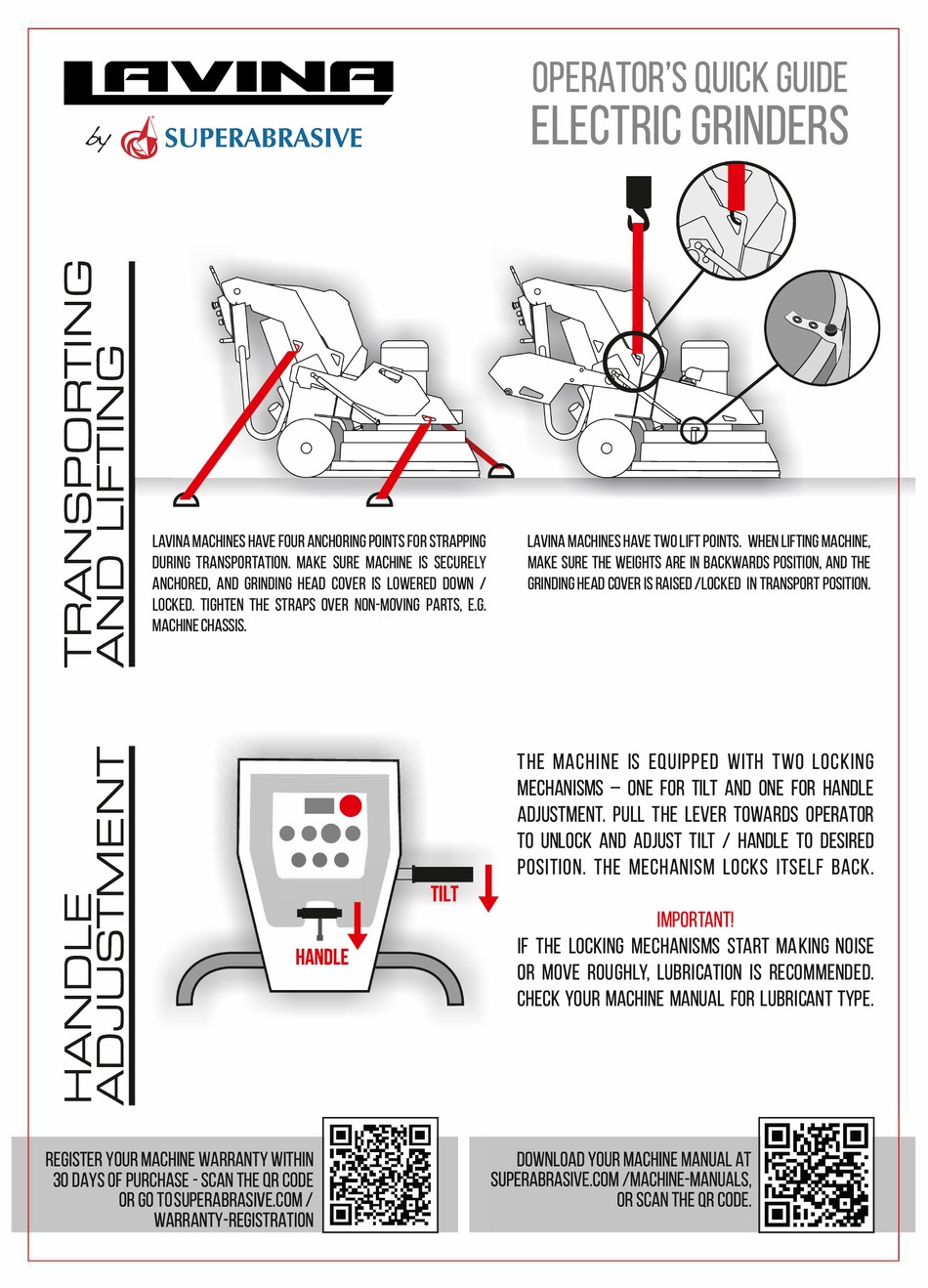

Superabrasive LAVINA Operator's Quick Manual

LAVINA MACHINES HAVE FOUR ANCHORING POINTS FOR STRAPPING
DURING TRANSPORTATION. MAKE SURE MACHINE IS SECURELY
ANCHORED, AND GRINDING HEAD COVER IS LOWERED DOWN /
LOCKED. TIGHTEN THE STRAPS OVER NON-MOVING PARTS, E.G.
MACHINE CHASSIS.
REGISTER YOUR MACHINE WARRANTY WITHIN
30 DAYS OF PURCHASE - SCAN THE OR CODE
OR GO TO SUPERABRASIVE.COM /
WARRANTY-REGISTRATION
-·
••••
•••
OPERATOR'S QUICK GUIDE
ELECTRIC GRINDERS
LAVINA MACHINES HAVE TWO LIFT POINTS. WHEN LIFTING MACHINE,
MAKE SURE THE WEIGHTS ARE IN BACKWARDS POSITION, AND THE
GRINDING HEAD COVER IS RAISED /LOCKED IN TRANSPORT POSITION.
THE MACHINE IS EQUIPPED WITH TWO LOCKING
MECHANISMS - ONE FOR TILT ANO ONE FOR HANDLE
ADJUSTMENT. PULL THE LEVER TOWARDS OPERATOR
TO UNLOCK ANO ADJUST TILT / HANDLE TO DESIRE
POSITION. THE MECHANISM LOCKS ITSELF BACK.
IMPORTANT!
IF THE LOCKING MECHANISMS START MAKING NOISE
OR MOVE ROUGHLY, LUBRICATION IS RECOMMENDED.
CHECK YOUR MACHINE MANUAL FOR LUBRICANT TYPE.
□
